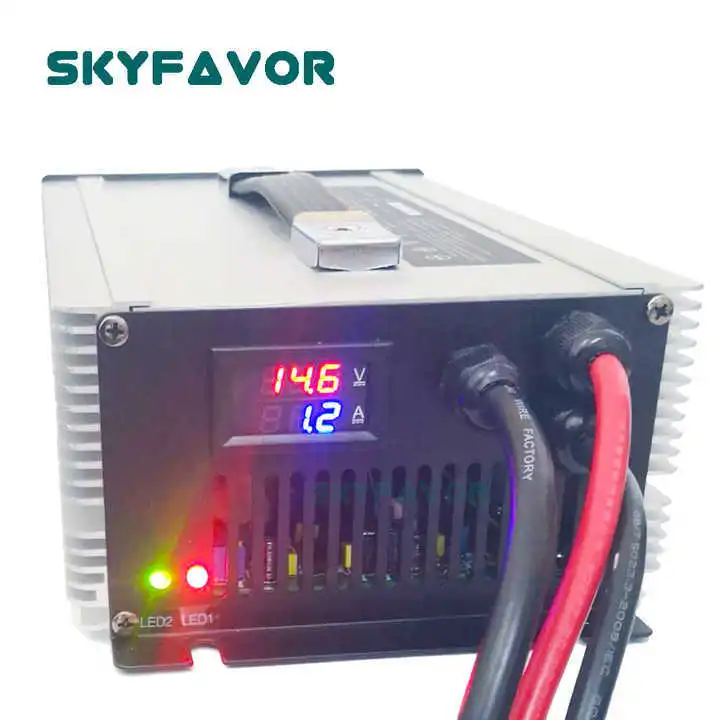

Custom professional 18A 28S 84V lifepo4 battery charger 102.2V 28S lifepo4 battery pack charger for lifepo4 battery with display

The Custom professional 18A 28S 84V lifepo4 battery charger 102.2V 28S lifepo4 battery pack charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

   Input Voltage: 110Vac or 230Vac input AC voltage

   Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

   Constant Charging Voltage:102.2V(for 84V 28S Lifepo4 battery)

  C:Charging Mode:Custom professional 18A 28S 84V lifepo4 battery charger 102.2V 28S lifepo4 battery pack charger

   3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

   Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

   Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

   Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection   The battery charger will be auto recovered when faults remove

Over Current Protection   Charger output current does not exceed the set maximum battery charging current.48V 10A Lead acid battery cherger 58.8V 10A charger

 Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

 reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:Custom professional 18A 28S 84V lifepo4 battery charger 102.2V 28S lifepo4 battery pack charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.
