Customized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery Chargers

Key attributes

port
DC
output
72V 10A 60V 12A 48V 15A 36V 18A
input
110v or 230v
function
72V 10A 60V 12A 48V 15A 36V 18A
output power
900w
protection
Short Circuit Protection, ovp, OTP, OLP, ocp, Over-charging, Overcurrent, Overvoltage
usage
battery pack
type
Electric
material
Aluminum case
model number
DL-900W
place of origin
Guangdong, China
brand name
SKYFAVOR
Output
72V 10A 60V 12A 48V 15A 36V 18A
Input
AC 110v or 220v
Size
220X135X70
Weight
2KG
Use
FOR lead acid battery pack,lithium battery pack,lifepo4 battery pack
Certification
ce

Packaging and delivery

Selling Units
Single item
Single package size
31X16X8 cm
Single gross weight
4.200 kg


Get Quote

Description

(battery charger) Customized Professional waterproof battery charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic battery chargers

Important Note:

We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!

12V 40A 24V 25A 36V 18A 48V 15A 60V 12A 72V 10A battery charger

Custom battery charger requires the following information:

1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?

2. Battery capacity:

3. Input AC voltage:

4. Input plug:

5. Output voltage:

6. Output current:

7. Output plug:

For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug

(Please specify whether the Anderson 50A plug is gray or red.)



We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.

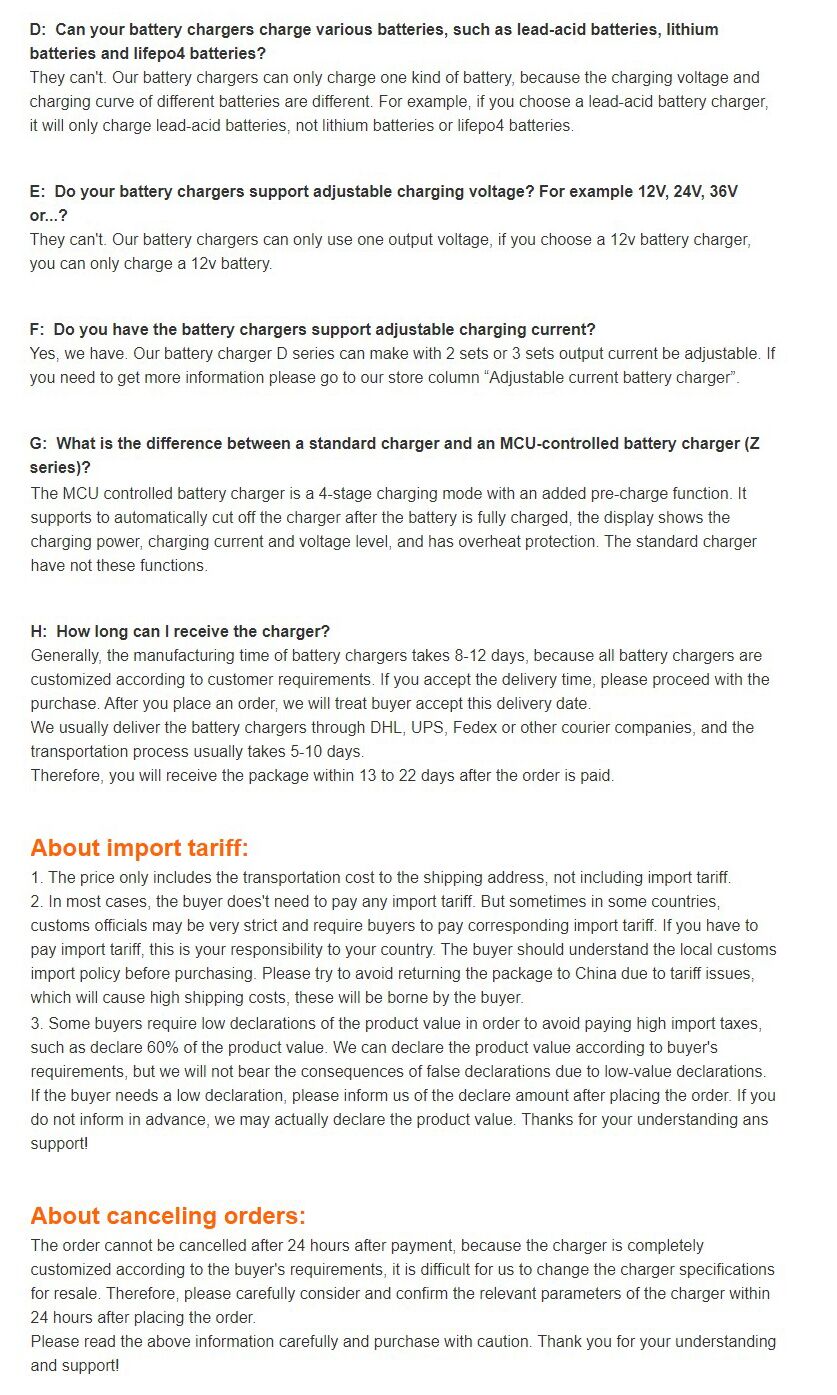

Before purchasing our battery chargers, please read the following questions and answers carefully:

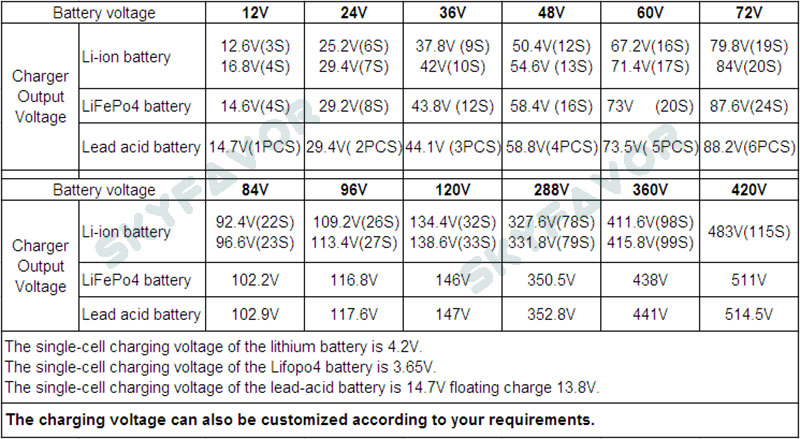

A: How to choose the suitable charging voltage for the battery?

Customized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery Chargers



12V 40A 24V 25A 36V 18A 48V 15A 60V 12A 72V 10A battery charger

B: How to choose the suitable charging current for the battery?

Battery Type

Battery Capacity

(For example)

Suitable charging current rate

Suitable charging current

Lead acid battery

120ah

1/10

12A

Lithium battery

120ah

1/3

40A

Lifepo4 battery

120ah

1/4

30A

12V 40A 24V 25A 36V 18A 48V 15A 60V 12A 72V 10A battery charger

CHow to choose the suitable charger for the battery?

Smart Automatic battery charger list

Model

 Charging voltage&current for reference

 N.W. (KG)

  Size(mm)

12V

24V

36V

48V

60V

72V

84V

120W

7A

4A

2.5A

1.8A

1.5A

_

_

0.7

135x90x50

180W

10A

5A

3.5A

2.5A

2A

1.5A

_

0.9

155x90x50

240W

15A

7.5A

5A

3.8A

3A

2.5A

_

1

170x90x50

360W

20A

12A

8A

6A

4.5A

4A

_

1.2

170x90x63

600W

25A

19A

12A

9A

7A

6A

_

2.5

207x120x70

900W

40A

25A

18A

15A

12A

10A

_

3

220x135x70

900WB

40A

25A

18A

15A

12A

10A

8A

3.5

260x175x90

1200W

50A

30A

20A

19A

15A

12A

10A

4.5

260x175x90

1500W

60A

45A

30A

24A

19A

16A

14A

5.5

300x175x90

2000W

90A

60A

40A

30A

25A

20A

18A

6.5

330x175x115

2500W

-

75A

50A

40A

30A

25A

22A

7

380x240x150

4000W

150A

100A

80A

60A

45A

40A

35A

11

340x235x110



Customized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery Chargers

Customized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery Chargers



Customized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery Chargers



The following 72V 10A charger as an example to introduce specific parameters:

The 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A waterproof battery chargers has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

   Input Voltage: 110Vac or 230Vac input AC voltage

   Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

   Constant Charging Voltage:79.8V(for 19S lithium battery)/84V (for 20S Li-ion battery),

                                               87.6V(for 24S LiFePo4 battery),

                                               88.2V(for 72V Lead acid battery)

C:Charging Mode:12V 40A 24V 25A 36V 18A 48V 15A 60V 12A 72V 10A battery charger

   3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

   Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

   Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

   Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection   The battery charger will be auto recovered when faults remove

Over Current Protection   Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

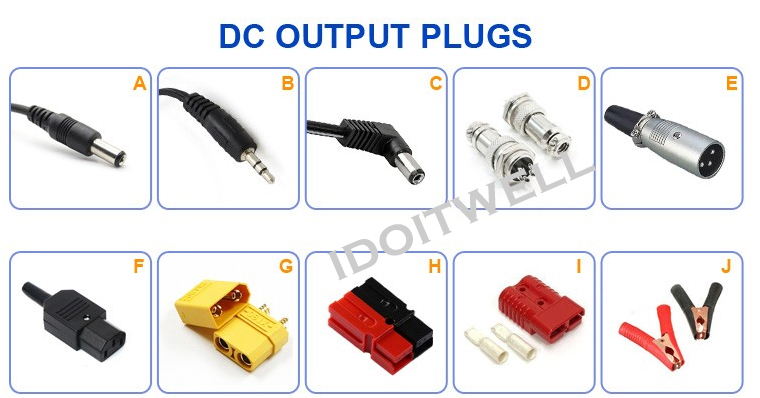

F:DC Connector Dimension:12V 40A 24V 25A 36V 18A 48V 15A 60V 12A 72V 10A battery charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A waterproof battery chargers

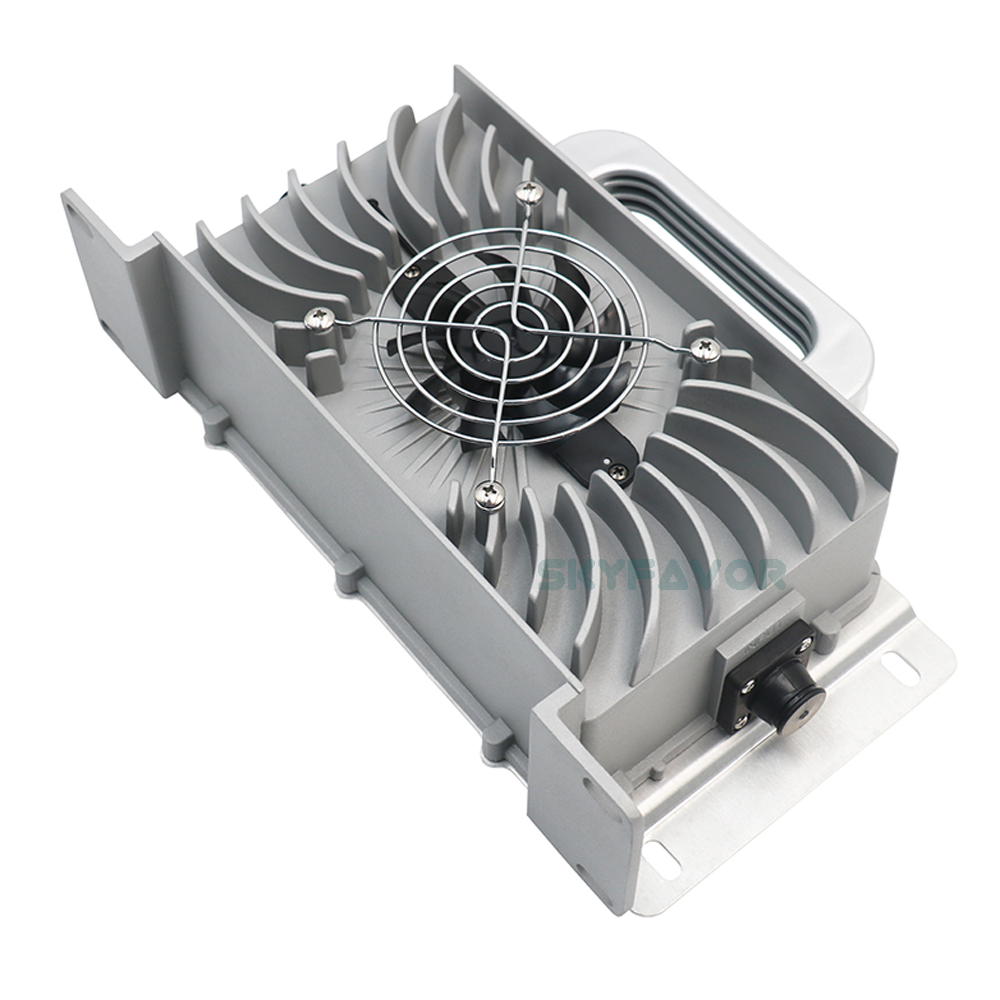

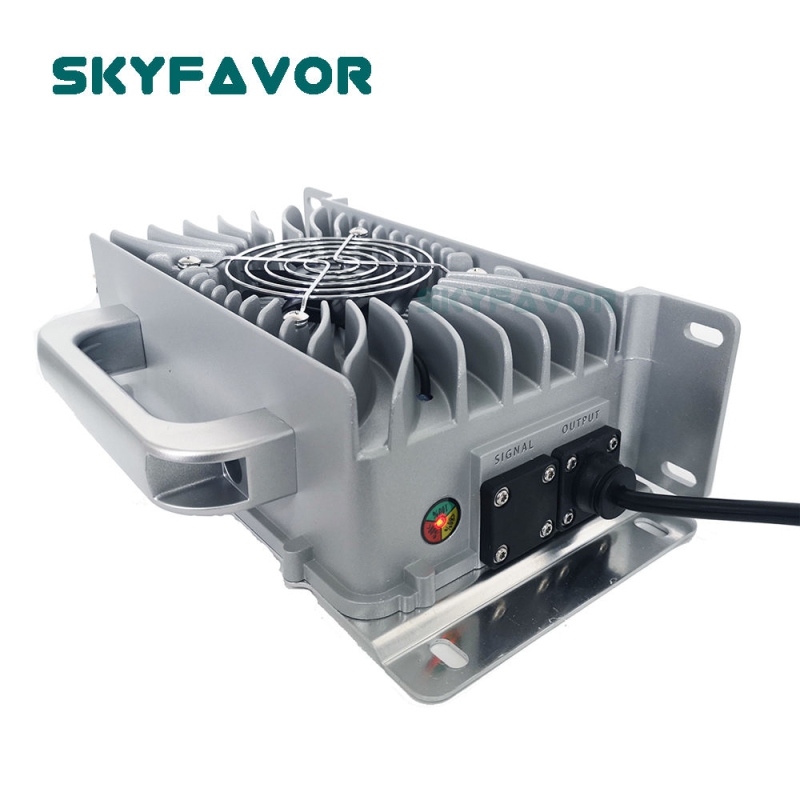

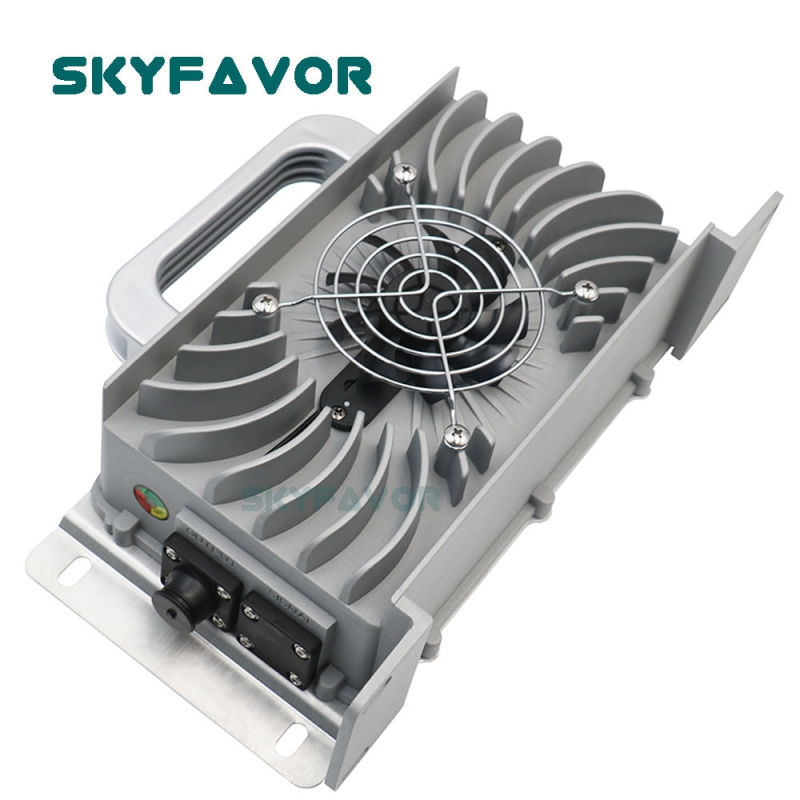

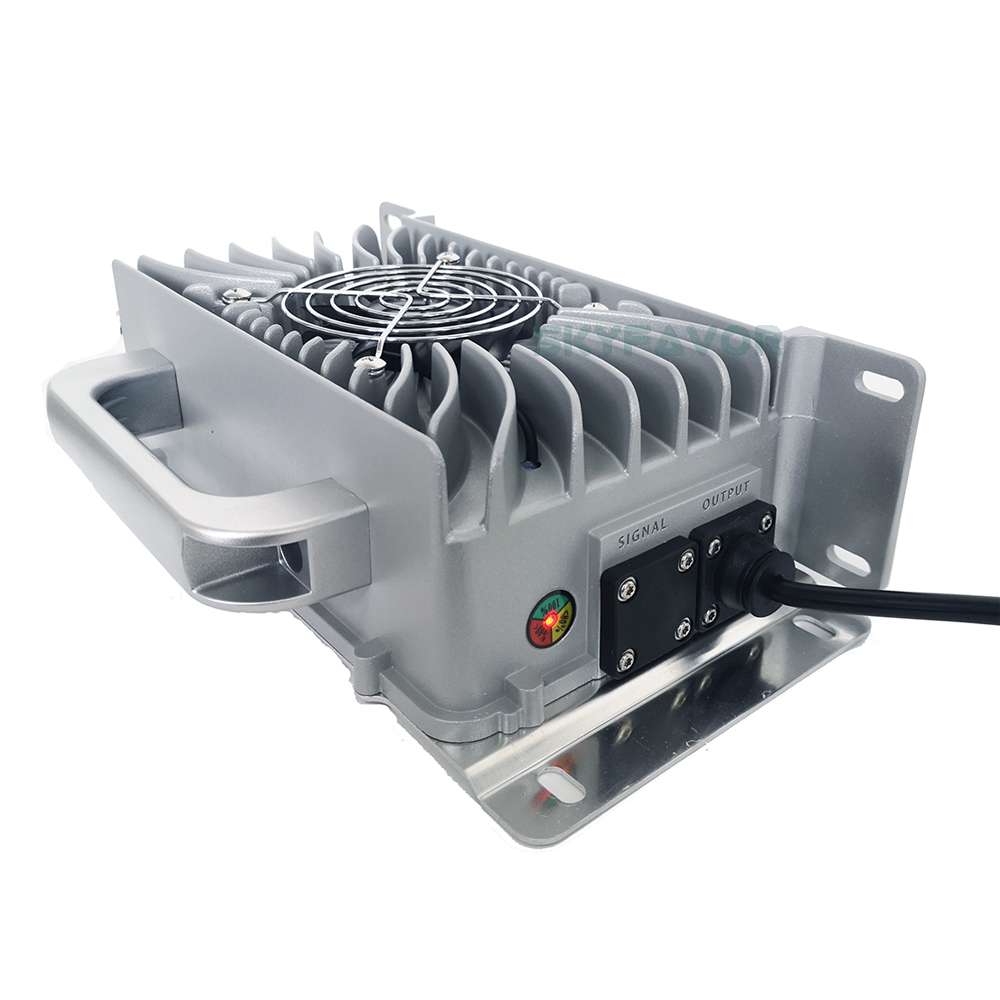

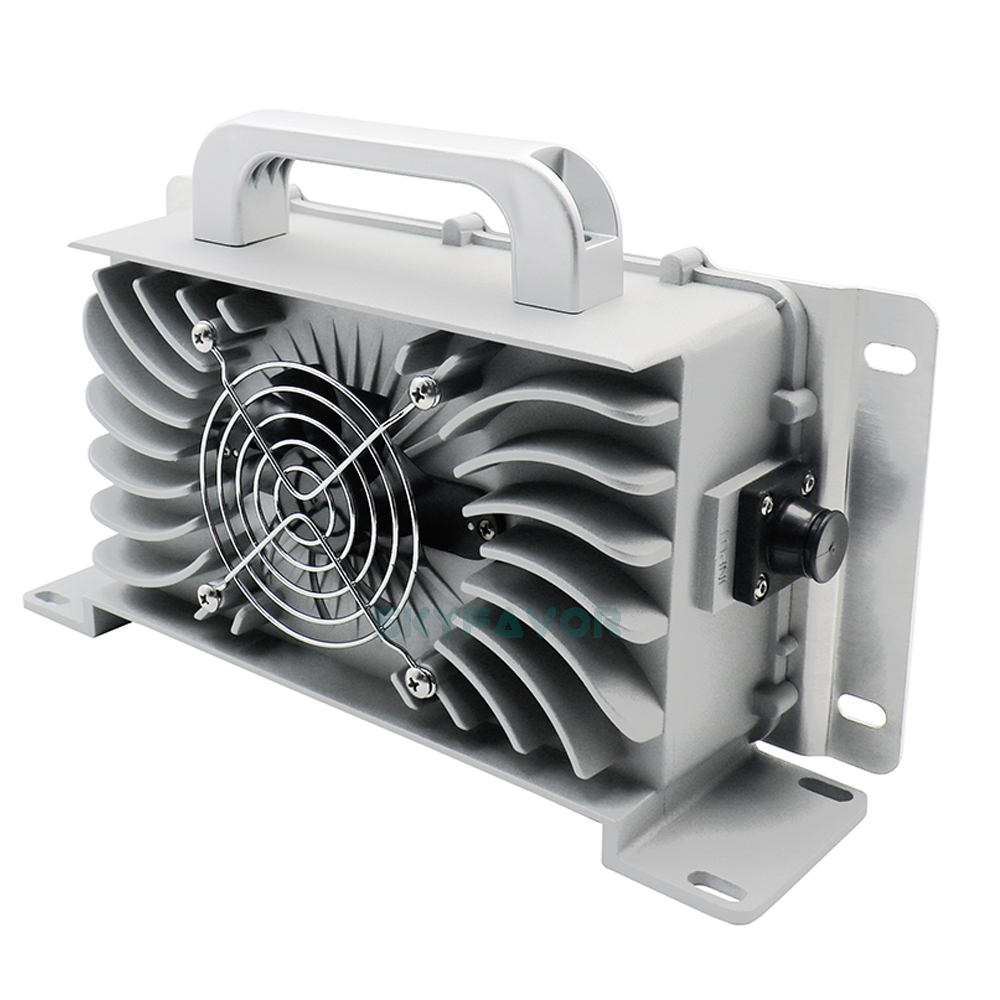

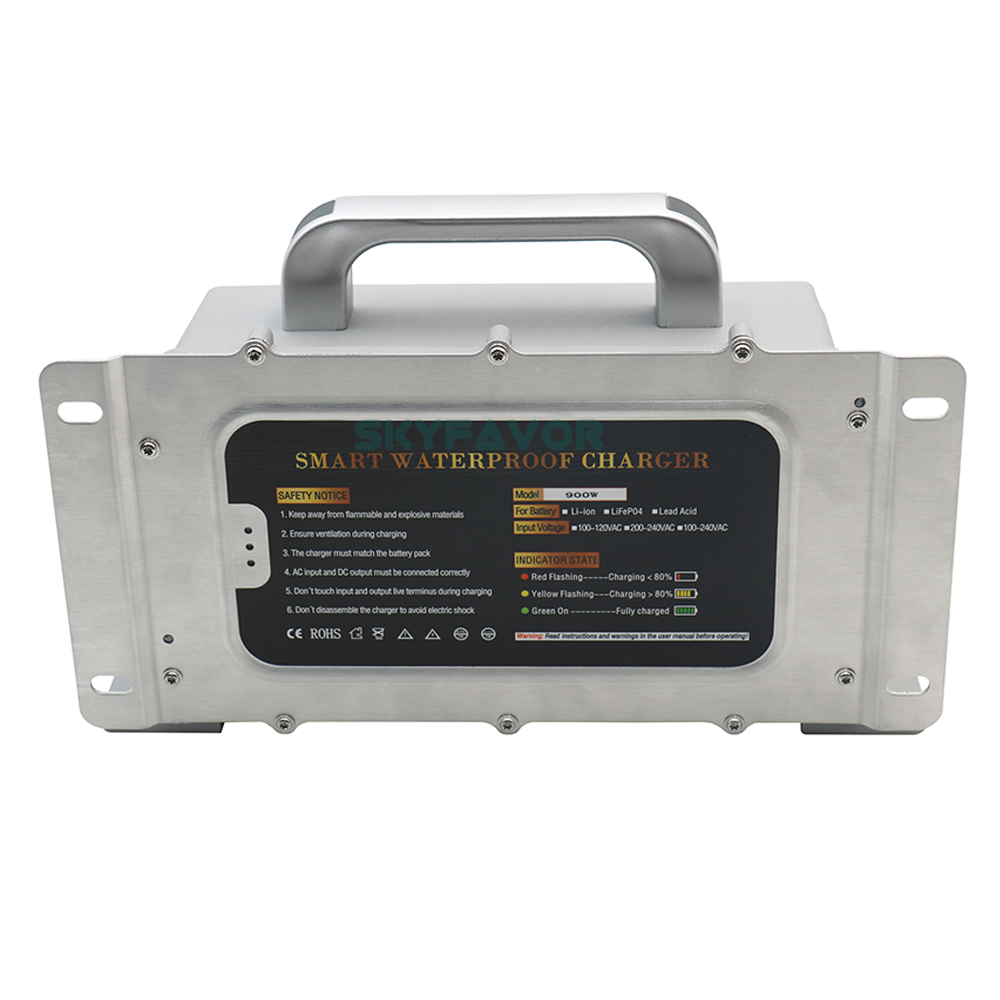

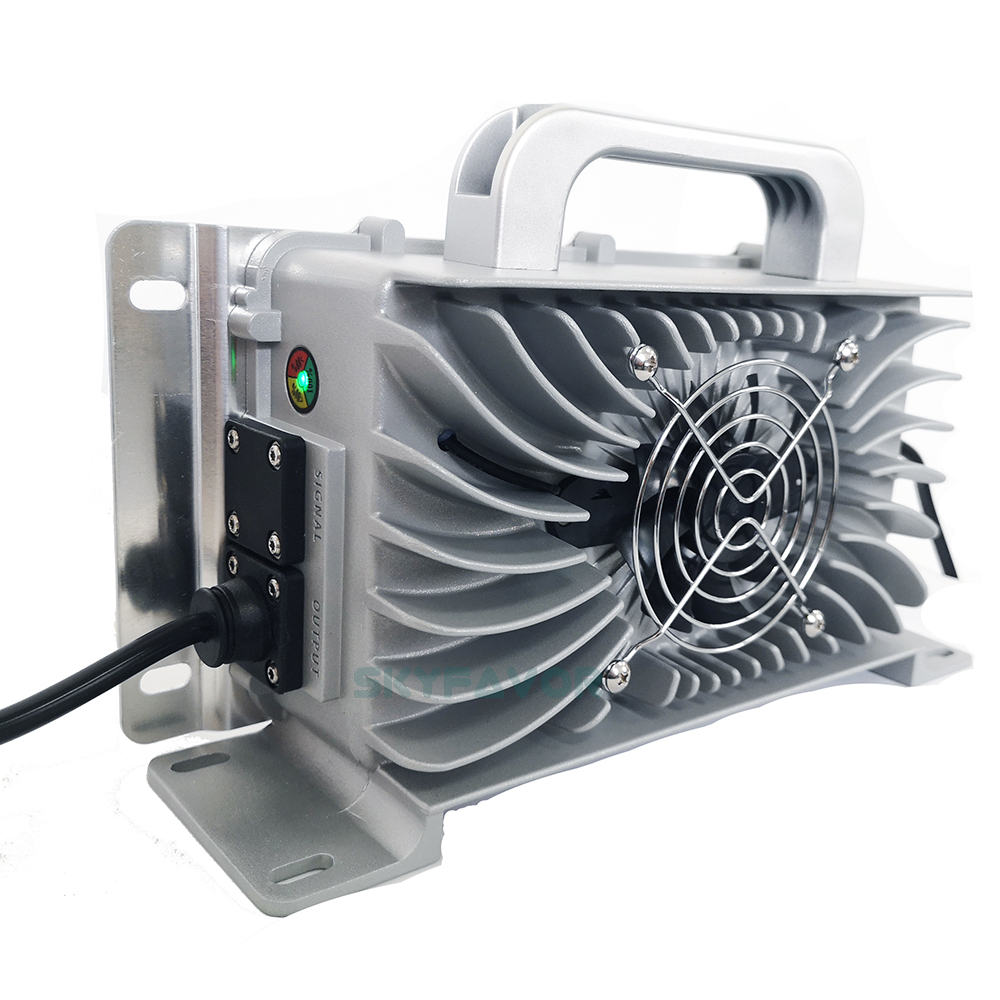

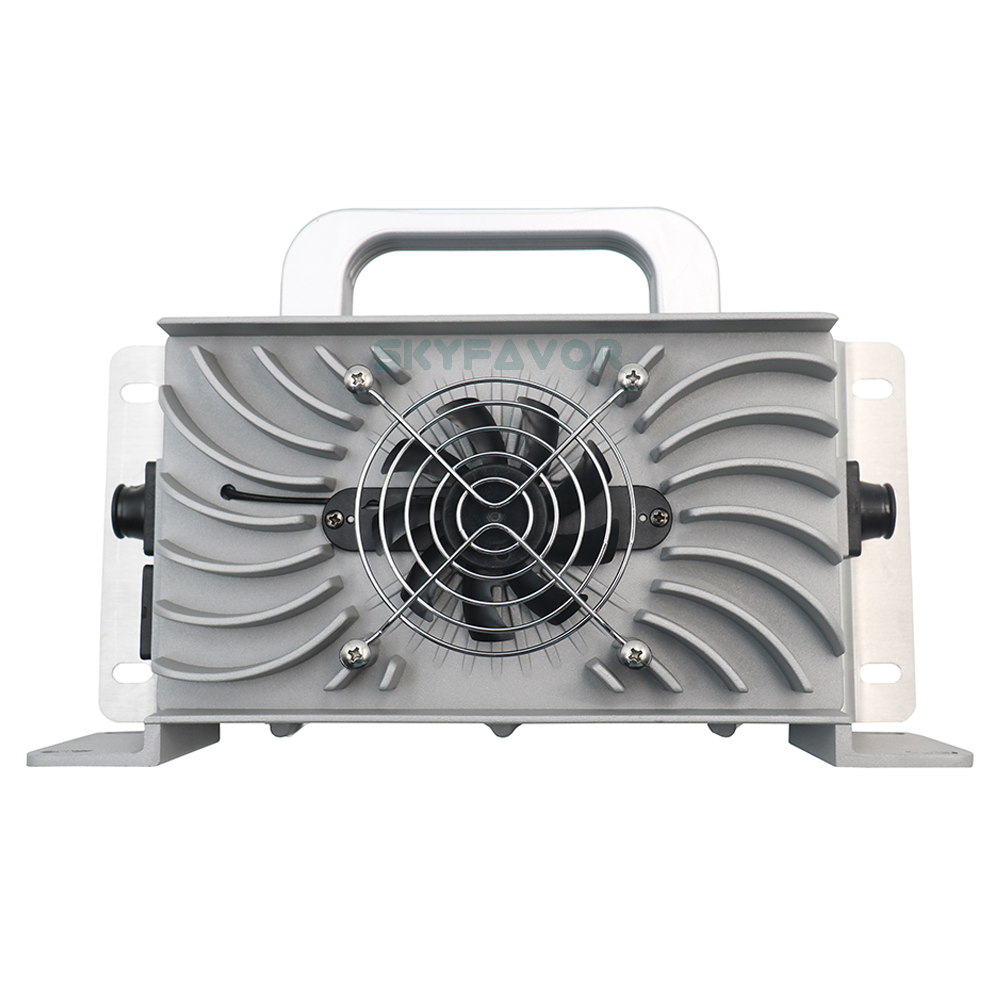

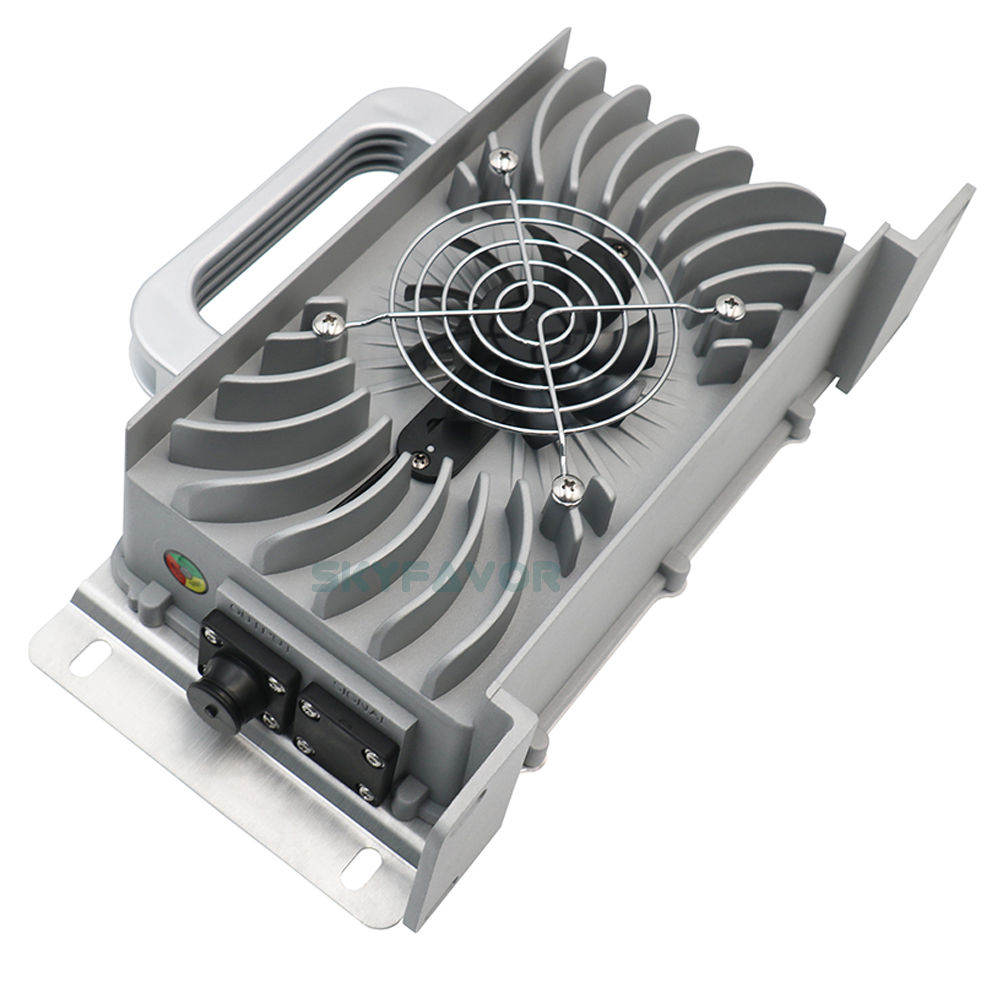

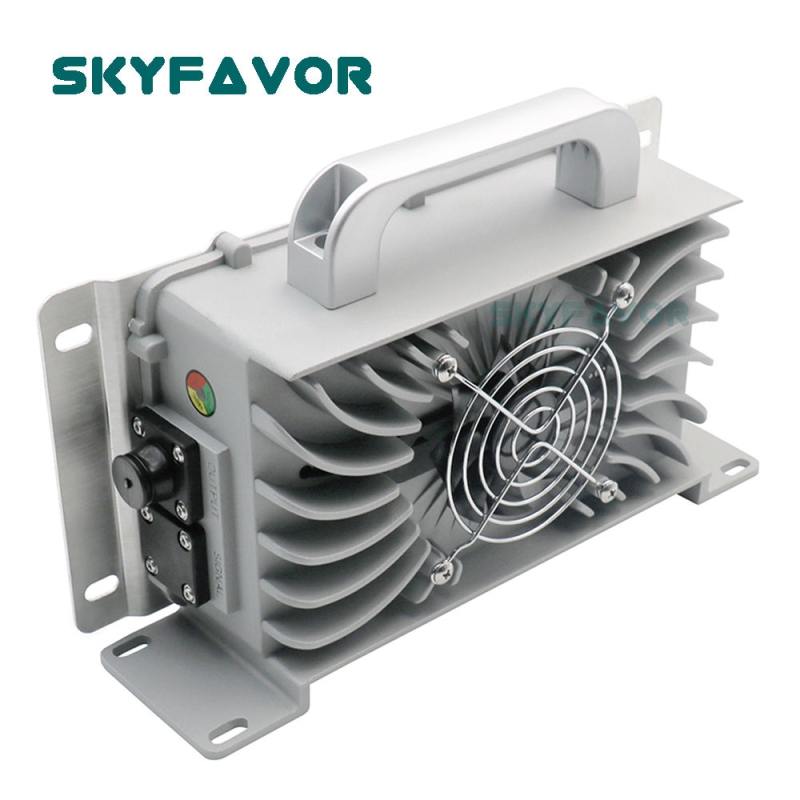

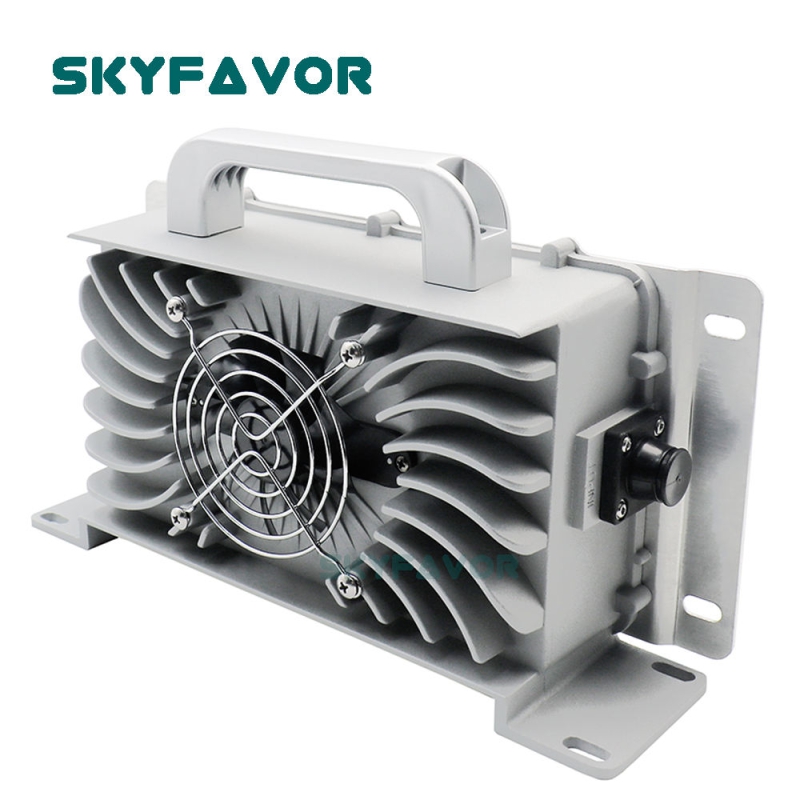

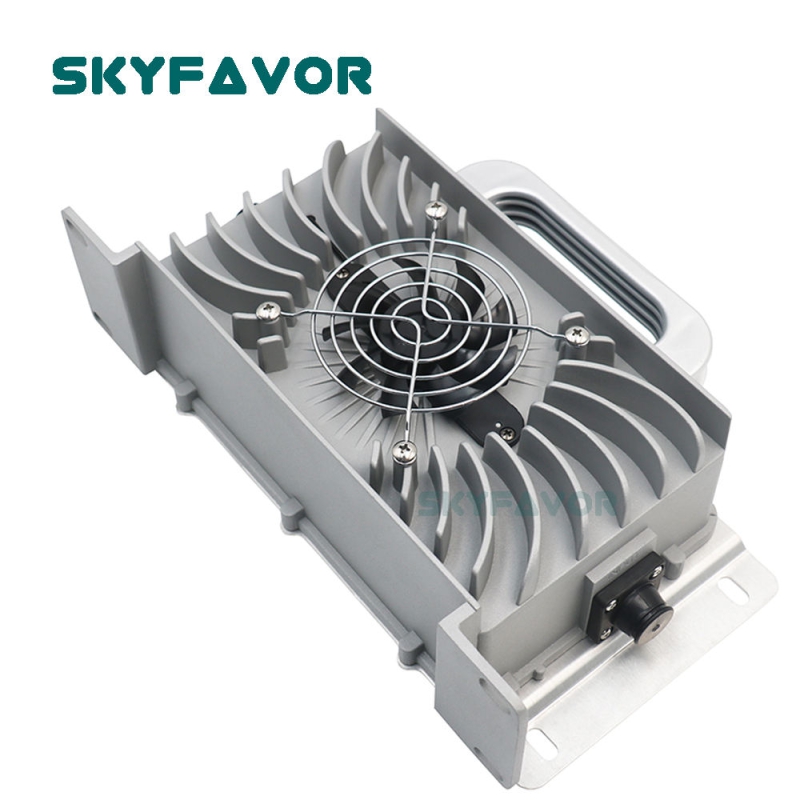

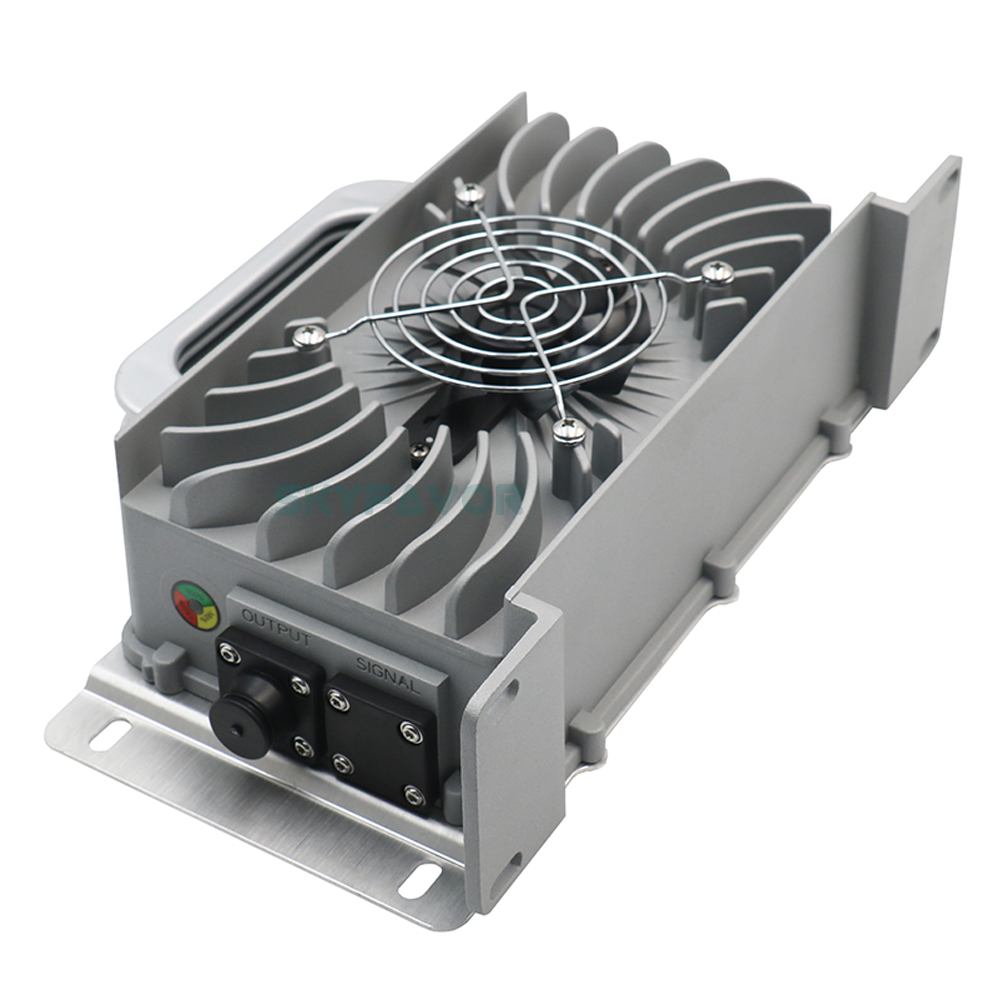

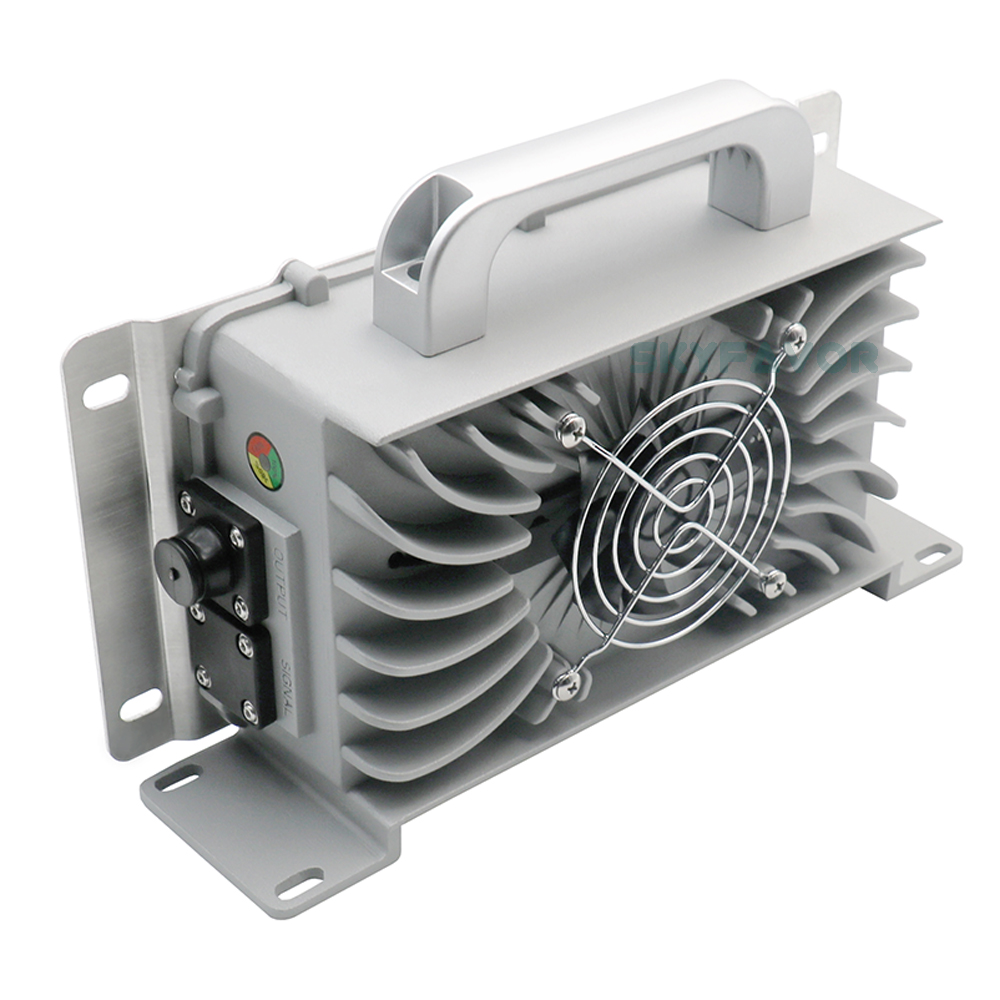

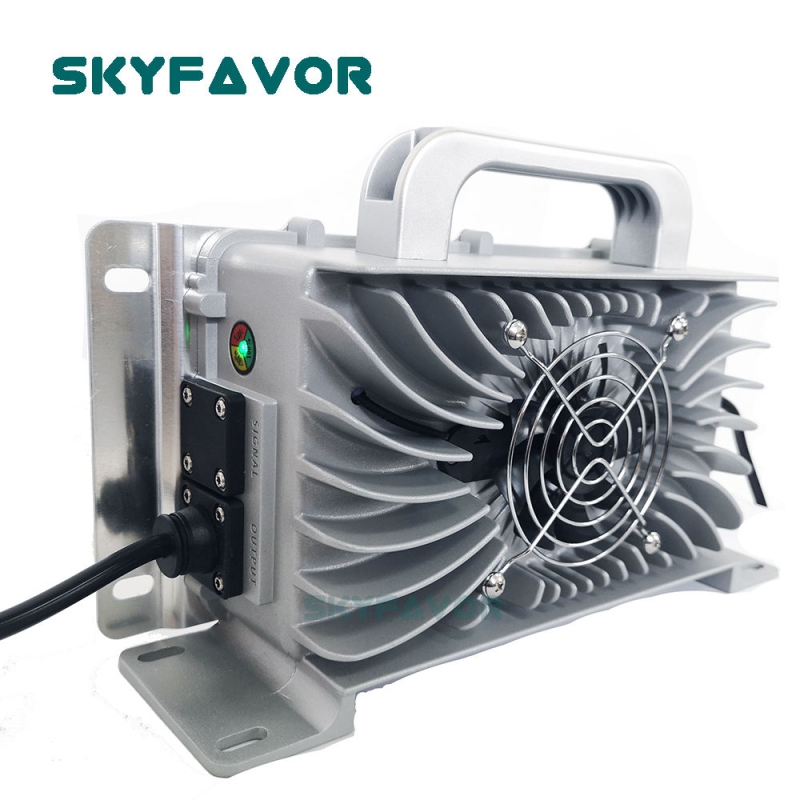

Product picture

Customized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery ChargersCustomized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery ChargersCustomized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery ChargersCustomized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery ChargersCustomized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery ChargersCustomized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery ChargersCustomized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery ChargersCustomized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery Chargers

 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A waterproof battery chargers

Alternative connections

Customized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery ChargersCustomized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery Chargers

 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A waterproof battery chargers

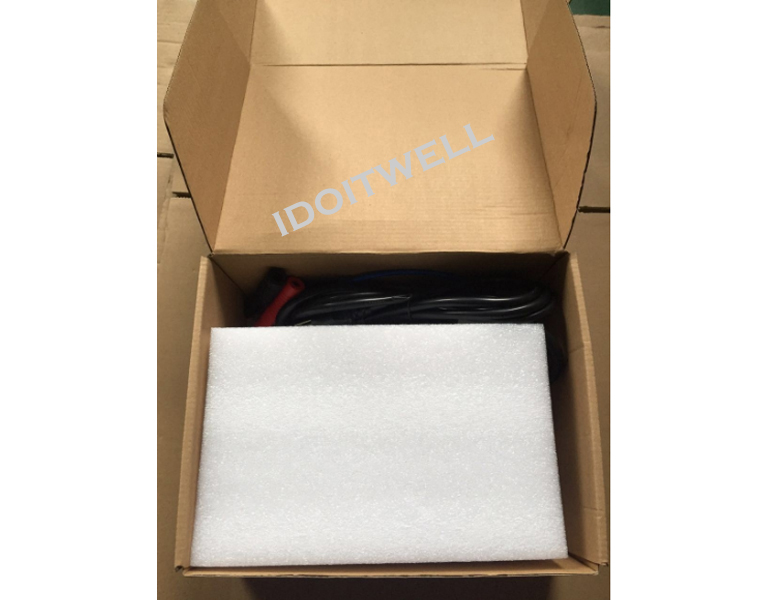

Package include

1 x Battery charger

1 x User Manual

Customized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery ChargersCustomized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery Chargers



 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A waterproof battery chargers
About Product:

1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.

2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.

Feedback:

1. If you are satisfied with our battery charger, Please take a minute to leave us your positive feedback. We depend on customers' satisfaction to succeed. Therefore your positive feedback of 5 STARS is extremely important for us.

2. If you are not satisfied with our battery charger, Please Do not leave any negative feedback before contacting with us. We will do all we can and work with you to solve any problems.

12V 40A 24V 25A 36V 18A 48V 15A 60V 12A 72V 10A battery charger

Shipment:

1. We provide all kinds different shipment services for different request as follow:

First: alibaba Standard Shipping:

It’s a shipping system made by aliexpress, absolutely faster and more secure than china post or Netherlands postal, AliExpress Standard Shipping system will choose the fastest shipping way according to your country and the product you buy, we promise all the shipping cost is real.

Delivery time (According to our experience):

To Russian : 15-25 days.

To Europe (such as Italy/United Kingdom/Spain/Netherlands/Belarus/France....): 18-28 days.

To Asia (such as India/Singapore/Israel/Turkey/Saudi Arabia...): 15-21 days.

To North America (such as Canada /United States/Mexico(Mecixo may take more 7 days )...): 14-20 days.

To Oceania (such as Australia /New Zealand...) : 15-23 days.

To South America (such as Argentina /Brazil /Chile /Peru /Colombia...) : 35-48 days.

To Africa(such as South Africa /Egypt/Cameroon /Algeria /Kenya...) : 28-35days.

But Due to the customs or other problems, such as local weather problem, it may take more 20-26 days, So it is need your enough

patience to wait the sensor night light. And when you choose this shipment way, Then we think you agree to accept this delay if happen.

if the Protection sensor night light is going end, and you have not received the goods, please contact us to extend the time.

Second: Non-free shipping-- DHL,UPS, FEDEX, TNT, It take about 3-7 work days;

If you need DHL,UPS, FEDEX, TNT, pls contact us, we will help you.

2. Please confirm the shipment way and payment, and we will deliver the products in 1-3 working days after we receive the payment. And the tracking number will be given at the first time.

3. Import duties, taxes or other customs cost.

In most cases, the buyer don’t need to pay any import taxes. We will declare it as a battery charger gift.But sometimes in some countries, the customs officer may be strict. we are not accountable for any customs fee. Please check out the customs policy at your own place. If you have to pay the customs fees, it is your duty to your own country, the buyer should understand this situation.

Return and Refund policy:

1. We support no reason return and change item policy, but buyer need to pay full cost for two way transports (include the shipping, taxes and customs cost etc.) and keep the item in good condition, otherwise we will keep right to refuse the refund and return. All the return policy must be apply within 3 days (the time point start from buyer receive the item).

2. If the buyer receive wrong and problem items, please contact us within 3 days, and provide the confirmation proof through Video or Photos. When the item is judged as our responsibility, we provide the refund and return policy. If the item can be accepted and repaired in domestic we will take a part of refund. If can not be repaired or broken totally, we will refund the full money or change a new one to buyer when we receive the wrong or problems items.

3. When the refund policy can not solve problems, we accept the return policy, but for return policy buyer need to afford one way cost (the shipping, taxes and customs cost from your country to us), and when we receive the return items we will refund the money.

We are not recommending the return policy, because that cause high cost for both of us.

Contact Us:12V 40A 24V 25A 36V 18A 48V 15A 60V 12A 72V 10A battery charger

1. Before place order, firstly please take a moment to read all the information provided here where your most questions' answers are.

2. You can contact with us by trade manager or by email, we track the message everyday.

Customized Professional Waterproof Battery Charger 12V 35A 24V 25A 36V 20A 48V 15A 60V 12A 72V 10A Automatic Battery Chargers
