Custom 48V Lithium Battery Charger 48V 15A Led Display Smart Automatic 12S 50.4V or 13S 54.6V Lithium Li Ion Battery Chargers

Key attributes

port

output

48V 15A

input

110V or 230V

function

Customized 48V battery charger

output power

900W

protection

Short Circuit Protection, ovp, OTP, OLP, ocp, Over-charging, Overcurrent, Overvoltage

usage

for 48V lithium battery charger

type

Electric

material

Aluminum case

model number

DL-900W

place of origin

Guangdong, China

brand name

SKYFAVOR

Output

48V 15A

Input

AC 100-240V 50/60Hz

Size

220X135X70cm

Weight

2.5kg

Connection

Plug In

Use

FOR lead acid battery pack,lithium battery pack,lifepo4 battery pack

Certification

Packaging and delivery

Selling Units

Single item

Single package size

31X24X13 cm

Single gross weight

3.000 kg

Get Quote

Description

(battery charger)Custom 48V lithium battery charger 48V 15A led display smart automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

Important Note:

We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

Custom battery charger requires the following information:

1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?

2. Battery capacity:

3. Input AC voltage:

4. Input plug:

5. Output voltage:

6. Output current:

7. Output plug:

For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug

(Please specify whether the Anderson 50A plug is gray or red.)

We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.

Before purchasing our battery chargers, please read the following questions and answers carefully:

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

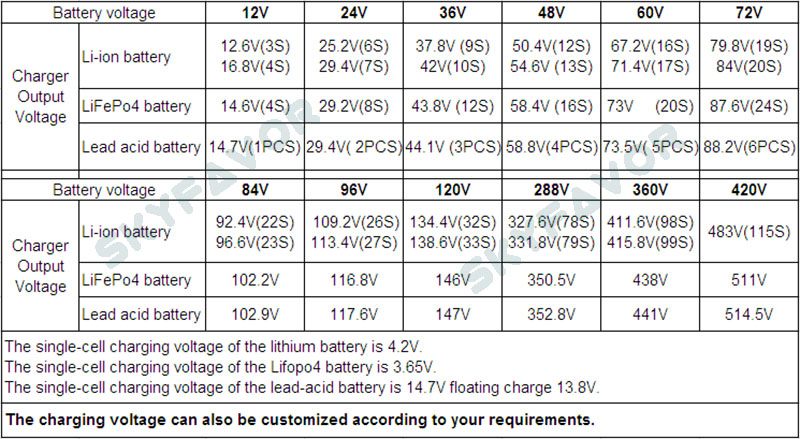

A: How to choose the suitable charging voltage for the battery?Customized 12V 50A 24V 30A 36V 20A 48V 20A 60V 15A 72V 12A battery charger

Custom 48V Lithium Battery Charger 48V 15A Led Display Smart Automatic 12S 50.4V or 13S 54.6V Lithium Li Ion Battery Chargers

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

B: How to choose the suitable charging current for the battery?

Battery Type	Battery Capacity (For example)	Suitable charging current rate	Suitable charging current
Lead acid battery	120ah	1/10	12A
Lithium battery	120ah	1/3	40A
Lifepo4 battery	120ah	1/4	30A

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

C: How to choose the suitable charger for the battery?

Smart Automatic battery charger list
Model	Charging voltage&current for reference							N.W. (KG)	Size(mm)
Model	12V	24V	36V	48V	60V	72V	84V	N.W. (KG)	Size(mm)
120W	7A	4A	2.5A	1.8A	1.5A	_	_	0.7	135x90x50
180W	10A	5A	3.5A	2.5A	2A	1.5A	_	0.9	155x90x50
240W	15A	7.5A	5A	3.8A	3A	2.5A	_	1	170x90x50
360W	20A	12A	8A	6A	4.5A	4A	_	1.2	170x90x63
600W	25A	19A	12A	9A	7A	6A	_	2.5	207x120x70
900W	40A	25A	18A	15A	12A	10A	_	3	220x135x70
900WB	40A	25A	18A	15A	12A	10A	8A	3.5	260x175x90
1200W	50A	30A	20A	19A	15A	12A	10A	4.5	260x175x90
1500W	60A	45A	30A	24A	19A	16A	14A	5.5	300x175x90
2000W	90A	60A	40A	30A	25A	20A	18A	6.5	330x175x115
2500W	-	75A	50A	40A	30A	25A	22A	7	380x240x150
4000W	150A	100A	80A	60A	45A	40A	35A	11	400x300x200

Customized 12V 50A 24V 30A 36V 20A 48V 20A 60V 15A 72V 12A battery charger

Custom 48V Lithium Battery Charger 48V 15A Led Display Smart Automatic 12S 50.4V or 13S 54.6V Lithium Li Ion Battery Chargers

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

The 48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 110Vac or 230Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

Constant Charging Voltage: 50.4V(for 12S Li-ion battery)/54.6V(for 13S Li-ion battery)

C:Charging Mode:72V series 79.8V 84V 87.6V 88.2V 10A battery charger

3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection The battery charger will be auto recovered when faults remove

Over Current Protection Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

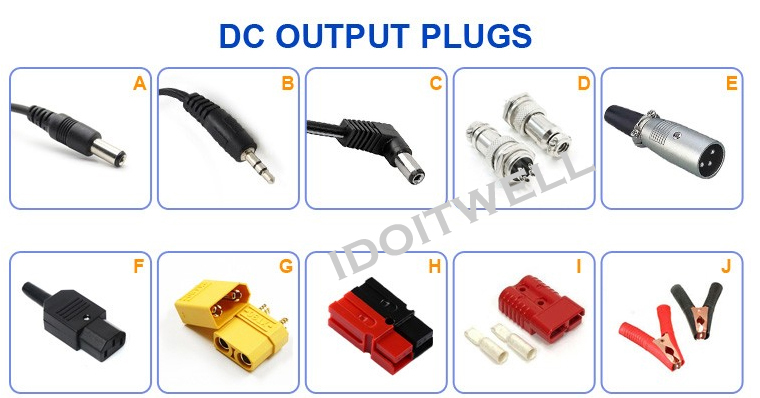

F:DC Connector Dimension:72V series 79.8V 84V 87.6V 88.2V 10A battery charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

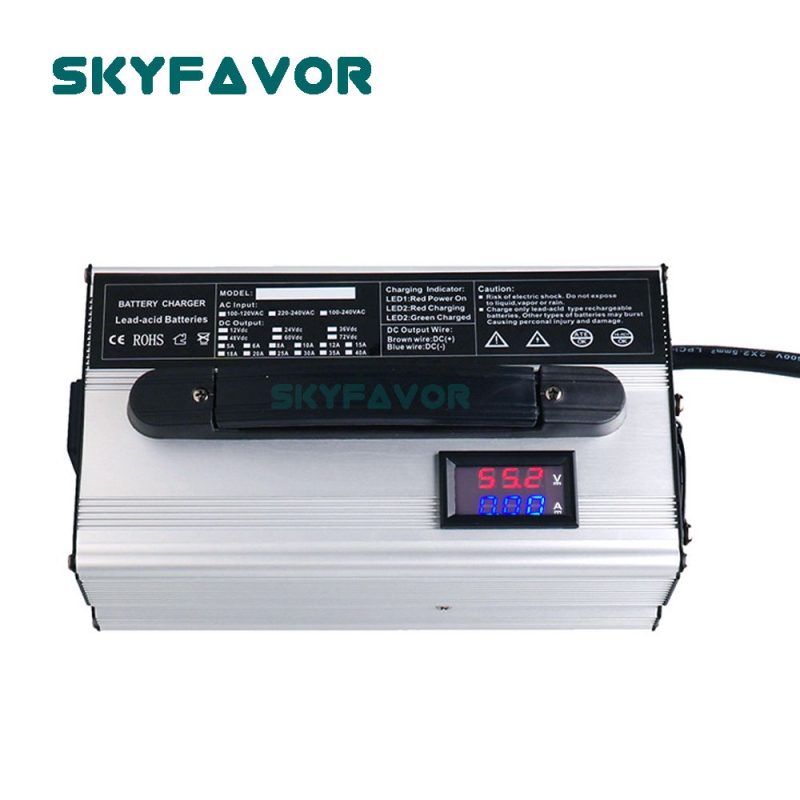

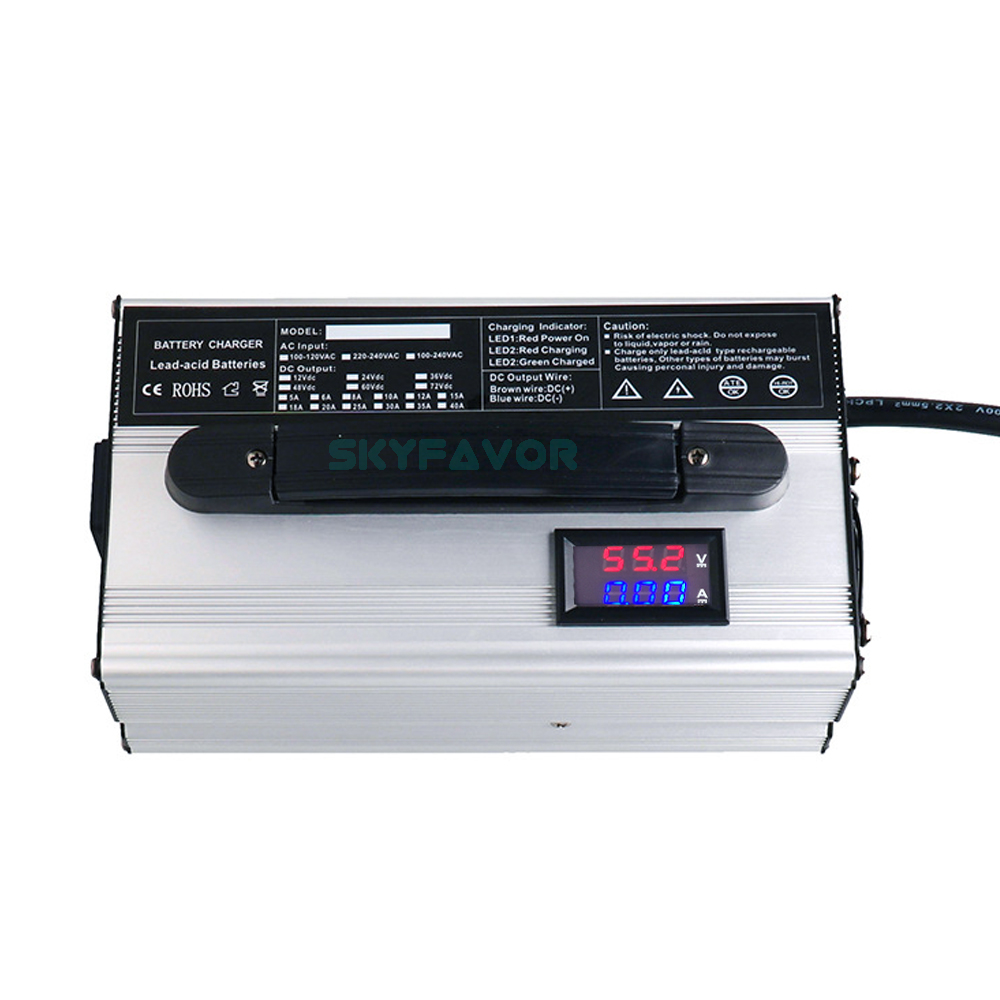

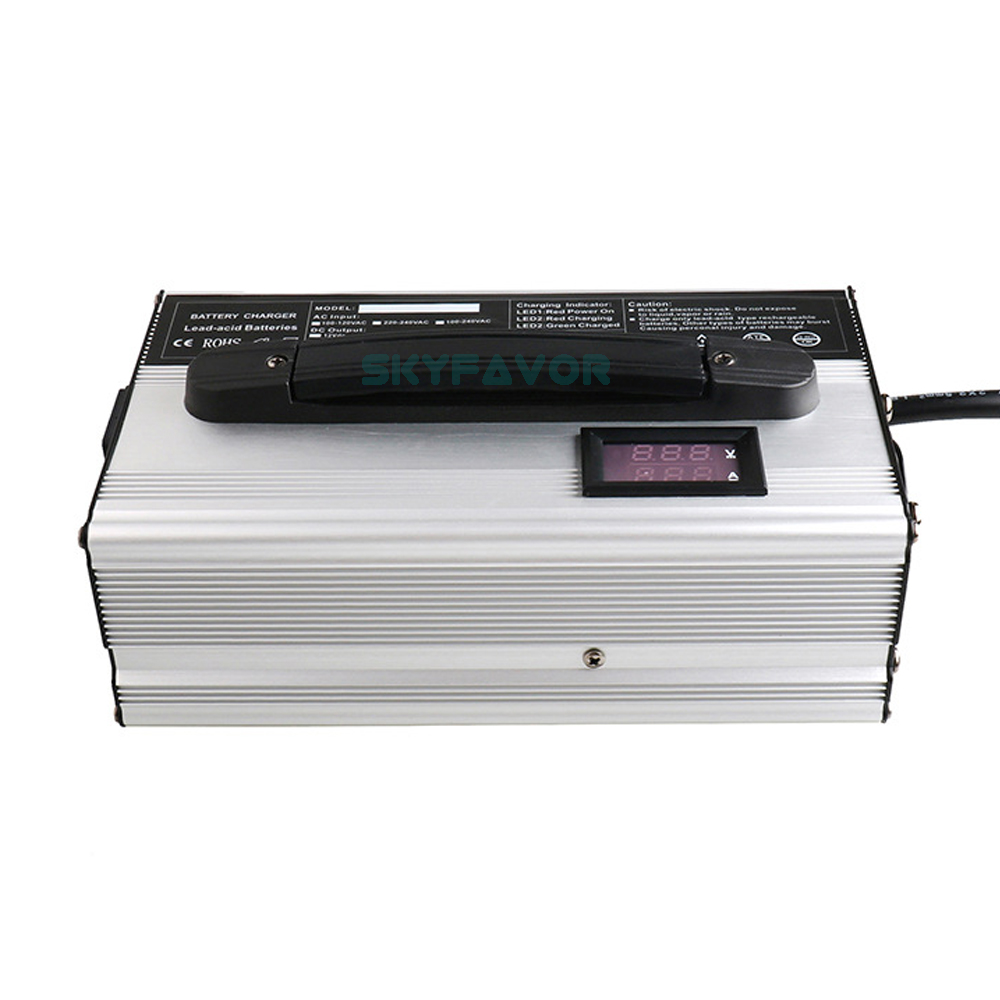

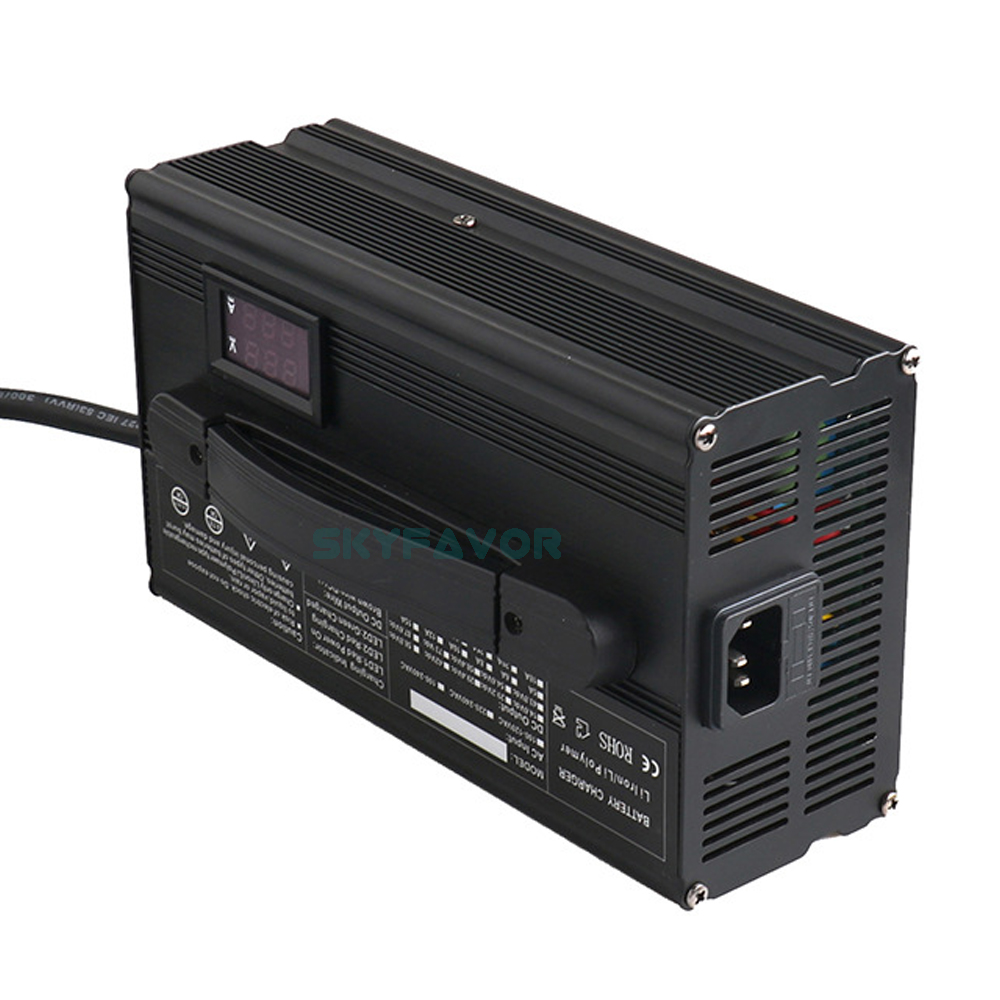

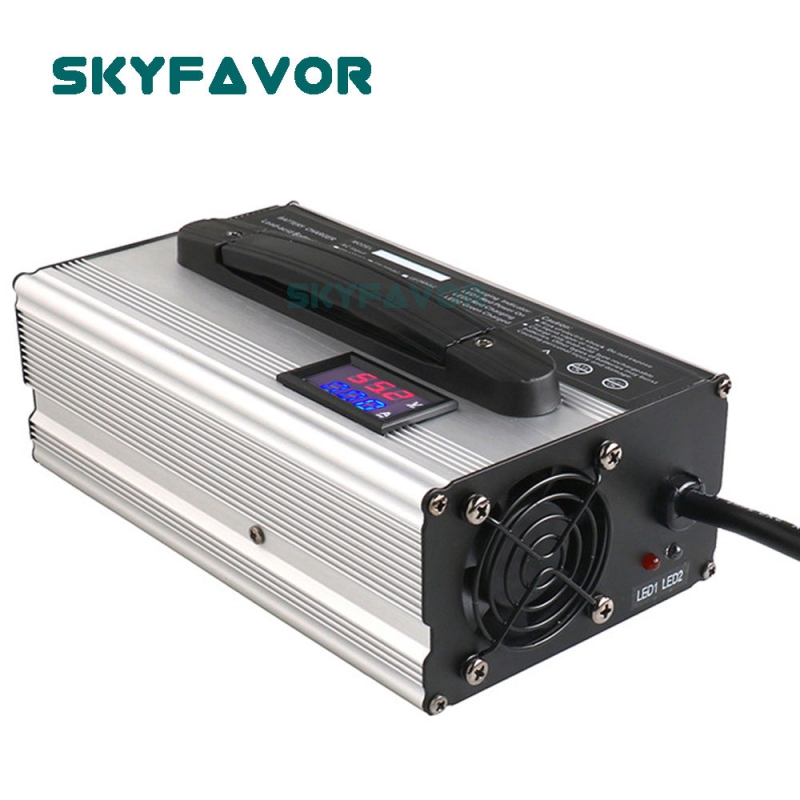

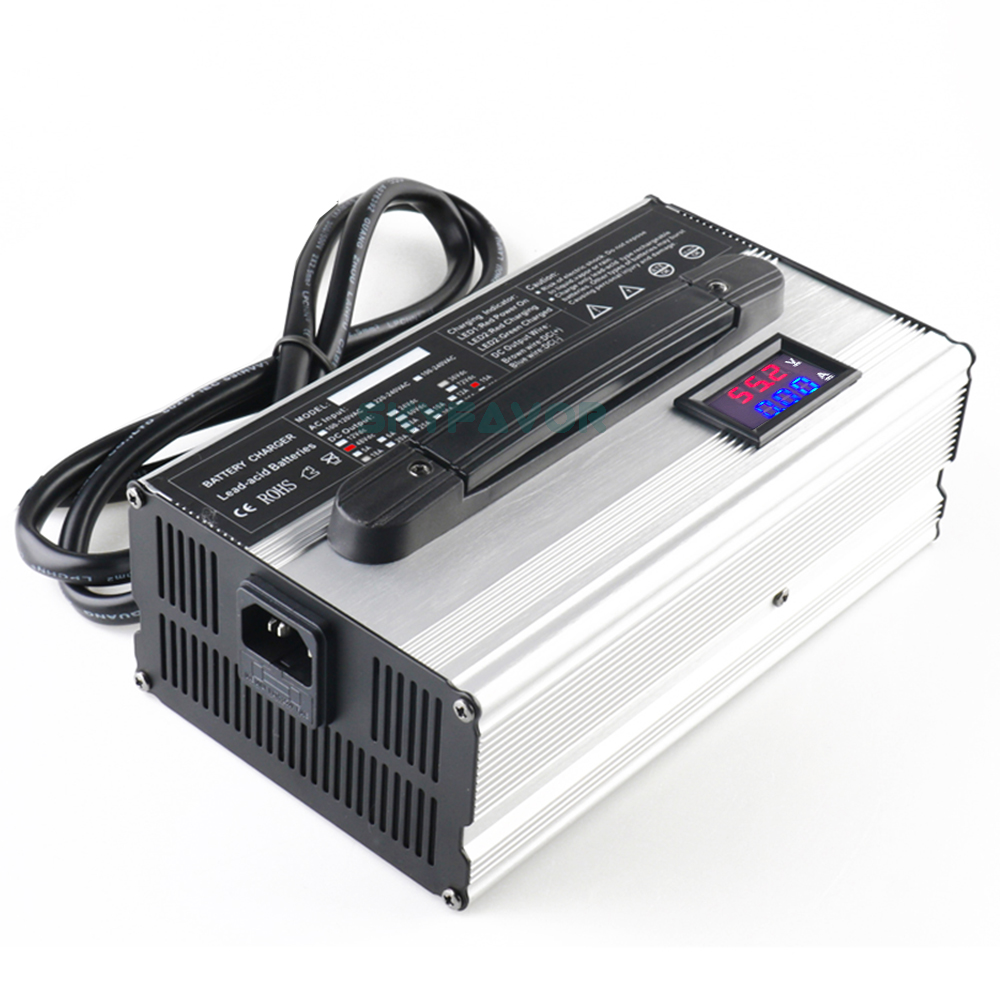

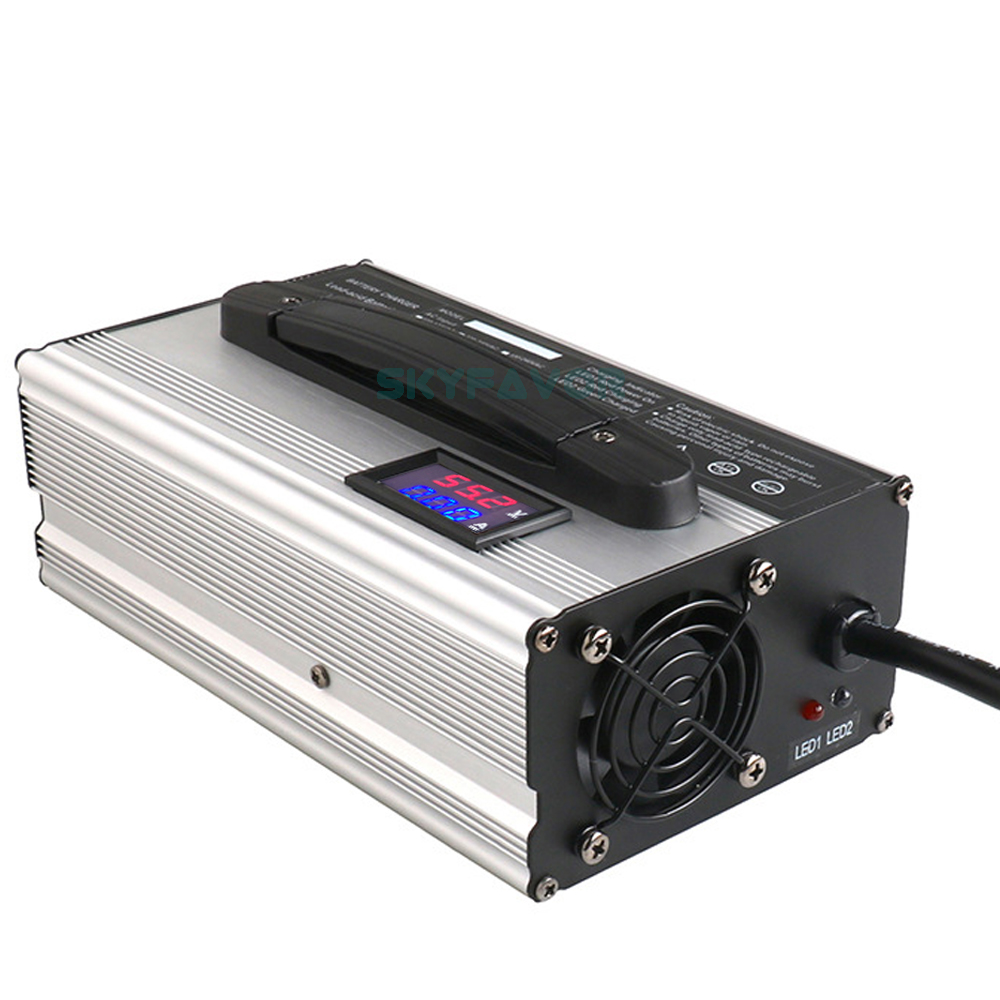

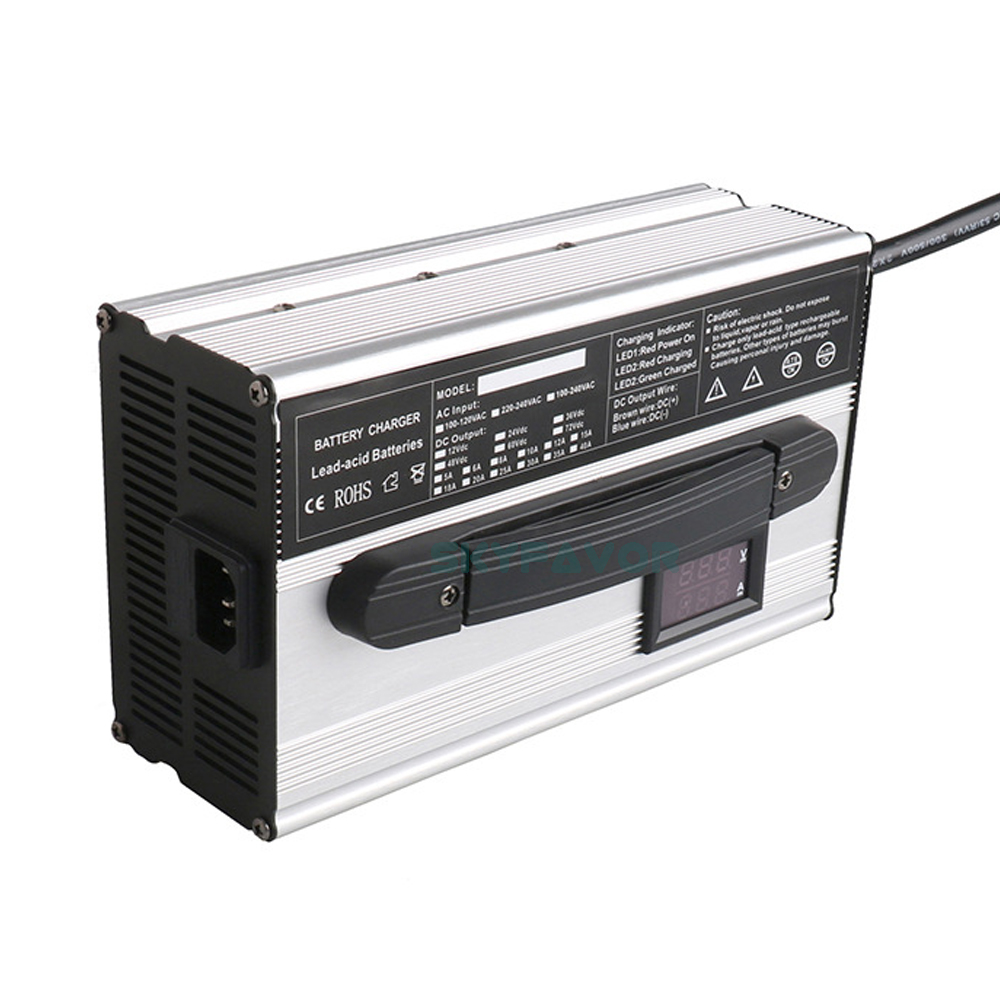

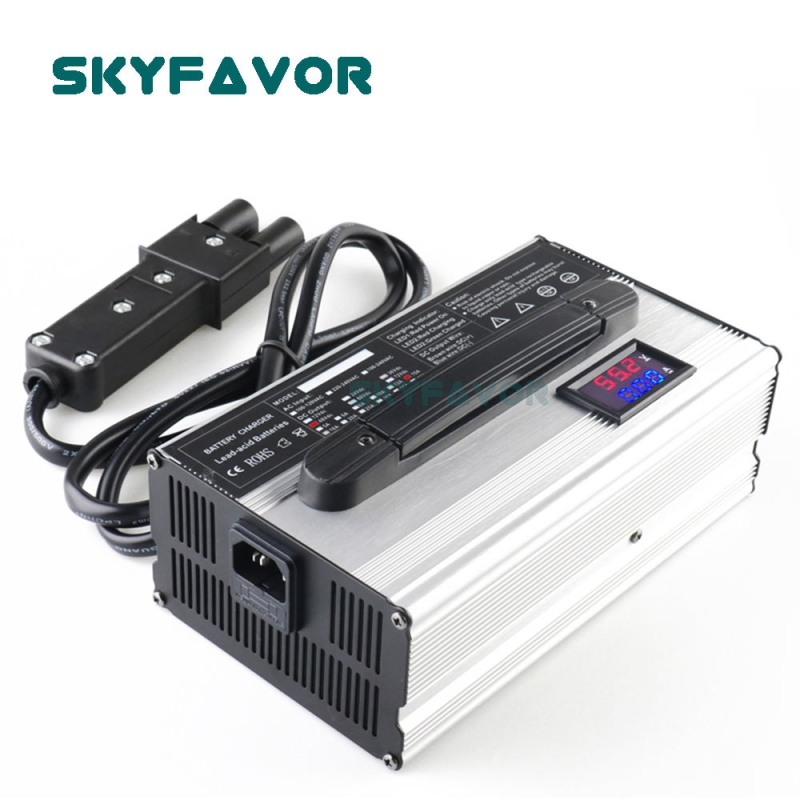

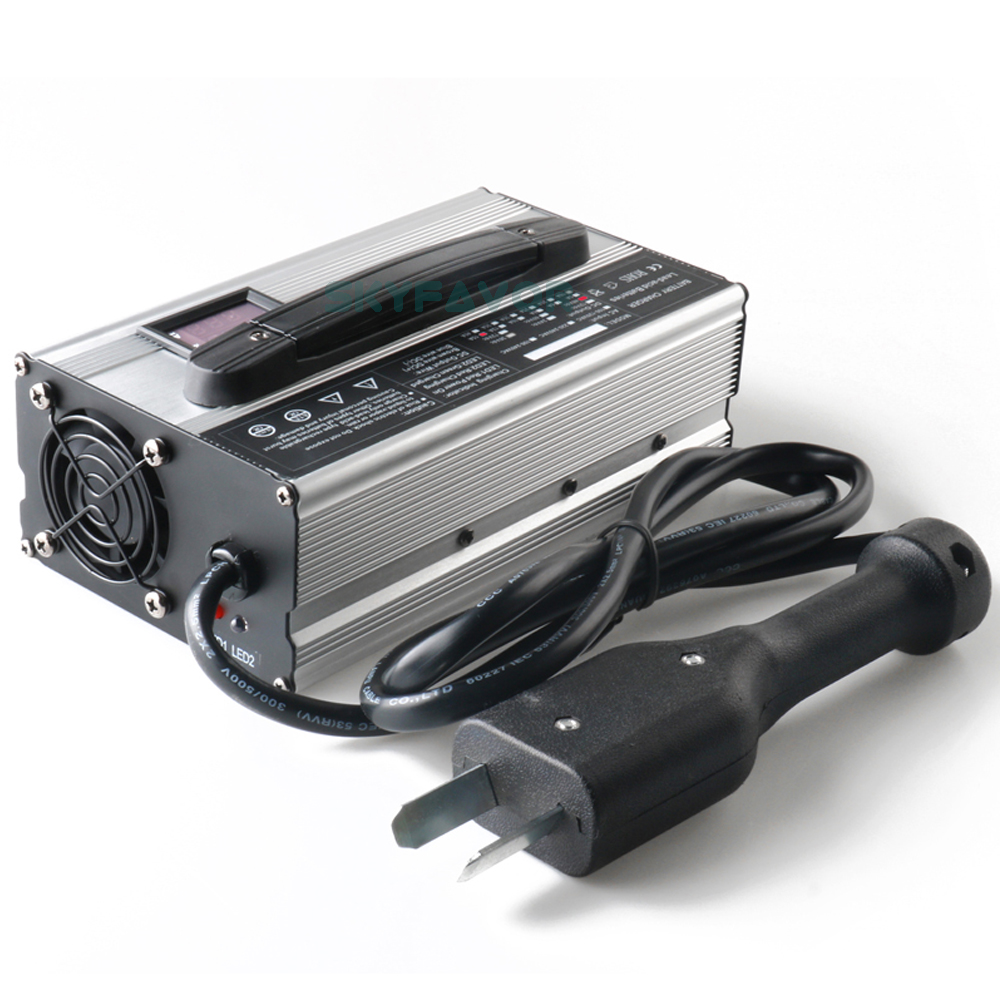

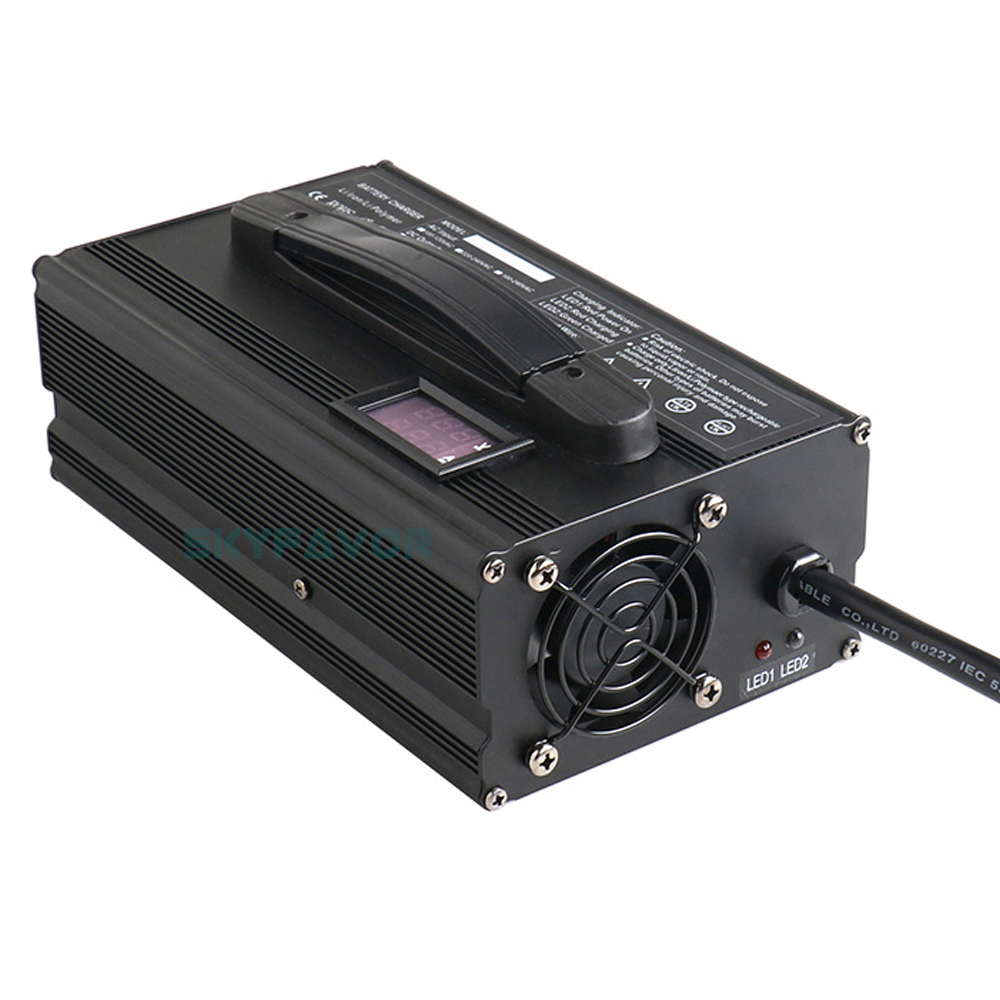

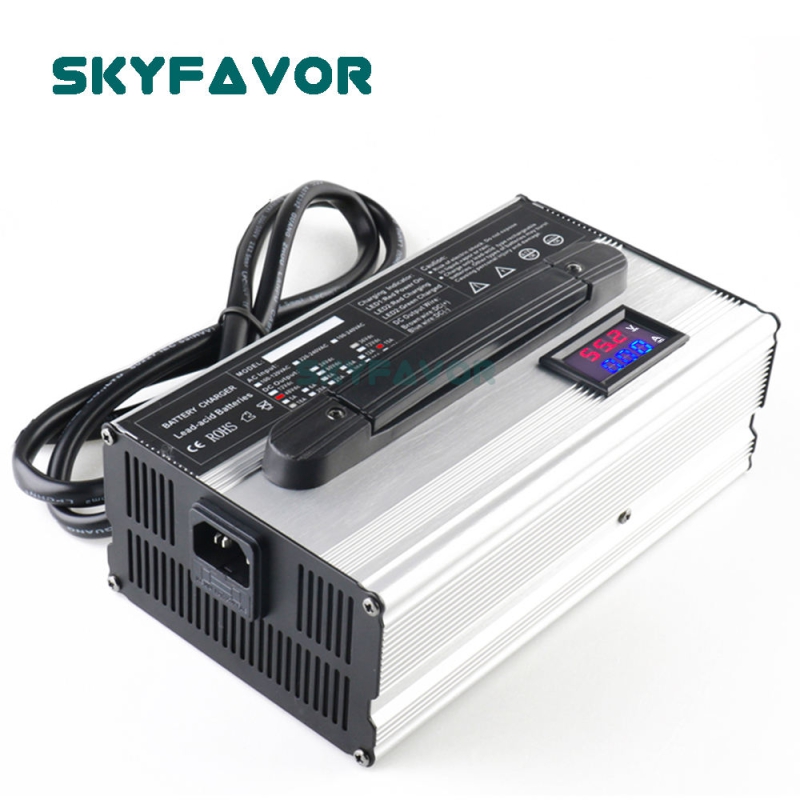

Product picture

Custom 48V Lithium Battery Charger 48V 15A Led Display Smart Automatic 12S 50.4V or 13S 54.6V Lithium Li Ion Battery Chargers

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

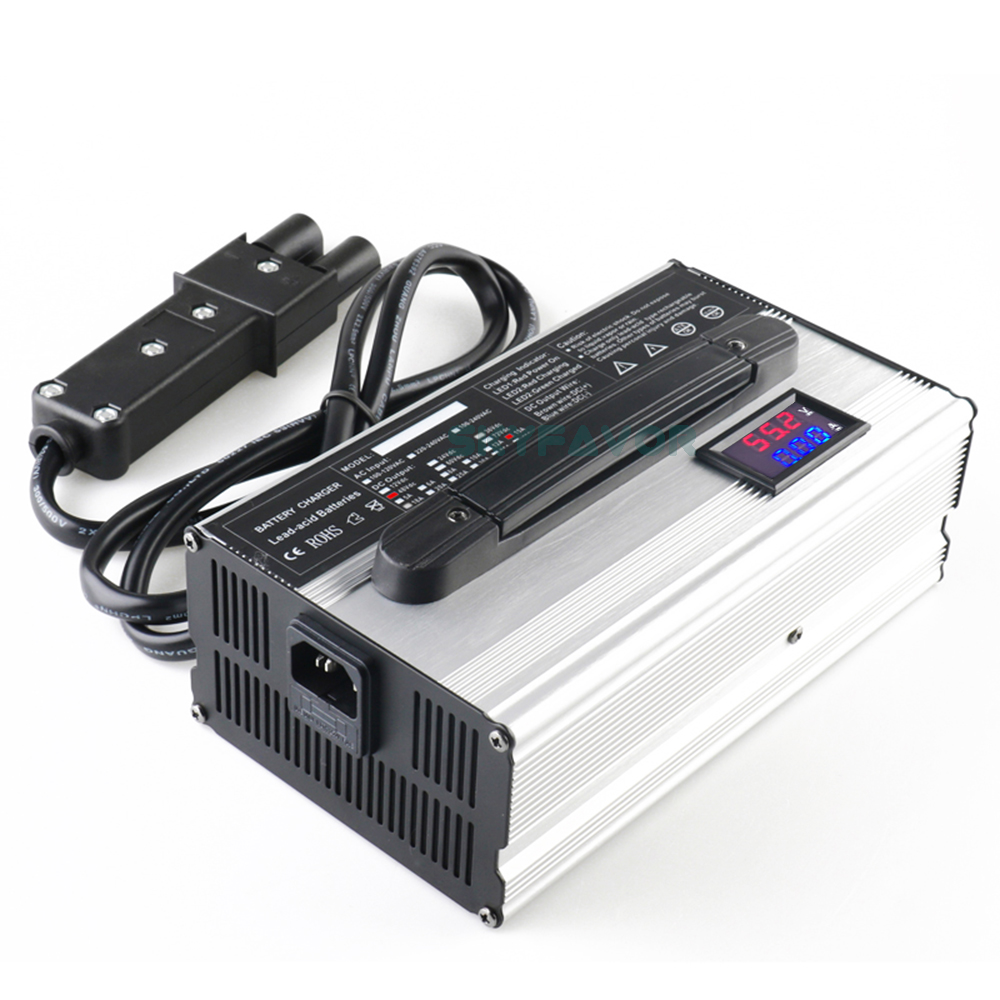

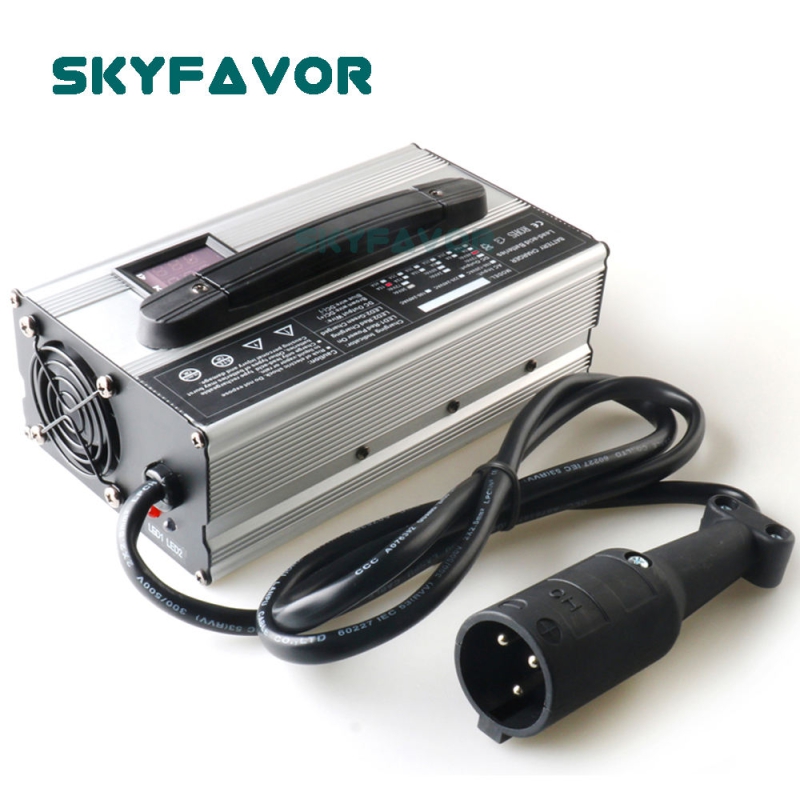

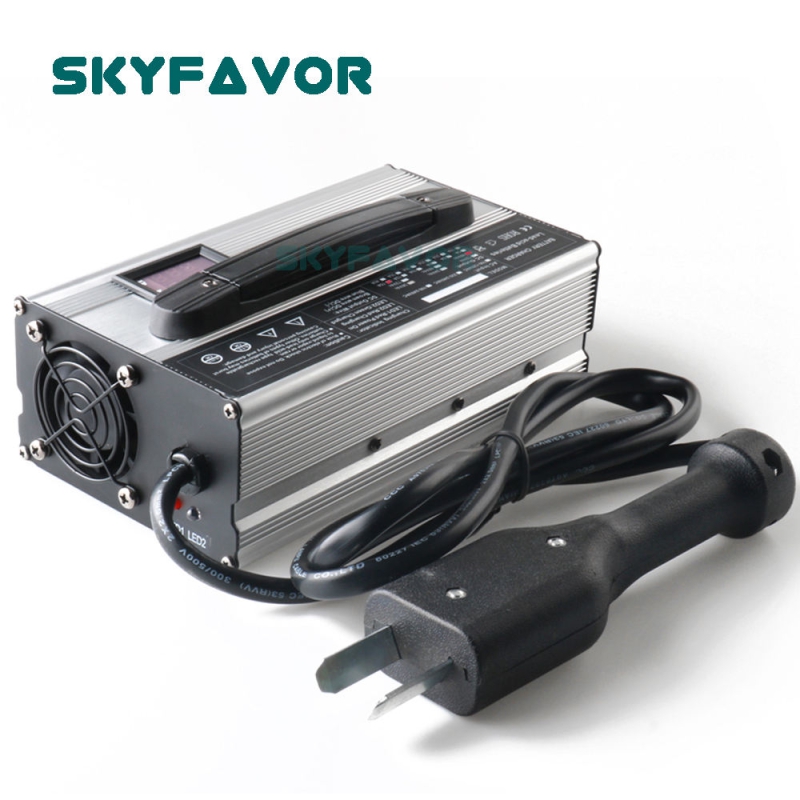

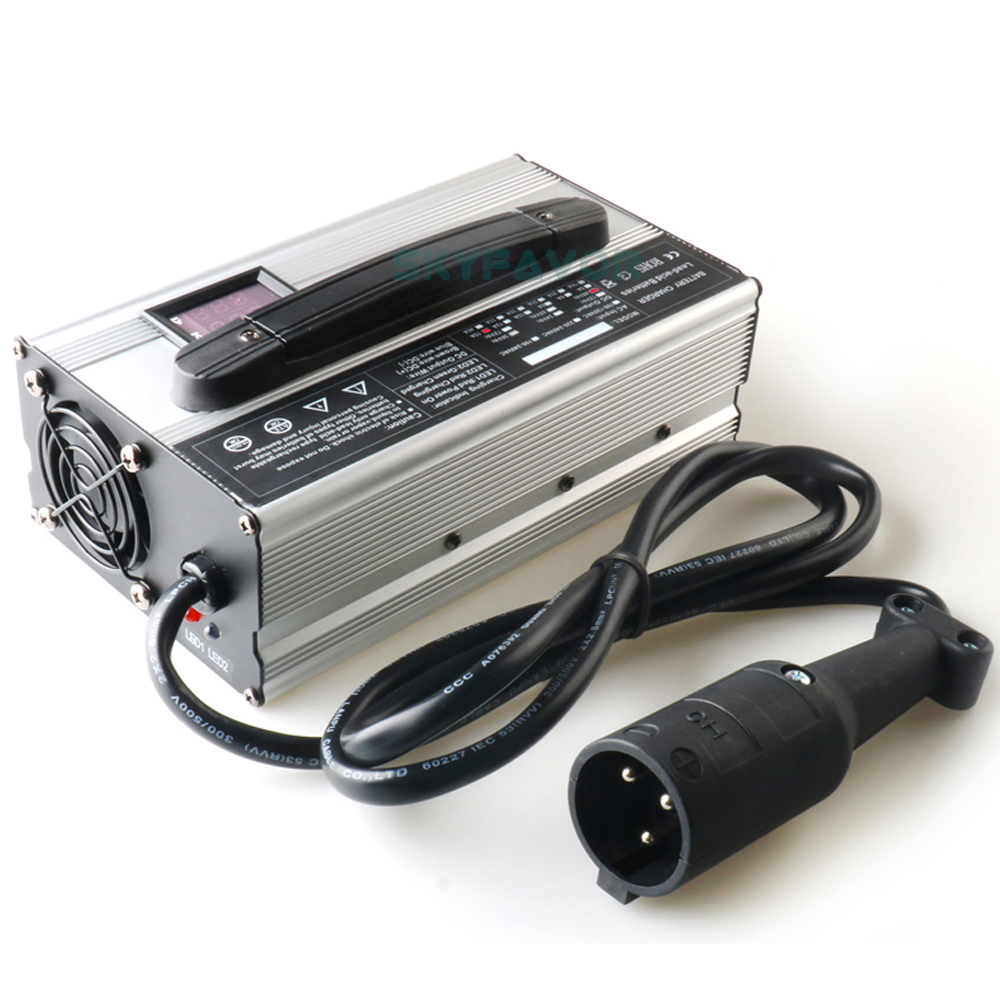

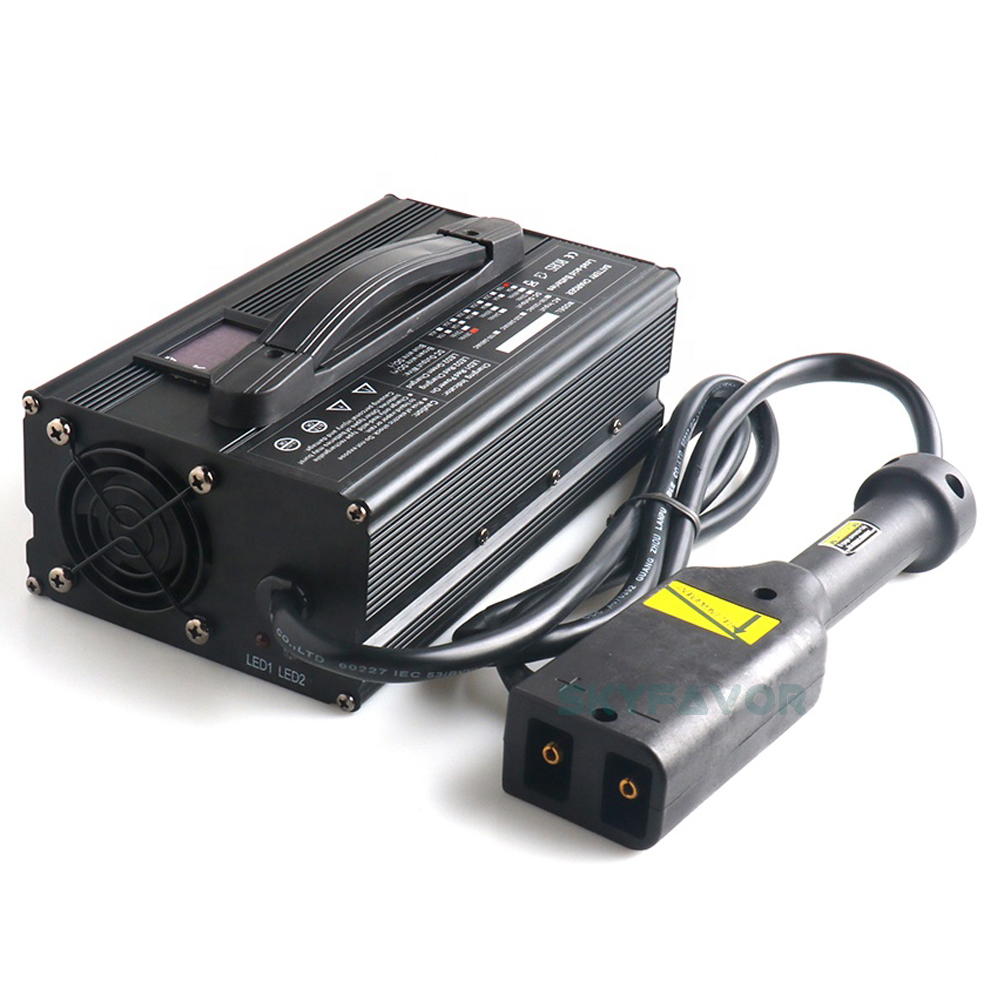

Alternative connections

Custom 48V Lithium Battery Charger 48V 15A Led Display Smart Automatic 12S 50.4V or 13S 54.6V Lithium Li Ion Battery Chargers

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

Package include

1 x Battery charger

1 x User Manual

Custom 48V Lithium Battery Charger 48V 15A Led Display Smart Automatic 12S 50.4V or 13S 54.6V Lithium Li Ion Battery Chargers

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

About Product:

1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.

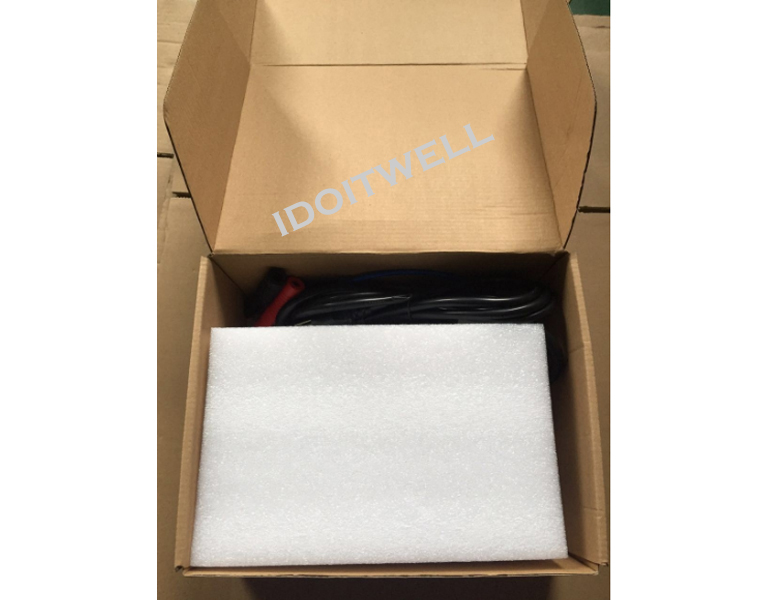

2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.

1. Before place order, firstly please take a moment to read all the information provided here where your most questions' answers are.

2. You can contact with us by trade manager or by email, we track the message everyday.

Custom 48V Lithium Battery Charger 48V 15A Led Display Smart Automatic 12S 50.4V or 13S 54.6V Lithium Li Ion Battery Chargers

48V lithium battery charger 48V 15A automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers

1. Are you battery charger Manufacturer?

Yes, we are a professional lifepo4 battery charger manufacture over 19 year's experience.

2. Are you specialized in battery charger products?

Yes, we specialize in Lithium battery charger, Lead acid battery charger, LifePO4 battery charger, Smart battery charger.

3. How do you guarantee the quality of your battery charger products?

The battery charger workshop is strict implementation in accordance with the ISO9001 system. Our quality control department made strict quality inspection and 100% aging before packing.

4. Do you have any certification of your battery charger products?

Yes, we have CE, Rohs and FCC certification for most of our battery charger. Some chargers we have UL certification, but the price will be a little higher.

5. How to transport the 48V lithium battery charger?

We have 19 year's experience in their long-term cooperation partners. We can arrange the port and transit country as your demands.

6. Does the 48V lithium battery charger have the minimum order requirements?

No, we have not minimum order requirements for chargers for the normal items.

7. What is the 48V lithium battery charger lead time?

Depend on the quantity of your order. Usually the normal 48V lithium battery charger needs 1-3 days, and OEM order requires 8-12 days.

8. Can you arrange to ship my other supplier’s product together?

Yes, we can help to collect and ship your supplier’s product, and even help to source any products from China you specified in addition to the 48V lithium battery charger products

9. Can I visit your factory?

Sure, welcome to our factory. In addition, we provide free help to large customers to verify the quality of your other supplier service. We can help you to your other Chinese suppliers for verification, and to provide on-site photos, certificates and other documents.

10. Do you offer other service?

Yes, if you need our help on purchasing any goods, just send us your demand details. We will do our utmost to help you, and to provide you with convenient China management.

Best seller will provide you with professional service. Leave message to get a best price of “Custom 48V lithium battery charger 48V 15A led display smart automatic 12S 50.4V or 13S 54.6V lithium li ion battery chargers"
