(battery charger)Automatic Intelligent 72V battery charger 72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger-【SKYFAVOR】,Car battery charger,DC to DC battery charger,golf cart charger,Industrial battery charger

Automatic Intelligent 72V Battery Charger 72 Volt 10A Lithium Battery Charger Professional 20S Li-ion Battery Pack 72V Charger

Key attributes

port

output

72V 10A

input

110V OR 230V

function

84V 10A

output power

900W

protection

Short Circuit Protection, ovp, OTP, OLP, ocp, Over-charging, Overcurrent, Overvoltage

usage

48v battery pack

type

Electric

material

Aluminum case

model number

DL-900W

place of origin

Guangdong, China

brand name

SKYFAVOR

Output

84v 10a

Input

110Vac or 220Vac

Size

260X175X90cm

Weight

3kg

Use

lead acid battery pack , lithium battery pack , lifepo4 battery pack

Certification

Packaging and delivery

Selling Units

Single item

Single package size

36X22X18 cm

Single gross weight

3.000 kg

Get Quote

Description

(battery charger)Automatic Intelligent 72V battery charger 72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

Name	72V 10A lithium battery charger
Model	900W
Battery type	72V lithium battery
AC Input	110Vac or 230Vac
Output voltage	84V
Output current	10A
Protection	Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection
Apply to	For Electric Motorcycle.120AH,150AH,200AH 48v Lead acid battery

Automatic Intelligent 72V Battery Charger 72 Volt 10A Lithium Battery Charger Professional 20S Li-ion Battery Pack 72V Charger

72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

The 72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 110v or 230Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

Constant Charging Voltage: 84V(for 20S lithium battery pack)

C:Charging Mode72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection The battery charger will be auto recovered when faults remove

Over Current Protection Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

Manufacture time:

The manufacture time of the battery charger will need 7-14 days, because all the battery chargers are customized according to the customer's requiremen ts, we have not any chargers in stock. If you accept the delivery time, please go ahead to make purchase. Once you place the order, we will believe you accept the manufacture time.

Lead Time:

Normally we will deliver the battery charger by DHL, UPS or FEDEX express, it always need 5-8 days on transport.

So you will receive the parcel in 12-22 days after pay for the order.

Last thing, when the order be paid it will can't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique, it is impossible to change the charger specification to resell, so we don't accept order be cancelled after 24 hours. Please read above information carefully and buy with caution. Thanks for your kind understanding and support!

72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

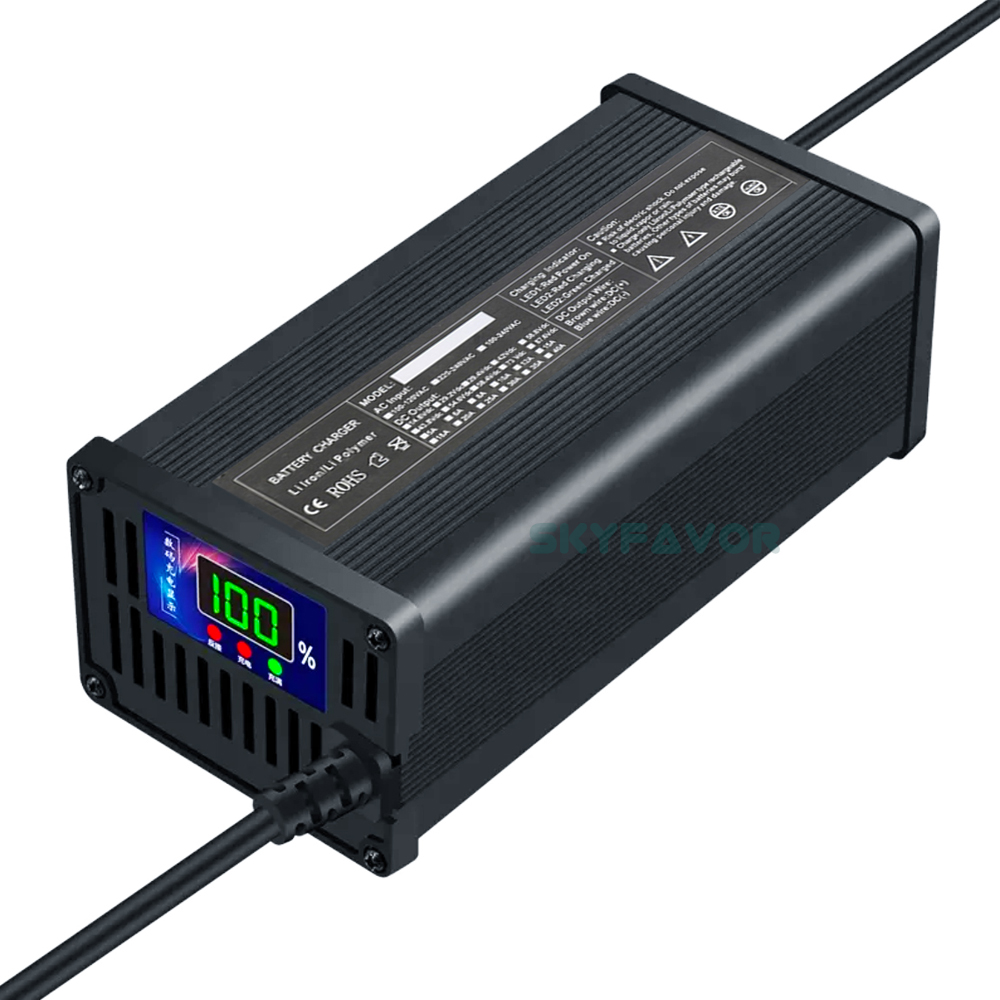

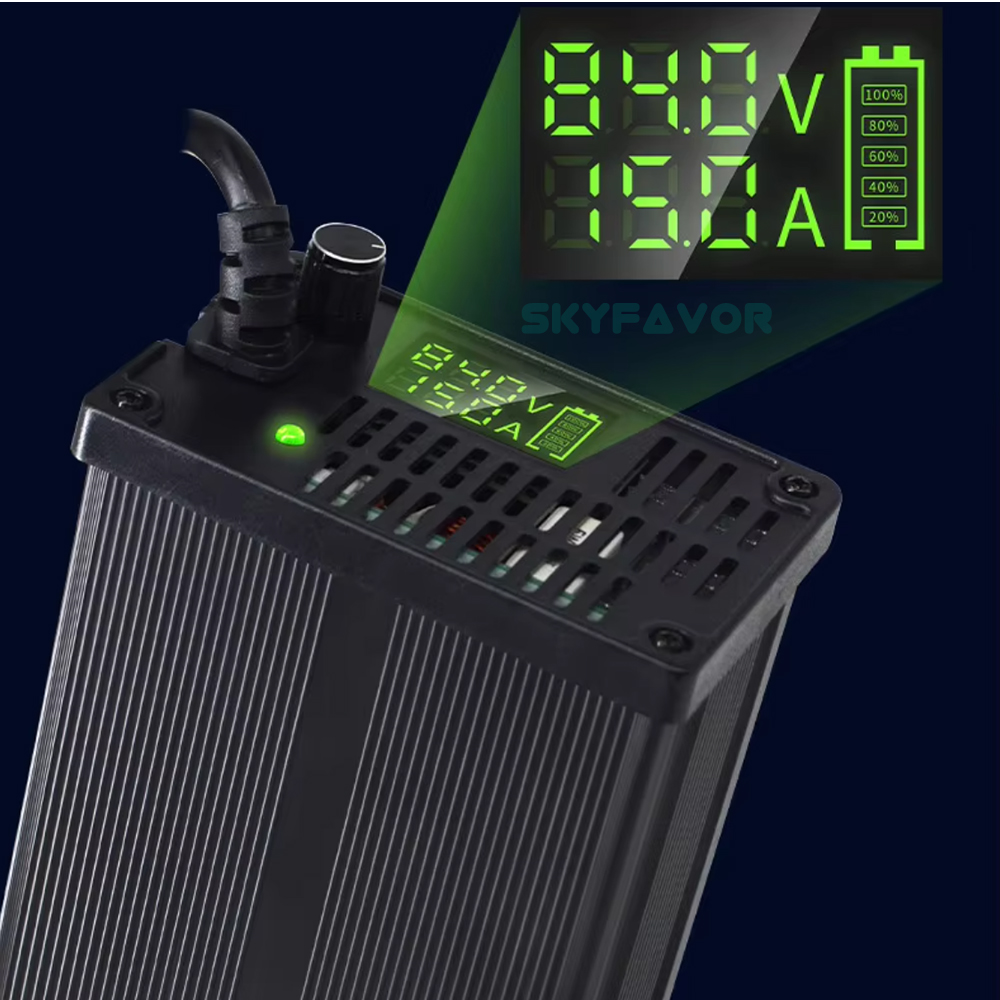

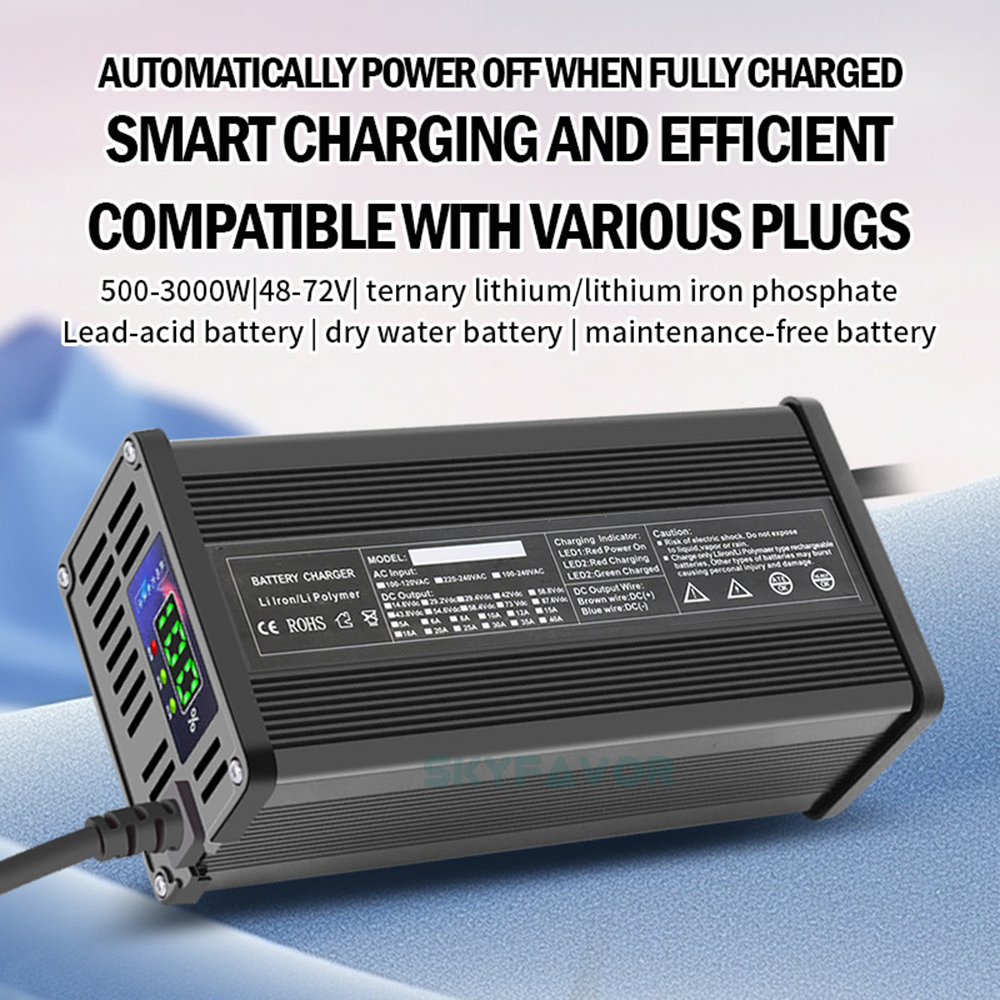

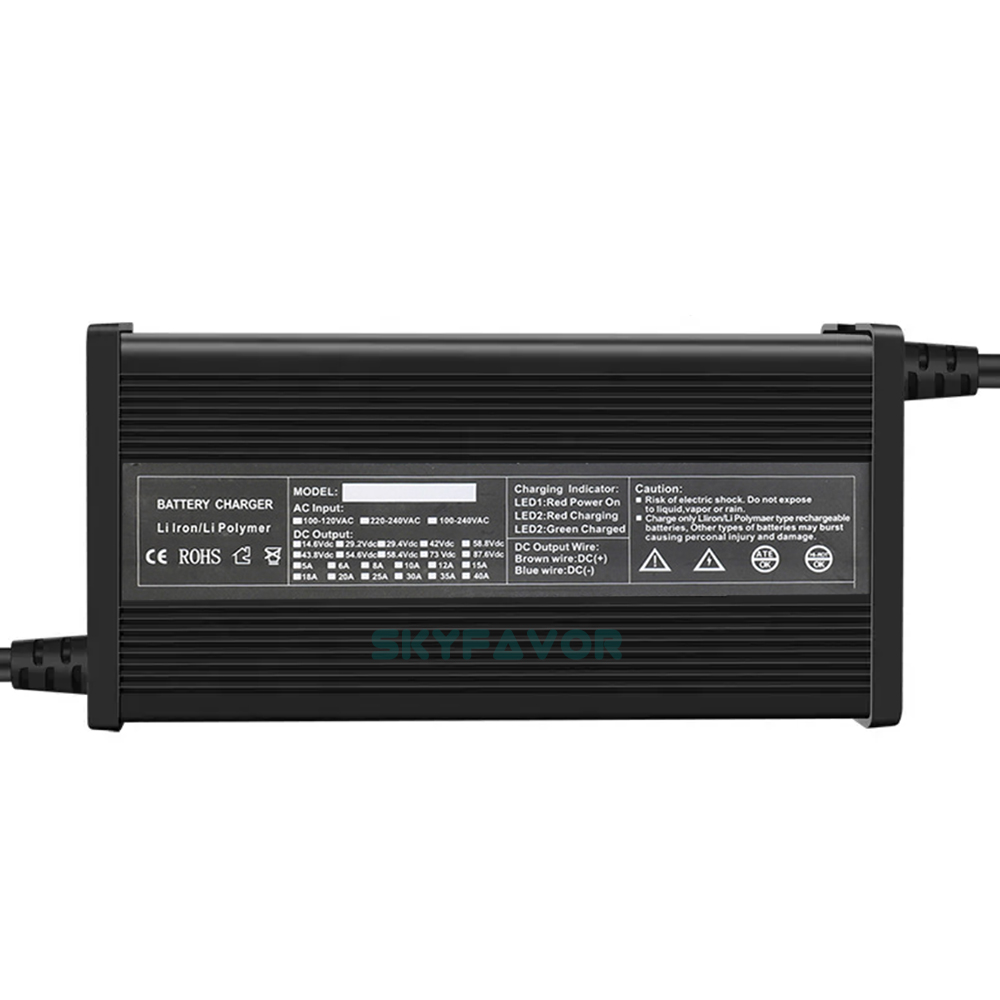

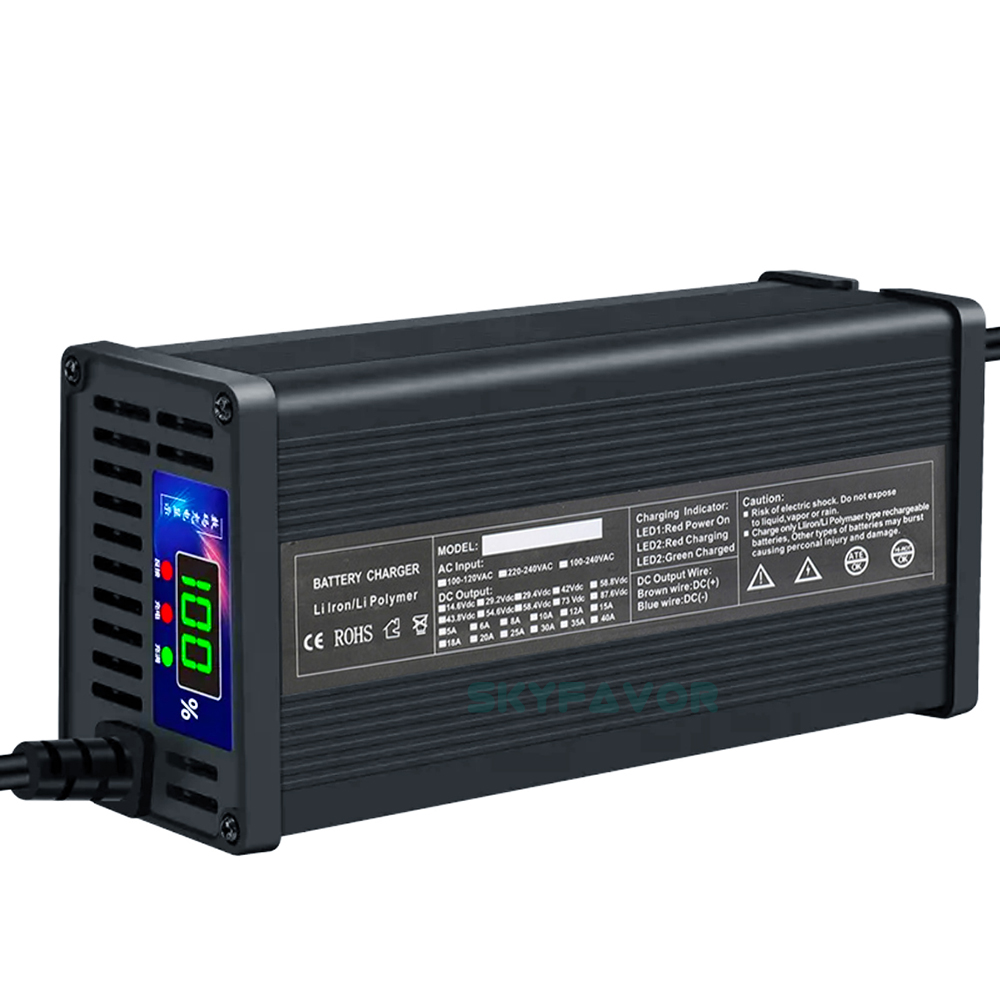

Product picture

Automatic Intelligent 72V Battery Charger 72 Volt 10A Lithium Battery Charger Professional 20S Li-ion Battery Pack 72V Charger

We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.

Each charger only can charge for one kind battery, such as if you choose lead acid battery, we will manufacture the lead acid battery charger, it will not work for lithium battery or lifepo4 battery. Because different kind battery charger the charging curve is different.

72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

IDOITWELL Smart Automatic battery charger list
Model IDOITWELL	Charging voltage&current for reference							N.W. (KG)	Size(mm) IDOITWELL
Model IDOITWELL	12V	24V	36V	48V	60V	72V	84V	N.W. (KG)	Size(mm) IDOITWELL
120W	7A	4A	2.5A	1.8A	1.5A	_	_	0.7	135x90x50
180W	10A	5A	3.5A	2.5A	2A	1.5A	_	0.9	155x90x50
240W	15A	7.5A	5A	3.8A	3A	2.5A	_	1	170x90x50
360W	20A	12A	8A	6A	4.5A	4A	_	1.2	170x90x63
600W	25A	19A	12A	9A	7A	6A	_	2.5	207x120x70
900W	40A	25A	18A	15A	12A	10A	_	3	220x135x70
900WB	40A	25A	18A	15A	12A	10A	8A	3.5	260x175x90
1200W	50A	30A	20A	19A	15A	12A	10A	4.5	260x175x90
1500W	60A	45A	30A	24A	19A	16A	14A	5.5	300x175x90
2000W	90A	60A	40A	30A	25A	20A	18A	6.5	330x175x115
2500W	-	75A	50A	40A	30A	25A	22A	7	380x240x150
4000W	150A	100A	80A	60A	45A	40A	35A	11	340x235x110

72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

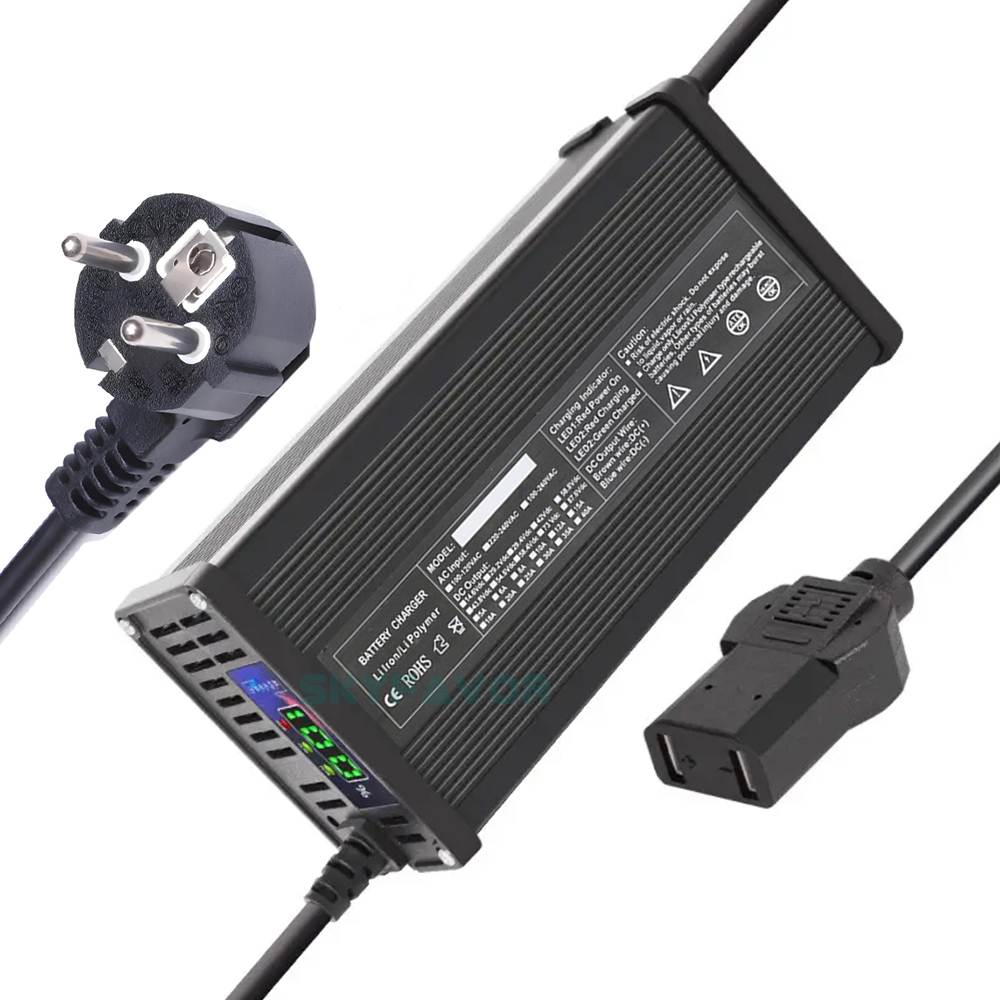

Alternative connections

Automatic Intelligent 72V Battery Charger 72 Volt 10A Lithium Battery Charger Professional 20S Li-ion Battery Pack 72V Charger

72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

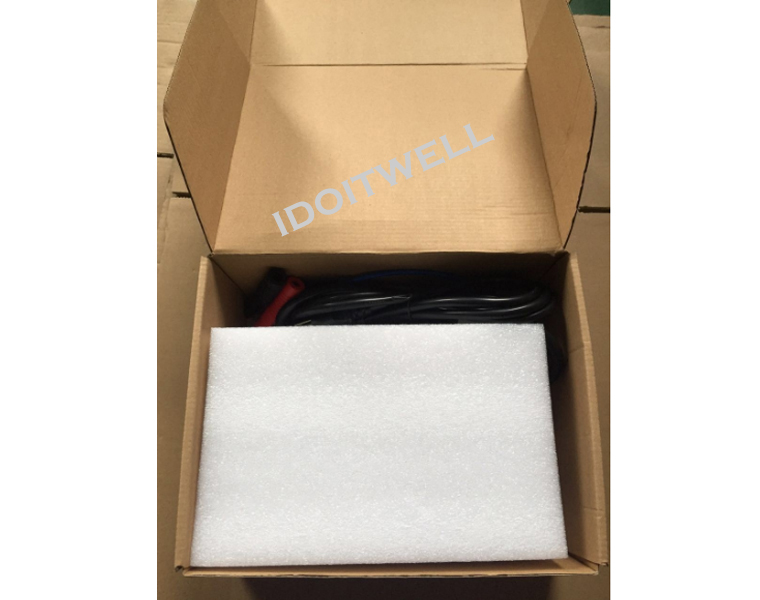

Package include

1 x Battery charger

1 x User Manual

Automatic Intelligent 72V Battery Charger 72 Volt 10A Lithium Battery Charger Professional 20S Li-ion Battery Pack 72V Charger

72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

About Product:

1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.

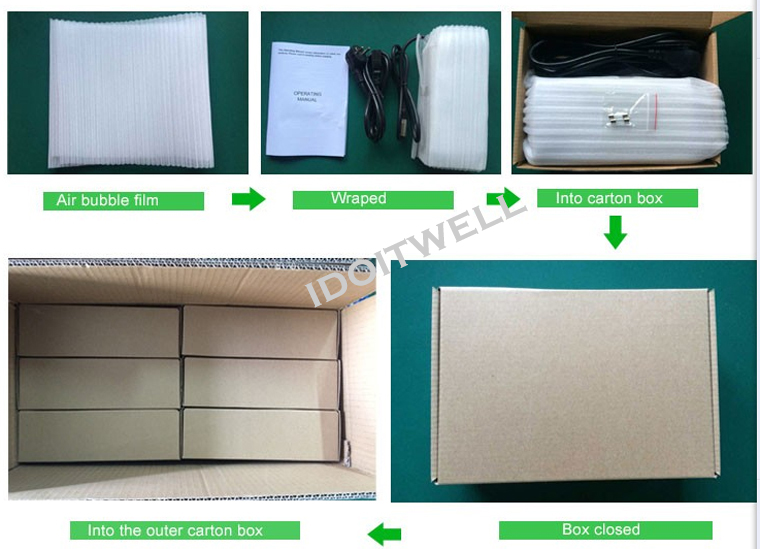

2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.

Feedback:

1. If you are satisfied with our battery charger, Please take a minute to leave us your positive feedback. We depend on customers' satisfaction to succeed. Therefore your positive feedback of 5 STARS is extremely important for us.

2. If you are not satisfied with our battery charger, Please Do not leave any negative feedback before contacting with us. We will do all we can and work with you to solve any problems.

72 volt 10A lithium battery charger professional 20S li-ion battery pack 72V charger

Return and Refund policy:

1. We support no reason return and change item policy, but buyer need to pay full cost for two way transports (include the shipping, taxes and customs cost etc.) and keep the item in good condition, otherwise we will keep right to refuse the refund and return. All the return policy must be apply within 3 days (the time point start from buyer receive the item).

2. If the buyer receive wrong and problem items, please contact us within 3 days, and provide the confirmation proof through Video or Photos. When the item is judged as our responsibility, we provide the refund and return policy. If the item can be accepted and repaired in domestic we will take a part of refund. If can not be repaired or broken totally, we will refund the full money or change a new one to buyer when we receive the wrong or problems items.

3. When the refund policy can not solve problems, we accept the return policy, but for return policy buyer need to afford one way cost (the shipping, taxes and customs cost from your country to us), and when we receive the return items we will refund the money.

We are not recommending the return policy, because that cause high cost for both of us.

1. Before place order, firstly please take a moment to read all the information provided here where your most questions' answers are.

2. You can contact with us by trade manager or by email, we track the message everyday.
