Professional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery Chargers

Key attributes

port
DC
output
36V 10A
input
110Vac or 230Vac
function
Custom battery charger
output power
450W
protection
Short Circuit Protection, ovp, OTP, OLP, ocp, Low Tension, Over-charging, Overcurrent, Overvoltage
usage
for 36V battery
type
Electric
material
Aluminum case
model number
DL-600W
place of origin
Guangdong, China
brand name
SKYFAVOR
Material
Aluminum alloy with fan, switch
Power
450W
Input Voltage
110Vac or 230Vac
Dimension
170x90x63mm
Weight
1.5kg
Warranty
1 Years
Applied to
lead acid battery or li-ion battery or lifepo4 battery charger
Output Type
DC
Use
For standard battery charger

Packaging and delivery

Selling Units
Single item
Single package size
23X17X12 cm
Single gross weight
2.000 kg


Get Quote

Description

(battery charger)Professional Factory price 36V battery charger 36V 10A Good safety Lithium ion lipo lead acid lifepo4 automatic battery chargers

Important Note:

We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!

36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

Custom battery charger requires the following information:

1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?

2. Battery capacity:

3. Input AC voltage:

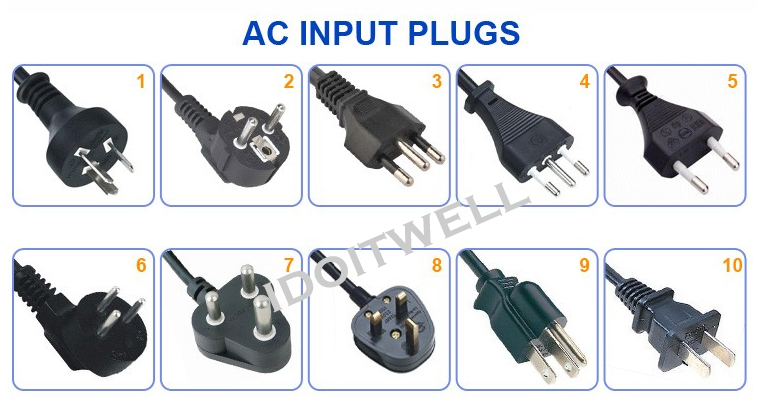

4. Input plug:

5. Output voltage:

6. Output current:

7. Output plug:

For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug

(Please specify whether the Anderson 50A plug is gray or red.)



We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands.NO MOQ!!!Even if only 1 piece.



Before purchasing our battery chargers, please read the following questions and answers carefully:

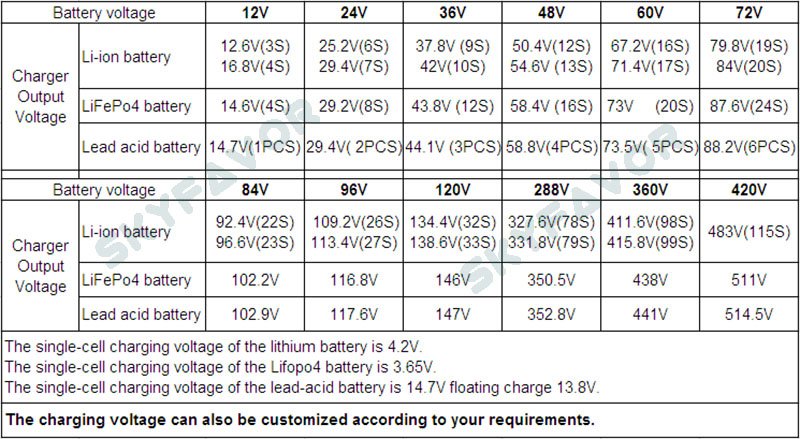

A: How to choose the suitable charging voltage for the battery?

Professional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery Chargers





B: How to choose the suitable charging current for the battery?

Battery Type

Battery Capacity

(For example)

Suitable charging current rate

Suitable charging current

Lead acid battery

120ah

1/10

12A

Lithium battery

120ah

1/3

40A

Lifepo4 battery

120ah

1/4

30A

36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

CHow to choose the suitable charger for the battery?

IDOITWELL                                       Smart Automatic battery charger list

Model IDOITWELL

 Charging voltage&current for reference

 N.W. (KG)

  Size(mm)

IDOITWELL

12V

24V

36V

48V

60V

72V

84V

120W

7A

4A

2.5A

1.8A

1.5A

_

_

0.7

135x90x50

180W

10A

5A

3.5A

2.5A

2A

1.5A

_

0.9

155x90x50

240W

15A

7.5A

5A

3.8A

3A

2.5A

_

1

170x90x50

360W

20A

12A

8A

6A

4.5A

4A

_

1.2

170x90x63

600W

25A

19A

12A

9A

7A

6A

_

2.5

207x120x70

900W

40A

25A

18A

15A

12A

10A

_

3

220x135x70

900WB

40A

25A

18A

15A

12A

10A

8A

3.5

260x175x90

1200W

50A

30A

20A

19A

15A

12A

10A

4.5

260x175x90

1500W

60A

45A

30A

24A

19A

16A

14A

5.5

300x175x90

2000W

90A

60A

40A

30A

25A

20A

18A

6.5

330x175x115

2500W

-

75A

50A

40A

30A

25A

22A

7

380x240x150

4000W

150A

100A

80A

60A

45A

40A

35A

11

340x235x110

36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

D:  Can your battery chargers charge various batteries, such as lead-acid batteries, lithium batteries and lifepo4 batteries?

They can't. Our battery chargers can only charge one kind of battery, because the charging voltage and charging curve of different batteries are different. For example, if you choose a lead-acid battery charger, it will only charge lead-acid batteries, not lithium batteries or lifepo4 batteries.



E:  Do your battery chargers support adjustable charging voltage? For example 12V, 24V, 36V or...?

They can't. Our battery chargers can only use one output voltage, if you choose a 12v battery charger, you can only charge a 12v battery.

36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

F:  Do you have the battery chargers support adjustable charging current?

Yes, we have. Our battery charger D series can make with 2 sets or 3 sets output current be adjustable. If you need to get more information please go to our store column “Adjustable current battery charger”.



G:  What is the difference between a standard charger and an MCU-controlled battery charger (Z series)?

The MCU controlled battery charger is a 4-stage charging mode with an added pre-charge function. It supports to automatically cut off the charger after the battery is fully charged, the display shows the charging power, charging current and voltage level, and has overheat protection. The standard charger have not these functions.

36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

H:  How long can I receive the charger?

Generally, the manufacturing time of battery chargers takes 8-12 days, because all battery chargers are customized according to customer requirements. If you accept the delivery time, please proceed with the purchase. After you place an order, we will treat buyer accept this delivery date.

We usually deliver the battery chargers through DHL, UPS, Fedex or other courier companies, and the transportation process usually takes 5-10 days.

Therefore, you will receive the package within 13 to 22 days after the order is paid.

About import tariff:

1. The price only includes the transportation cost to the shipping address, not including import tariff.

2. In most cases, the buyer does't need to pay any import tariff. But sometimes in some countries, customs officials may be very strict and require buyers to pay corresponding import tariff. If you have to pay import tariff, this is your responsibility to your country. The buyer should understand the local customs import policy before purchasing. Please try to avoid returning the package to China due to tariff issues, which will cause high shipping costs, these will be borne by the buyer.

3. Some buyers require low declarations of the product value in order to avoid paying high import taxes, such as declare 60% of the product value. We can declare the product value according to buyer's requirements, but we will not bear the consequences of false declarations due to low-value declarations.

If the buyer needs a low declaration, please inform us of the declare amount after placing the order. If you do not inform in advance, we may actually declare the product value. Thanks for your understanding ans support!

About canceling orders:36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

The order cannot be cancelled after 24 hours after payment, because the charger is completely customized according to the buyer's requirements, it is difficult for us to change the charger specifications for resale. Therefore, please carefully consider and confirm the relevant parameters of the charger within 24 hours after placing the order.

Please read the above information carefully and purchase with caution. Thank you for your understanding and support!

Professional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery ChargersProfessional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery Chargers

36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

The 36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 110Vac or 230Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

Constant Charging Voltage:37.8V(for 9S li ion battery)/ 42V(for 10S lithium battery)

                                             43.8V(for 12S lifepo4 battery)

                                             44.1V(for 36V lead acid battery)

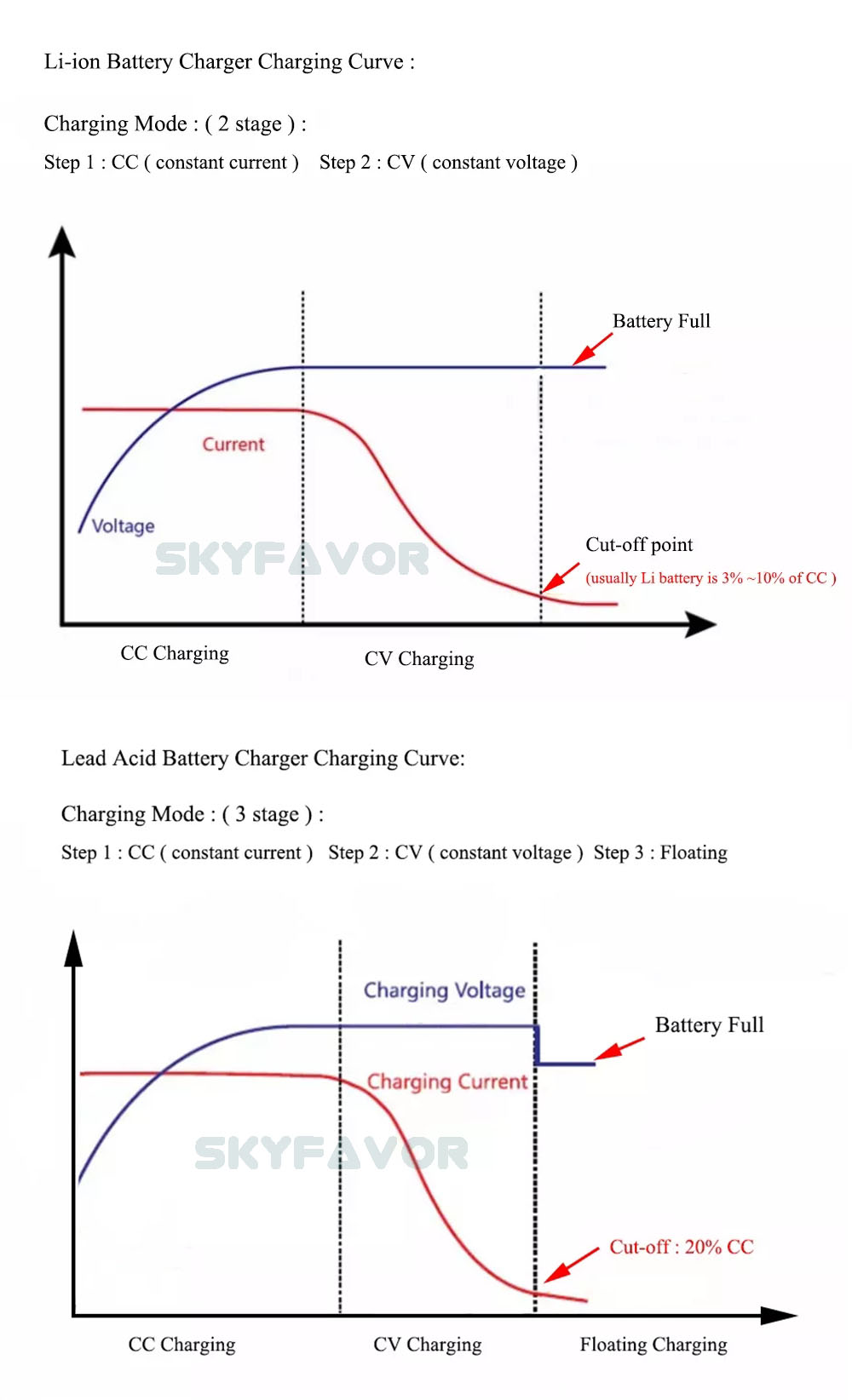

C:Charging Mode:36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection   The battery charger will be auto recovered when faults remove

Over Current Protection   Charger output current does not exceed the set maximum battery charging current.

Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc

36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

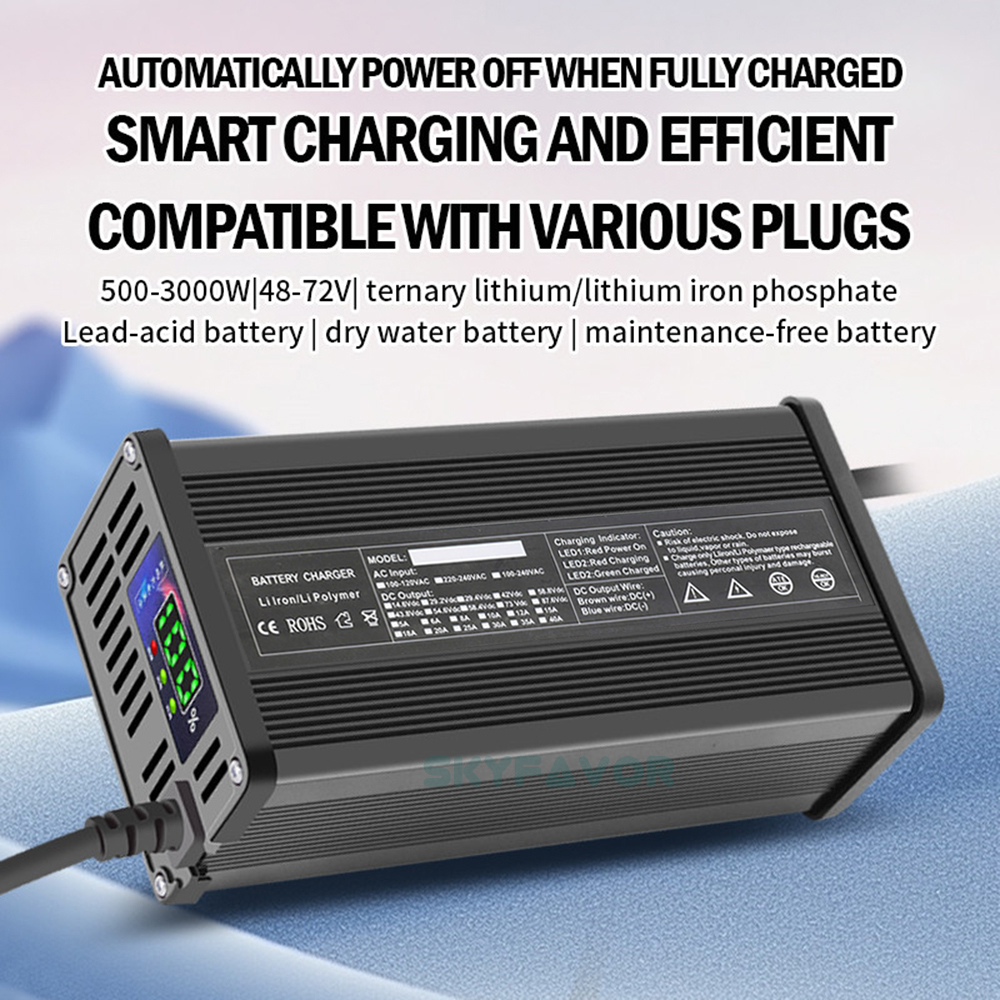

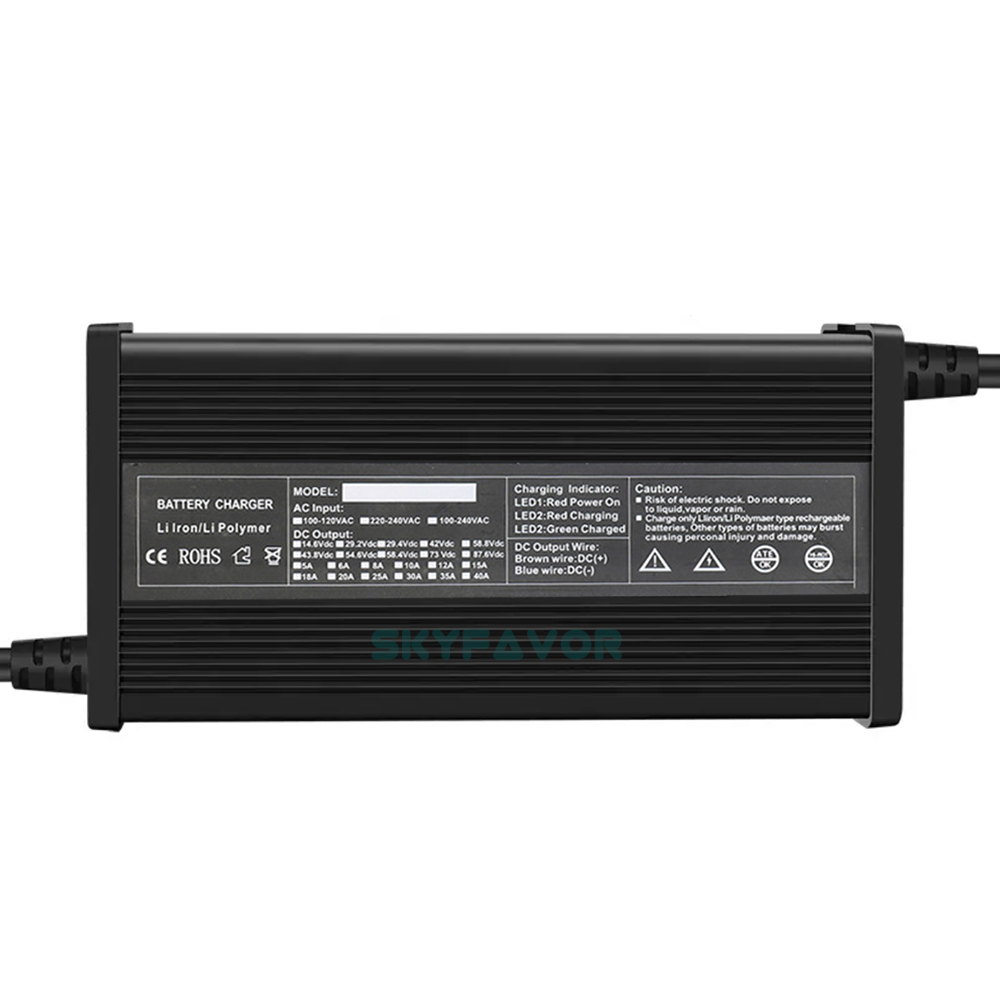

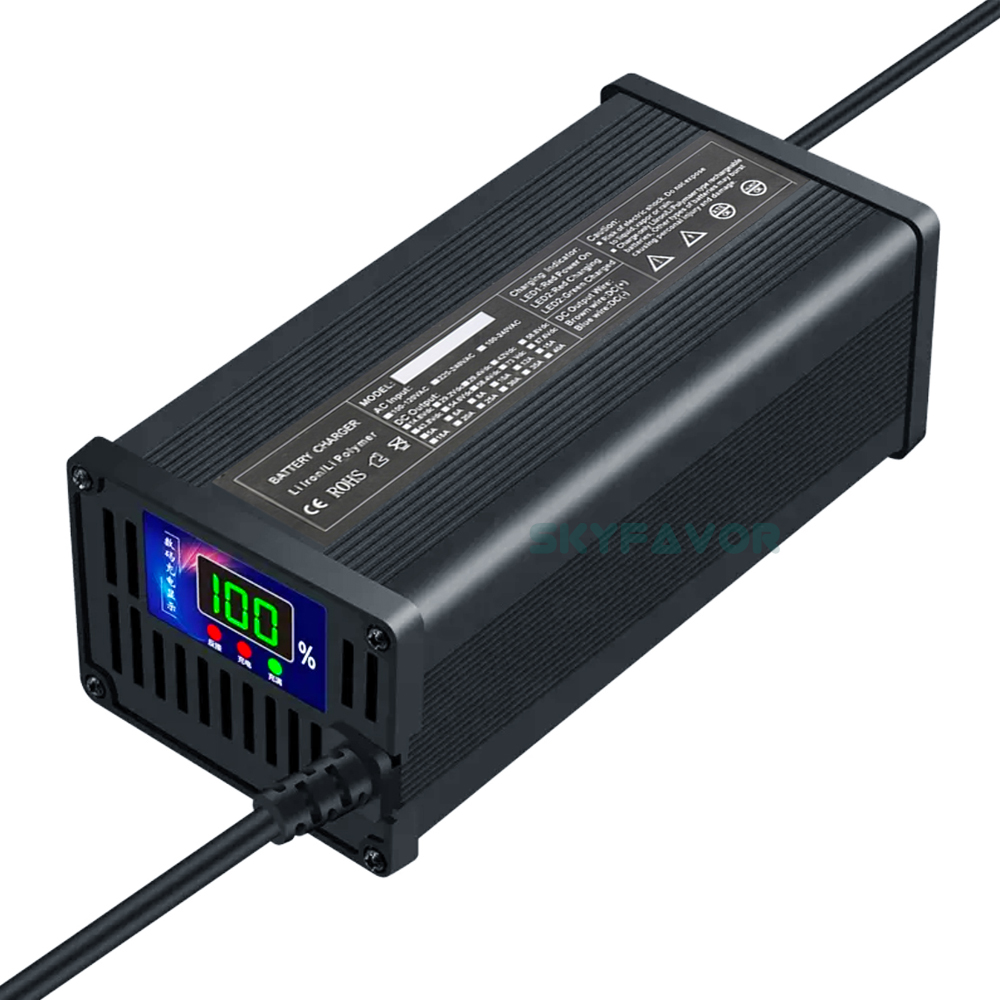

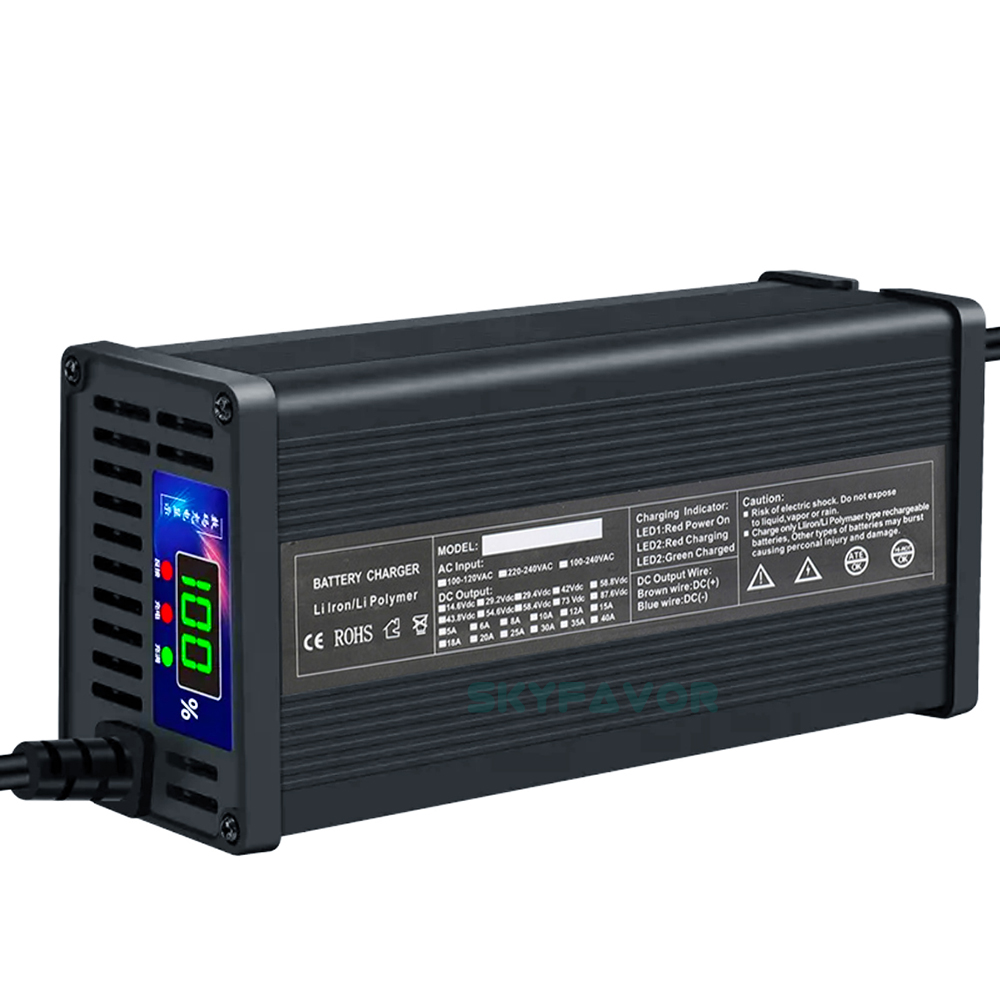

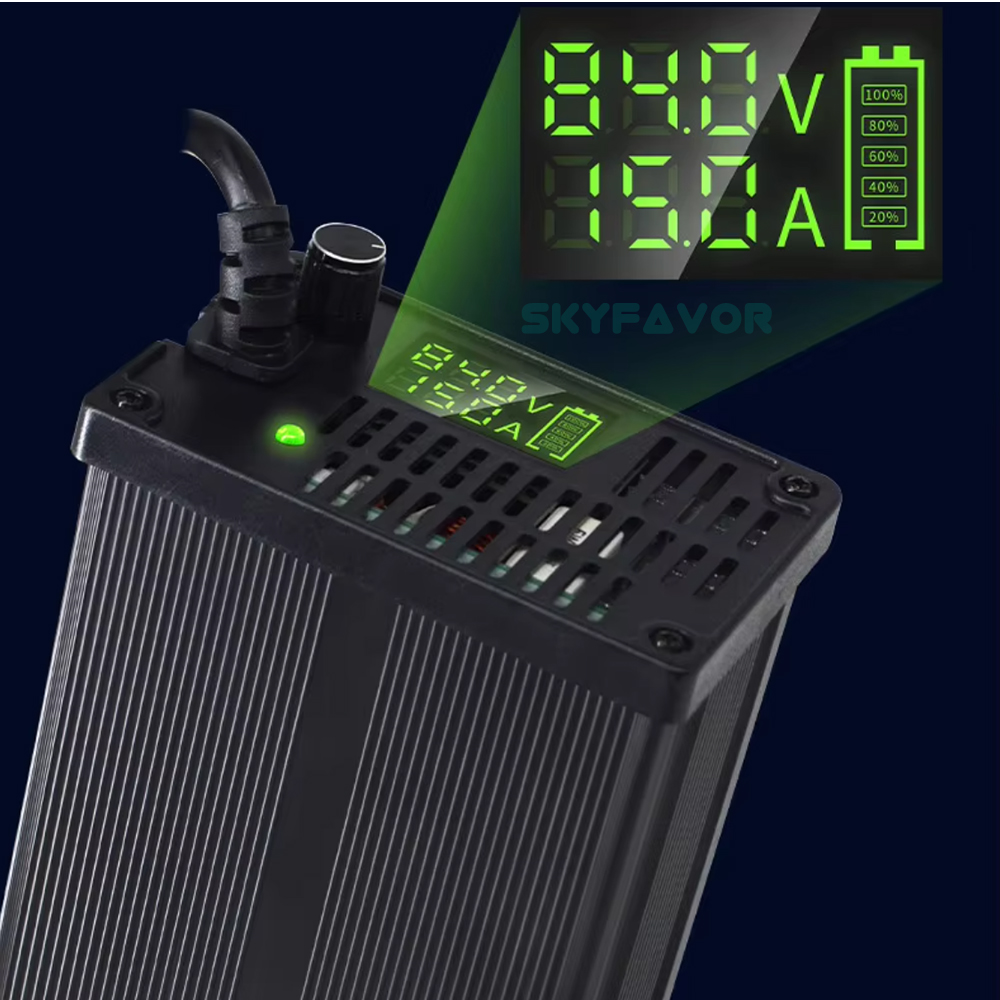

Product picture

Professional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery ChargersProfessional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery ChargersProfessional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery ChargersProfessional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery ChargersProfessional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery Chargers

36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

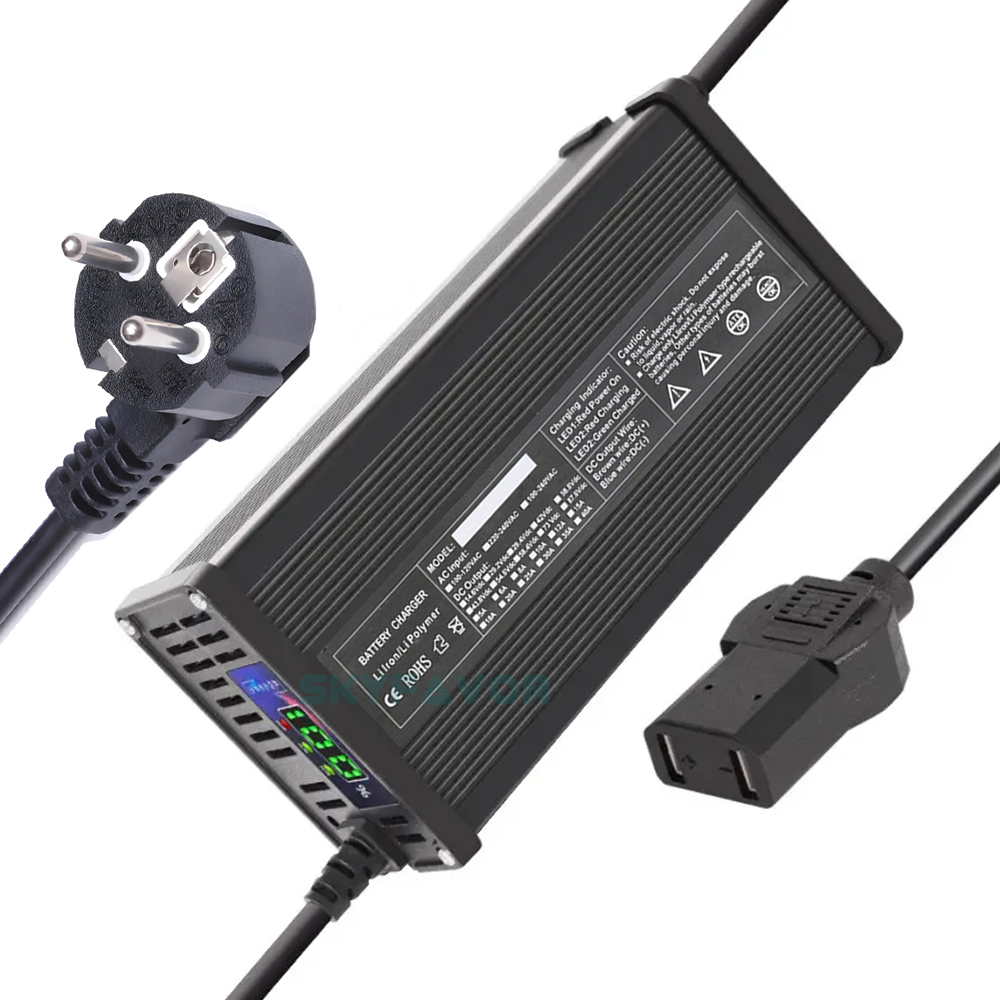

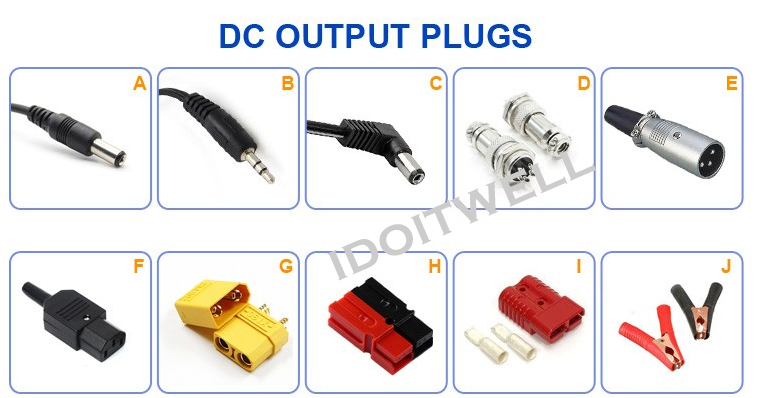

Alternative connections

Professional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery ChargersProfessional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery Chargers



 36V battery charger 36V 10A Lithium ion lipo lead acid lifepo4 automatic battery chargers

Package include

1 x Battery charger

1 x User Manual

Professional Factory Price 36V Battery Charger 36V 10A Good Safety Lithium Ion Lipo Lead Acid Lifepo4 Automatic Battery Chargers

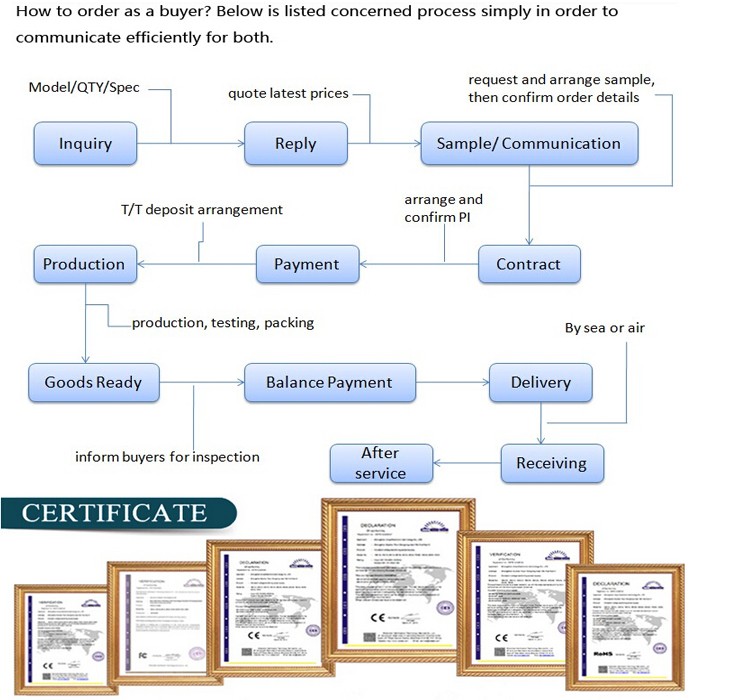

Our Services
