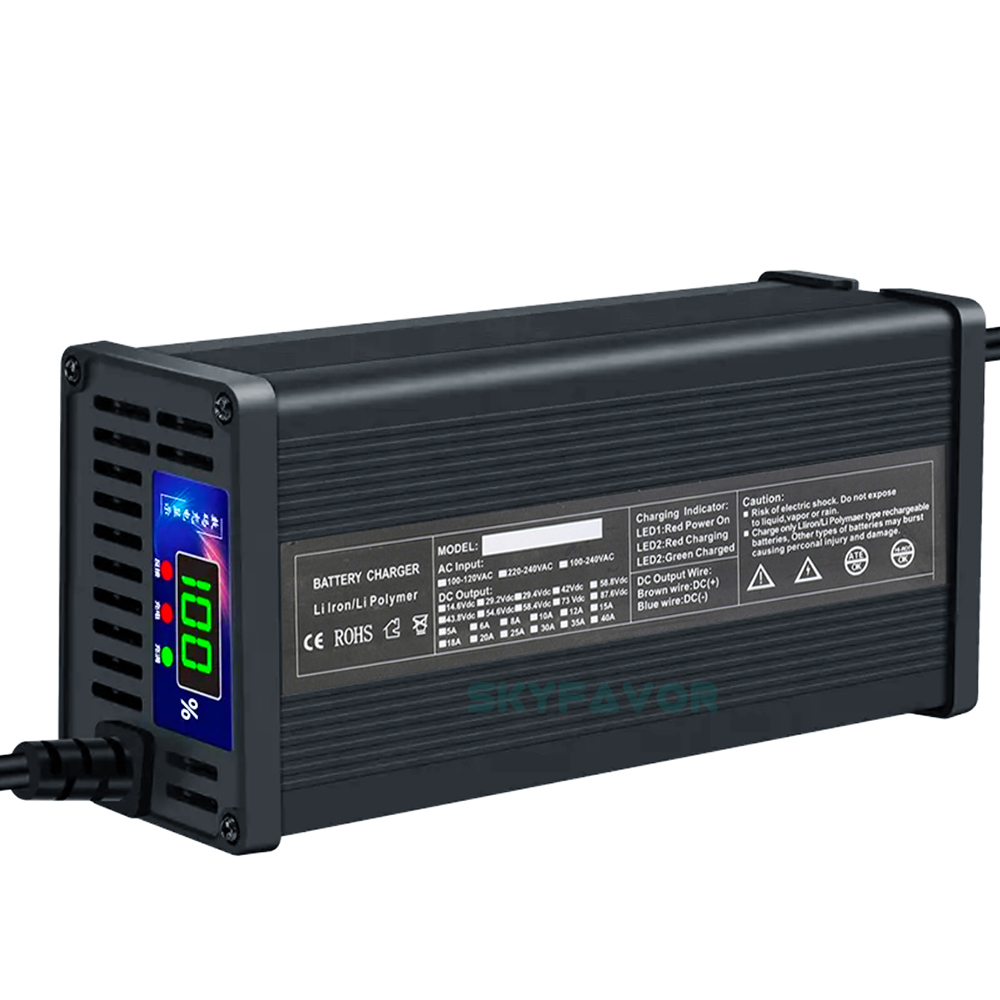

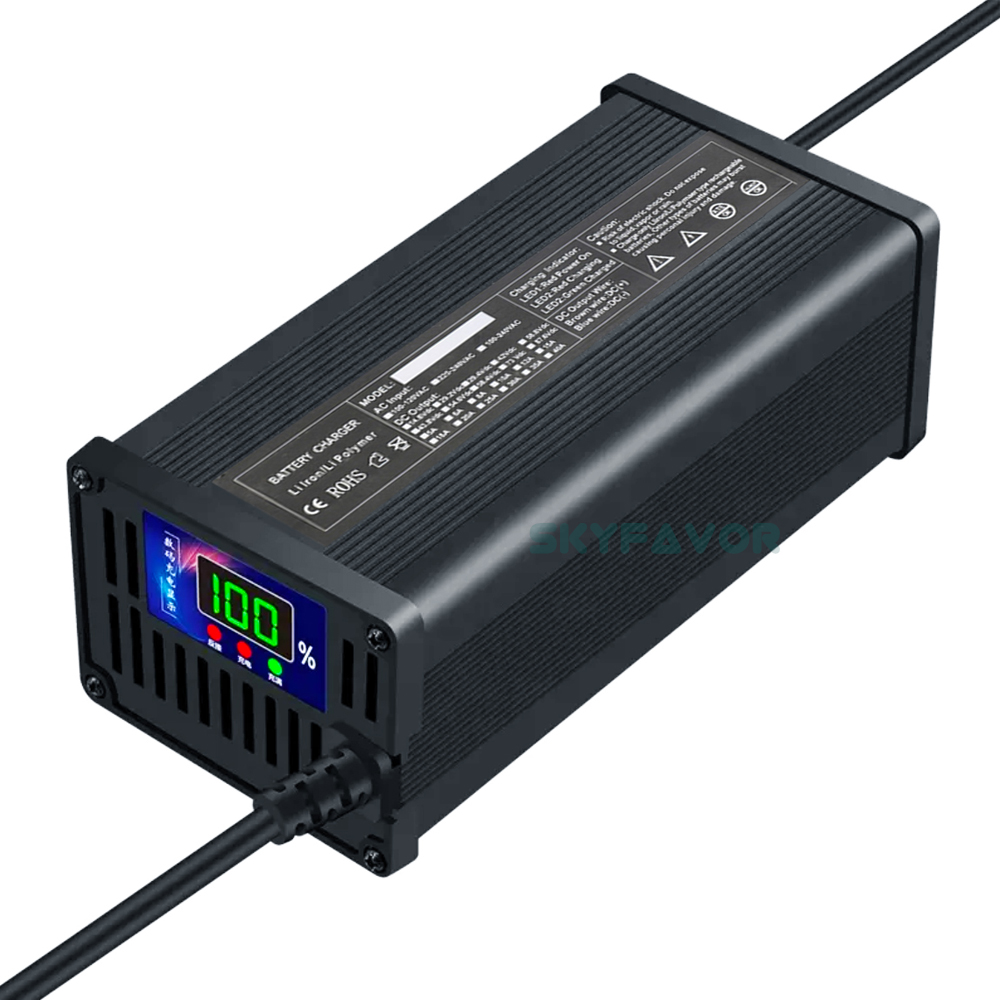

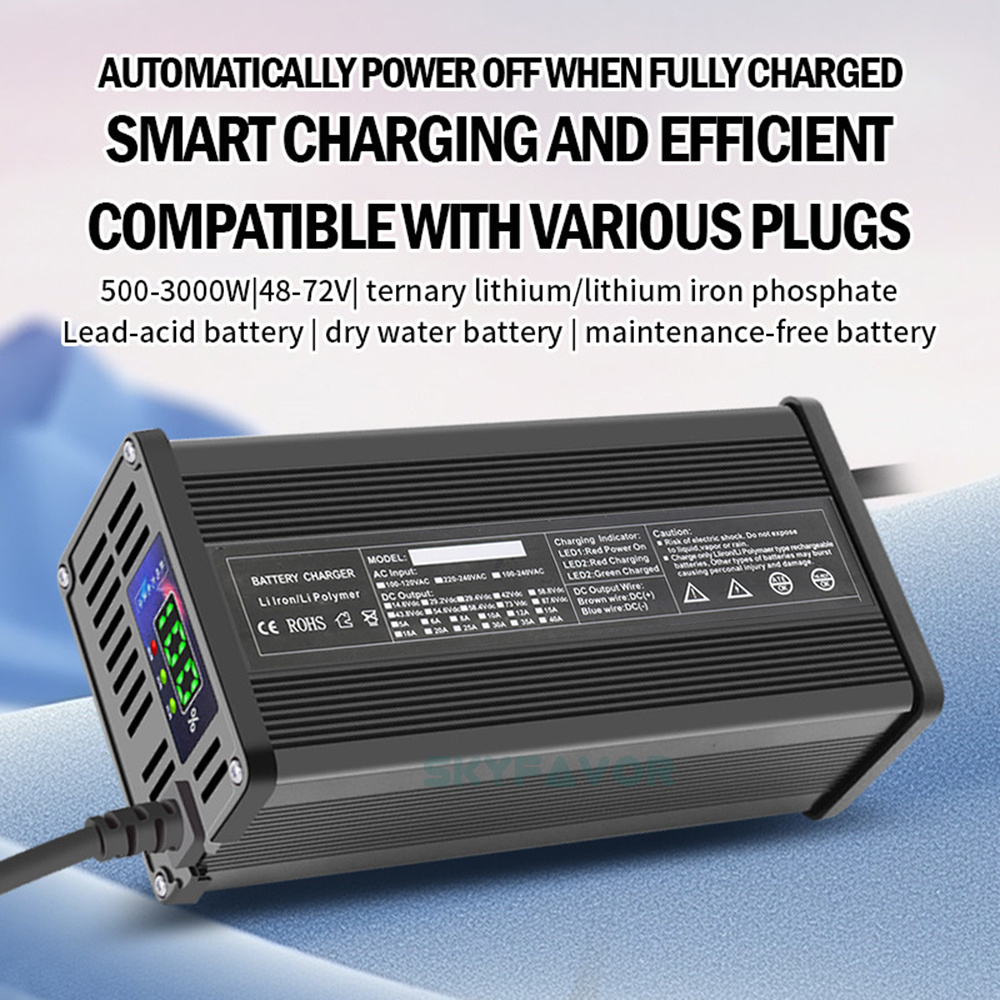

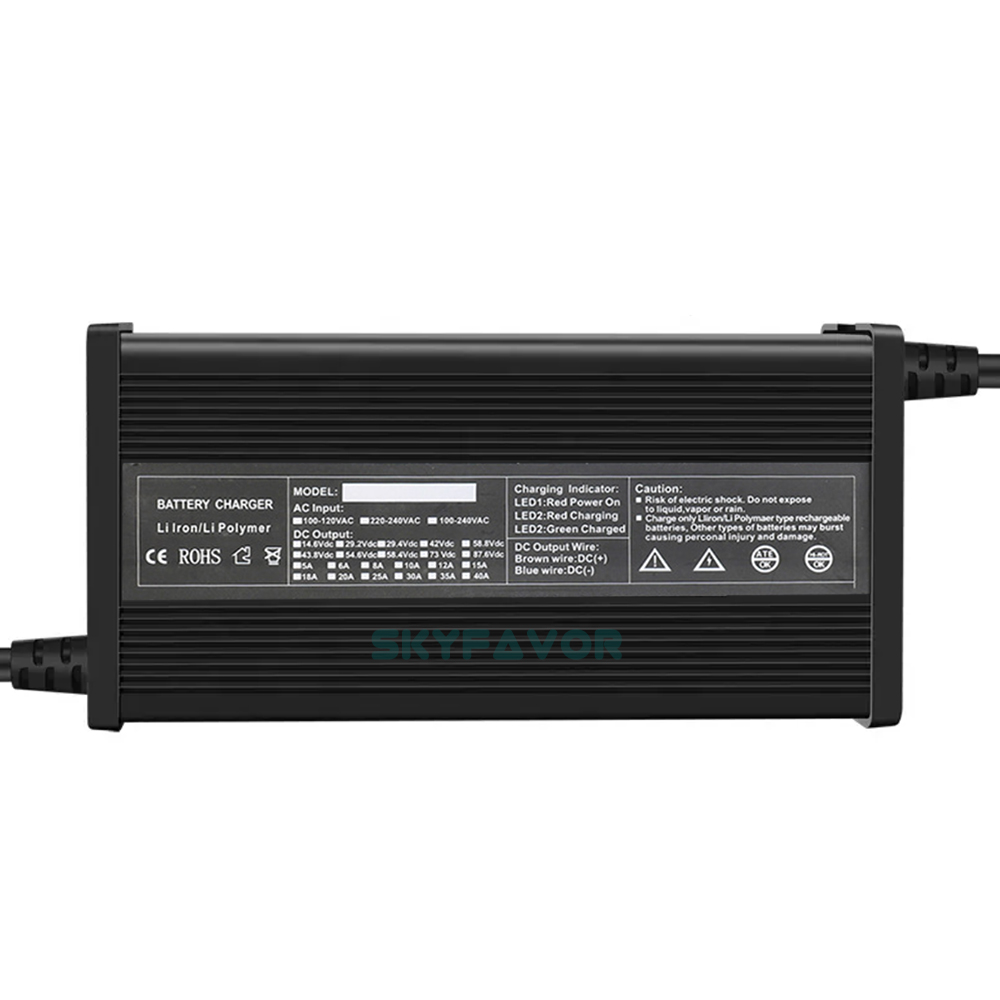

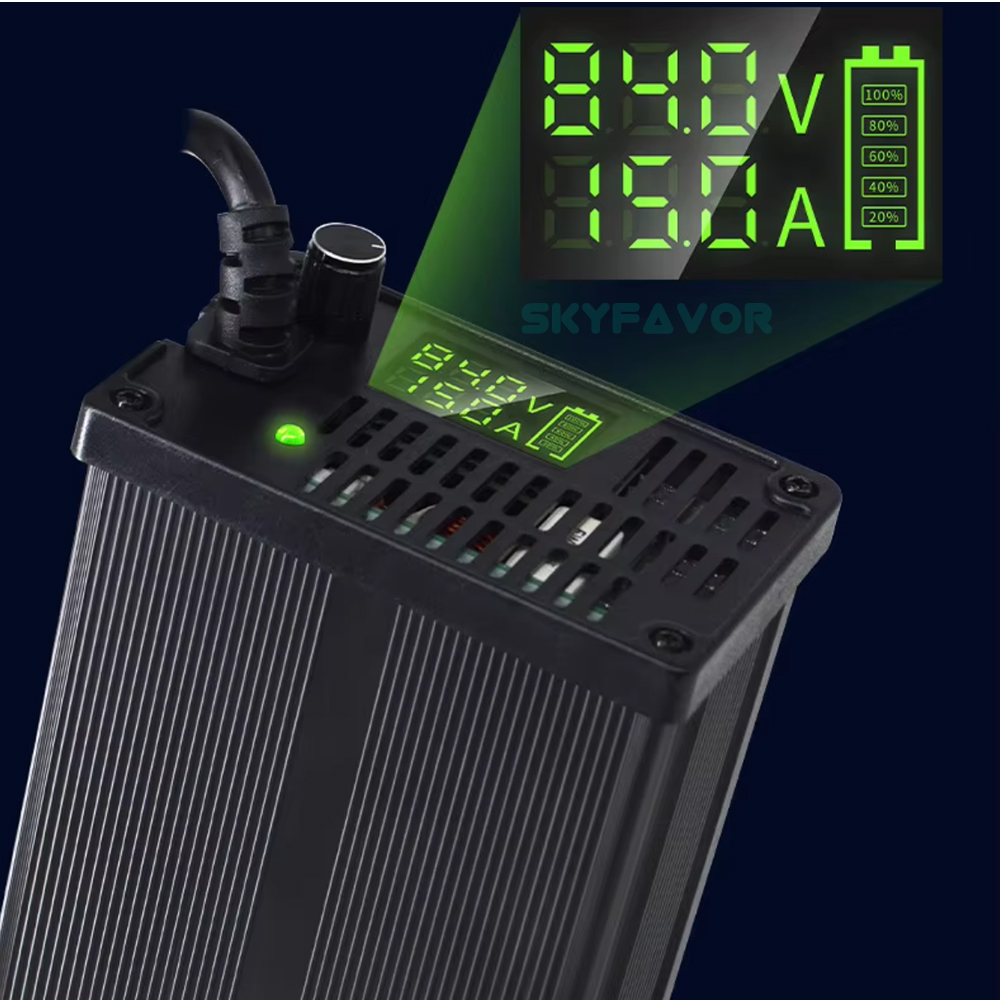

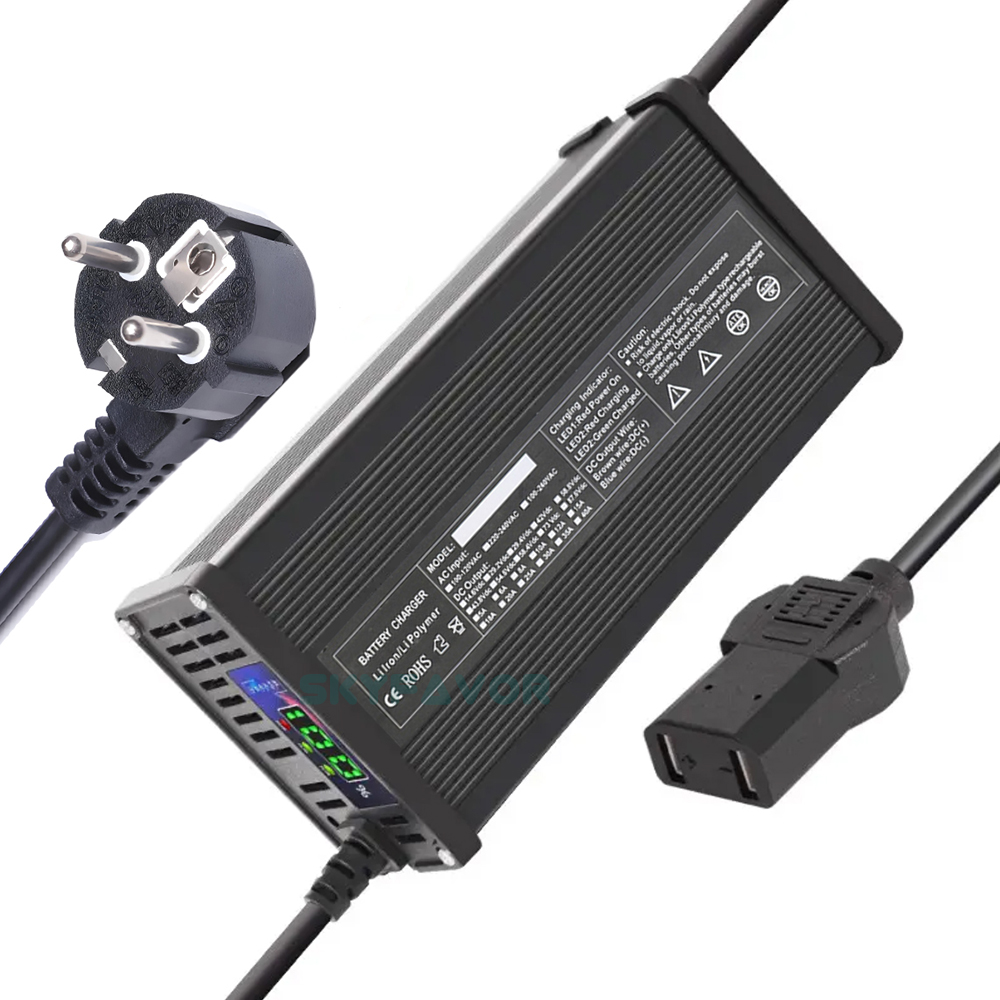

48V lithium battery 48V 15A fast automatic smart 12S lithium ion 50.4V battery charger

The 48V lithium battery 48V 15A fast automatic smart 12S lithium ion 50.4V battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

Input Voltage: 110V OR 230Vac input AC voltage

Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

     Constant Charging Voltage:  50.4V(for 12S Lithium battery);

C:Charging Mode:

3 Stages, CC, CV, Trickle

D:Safety Test for smart battery charger

Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

Resistance:The smart battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for high power battery charger

 Over Voltage Protection

   The battery charger will be auto recovered when faults remove

 Over Current Protection

   Charger output current does not exceed the set maximum battery charging current.

 Over Temperature Protection

 Over Short Circuit Protection

   battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

 Over reverse polarity Protection

When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:

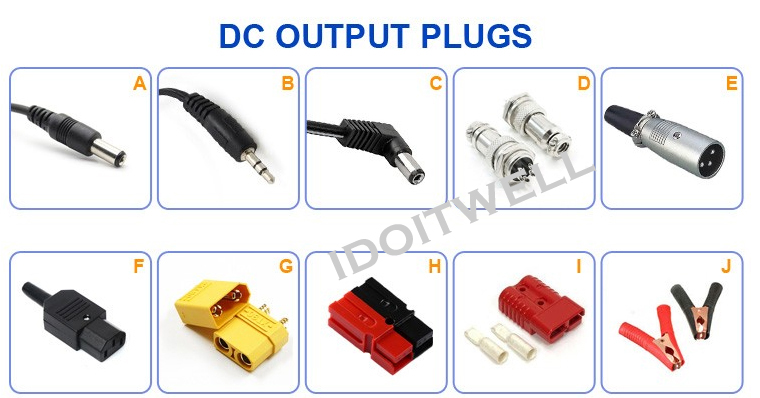

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc.

48V lithium battery 48V 15A fast automatic smart 12S lithium ion 50.4V battery charger

We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer

48V lithium battery 48V 15A fast automatic smart 12S lithium ion 50.4V battery charger

1. Are you the smart battery charger Manufacture?

Yes, we specialize in Lithium battery charger, Lead acid battery charger, LifePO4 battery charger, Smart battery charger manufacturer over 18 year's experience.

2. Do you have any certificates of smart battery charger products?

Yes, we have CE, RohS and FCC certificates for most of smart battery charger products. In line with international standards.

3. Does the high power battery charger product have the minimum order requirements?

We have no minimum order requirements for high power battery charger products. But please consider the cost of freight rates in small quantities.

4. Which payments are acceptable?

We accept T/T, Paypal, Western Union, and Money Gram. And any payment terms that you feel convenient.

5. What about your package of the 48V volt battery charger product?

Single independent plastic packaging, single carton packaging, each unit with a box packaging. Ensure that the charger is not squeezed. We can also make special package according to your needs.

6. Can you provide a sample of 48V volt battery charger for free of charge?

Sure. But for the first time, the sample will be charged, the charge will be returned in the next time the sample is confirmed.

7. Can you arrange to ship my other supplier’s product together?

Yes, we can help to collect and ship your supplier’s product, and even help to source any products from China you specified in addition to the charger products

8. Can you help test the products of other suppliers?

Sure, unless it needs some professional knowledge of charger, we can control your other Chinese suppliers of product quality

9. Do you support OEM or ODM?

Yes, we can make product as your requirement.

10. Do you offer other service?

Yes, if you need our help on purchasing any goods, just send us your demand details, we will do our utmost to help you, and to provide you with convenient China management.

Best seller will provide professional service. Leave message to get a best price of “48V lithium battery 48V 15A fast automatic smart 12S lithium ion 50.4V battery charger"
