Deep Cycle 48v Battery Charger Agm Gel High Quality Automatic 48 Volt 15 Amp Lead Acid Battery Charger for 120AH 150AH 200AH
Key attributes
Packaging and delivery
Description
(battery charger)Deep cycle 48v battery charger agm gel High quality automatic 48 volt 15 amp lead acid battery charger for 120AH 150AH 200AH
Name | Smart 48V 15A lead acid battery charger(with display) |
Model | 900W |
Battery type | 48V Lead acid battery |
AC Input | 110Vac or 230Vac |
Output voltage | 58.8V float charge 55.2V |
Output current | 15A |
Protection | Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
Apply to | For 120AH,150AH,200AH 48V lead acid battery |


The Deep cycle 48v battery charger agm gel automatic 48 volt 15 amp lead acid battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110v or 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:Deep cycle 48v battery charger agm gel automatic 48 volt 15 amp lead acid battery charger
Constant Charging Voltage:58.8V float charge 55.2V (for 48V Lead acid battery)
C:Charging Mode:Deep cycle 48v battery charger agm gel automatic 48 volt 15 amp lead acid battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery chargerDeep cycle 48v battery charger agm gel automatic 48 volt 15 amp lead acid battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

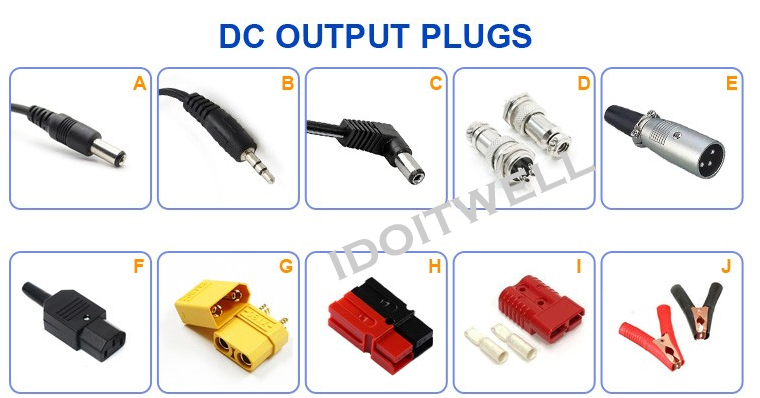

F:DC Connector Dimension:Deep cycle 48v battery charger agm gel automatic 48 volt 15 amp lead acid battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
Deep cycle 48v battery charger agm gel automatic 48 volt 15 amp lead acid battery charger

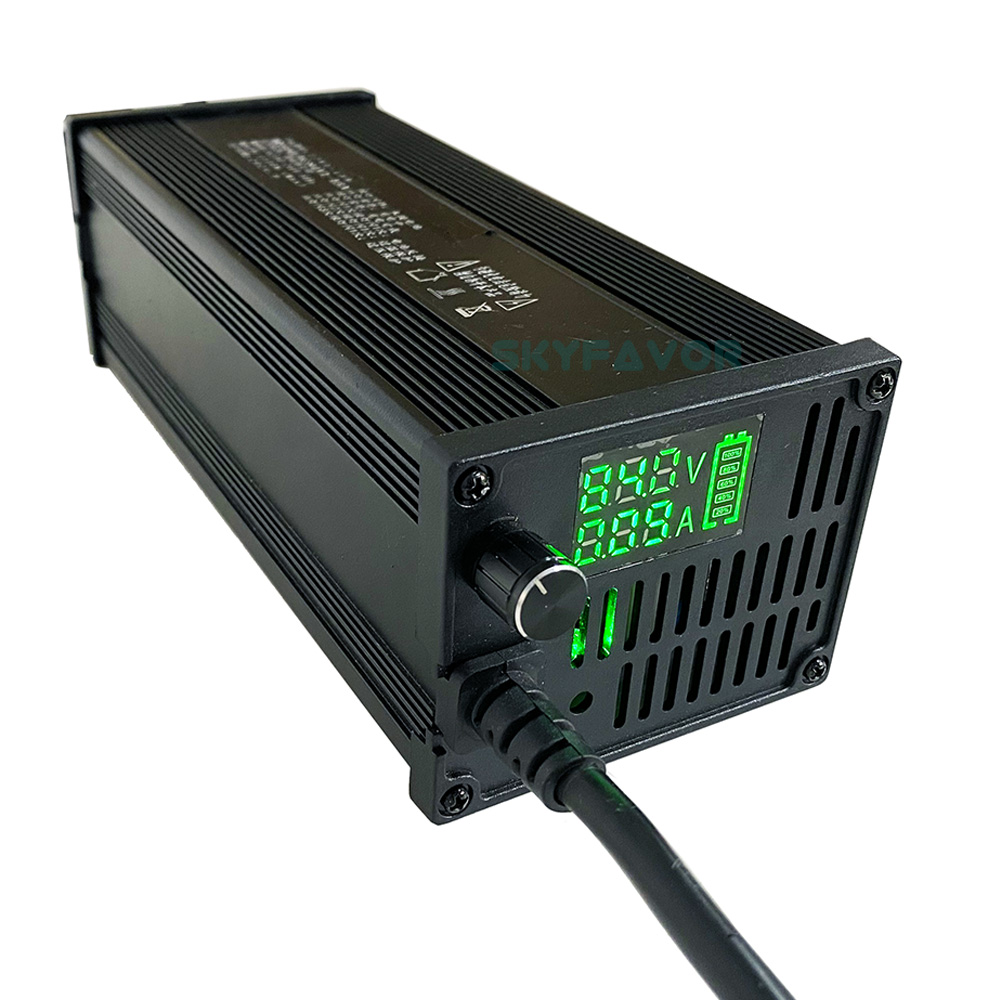

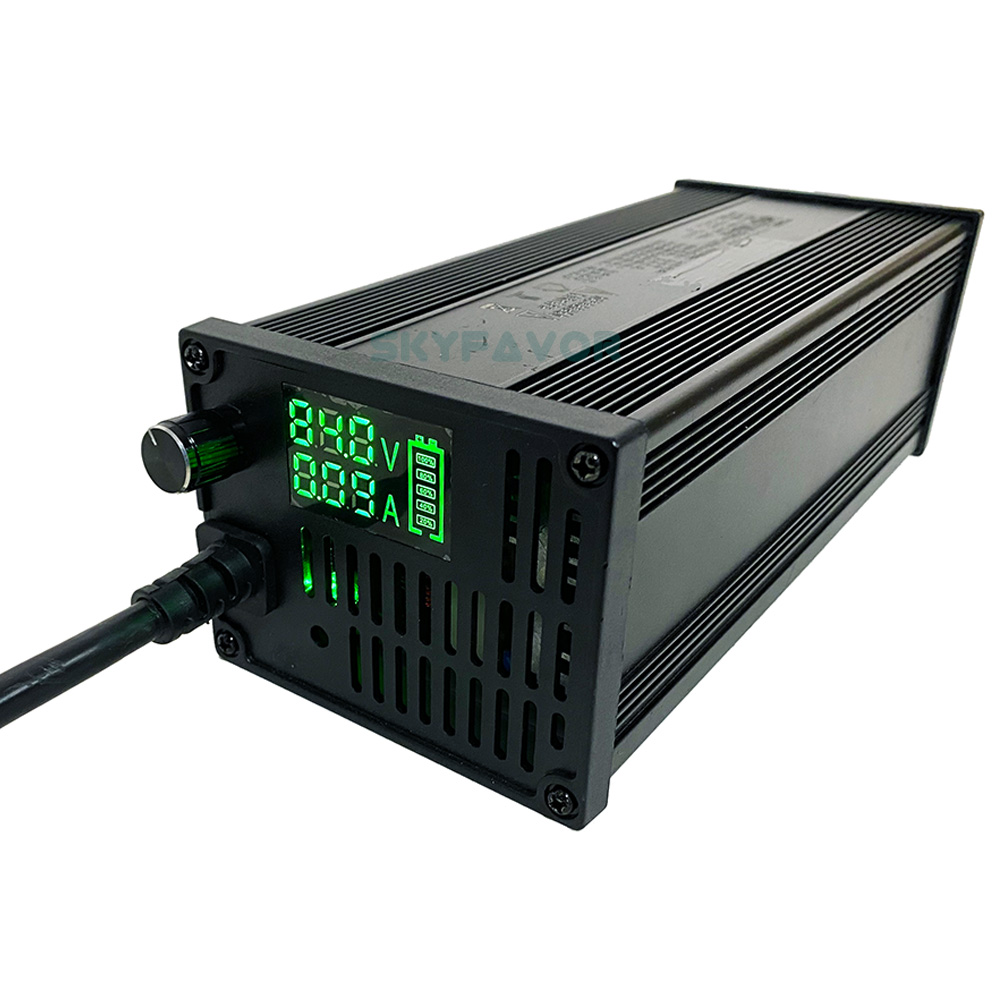

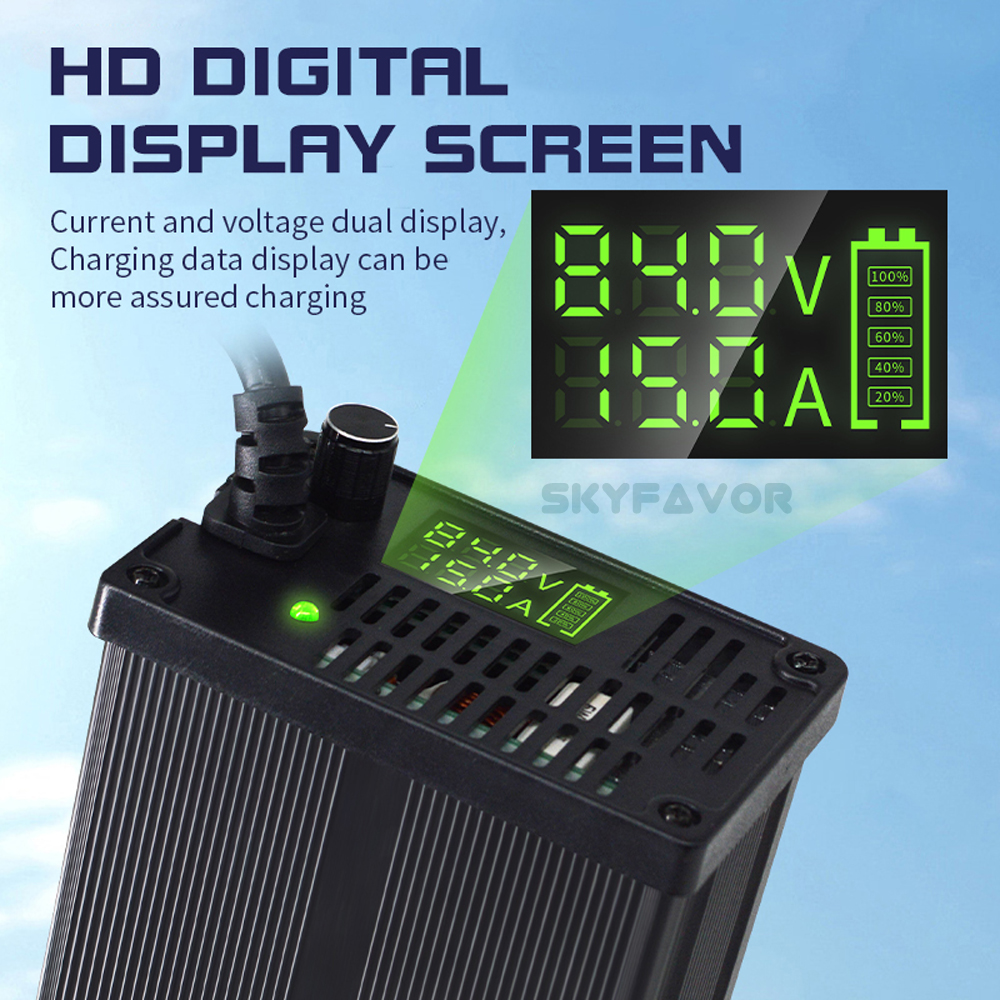

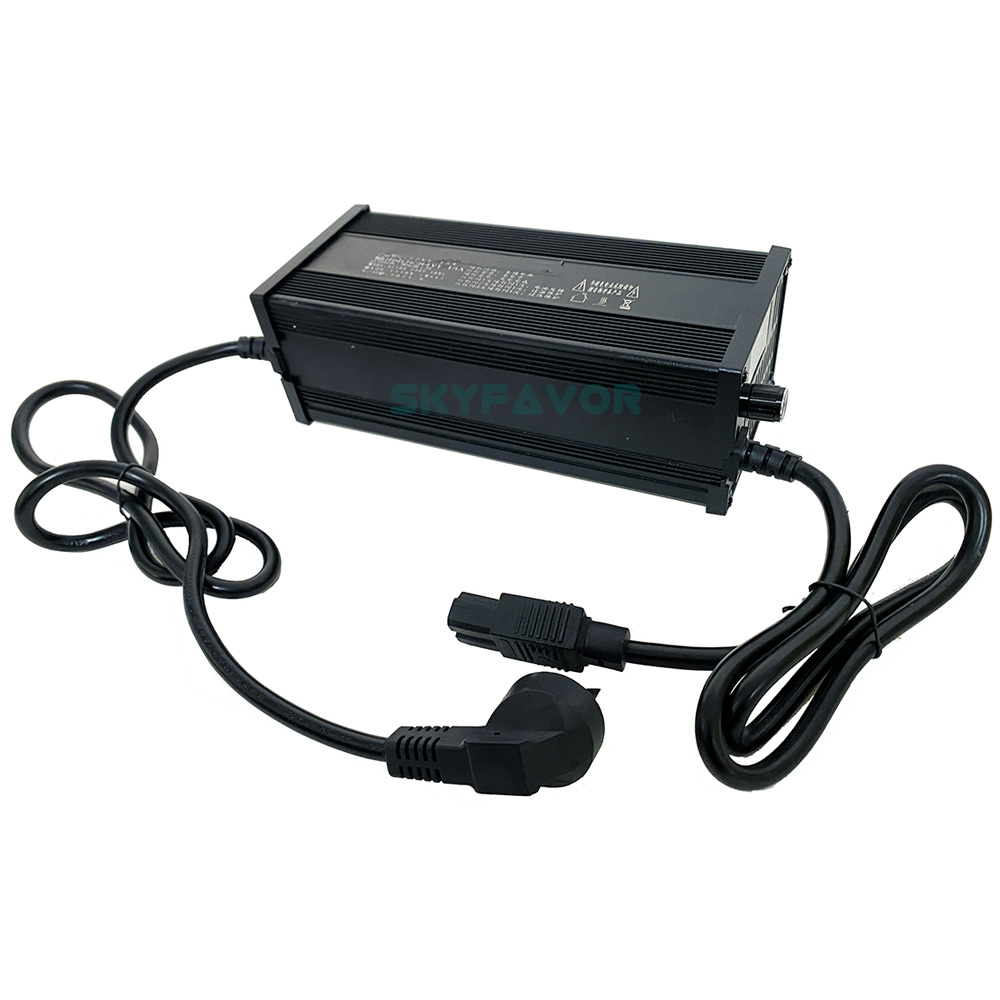

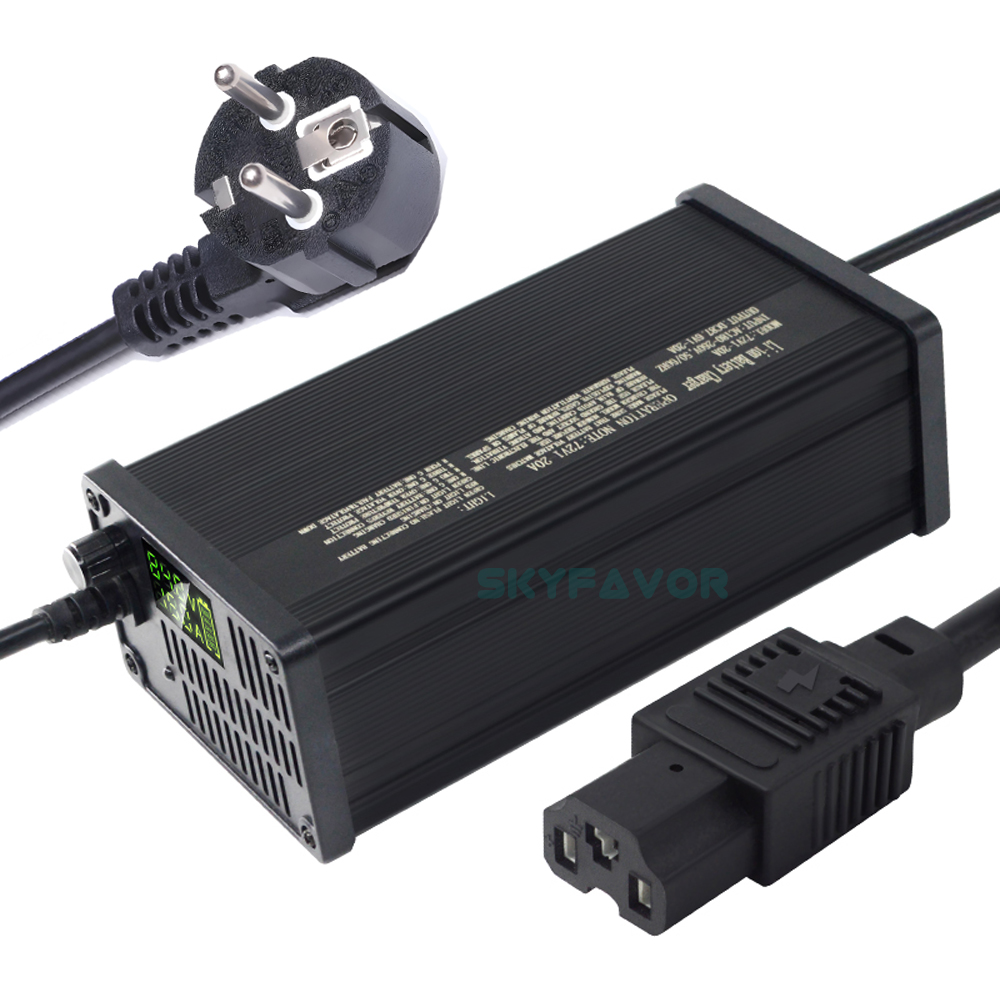

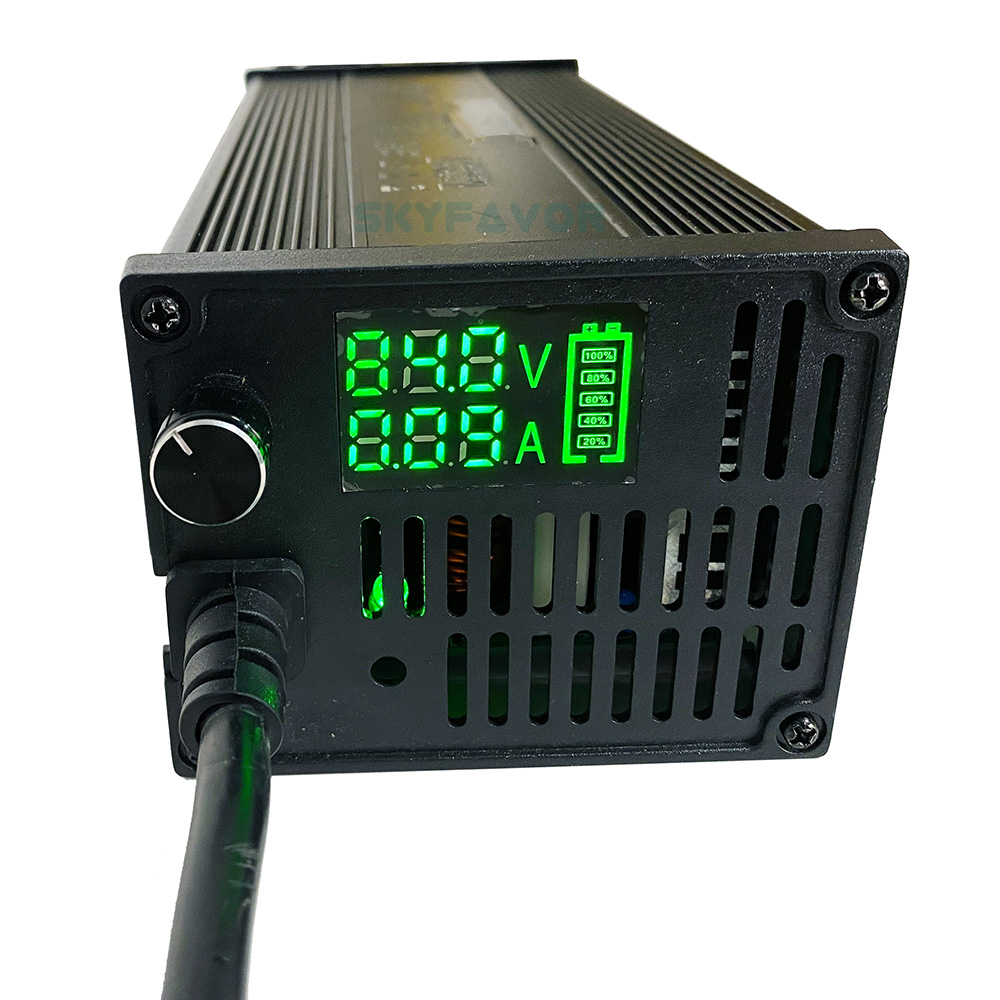

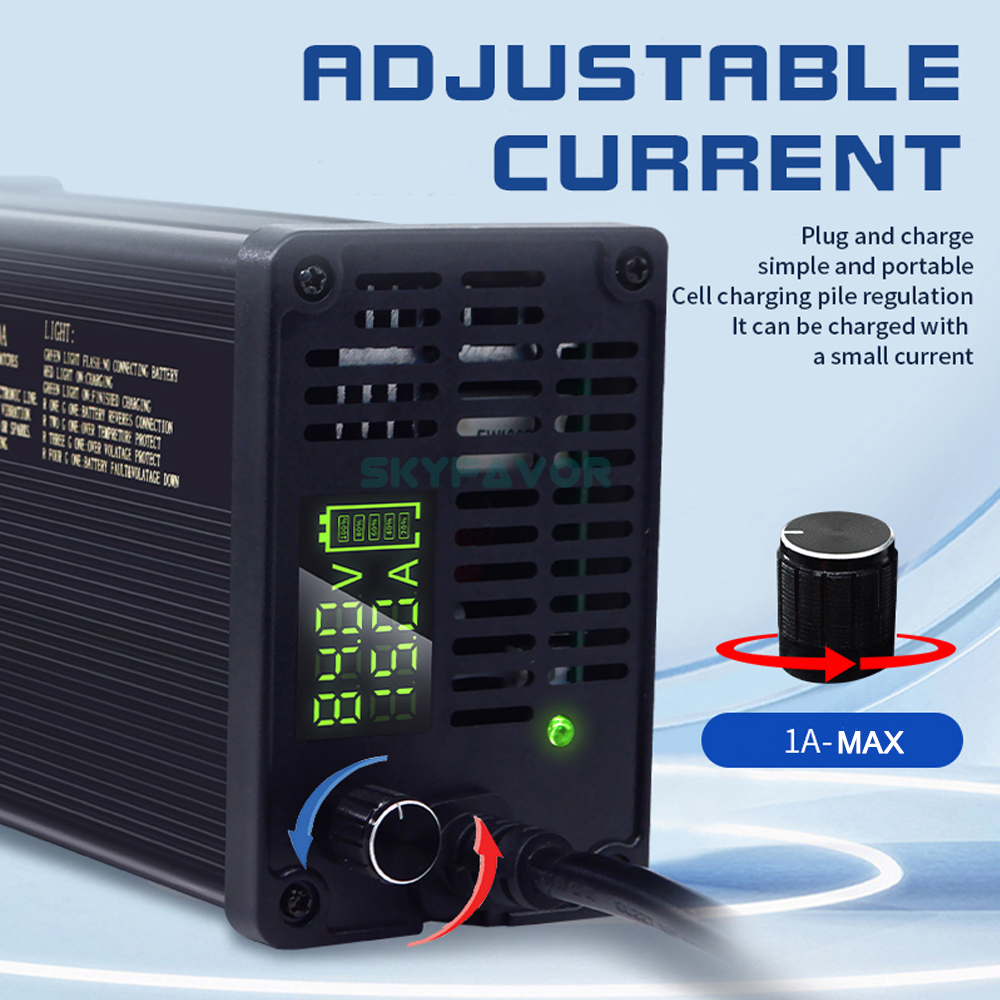

Product picture






We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer
IDOITWELL Smart Automatic battery charger list | |||||||||
Model IDOITWELL | Charging voltage¤t for reference | N.W. (KG) | Size(mm) IDOITWELL | ||||||
12V | 24V | 36V | 48V | 60V | 72V | 84V | |||
120W | 7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 |
180W | 10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 |
240W | 15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 |
360W | 20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 |
600W | 25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 |
900W | 40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 |
900WB | 40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 |
1200W | 50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 |
1500W | 60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 |
2000W | 90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 |
2500W | - | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 |
4000W | 150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 |
Deep cycle 48v battery charger agm gel automatic 48 volt 15 amp lead acid battery charger
Alternative connections


Deep cycle 48v battery charger agm gel automatic 48 volt 15 amp lead acid battery charger
1 x Battery charger
1 x User Manual
