Trending Smart Automatic Battery Charger 24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery Charger

Key attributes

port
DC
output
24V/30A
input
110V/220V
function
24V/30A
output power
1200W
protection
Over-charging, Overcurrent, Overvoltage, Short Circuit Protection
type
Electric
material
Aluminum case
private mold
Yes
model number
DL-1200W
place of origin
Guangdong, China
brand name
SKYFAVOR

Packaging and delivery

Selling Units
Single item
Single package size
36X23X18 cm
Single gross weight
4.200 kg


Get Quote

Description

(battery charger)Trending Smart Automatic Battery Charger 24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery Charger

Name

Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

Model

1200W

Battery type

24V 8S lifepo4 battery pack

AC Input

230Vac

Output voltage

29.2V(for 8S lifepo4 battery pack)

Output current

30A

Protection

Over Voltage Protection

Over Current Protection

Short Circuit Protection

Reverse polarity Protection

Apply to

For 100AH 120Ah 150AH, 24v 8S lifepo4 battery









Trending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery ChargerTrending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery Charger

Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

The Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

   Input Voltage:110Vac or 230Vac input AC voltage

   Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

   Constant Charging Voltage: 29.2V(for 24v 8S lifepo4 battery)

C:Charging Mode:Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

   3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

   Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

   Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

   Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection   The battery charger will be auto recovered when faults remove

Over Current Protection   Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

F:DC Connector Dimension:Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc



Manufacture time:
The manufacture time of the battery charger will need 8-12 days, because all the battery chargers are customized according to the customer's requirements, we have not any chargers in stock. If you accept the delivery time, please go ahead to make purchase. Once you place the order, we will treat you accept the manufacture time.

Lead Time:Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection
Normally we will deliver the battery charger by DHL, UPS or Fedex express, it always need 5-8 days on transport.
So you will receive the parcel in 13-20 days after pay for the order.

Last thing,  when the order be paid it will can't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique, it is impossible to change the charger specification to resell, so we don't accept order be cancelled after 24 hours. Please read above information carefully and buy with caution.  Thanks for your kind understanding and support!

Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

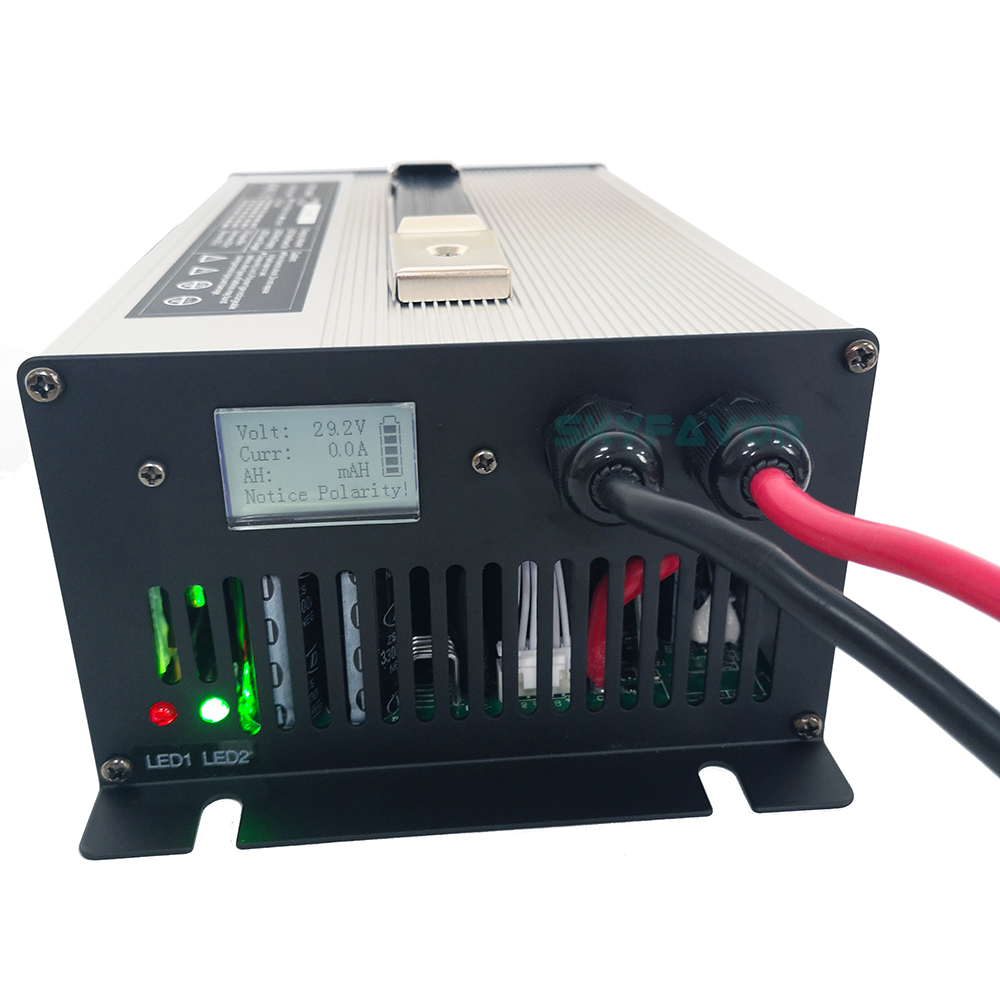

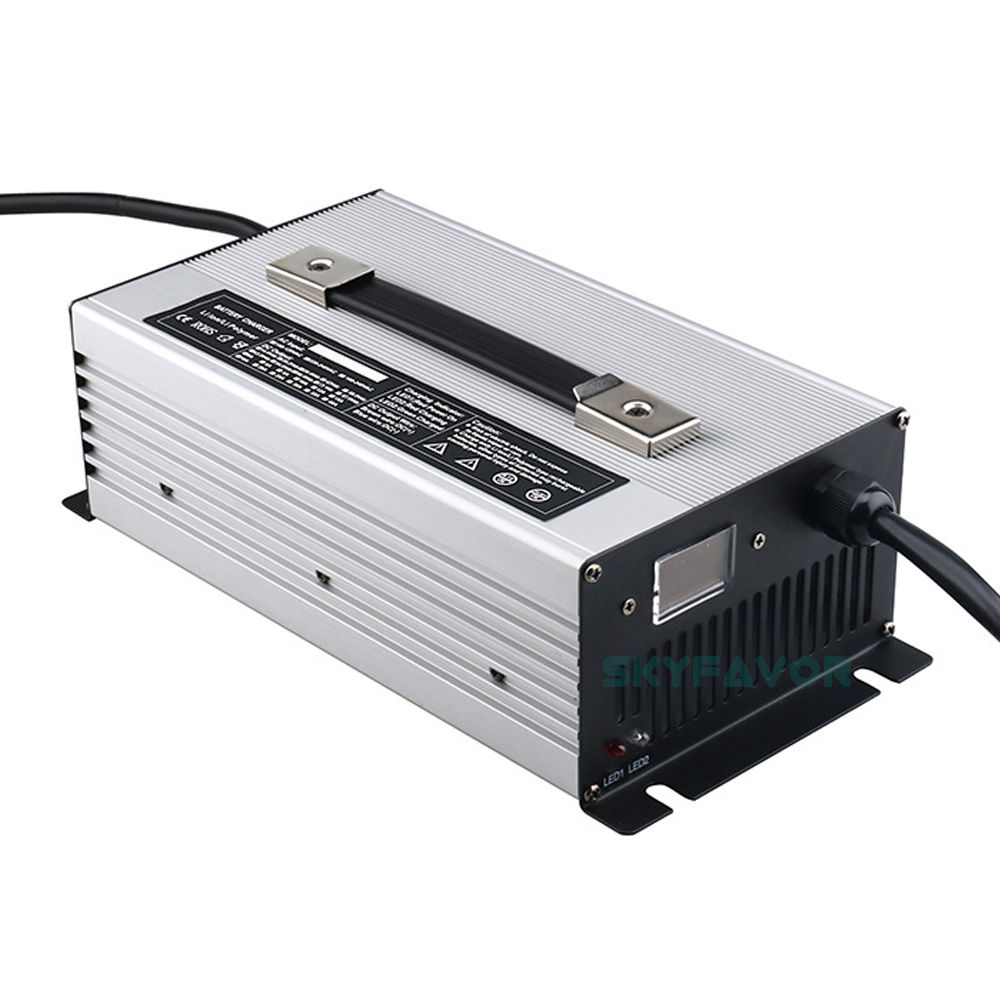

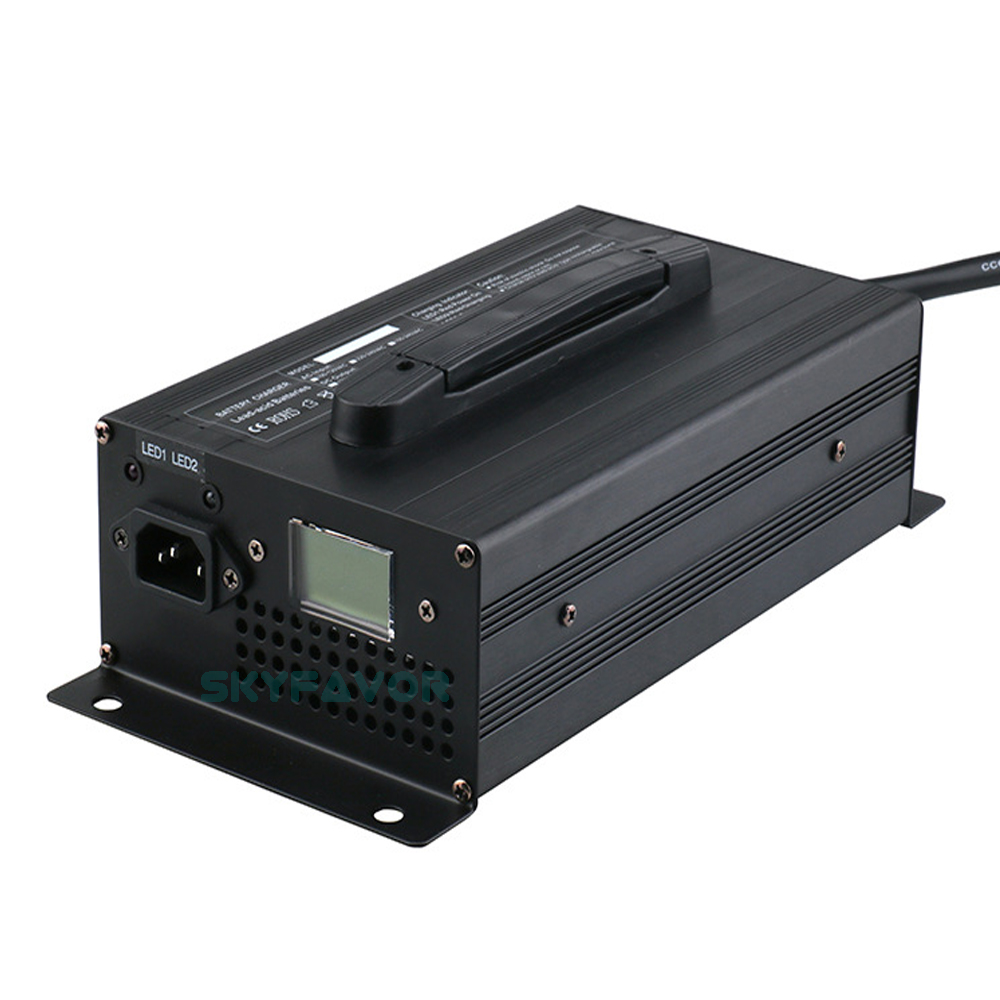

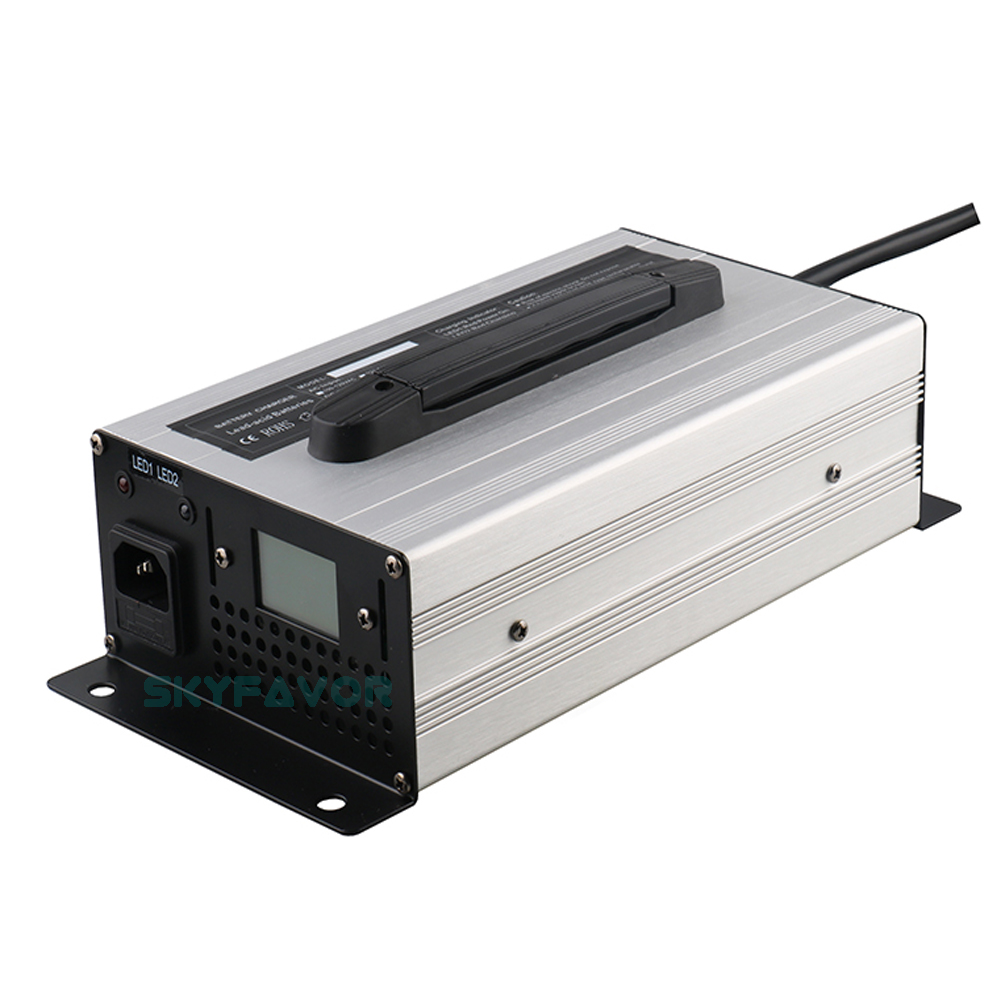

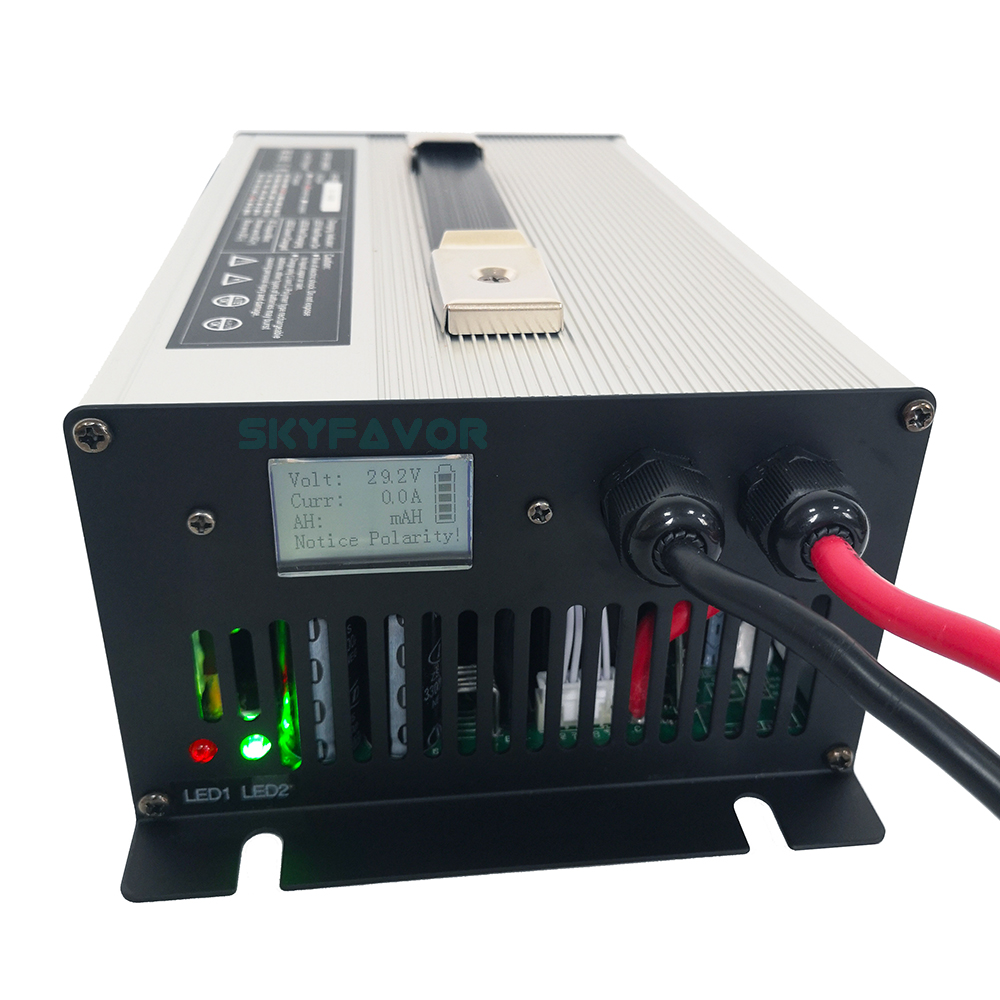

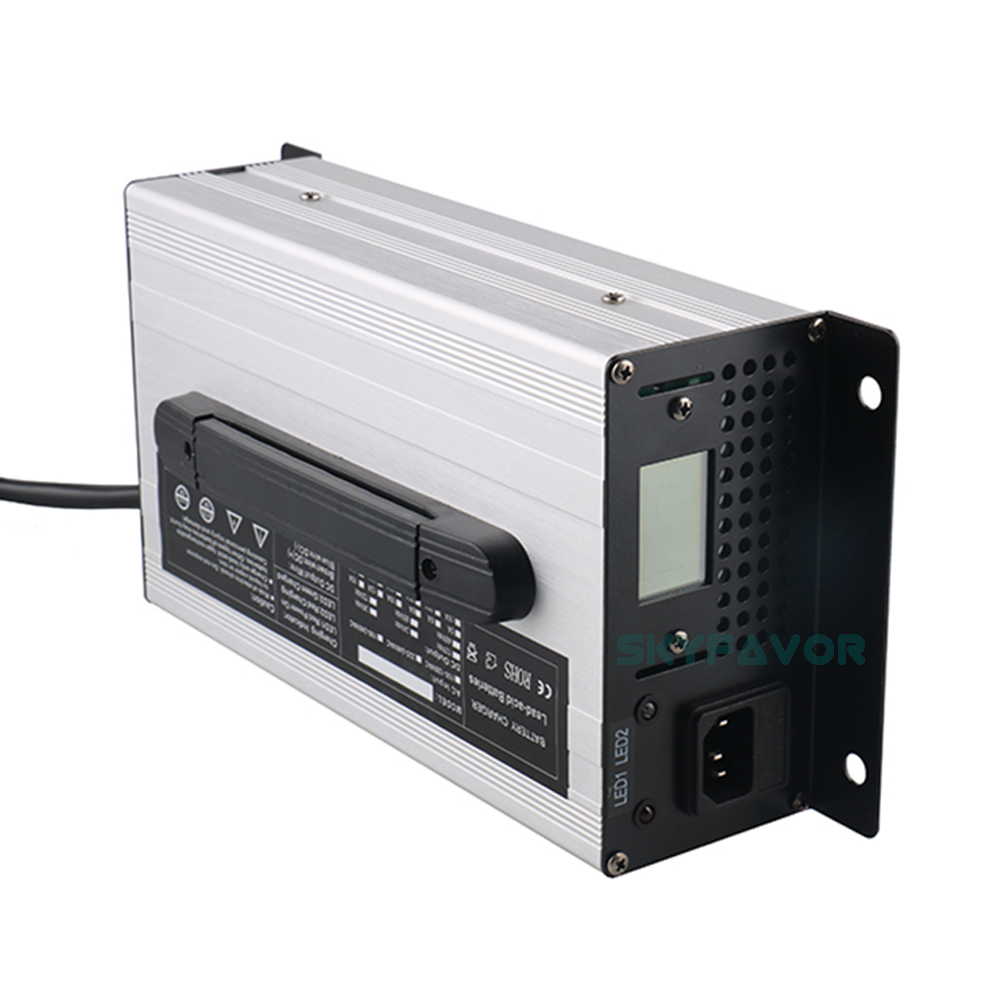

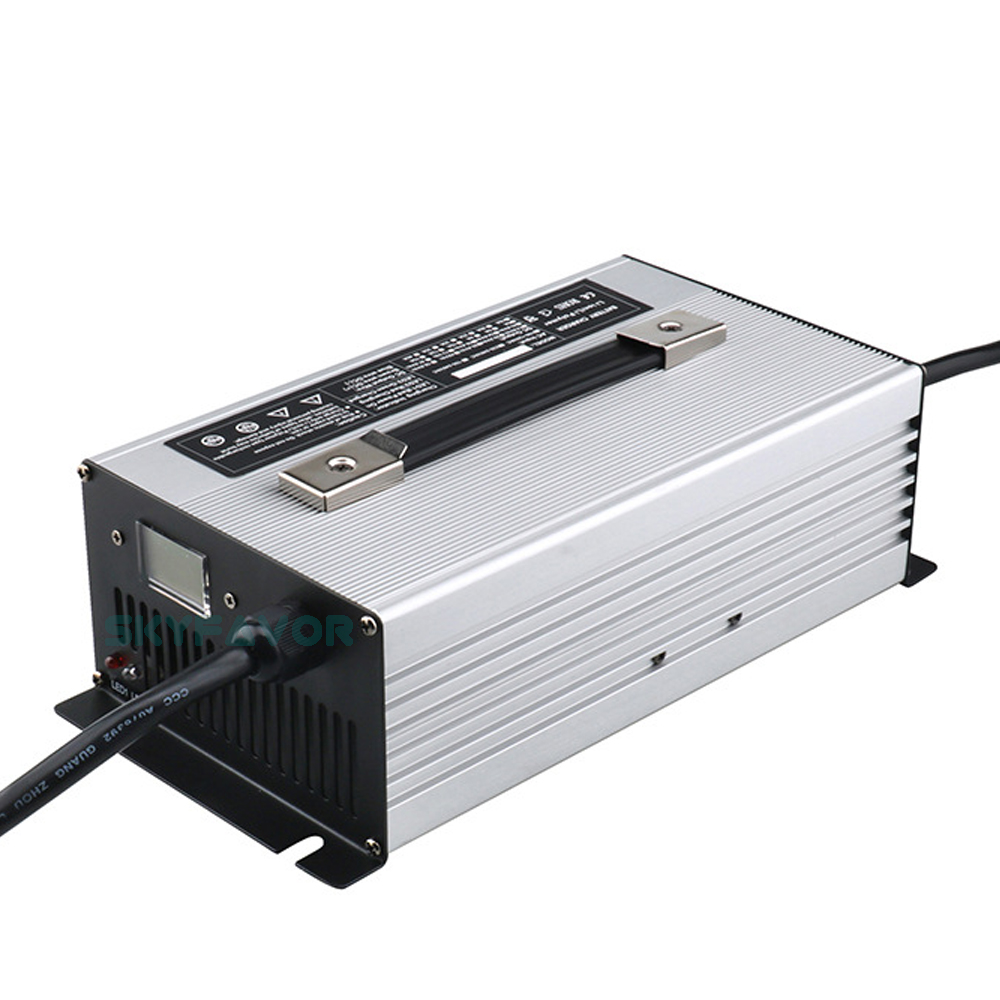

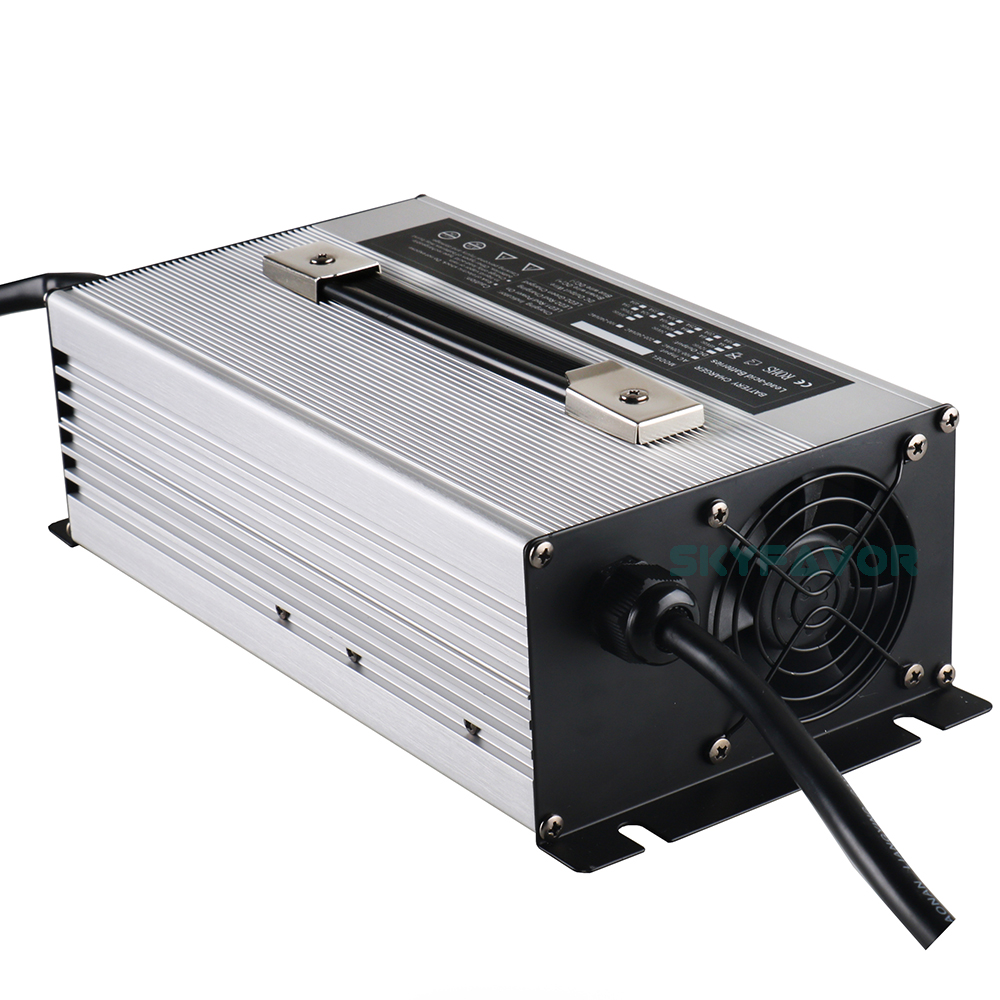

Product picture

Trending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery ChargerTrending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery ChargerTrending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery ChargerTrending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery ChargerTrending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery ChargerTrending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery ChargerTrending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery Charger

We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer

Smart Automatic battery charger list

Model

 Charging voltage&current for reference

 N.W. (KG)

  Size(mm)



12V

24V

36V

48V

60V

72V

84V

120W

7A

4A

2.5A

1.8A

1.5A

_

_

0.7

135x90x50

180W

10A

5A

3.5A

2.5A

2A

1.5A

_

0.9

155x90x50

240W

15A

7.5A

5A

3.8A

3A

2.5A

_

1

170x90x50

360W

20A

12A

8A

6A

4.5A

4A

_

1.2

170x90x63

600W

25A

19A

12A

9A

7A

6A

_

2.5

207x120x70

900W

40A

25A

18A

15A

12A

10A

_

3

220x135x70

900WB

40A

25A

18A

15A

12A

10A

8A

3.5

260x175x90

1200W

50A

30A

20A

19A

15A

12A

10A

4.5

260x175x90

1500W

60A

45A

30A

24A

19A

16A

14A

5.5

300x175x90

2000W

90A

60A

40A

30A

25A

20A

18A

6.5

330x175x115

2500W

-

75A

50A

40A

30A

25A

22A

7

380x240x150

4000W

150A

100A

80A

60A

45A

40A

35A

11

340x235x110

Trending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery ChargerTrending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery Charger

Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

Packaging & Shipping



Trending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery Charger

Our Services

Trending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery Charger

Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

About Product:

1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.

2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.

Feedback:Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

1. If you are satisfied with our battery charger, Please take a minute to leave us your positive feedback. We depend on customers' satisfaction to succeed. Therefore your positive feedback of 5 STARS is extremely important for us.

2. If you are not satisfied with our battery charger, Please Do not leave any negative feedback before contacting with us. We will do all we can and work with you to solve any problems.

Shipment:Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

1. Please confirm the shipment way and payment, and we will deliver the products in 1-3 working days after we receive the payment. And the tracking number will be given at the first time.

2. Import duties, taxes or other customs cost.

In most cases, the buyer don’t need to pay any import taxes. We will declare it as a battery charger gift.But sometimes in some countries, the customs officer may be strict. we are not accountable for any customs fee. Please check out the customs policy at your own place. If you have to pay the customs fees, it is your duty to your own country, the buyer should understand this situation.

Return and Refund policy:Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

1. We support no reason return and change item policy, but buyer need to pay full cost for two way transports (include the shipping, taxes and customs cost etc.) and keep the item in good condition, otherwise we will keep right to refuse the refund and return. All the return policy must be apply within 3 days (the time point start from buyer receive the item).

2. If the buyer receive wrong and problem items, please contact us within 3 days, and provide the confirmation proof through Video or Photos. When the item is judged as our responsibility, we provide the refund and return policy. If the item can be accepted and repaired in domestic we will take a part of refund. If can not be repaired or broken totally, we will refund the full money or change a new one to buyer when we receive the wrong or problems items.

3. When the refund policy can not solve problems, we accept the return policy, but for return policy buyer need to afford one way cost (the shipping, taxes and customs cost from your country to us), and when we receive the return items we will refund the money.

We are not recommending the return policy, because that cause high cost for both of us.

Contact Us:Trending 24V 30A 8S 29.2V Smart Automatic Charger - LiFePO4 Battery Charger with Display & OVP Protection

1. Before place order, firstly please take a moment to read all the information provided here where your most questions' answers are.

2. You can contact with us by trade manager or by email, we track the message everyday.

Trending Smart Automatic Battery Charger  24V 30A 8S 29.2V LiFePO4 Battery Charger with Display & OVP Protection Battery Charger
