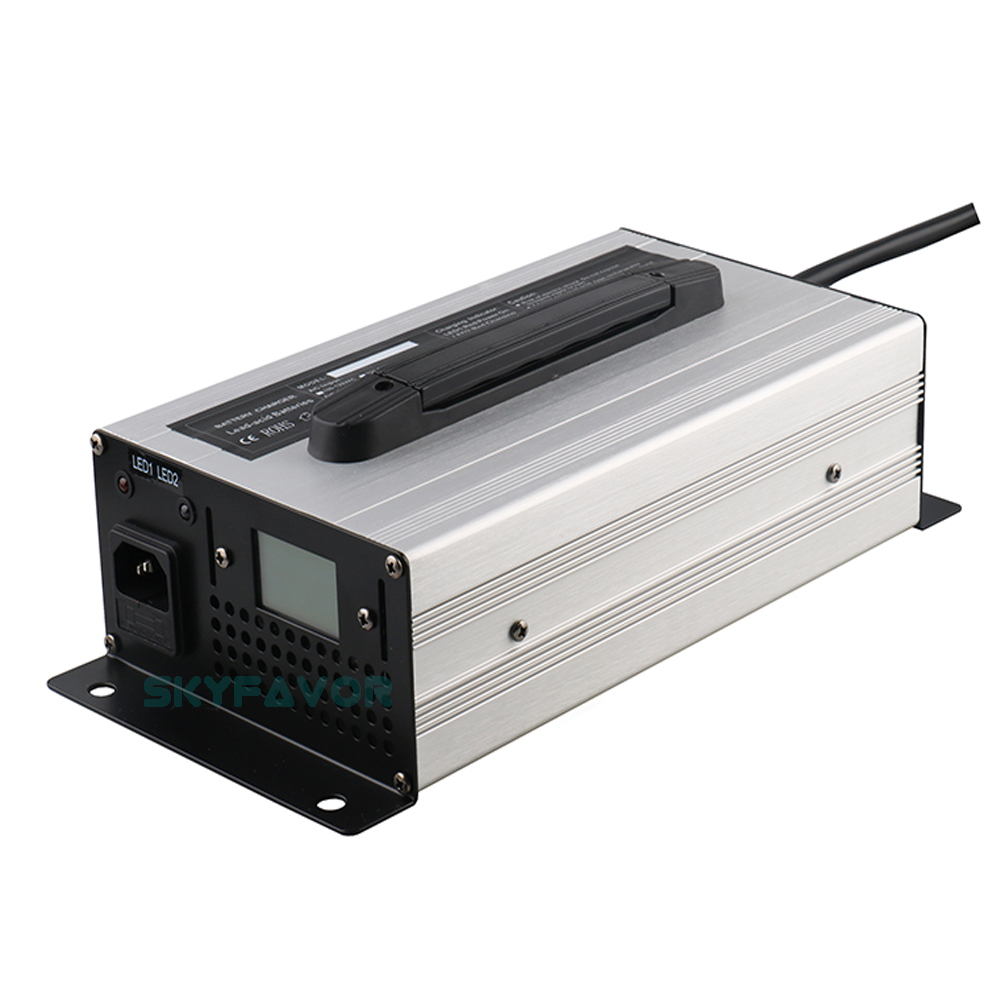

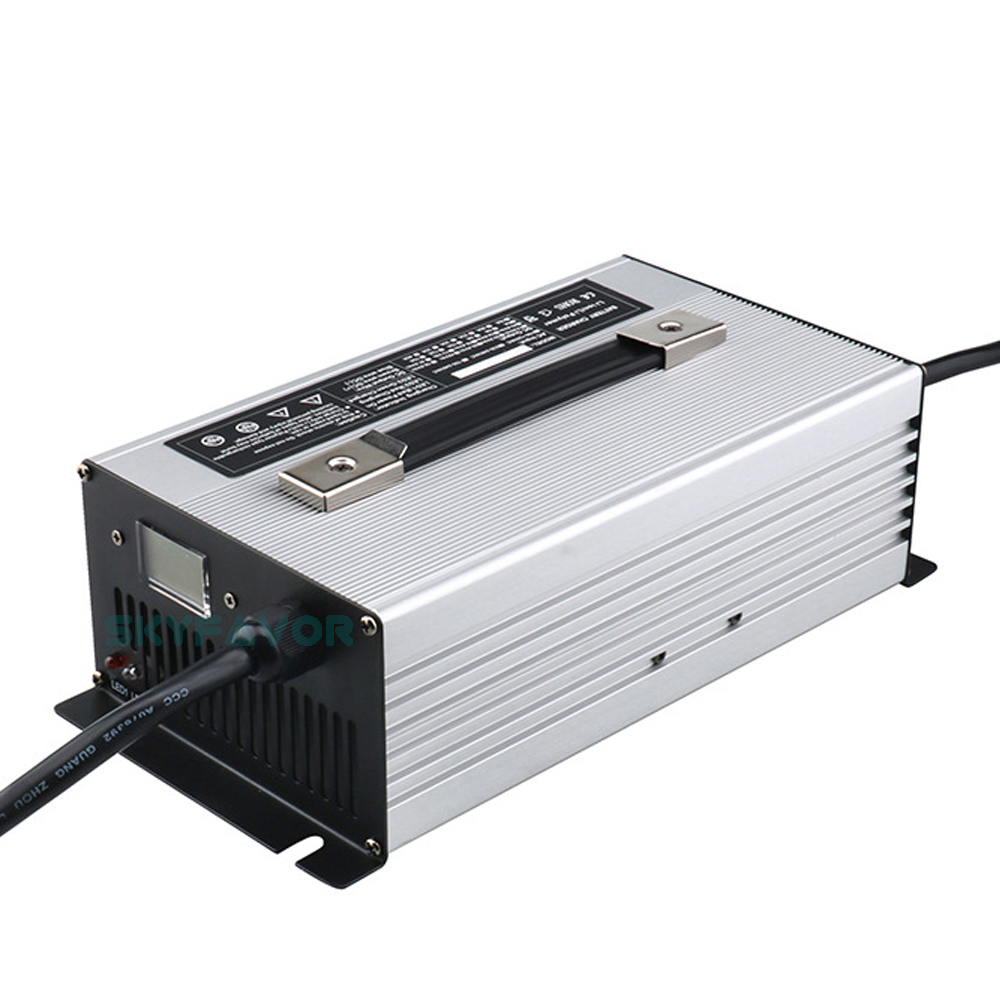

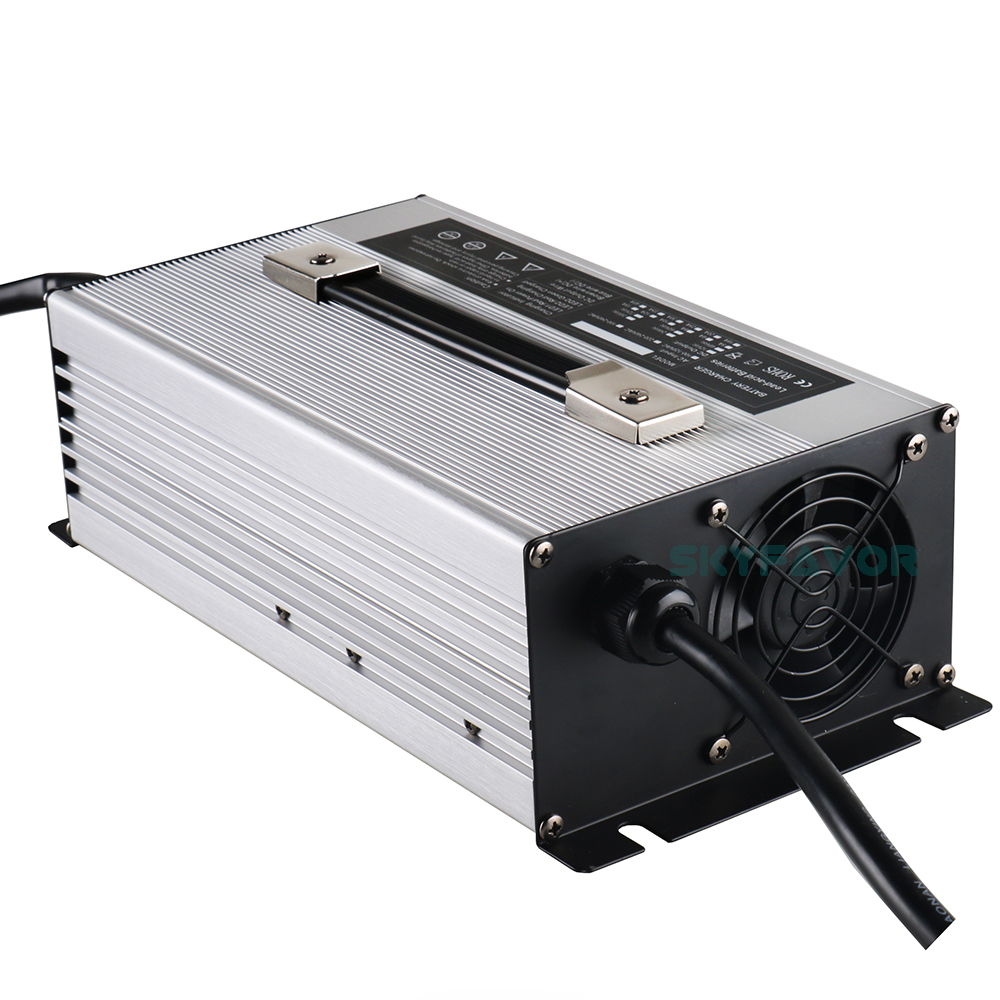

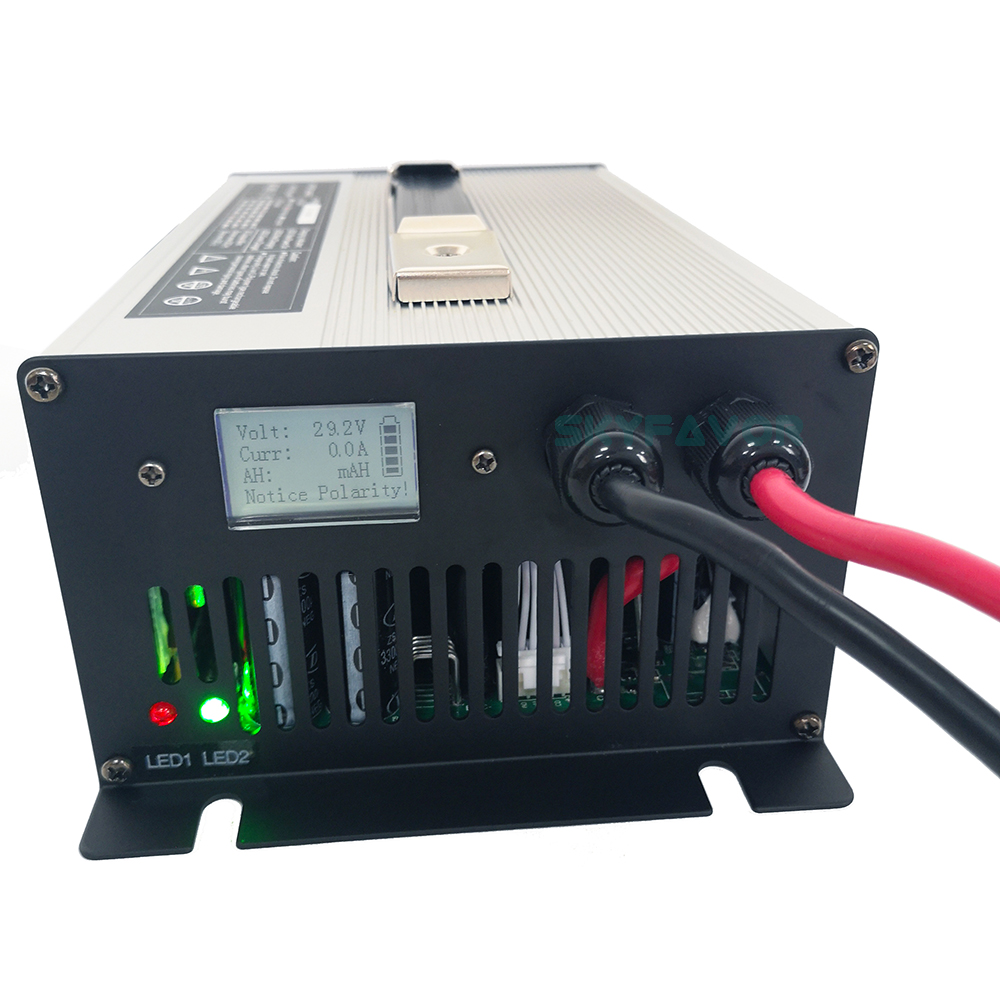

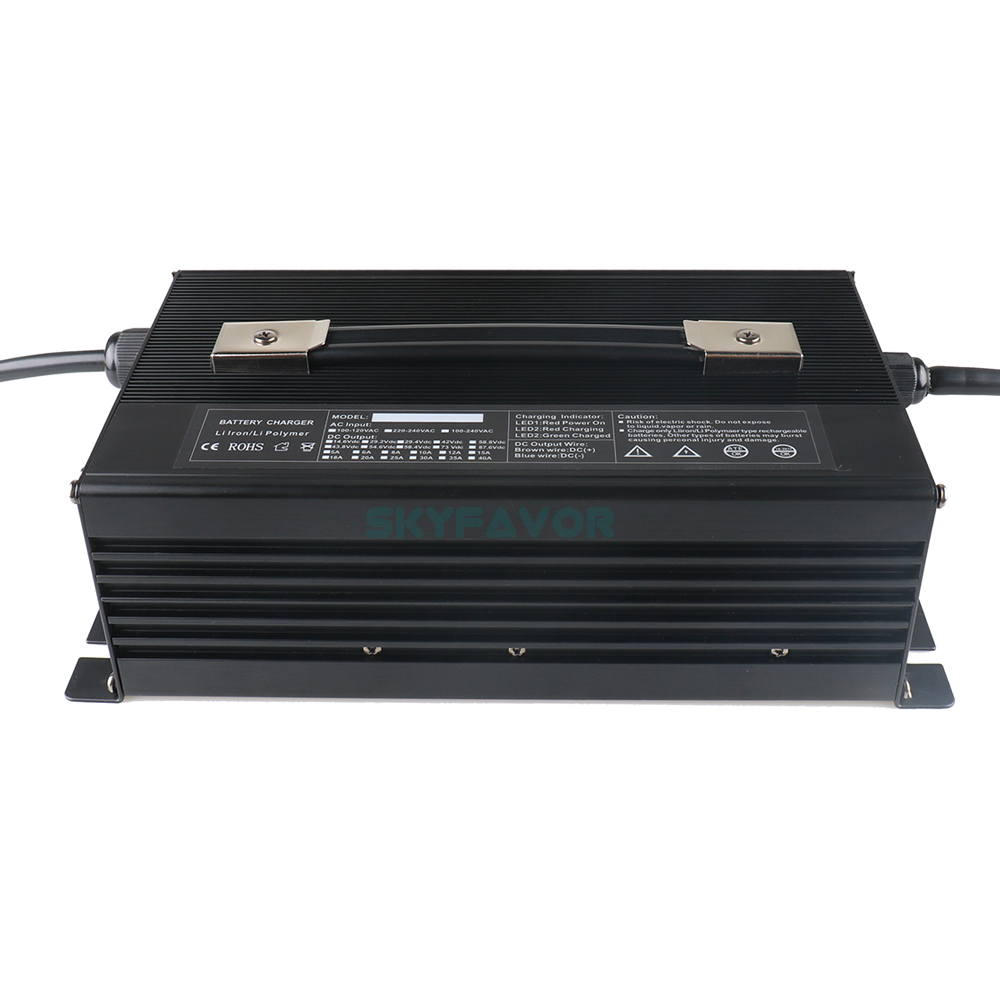

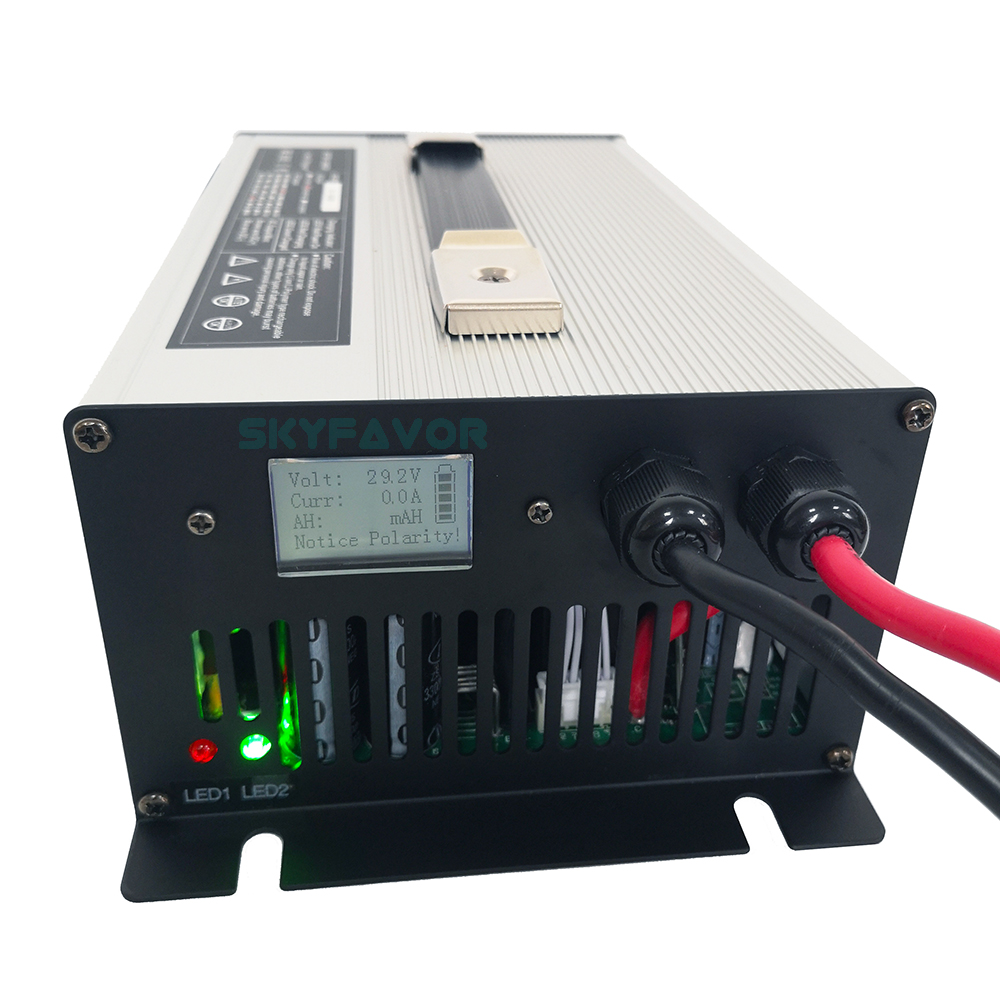

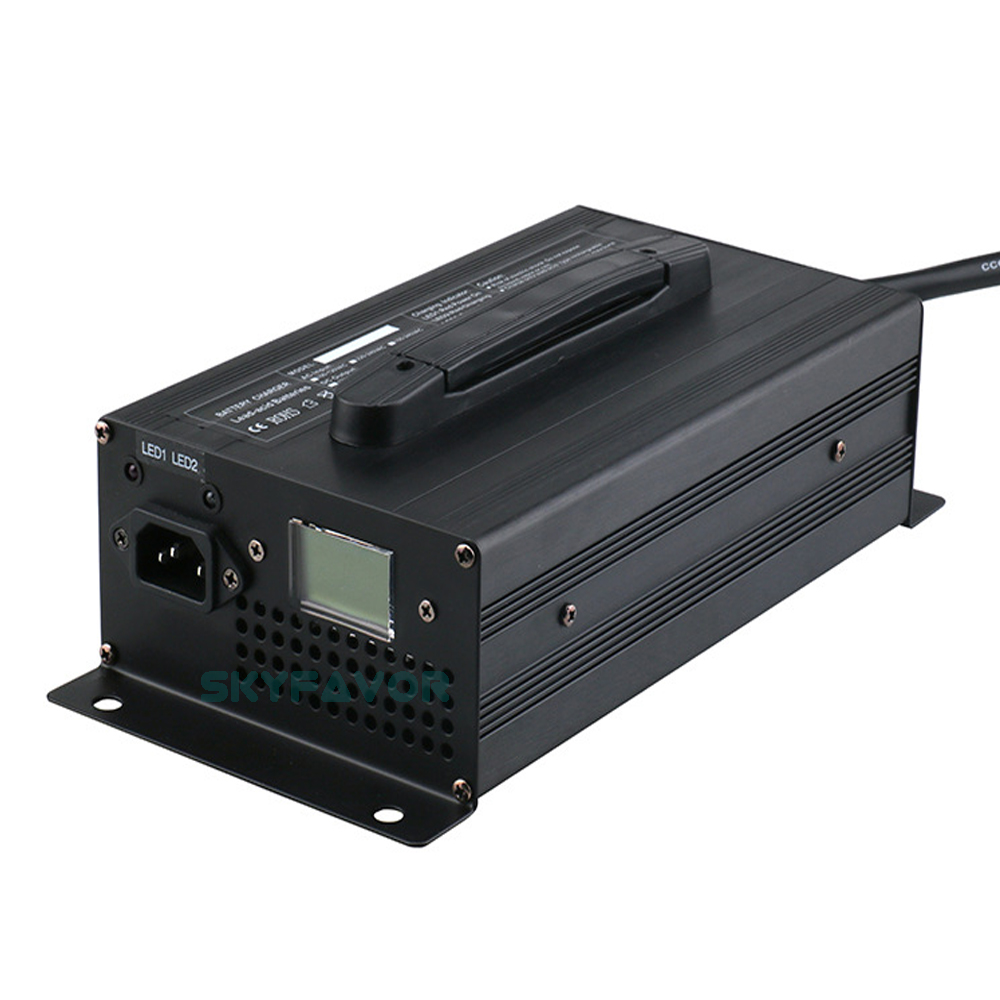

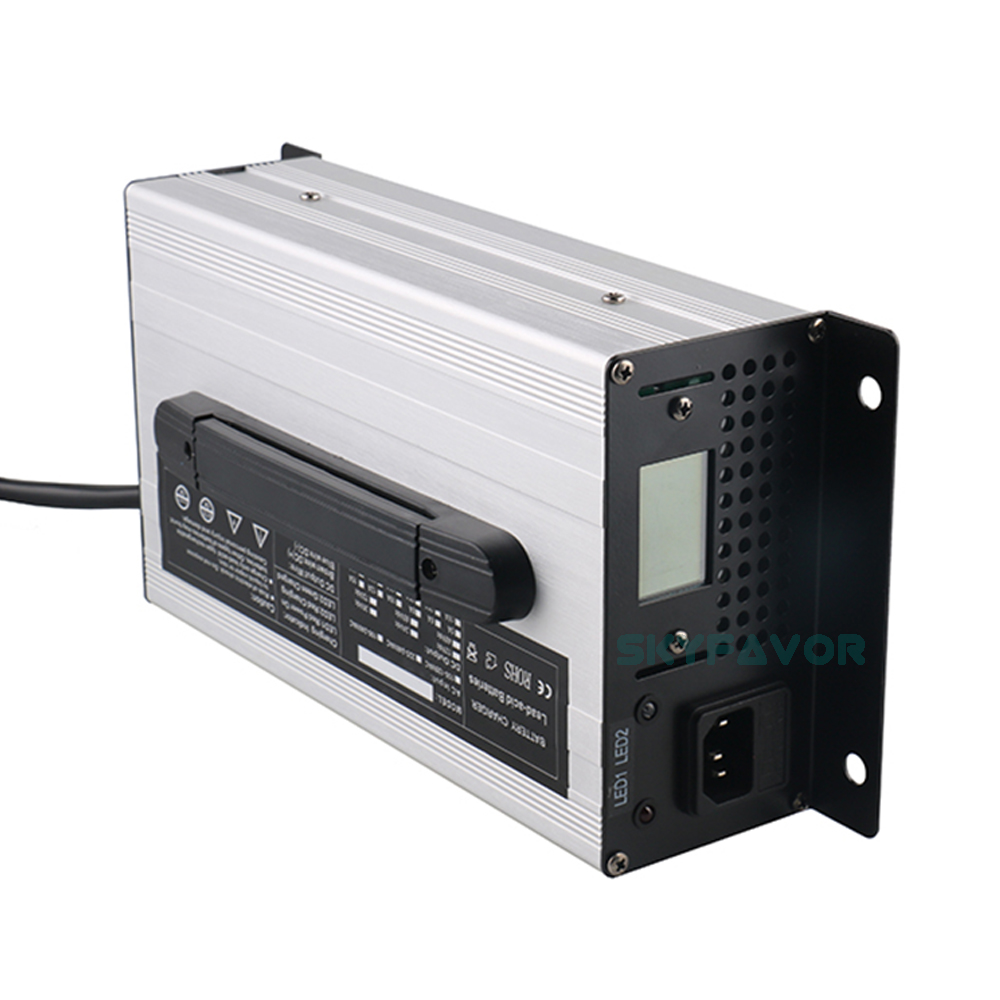

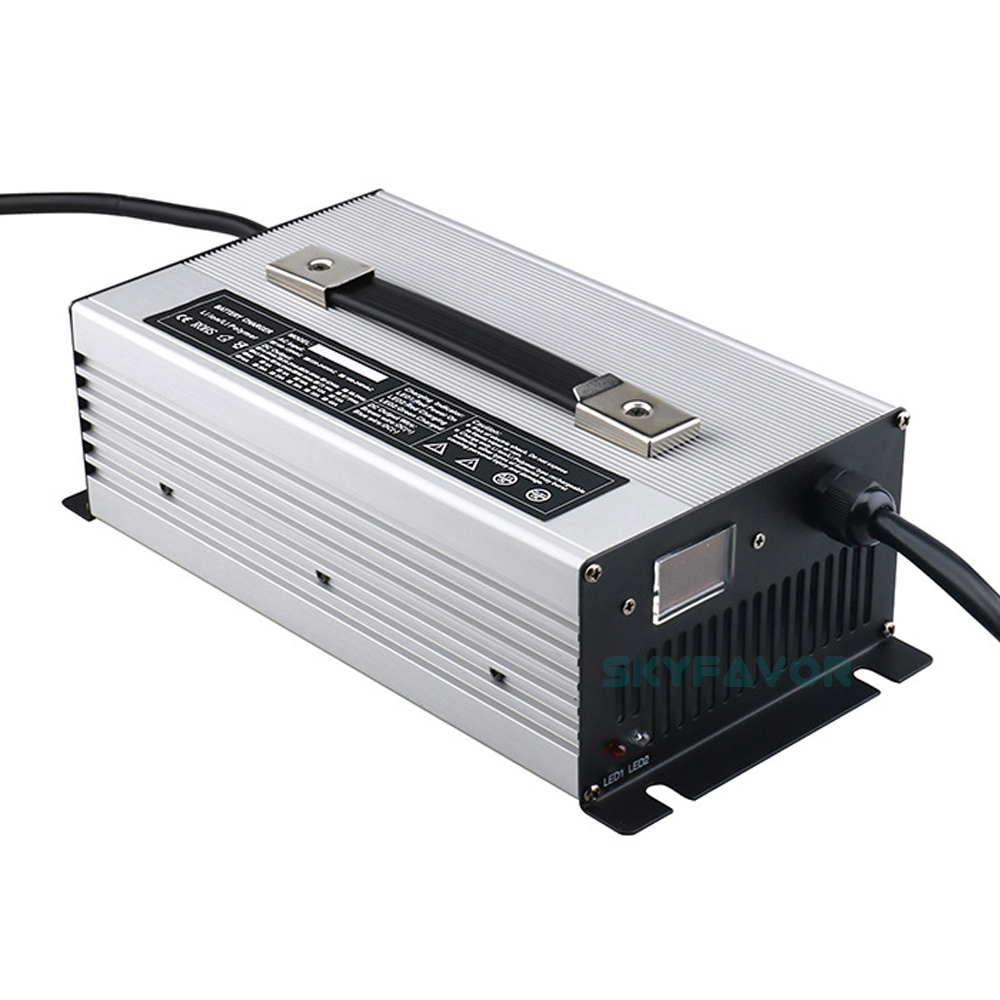

Customized 84V 10A Fast Battery Charger Led Display Automatic 84V Battery Charger for Electric Motorcycle Ebike Tools Forklift
Key attributes
Packaging and delivery
Description
(battery charger)Customized 84V 10A fast battery charger led display automatic 84V battery charger for Electric Motorcycle Ebikes Tools forklift
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!
Customized 84V 10A fast battery charger led display automatic 84V battery charger
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.
Before purchasing our battery chargers, please read the following questions and answers carefully:

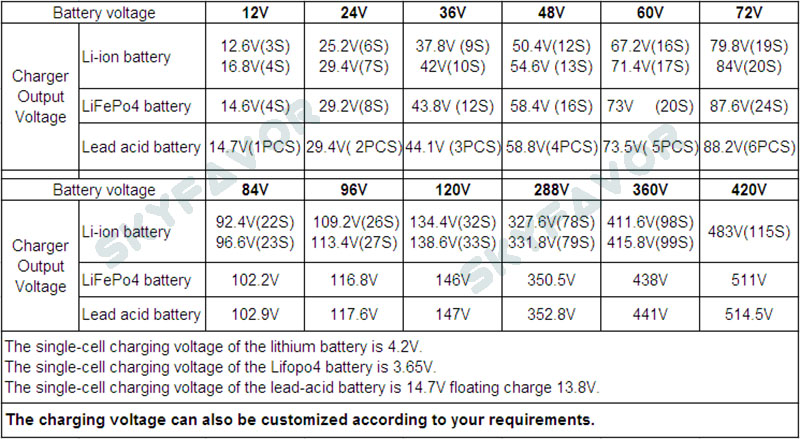

A: How to choose the suitable charging voltage for the battery?
Customized 84V 10A fast battery charger led display automatic 84V battery charger
B: How to choose the suitable charging current for the battery?
Battery Type | Battery Capacity (For example) | Suitable charging current rate | Suitable charging current |
Lead acid battery | 120ah | 1/10 | 12A |
Lithium battery | 120ah | 1/3 | 40A |
Lifepo4 battery | 120ah | 1/4 | 30A |
Customized 84V 10A fast battery charger led display automatic 84V battery charger
C: How to choose the suitable charger for the battery?
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
12V | 24V | 36V | 48V | 60V | 72V | 84V | |||
120W | 7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 |
180W | 10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 |
240W | 15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 |
360W | 20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 |
600W | 25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 |
900W | 40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 |
900WB | 40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 |
1200W | 50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 |
1500W | 60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 |
2000W | 90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 |
2500W | - | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 |
4000W | 150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 |
Customized 84V 10A fast battery charger led display automatic 84V battery charger
The Customized 84V 10A fast battery charger led display automatic 84V battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110Vac or 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:96.6V(for 23S lithum battery) / 100.8V(for 24s Li-ion battery)
102.2V (for 28S LiFePo4 battery)
102.9V (for 84v Lead acid battery)
C:Charging Mode:Customized 84V 10A fast battery charger led display automatic 84V battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
Customized 84V 10A fast battery charger led display automatic 84V battery charger
Customized 84V 10A fast battery charger led display automatic 84V battery charger
Customized 84V 10A fast battery charger led display automatic 84V battery charger
1. Are you battery charger Manufacturer?
Yes, we are a professional lifepo4 battery charger manufacture over 18 year's experience.
2. Are you specialized in battery charger products?
Yes, we specialize in Lithium battery charger, Lead acid battery charger, LifePO4 battery charger, Smart battery charger.
3. How do you guarantee the quality of your battery charger products?
The battery charger workshop is strict implementation in accordance with the ISO9001 system. Our quality control department made strict quality inspection and 100% aging before packing.
4. Do you have any certification of your battery charger products?
Yes, we have CE, Rohs and FCC certification for most of our battery charger. Some chargers we have UL certification, but the price will be a little higher.
5. How to transport the 84V battery charger?
We have 18 year's experience in their long-term cooperation partners. We can arrange the port and transit country as your demands.
6. Does the 84V battery charger have the minimum order requirements?
No, we have not minimum order requirements for chargers for the normal items.
7. What is the 84V battery charger lead time?
Depend on the quantity of your order. Usually the normal 84V battery charger needs 1-3 days, and OEM order requires 8-12 days.
8. Can you arrange to ship my other supplier’s product together?
Yes, we can help to collect and ship your supplier’s product, and even help to source any products from China you specified in addition to the 84V battery charger products
9. Can I visit your factory?Customized 84V 10A fast battery charger led display automatic 84V battery charger
Sure, welcome to our factory. In addition, we provide free help to large customers to verify the quality of your other supplier service. We can help you to your other Chinese suppliers for verification, and to provide on-site photos, certificates and other documents.
10. Do you offer other service?
Yes, if you need our help on purchasing any goods, just send us your demand details. We will do our utmost to help you, and to provide you with convenient China management.
Best seller will provide you with professional service. Leave message to get a best price of “Customized 84V 10A fast battery charger led display automatic 84V battery charger for Electric Motorcycle Ebikes Tools forklift"
