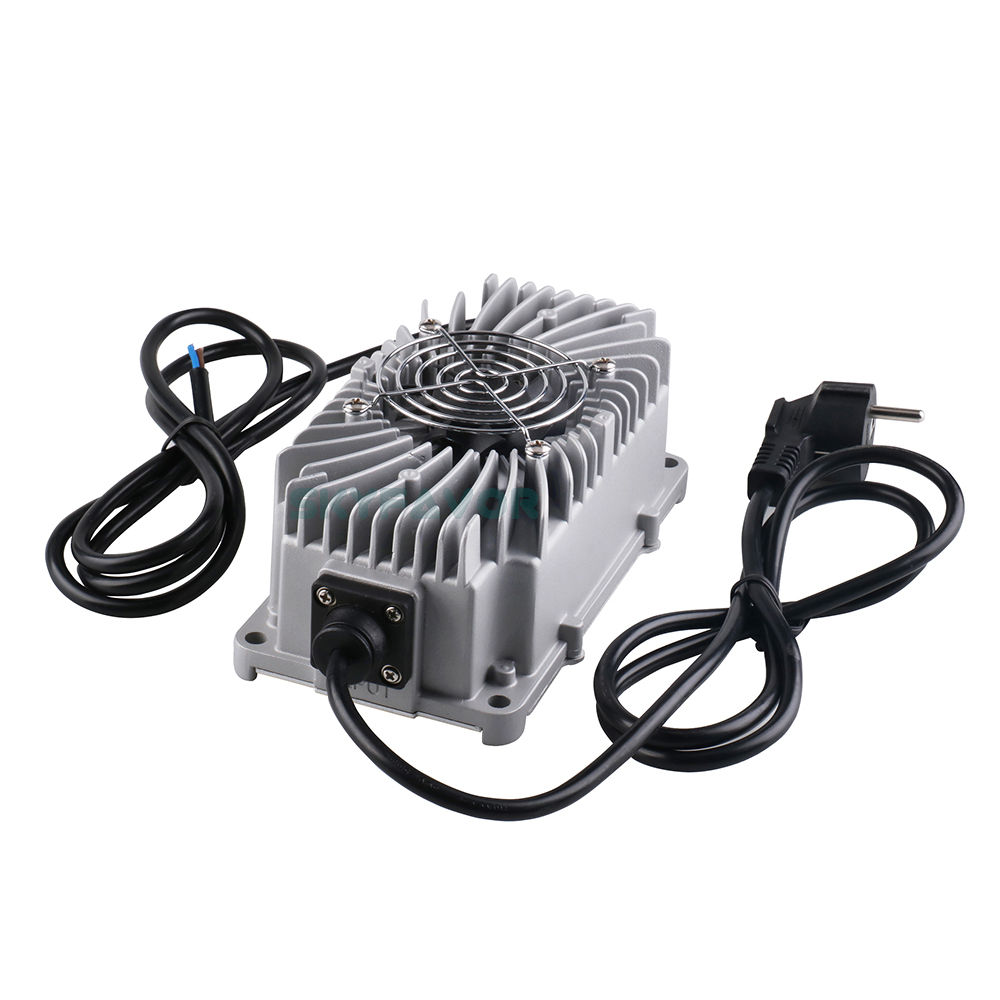

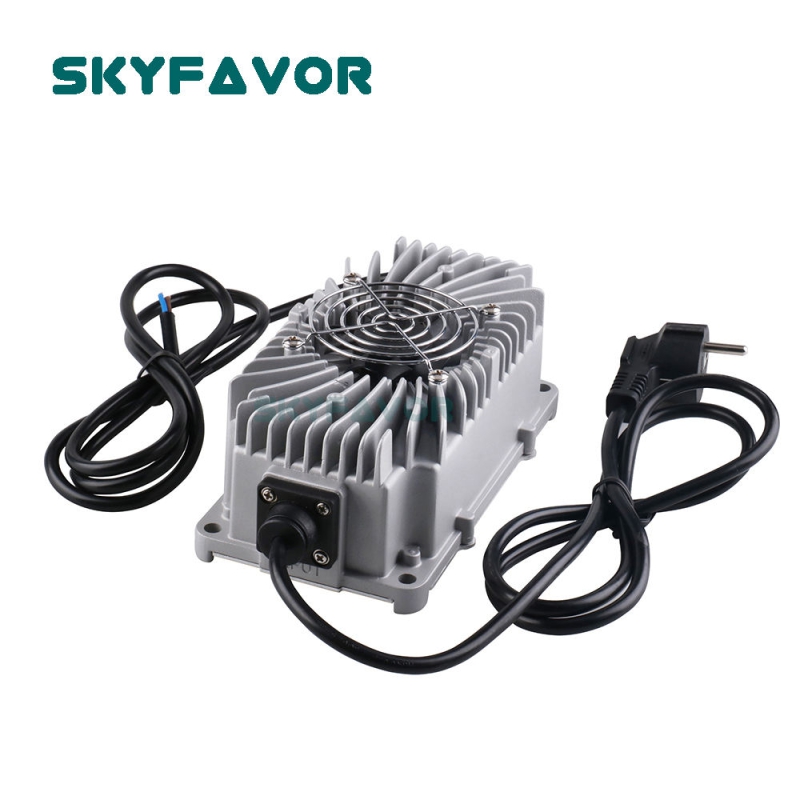

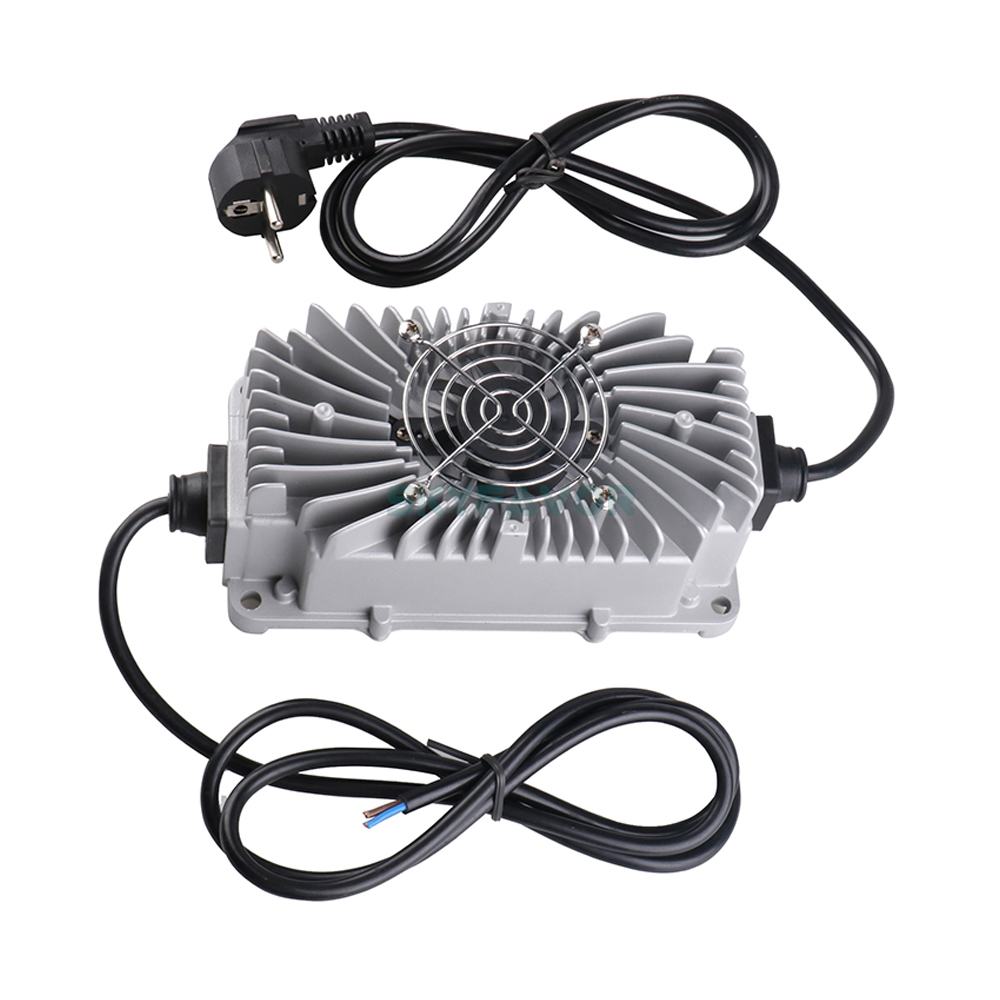

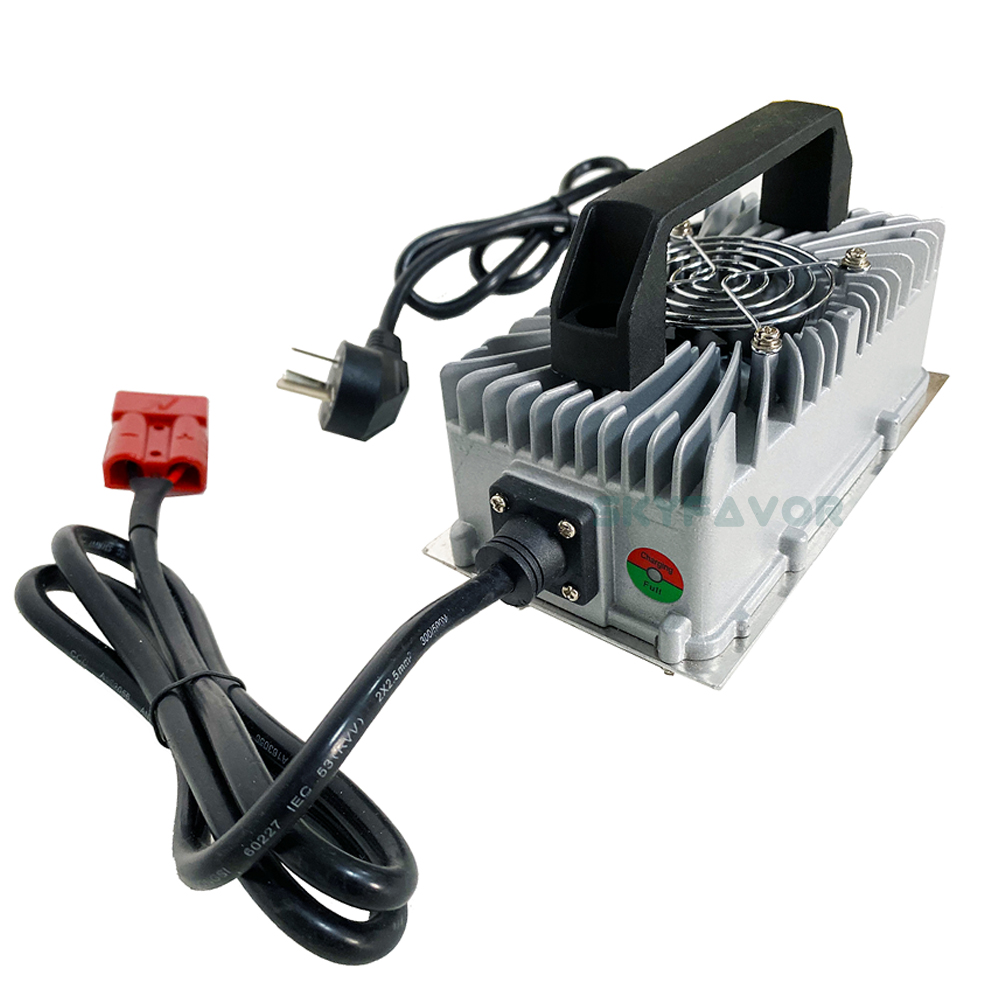

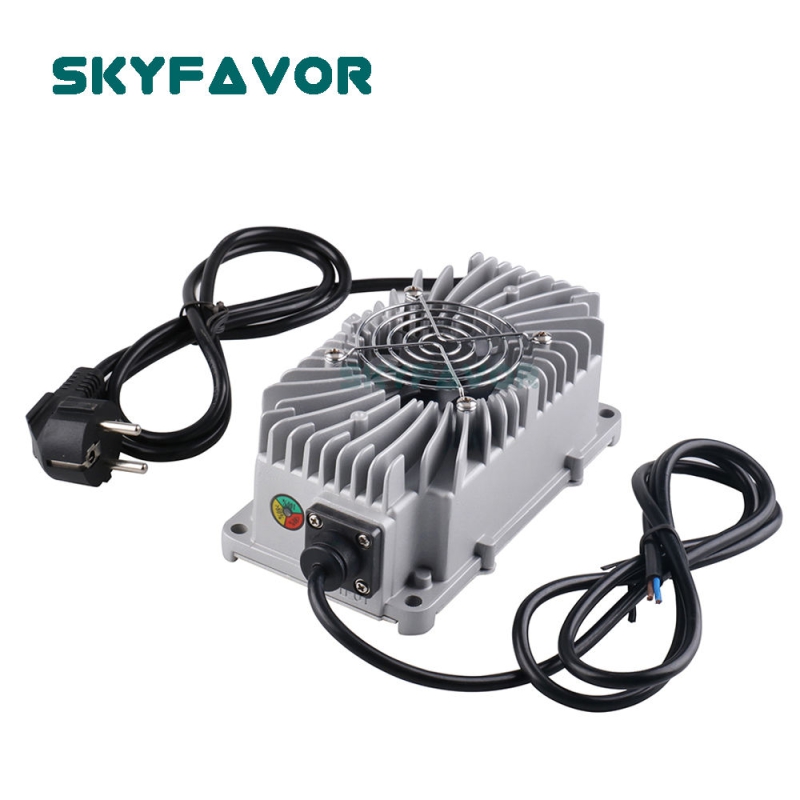

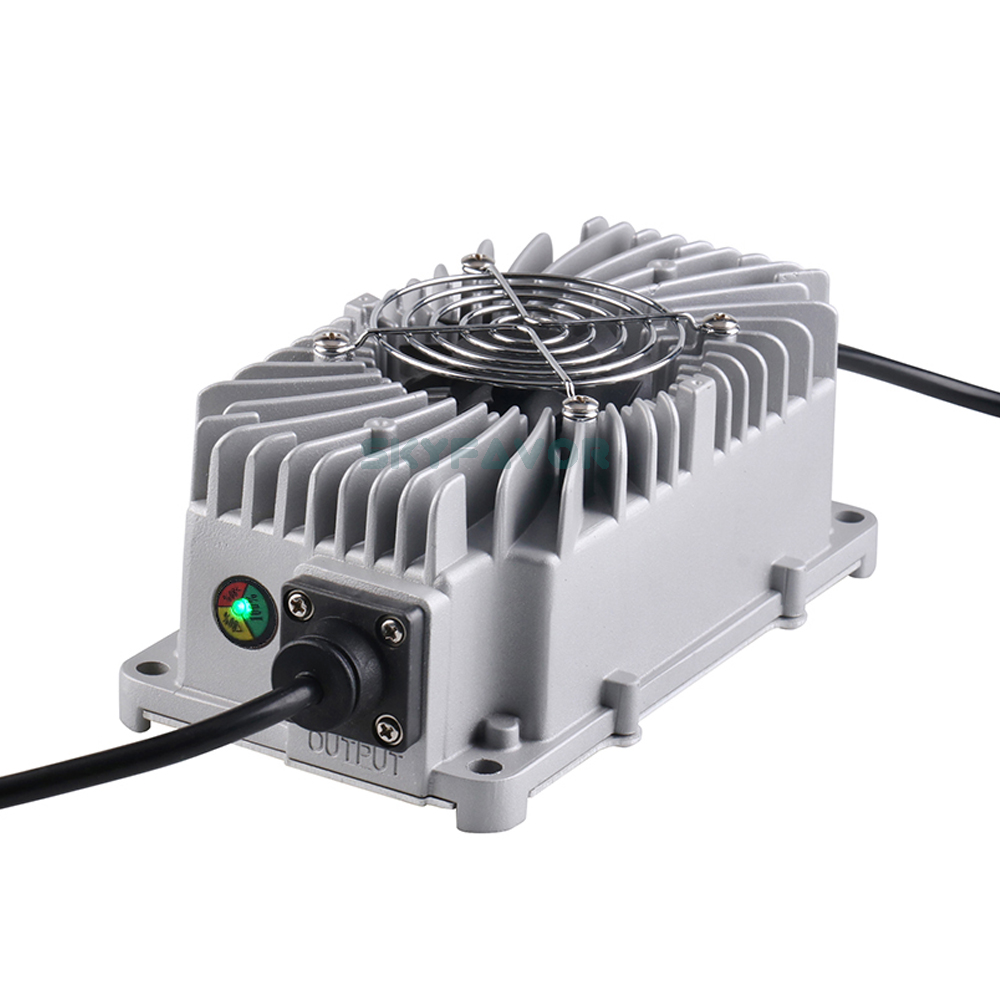

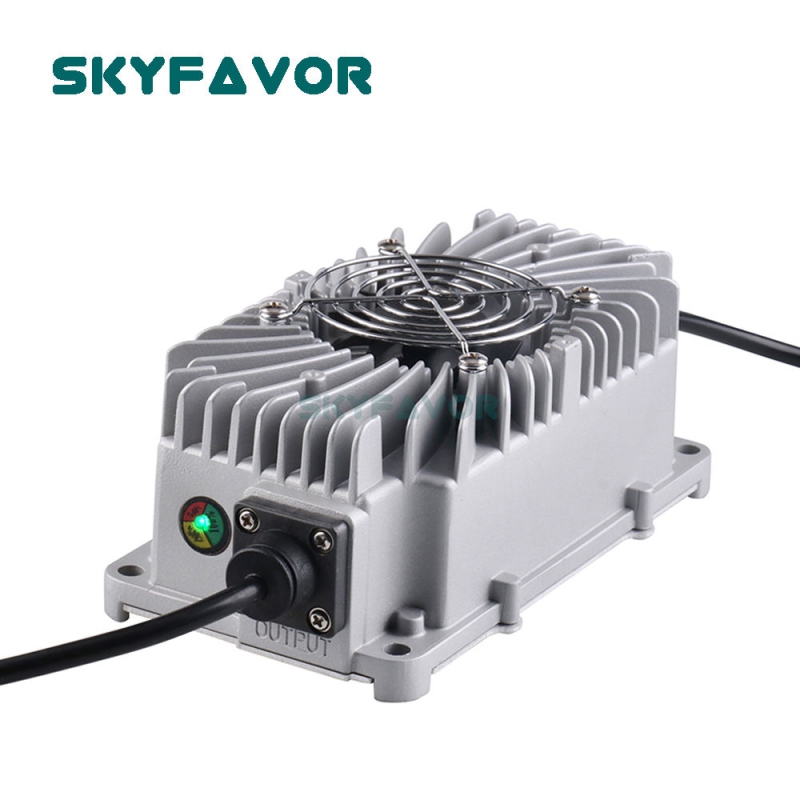

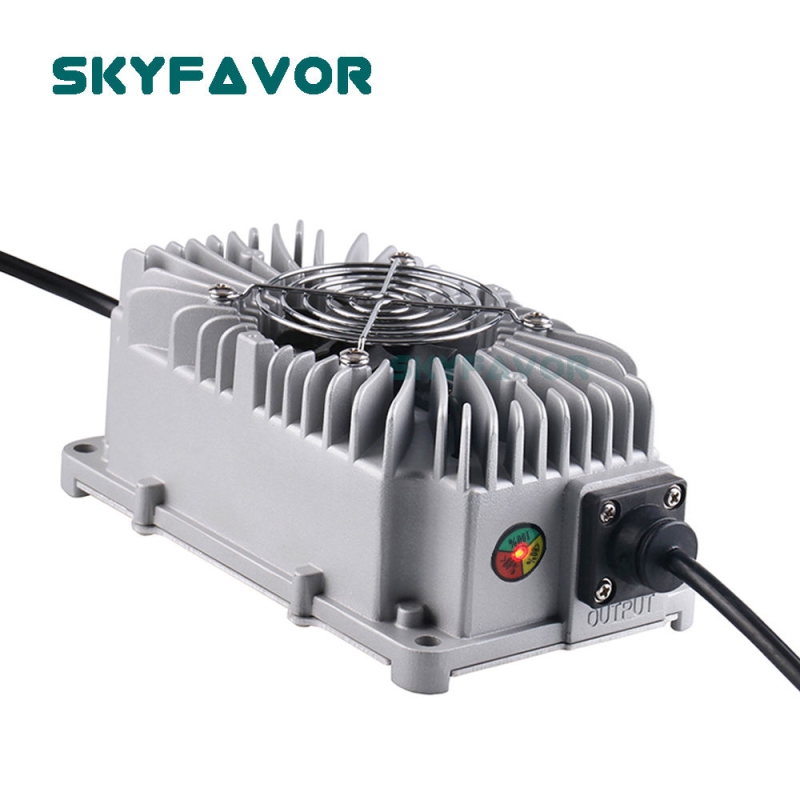

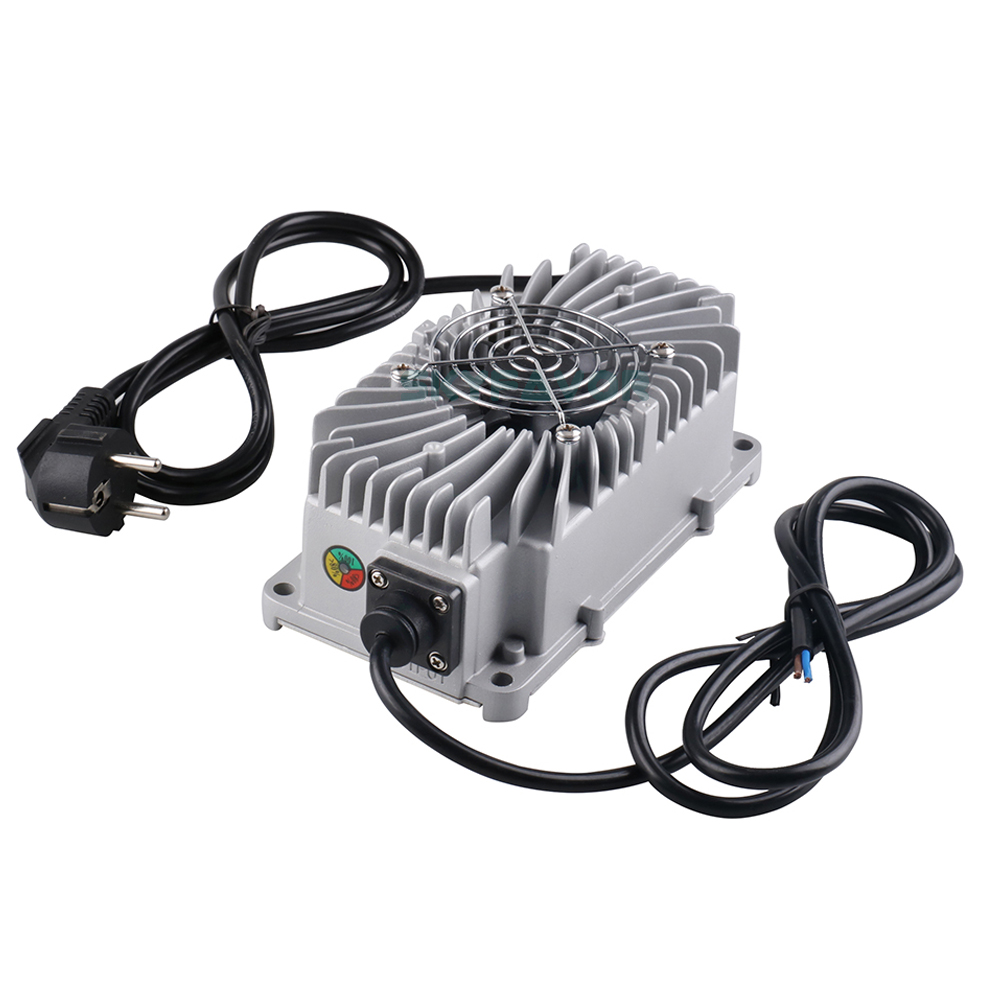

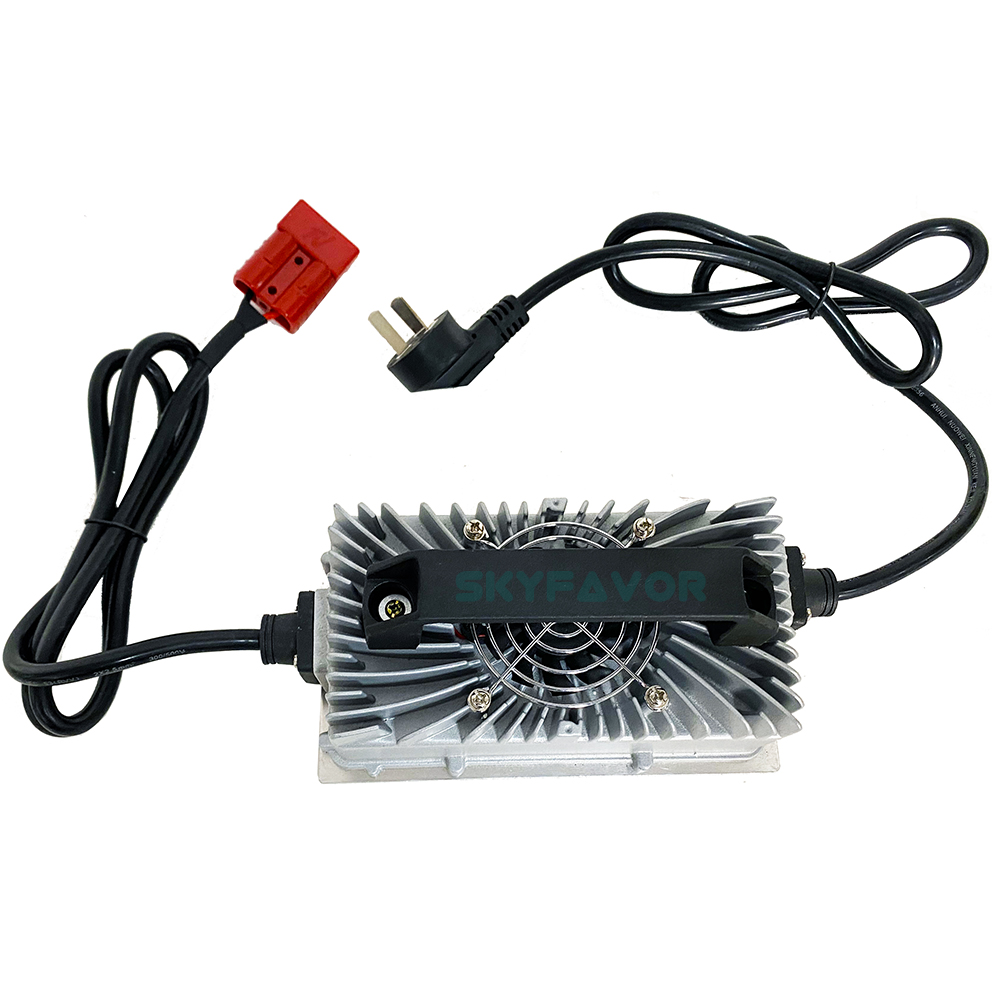

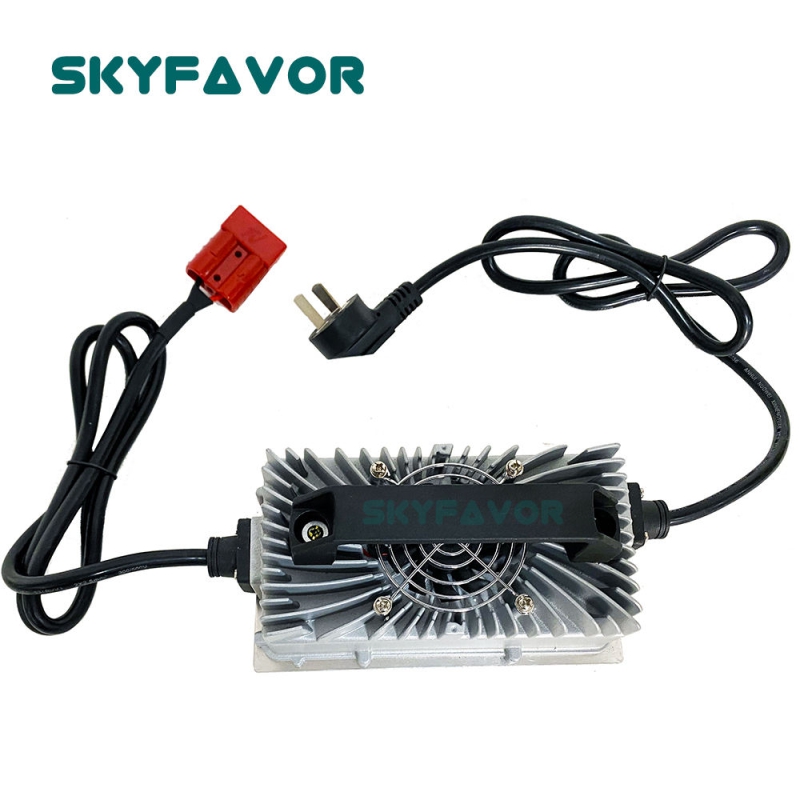

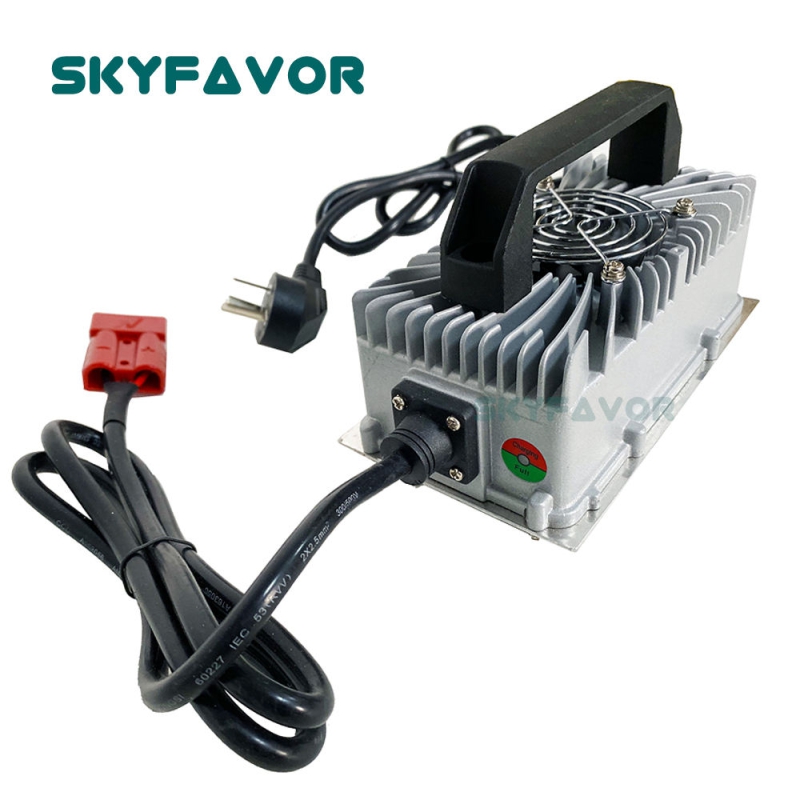

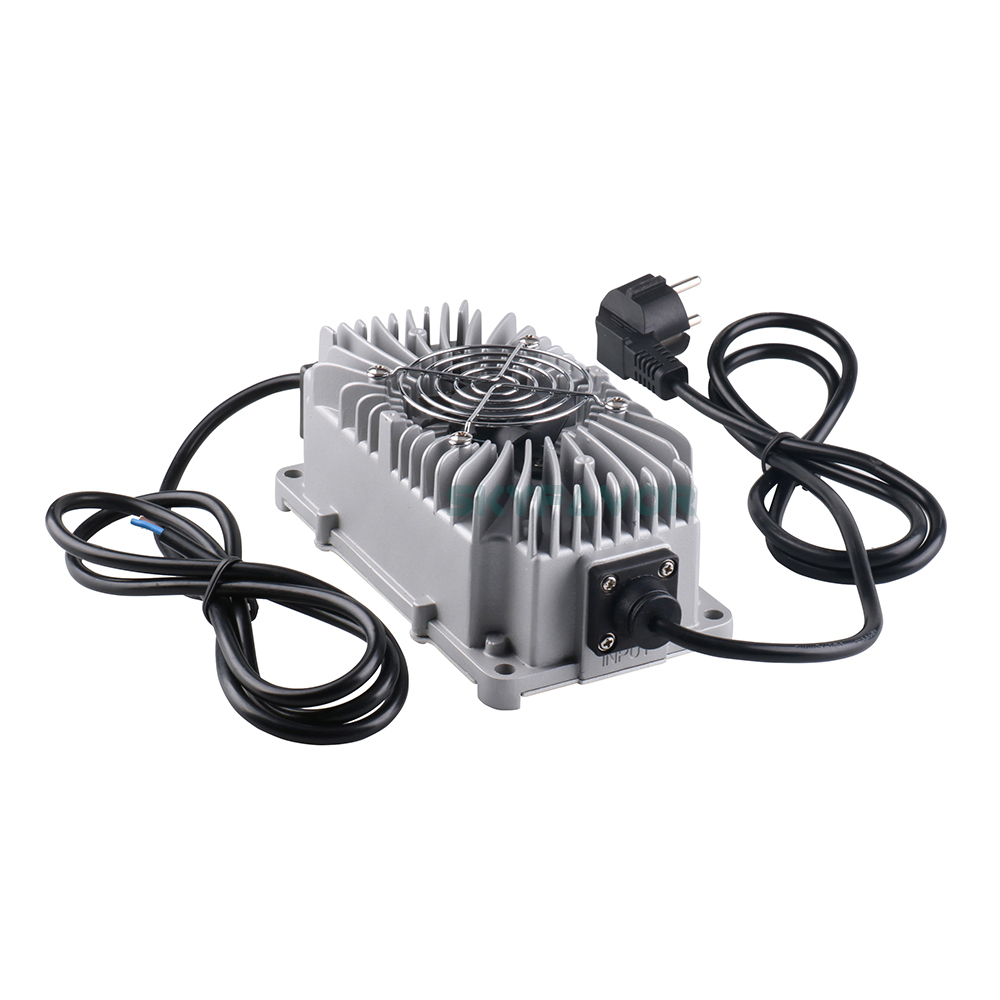

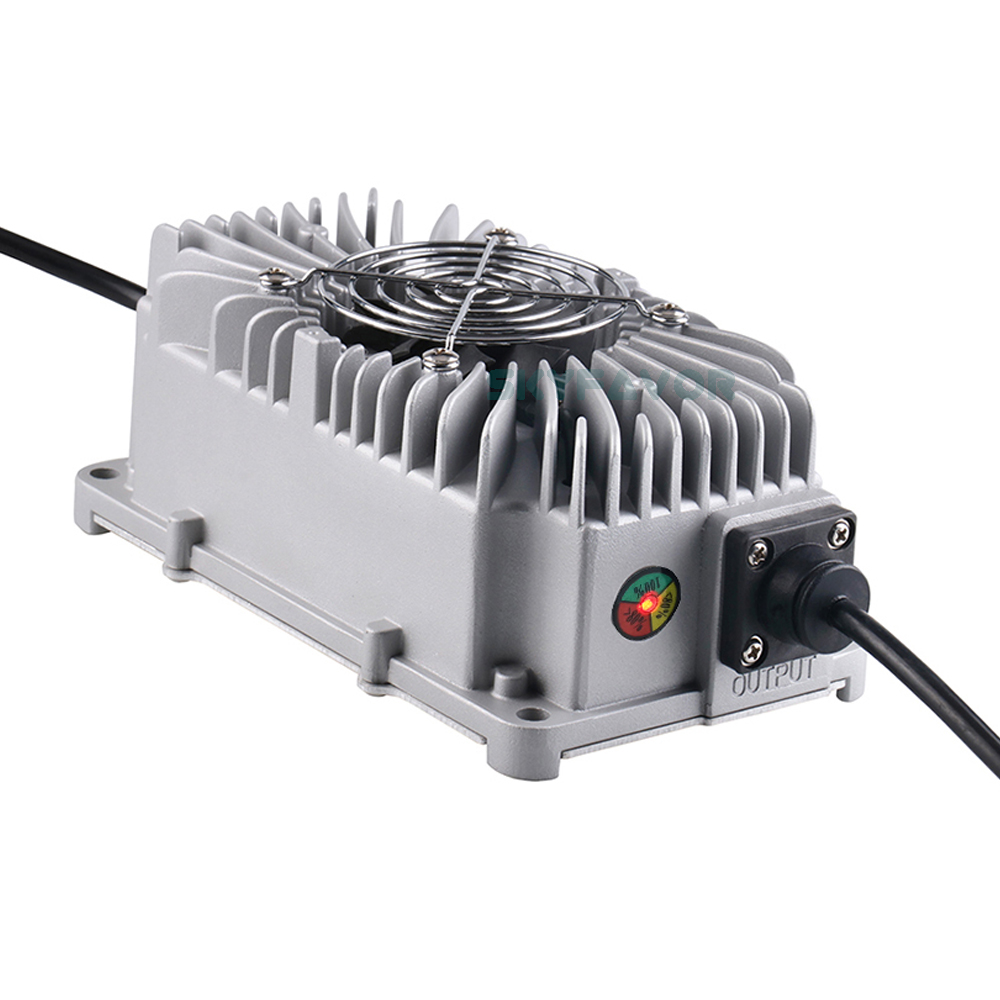

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGER

Key attributes

output
24v15A
input
90-264v/15A
output power
600W
type
Portable
use
electric car
is led lamp illumination
Yes
place of origin
Guangdong, China
model number
DL-600WP
brand name
SKYFAVOR

Packaging and delivery

Selling Units
Single item
Single package size
28.5X15X9 cm
Single gross weight
2.500 kg


Get Quote

Description

(battery charger)Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGER

Name

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger

Model

600W

Battery type

24V lead acid battery

AC Input

110Vac or 230Vac

Output voltage

29.4V float charge 27.6V

Output current

15A

Protection

Over Voltage Protection

Over Current Protection

Short Circuit Protection

Reverse polarity Protection

Apply to

For 120Ah 150AH,200AH 24V lead acid battery

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGERCustomised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGER

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger

The Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.

A:Input Characteristics:

   Input Voltage: 110Vac or 230Vac input AC voltage

   Input Frequency: 50Hz or 60Hz and single phase.

B:Output Characteristics:

   Constant Charging Voltage:29.4v folat charge 27.6V

C:Charging Mode:Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger

   3 Stages, CC, CV, Trickle

D:Safety Test for battery charger

   Hi-pot Test:15KVac 5mA 3 Seconds between input and output test

   Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds

   Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B

E:Protection for battery charger

Over Voltage Protection   The battery charger will be auto recovered when faults remove

Over Current Protection   Charger output current does not exceed the set maximum battery charging current.

Over Short Circuit Protection  Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)

Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

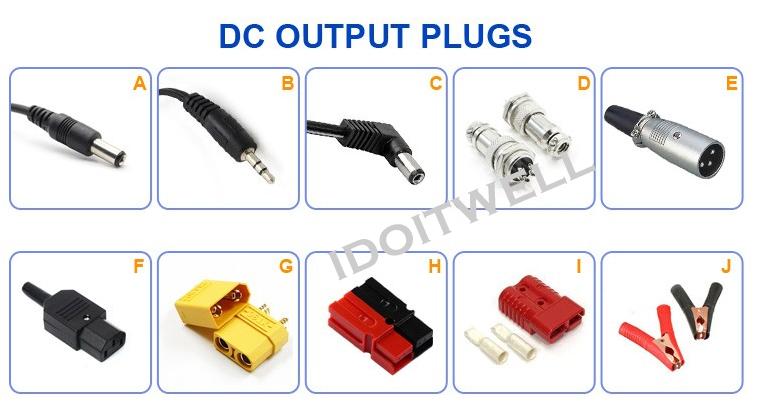

F:DC Connector Dimension:Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.

Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc



Manufacture time:
The manufacture time of the battery charger will need 8-12 days, because all the battery chargers are customized according to the customer's requirements, we have not any chargers in stock. If you accept the delivery time, please go ahead to make purchase. Once you place the order, we will treat you accept the manufacture time.

Lead Time:Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger
Normally we will deliver the battery charger by DHL, UPS or Fedex express, it always need 5-8 days on transport.
So you will receive the parcel in 13-20 days after pay for the order.

Last thing,  when the order be paid it will can't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique, it is impossible to change the charger specification to resell, so we don't accept order be cancelled after 24 hours. Please read above information carefully and buy with caution.  Thanks for your kind understanding and support!

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGERCustomised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGERCustomised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGERCustomised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGERCustomised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGERCustomised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGERCustomised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGER

We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer

Smart Automatic battery charger list

Model

 Charging voltage&current for reference

 N.W. (KG)

  Size(mm)

12V

24V

36V

48V

60V

72V

84V

120W

7A

4A

2.5A

1.8A

1.5A

_

_

0.7

135x90x50

180W

10A

5A

3.5A

2.5A

2A

1.5A

_

0.9

155x90x50

240W

15A

7.5A

5A

3.8A

3A

2.5A

_

1

170x90x50

360W

20A

12A

8A

6A

4.5A

4A

_

1.2

170x90x63

600W

25A

19A

12A

9A

7A

6A

_

2.5

207x120x70

900W

40A

25A

18A

15A

12A

10A

_

3

220x135x70

900WB

40A

25A

18A

15A

12A

10A

8A

3.5

260x175x90

1200W

50A

30A

20A

19A

15A

12A

10A

4.5

260x175x90

1500W

60A

45A

30A

24A

19A

16A

14A

5.5

300x175x90

2000W

90A

60A

40A

30A

25A

20A

18A

6.5

330x175x115

2500W

-

75A

50A

40A

30A

25A

22A

7

380x240x150

4000W

150A

100A

80A

60A

45A

40A

35A

11

340x235x110

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGERCustomised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGER

Packaging & Shipping

 Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGER

Our Services

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGERCustomised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 24 Volt Maintenance Free BATTERY CHARGER

FAQ

Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger

1. Are you battery charger Manufacturer?

Yes, we are a professional lifepo4 battery charger manufacture over 18 year's experience.



2. Are you specialized in battery charger products?

Yes, we specialize in Lithium battery charger, Lead acid battery charger, LifePO4 battery charger, Smart battery charger.



3. How do you guarantee the quality of your battery charger products?

The battery charger  workshop is strict implementation in accordance with the ISO9001 system. Our quality control department made strict quality inspection and 100% aging before packing.



4. Do you have any certification of your battery charger  products?

Yes, we have CE, Rohs and FCC certification for most of our battery charger. Some chargers we have UL certification, but the price will be a little higher.



5. How to transport the 72V lifepo4 battery charger?

We have 18 year's experience in their long-term cooperation partners. We can arrange the port and transit country as your demands.



6. Does the 72V lifepo4 battery charger have the minimum order requirements?

No, we have not minimum order requirements for chargers for the normal items.



7. What is the 72V lifepo4 battery charger lead time?

Depend on the quantity of your order. Usually the normal 72V lifepo4 battery charger needs 1-3 days, and OEM order requires 8-12 days.



8. Can you arrange to ship my other supplier’s product together?

Yes, we can help to collect and ship your supplier’s product, and even help to source any products from China you specified in addition to the 72V lifepo4 battery charger products



9. Can I visit your factory?

Sure, welcome to our factory. In addition, we provide free help to large customers to verify the quality of your other supplier service. We can help you to your other Chinese suppliers for verification, and to provide on-site photos, certificates and other documents.



10. Do you offer other service?

Yes, if you need our help on purchasing any goods, just send us your demand details. We will do our utmost to help you, and to provide you with convenient China management.





Best seller will provide you with professional service. Leave message to get a best price of “Customised 24 V 15A Battery Charger 24V Automatic Waterproof Lead Acid Battery Charger 36 volt golf cart charger for lead acid battery pack"
