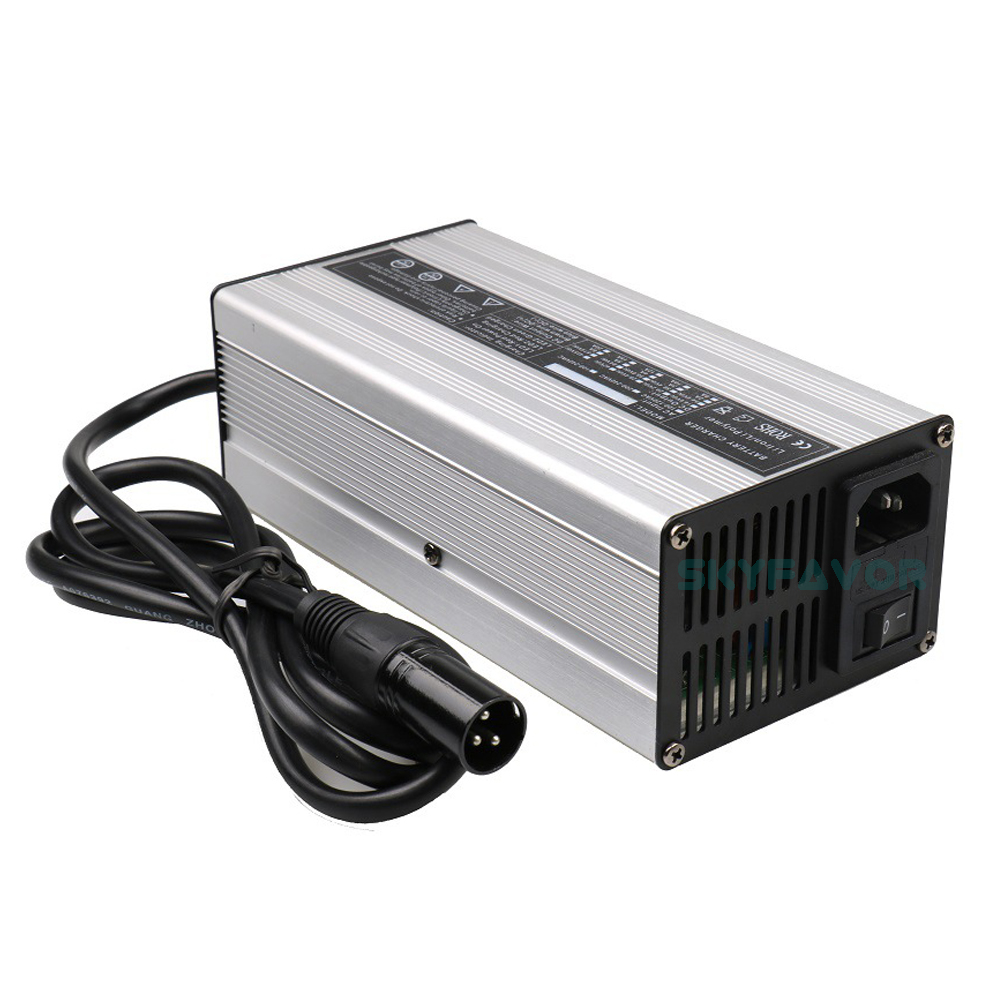

Good Safety 72V Batteries Charger 72V 4A Professional Custom Automatic 72 Volt Battery Charger for Lithium Lifepo4 Lead Acid Bat
Key attributes
Packaging and delivery
Description
(battery charger)72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger for lithium lifepo4 lead acid bat
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!
72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands.NO MOQ!!!Even if only 1 piece.
Before purchasing our battery chargers, please read the following questions and answers carefully:

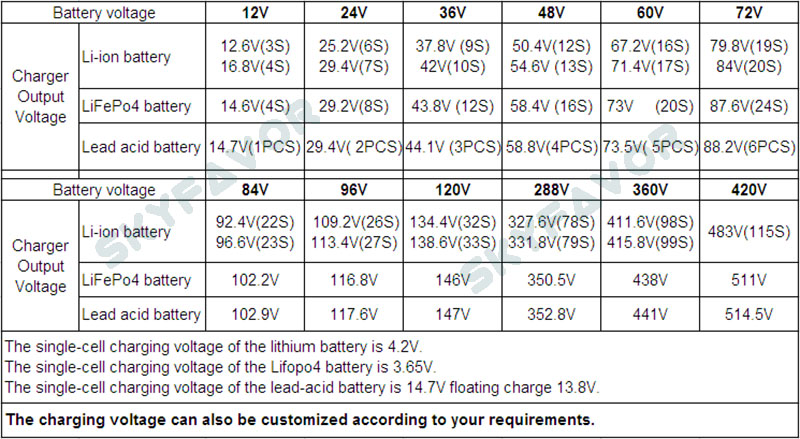

A: How to choose the suitable charging voltage for the battery?

72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
B: How to choose the suitable charging current for the battery?
Battery Type | Battery Capacity (For example) | Suitable charging current rate | Suitable charging current |
Lead acid battery | 120ah | 1/10 | 12A |
Lithium battery | 120ah | 1/3 | 40A |
Lifepo4 battery | 120ah | 1/4 | 30A |
72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
C: How to choose the suitable charger for the battery?
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
12V | 24V | 36V | 48V | 60V | 72V | 84V | |||
120W | 7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 |
180W | 10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 |
240W | 15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 |
360W | 20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 |
600W | 25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 |
900W | 40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 |
900WB | 40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 |
1200W | 50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 |
1500W | 60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 |
2000W | 90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 |
2500W | - | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 |
4000W | 150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 |
72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
D: Can your battery chargers charge various batteries, such as lead-acid batteries, lithium batteries and lifepo4 batteries?
They can't. Our battery chargers can only charge one kind of battery, because the charging voltage and charging curve of different batteries are different. For example, if you choose a lead-acid battery charger, it will only charge lead-acid batteries, not lithium batteries or lifepo4 batteries.
E: Do your battery chargers support adjustable charging voltage? For example 12V, 24V, 36V or...?
They can't. Our battery chargers can only use one output voltage, if you choose a 12v battery charger, you can only charge a 12v battery.
72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
F: Do you have the battery chargers support adjustable charging current?
Yes, we have. Our battery charger D series can make with 2 sets or 3 sets output current be adjustable. If you need to get more information please go to our store column “Adjustable current battery charger”.
G: What is the difference between a standard charger and an MCU-controlled battery charger (Z series)?
The MCU controlled battery charger is a 4-stage charging mode with an added pre-charge function. It supports to automatically cut off the charger after the battery is fully charged, the display shows the charging power, charging current and voltage level, and has overheat protection. The standard charger have not these functions.
72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
H: How long can I receive the charger?
Generally, the manufacturing time of battery chargers takes 8-12 days, because all battery chargers are customized according to customer requirements. If you accept the delivery time, please proceed with the purchase. After you place an order, we will treat buyer accept this delivery date.
We usually deliver the battery chargers through DHL, UPS, Fedex or other courier companies, and the transportation process usually takes 5-10 days.
Therefore, you will receive the package within 13 to 22 days after the order is paid.
About import tariff:
1. The price only includes the transportation cost to the shipping address, not including import tariff.
2. In most cases, the buyer does't need to pay any import tariff. But sometimes in some countries, customs officials may be very strict and require buyers to pay corresponding import tariff. If you have to pay import tariff, this is your responsibility to your country. The buyer should understand the local customs import policy before purchasing. Please try to avoid returning the package to China due to tariff issues, which will cause high shipping costs, these will be borne by the buyer.
3. Some buyers require low declarations of the product value in order to avoid paying high import taxes, such as declare 60% of the product value. We can declare the product value according to buyer's requirements, but we will not bear the consequences of false declarations due to low-value declarations.
If the buyer needs a low declaration, please inform us of the declare amount after placing the order. If you do not inform in advance, we may actually declare the product value. Thanks for your understanding ans support!
About canceling orders:72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
The order cannot be cancelled after 24 hours after payment, because the charger is completely customized according to the buyer's requirements, it is difficult for us to change the charger specifications for resale. Therefore, please carefully consider and confirm the relevant parameters of the charger within 24 hours after placing the order.
Please read the above information carefully and purchase with caution. Thank you for your understanding and support!


72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
The 72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:79.8V(for 19S li ion battery)/ 84V(for 20S lithium battery)
87.6V(for 24S lifepo4 battery)
88.2V(for 72V lead acid battery)
C:Charging Mode:72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

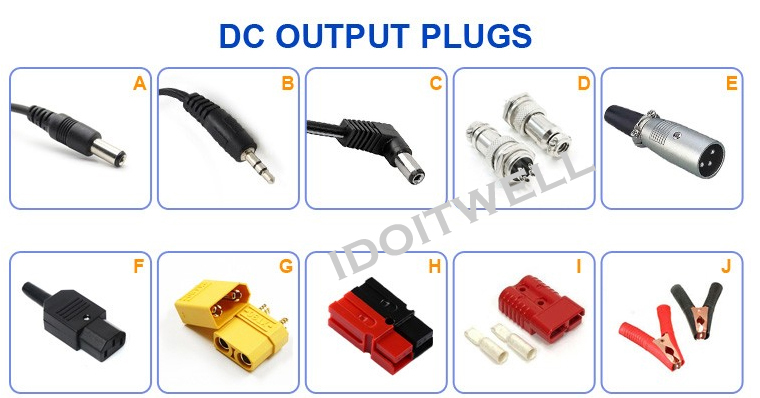

F:DC Connector Dimension:72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger

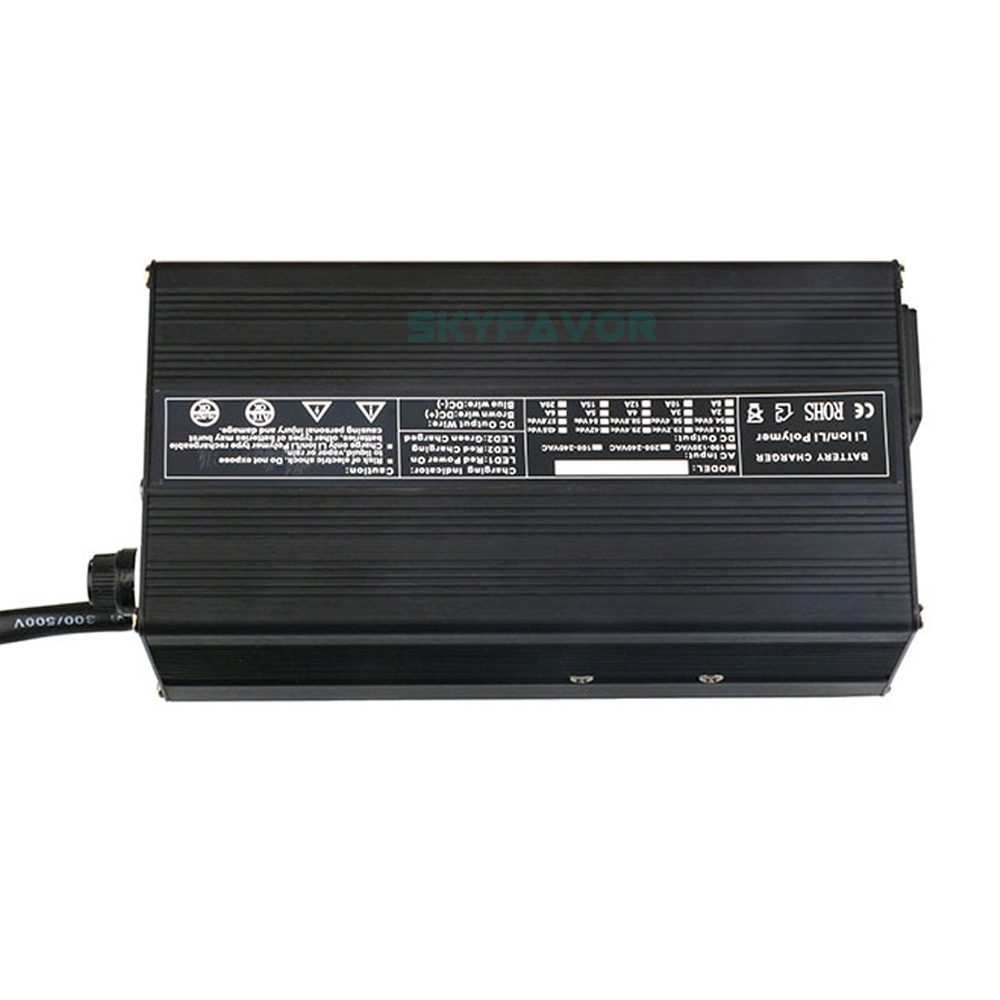

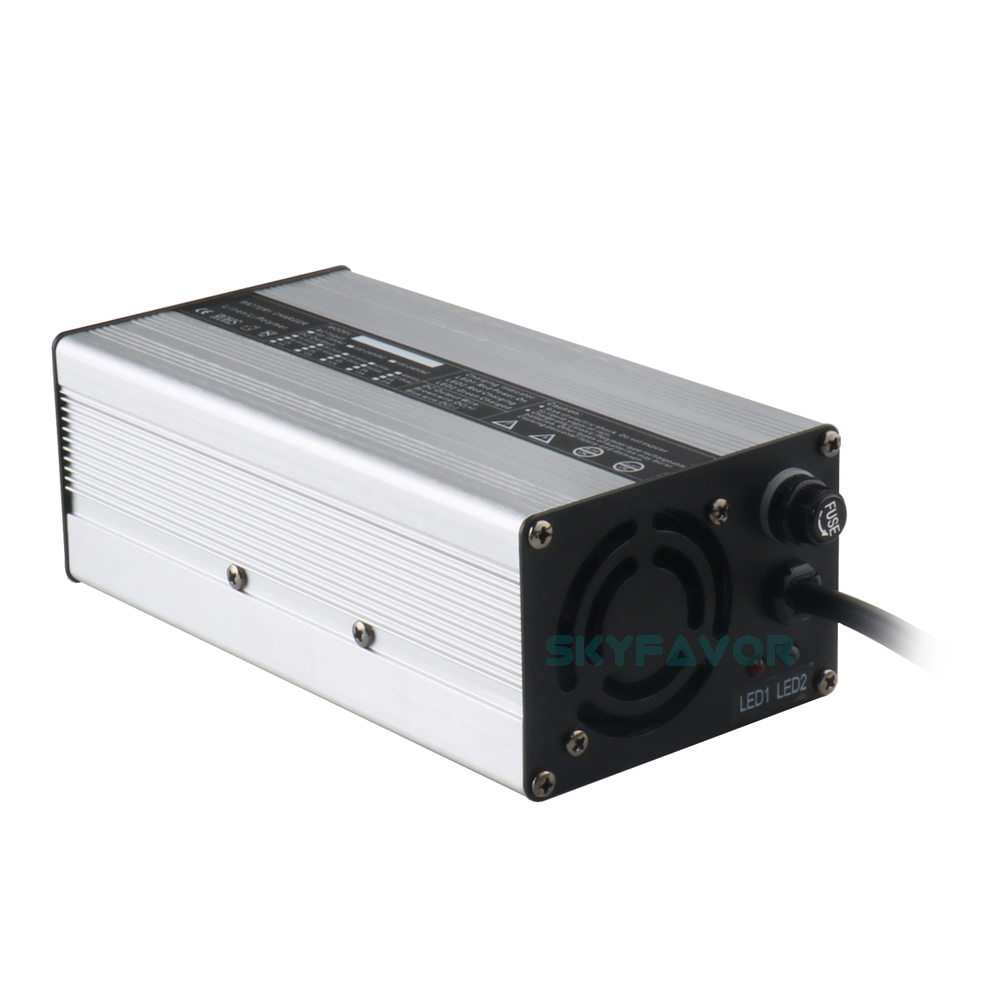

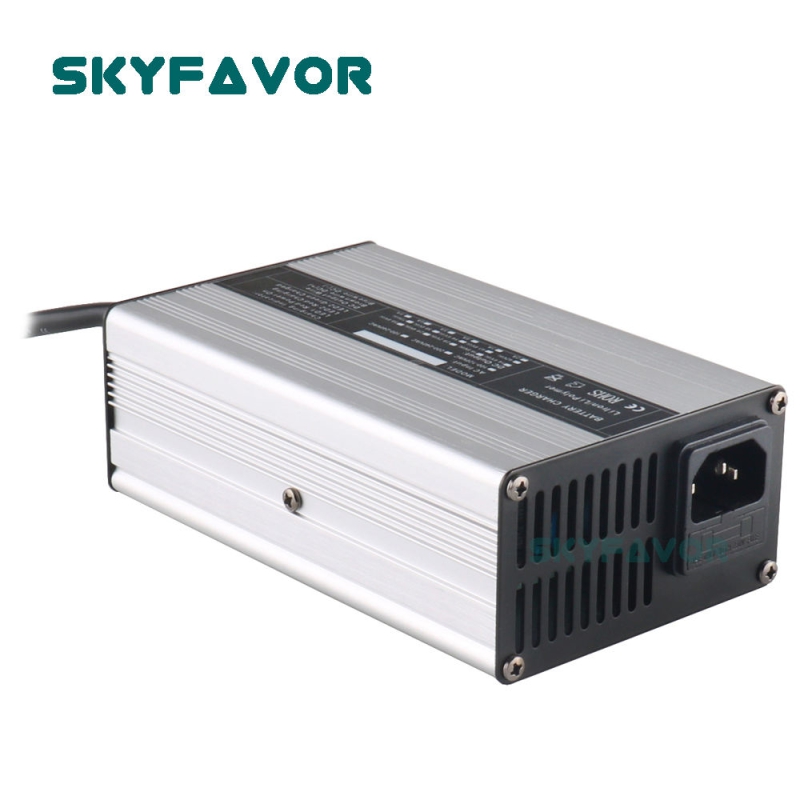

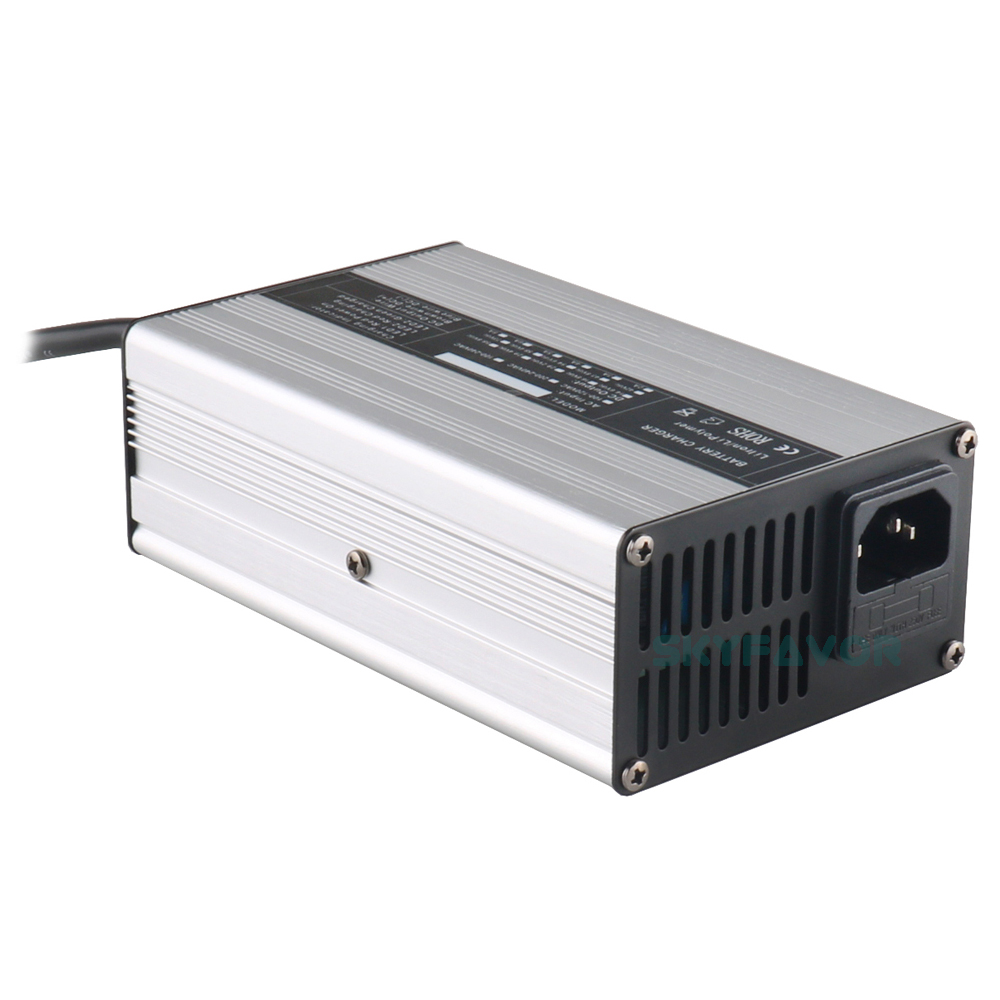

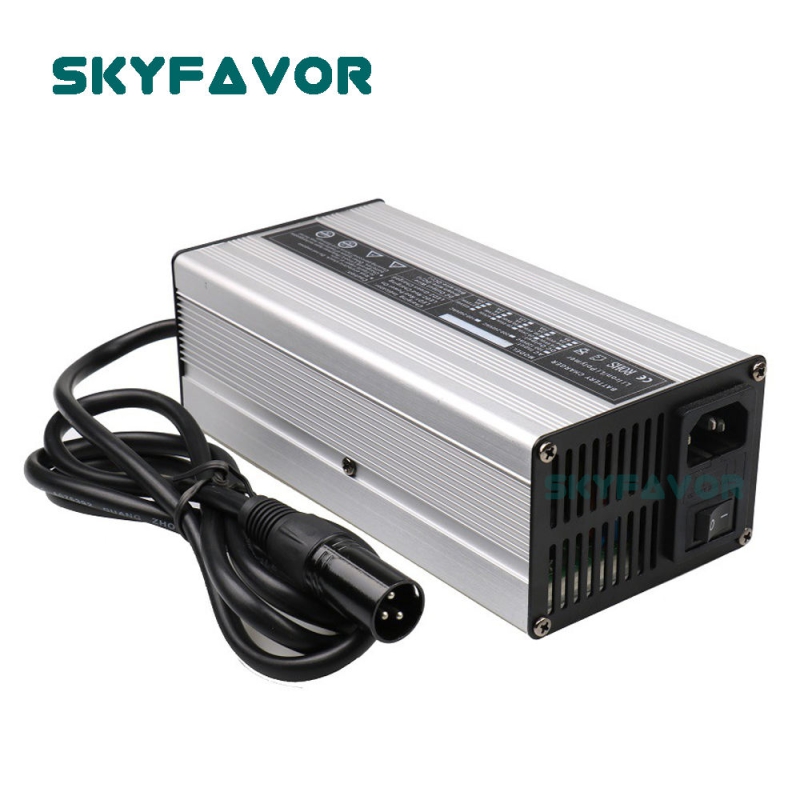

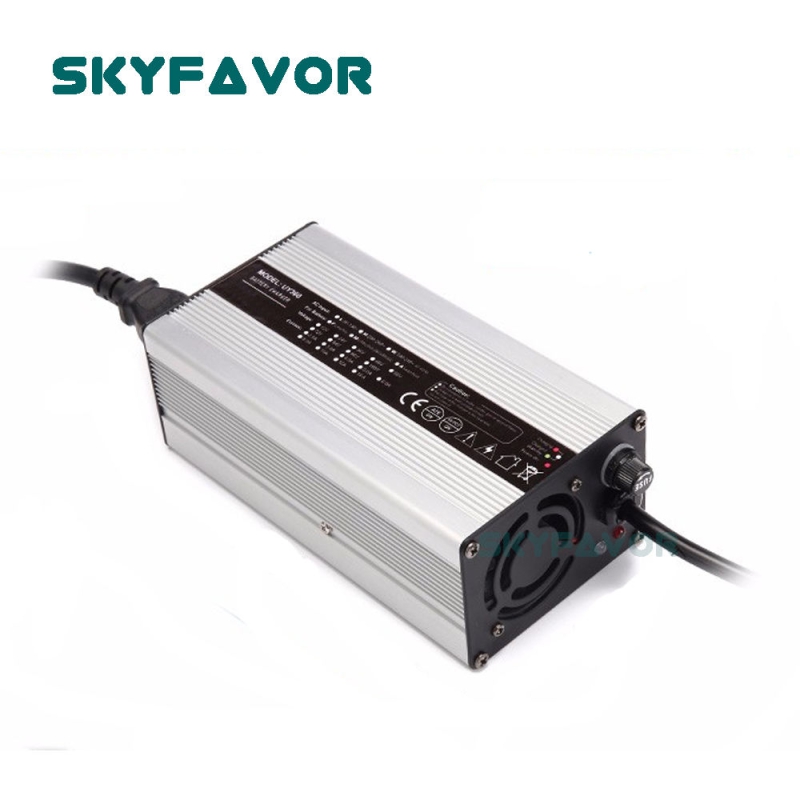

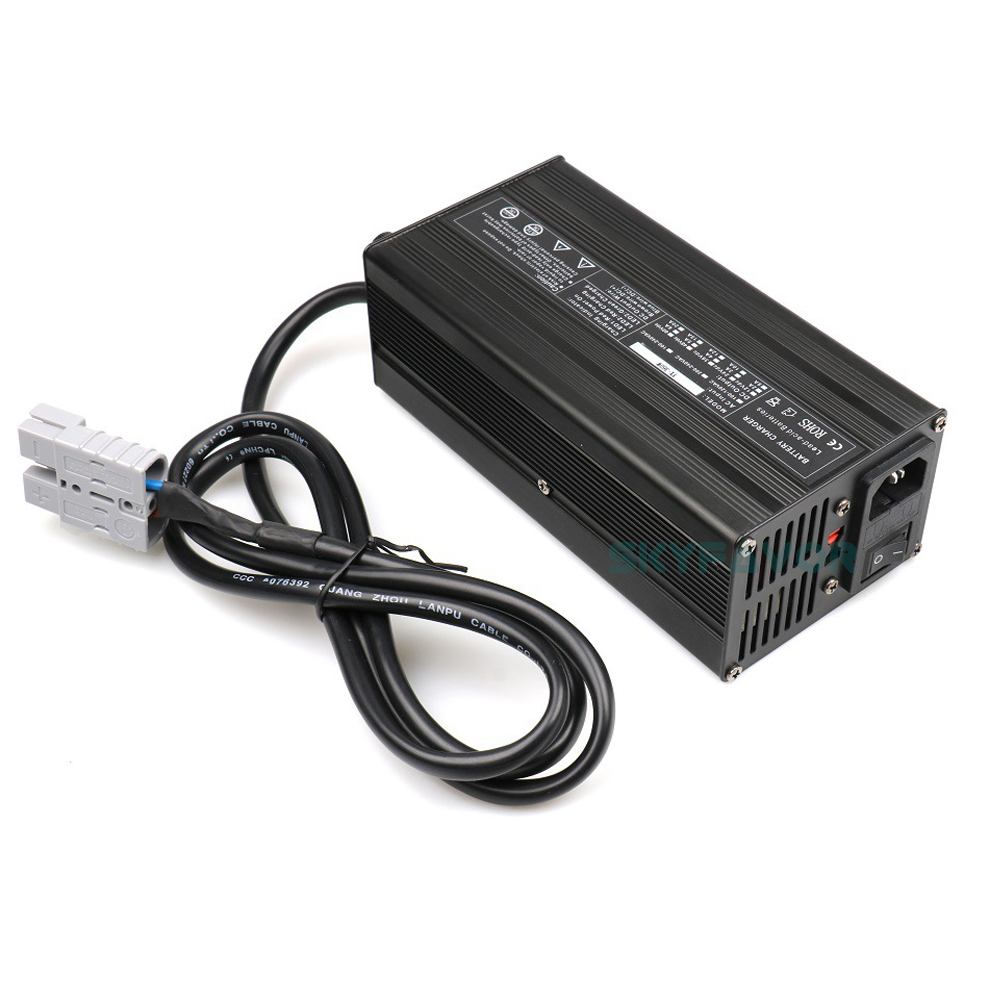

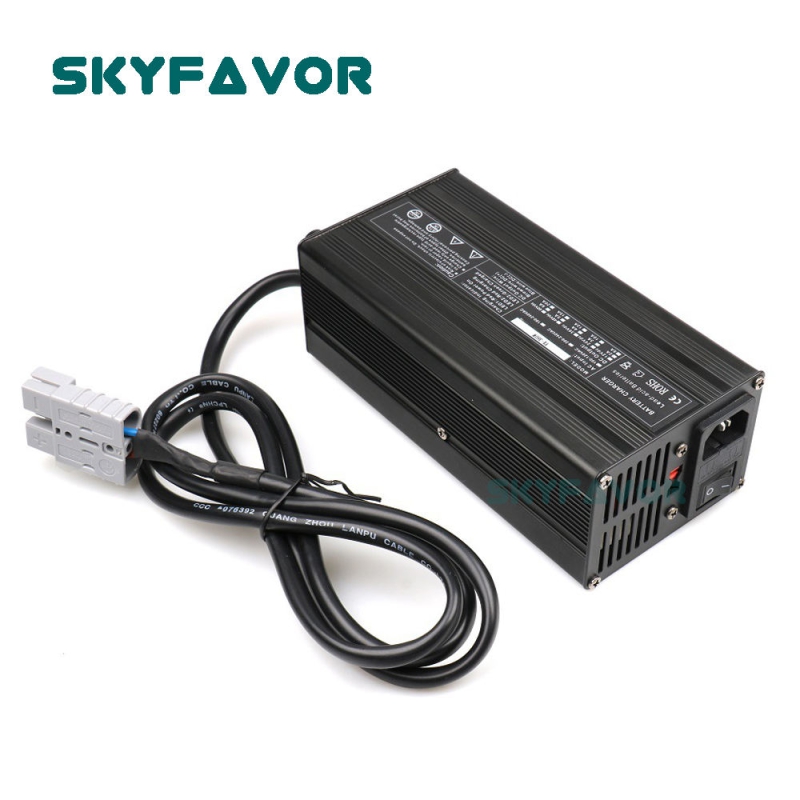

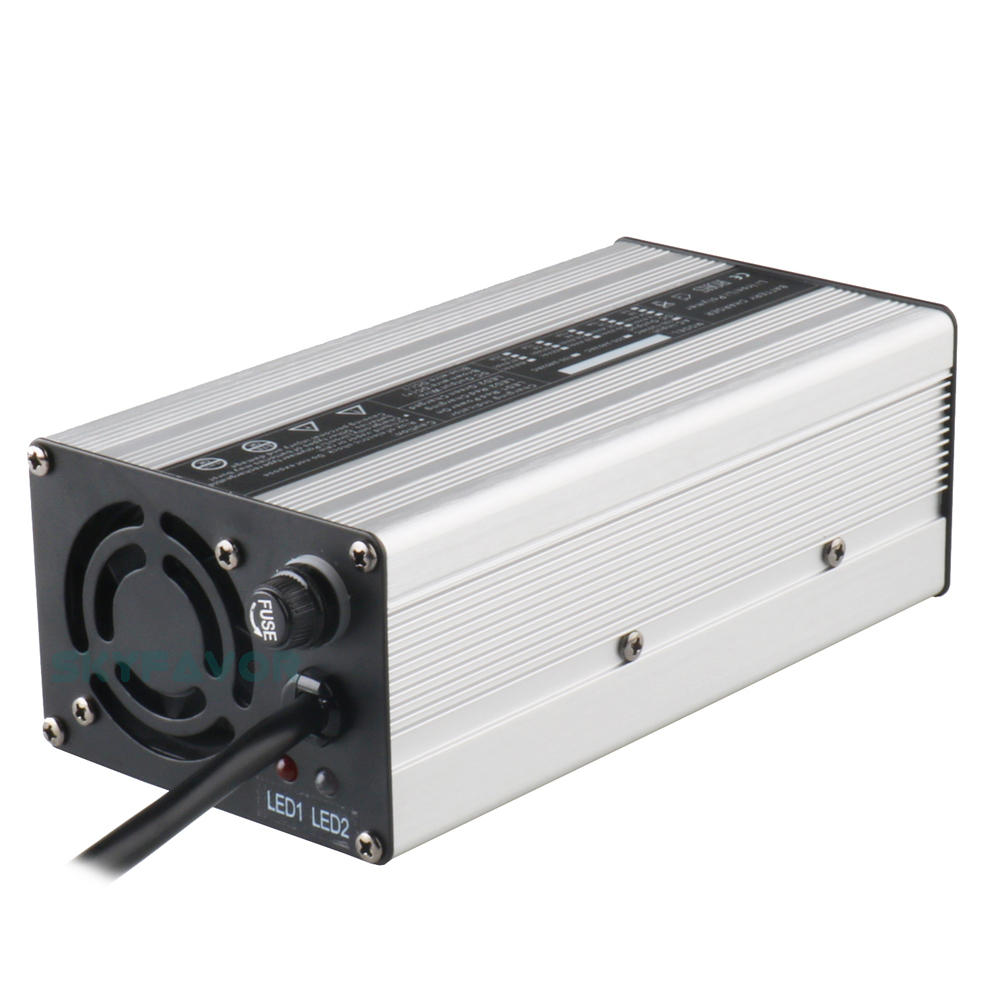

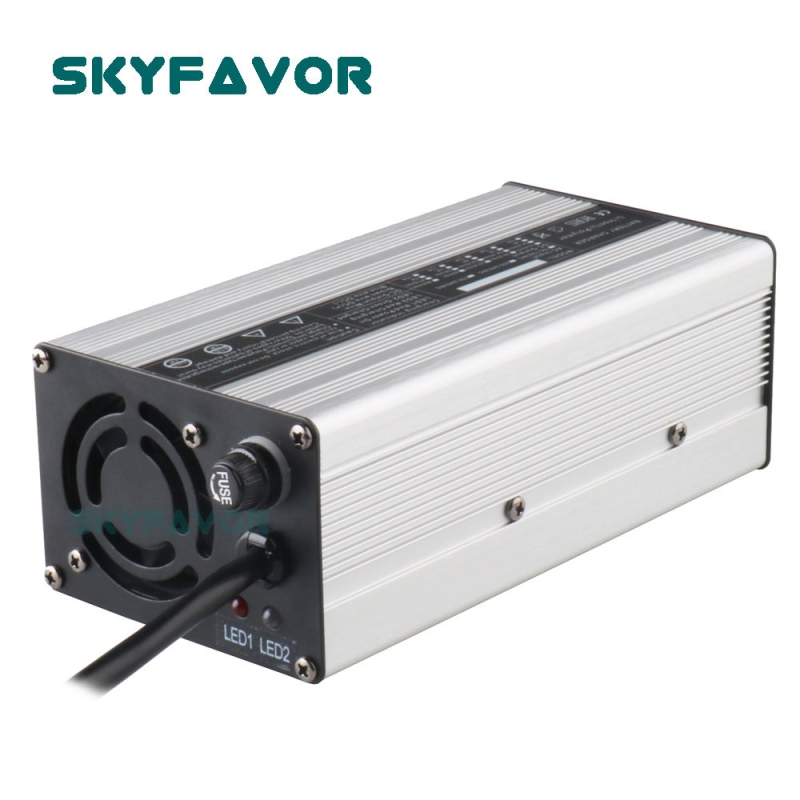

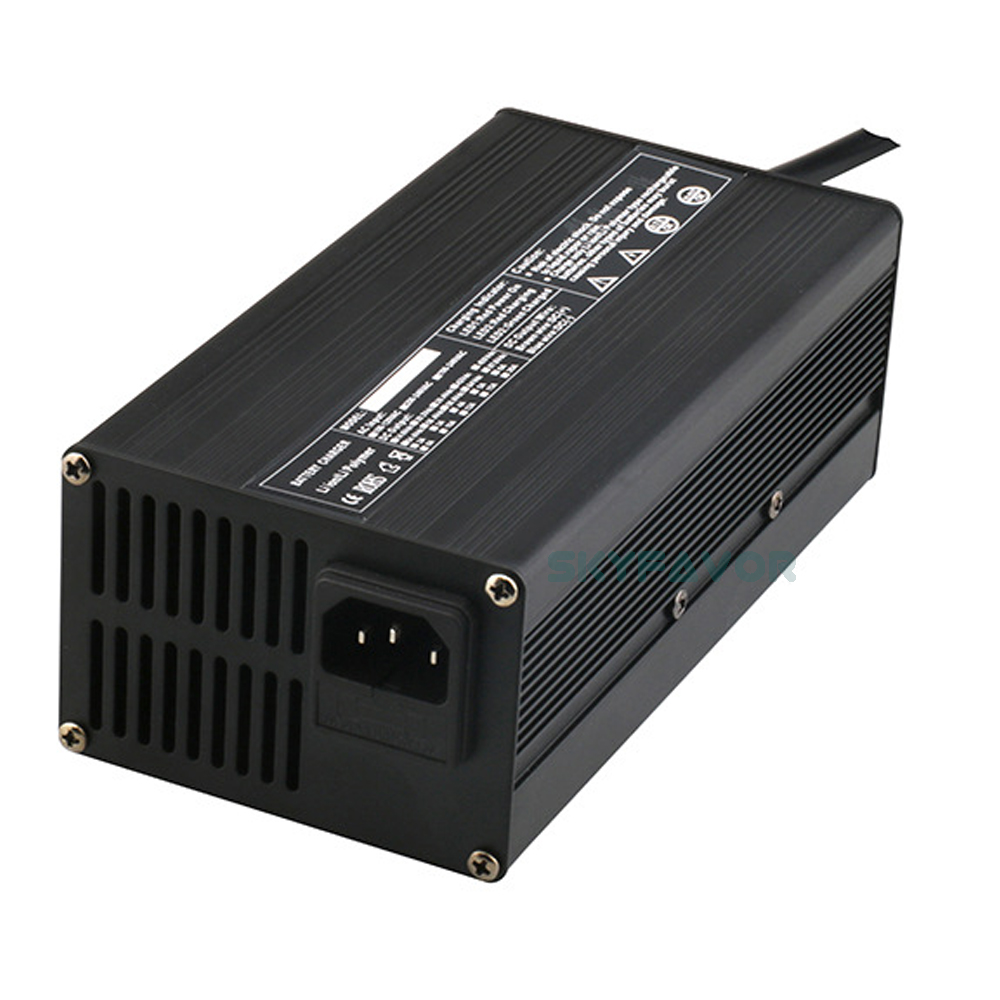

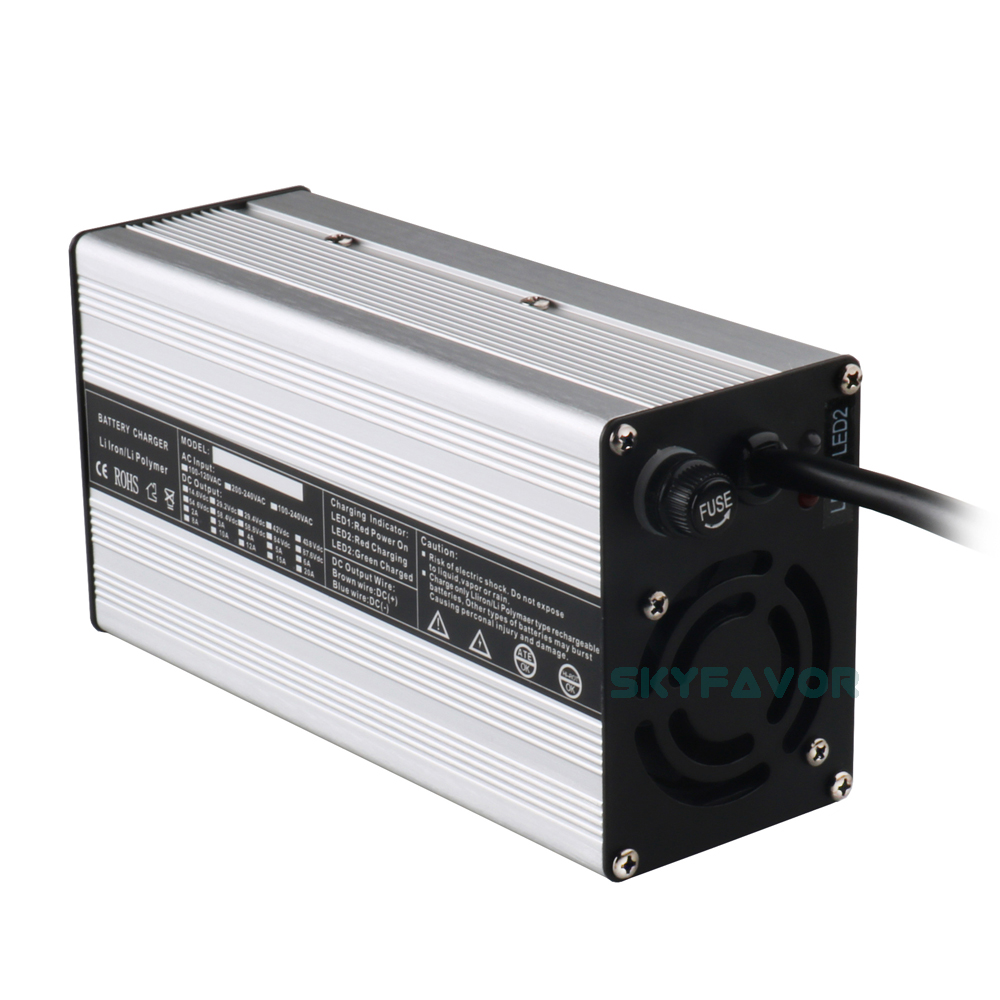

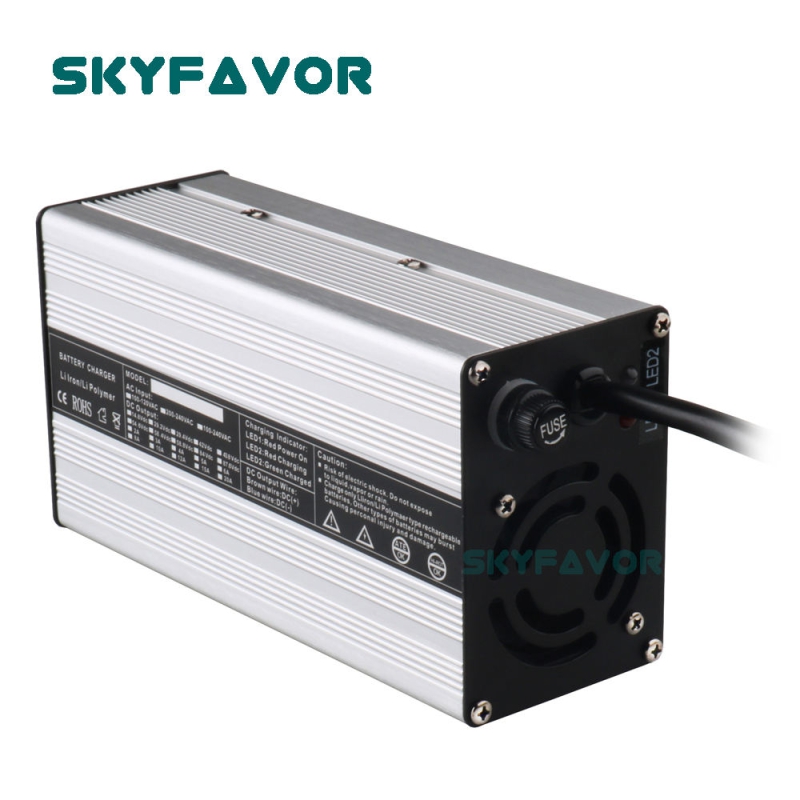

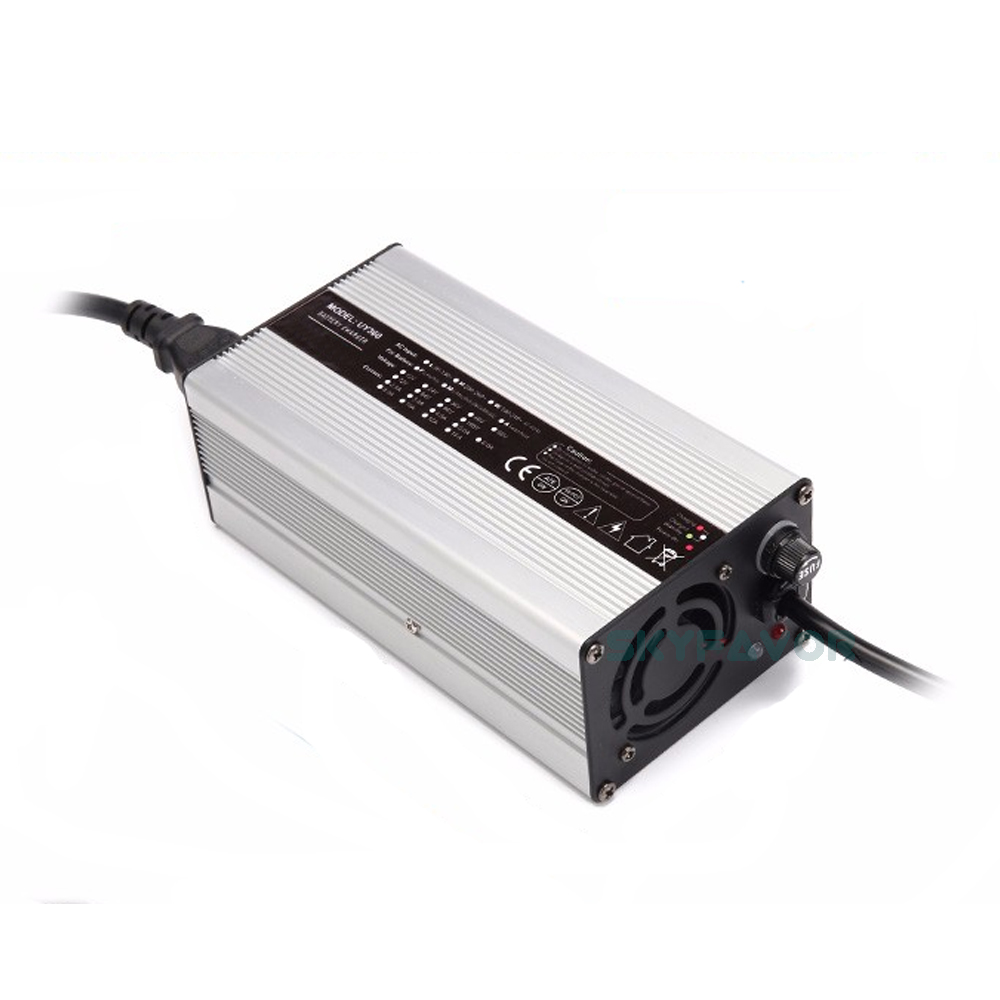

Product picture










72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger

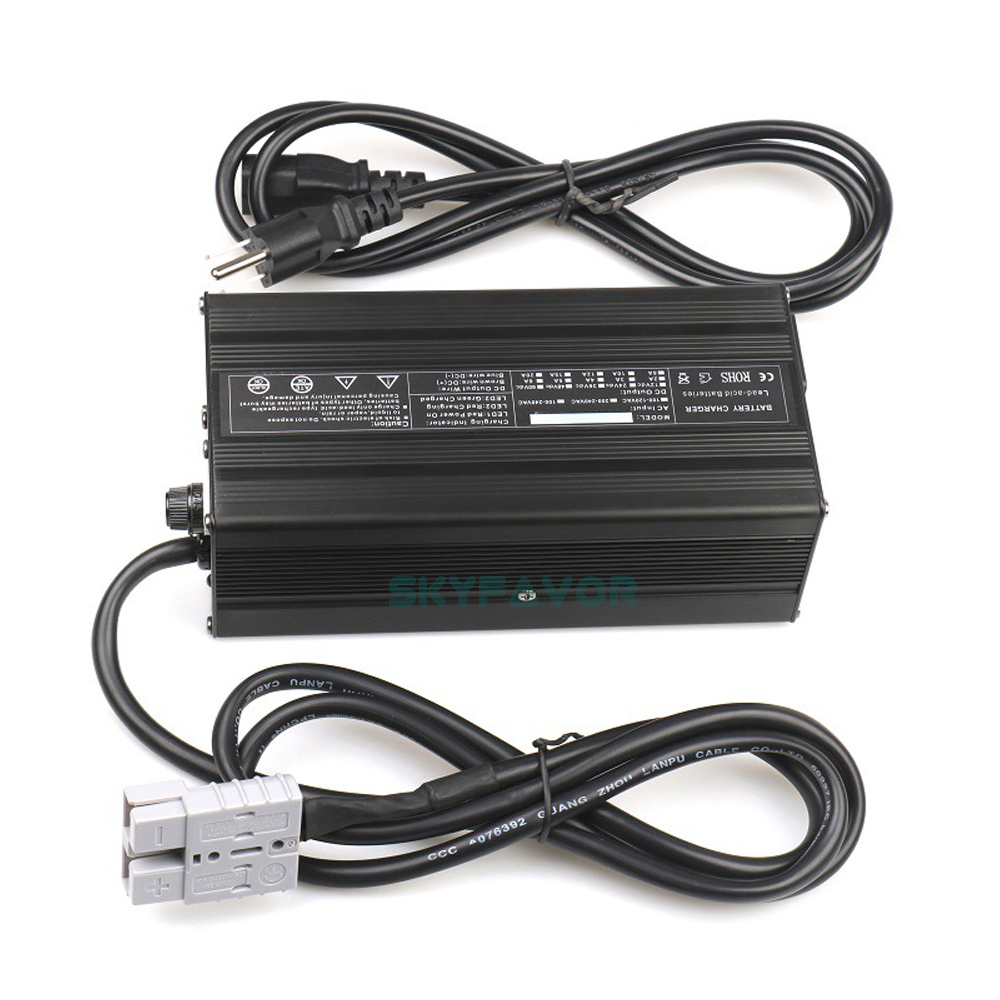

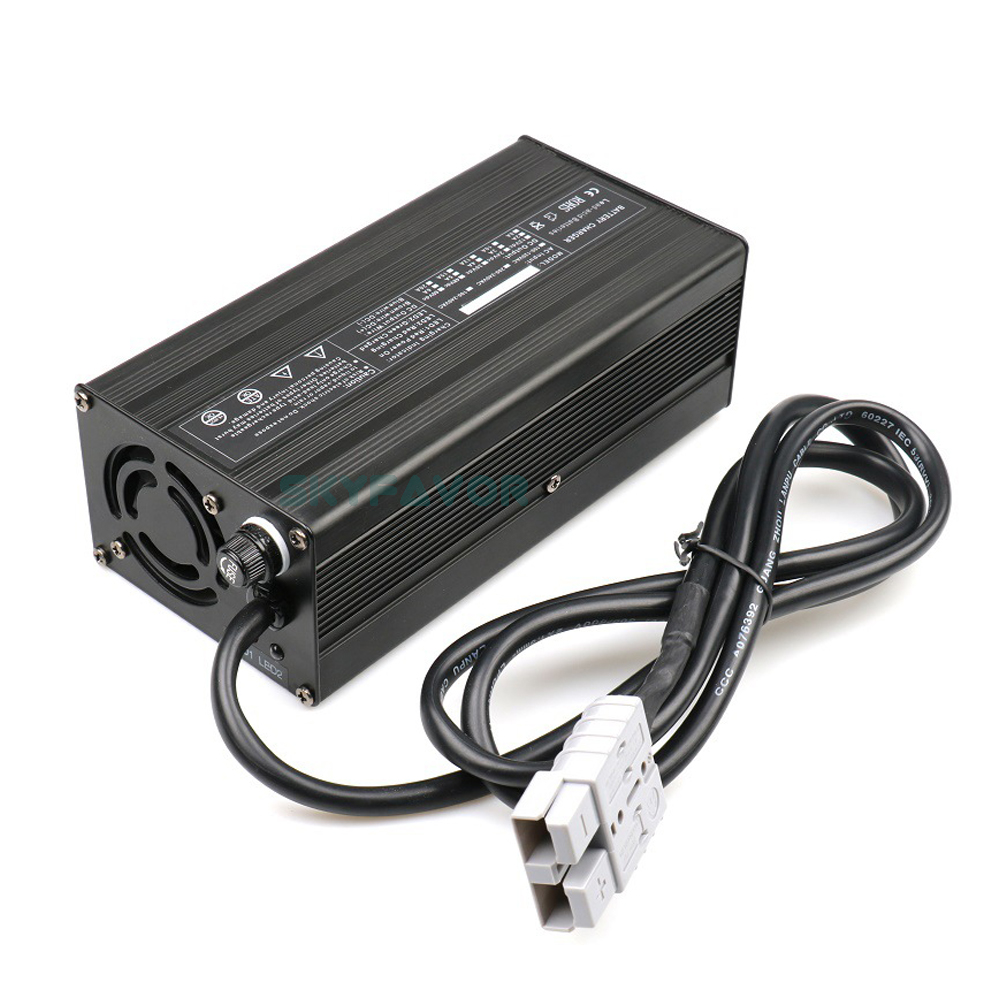

Alternative connections


72V batteries charger 72V 4A Professional Custom Automatic 72 votl battery charger
1 x Battery charger
1 x User Manual
