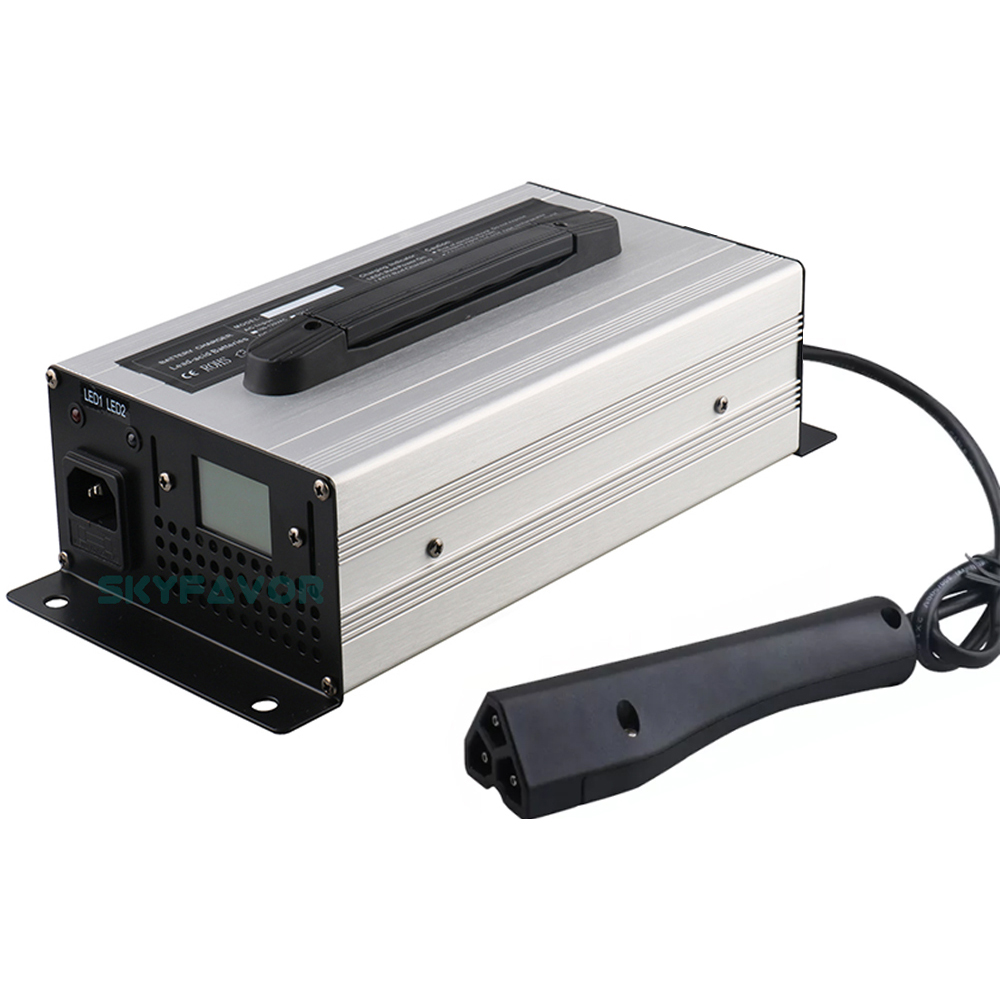

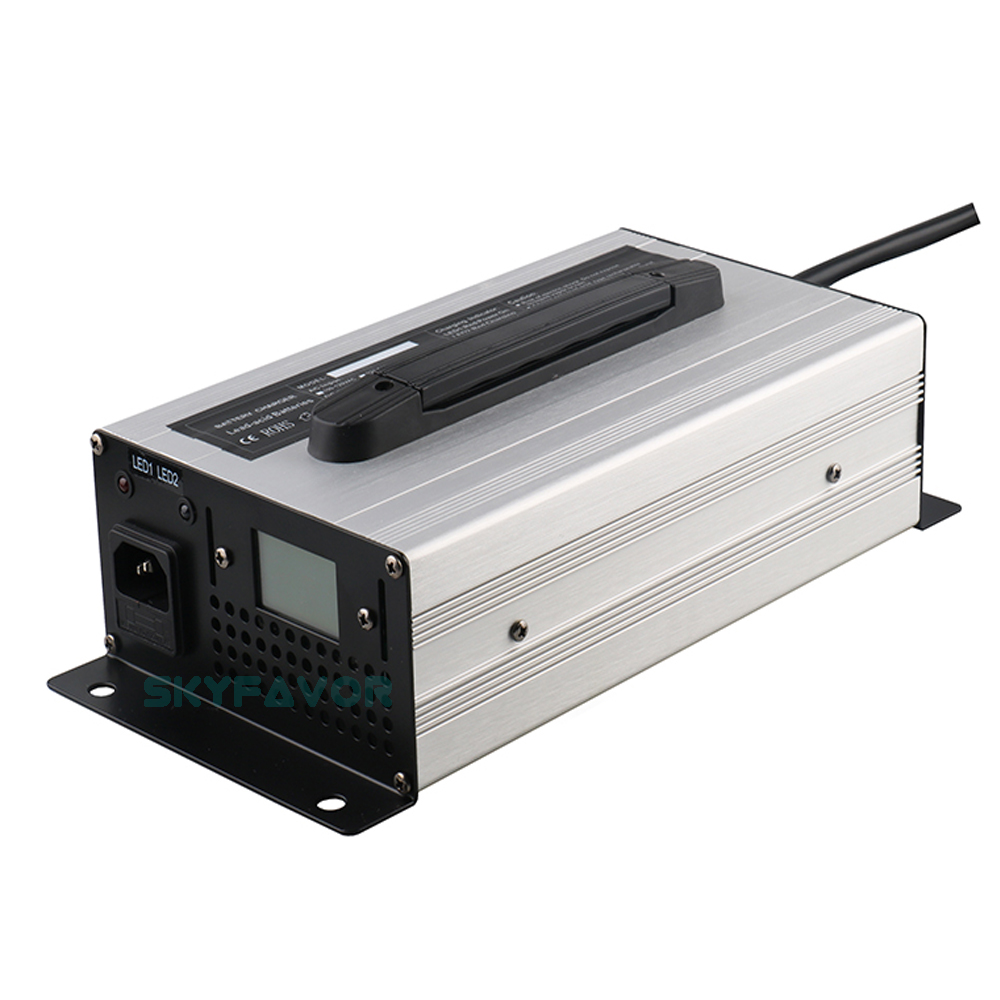

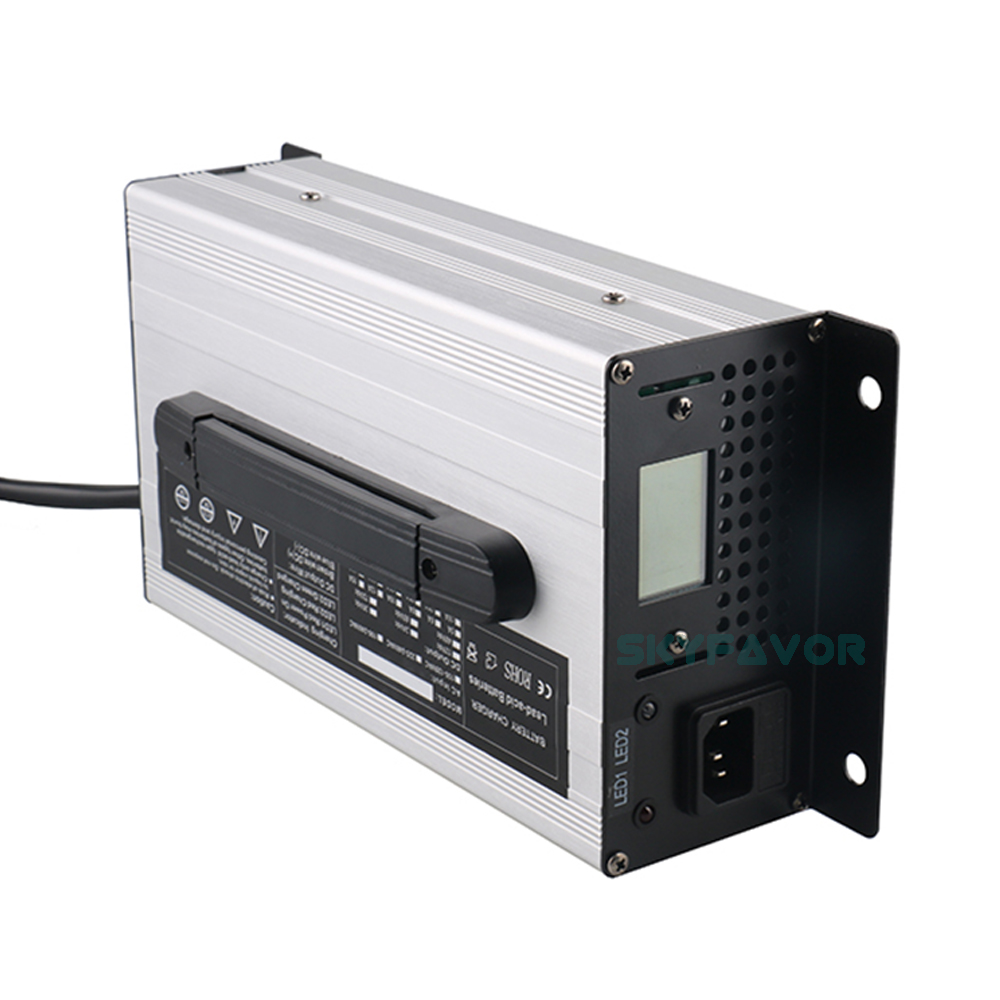

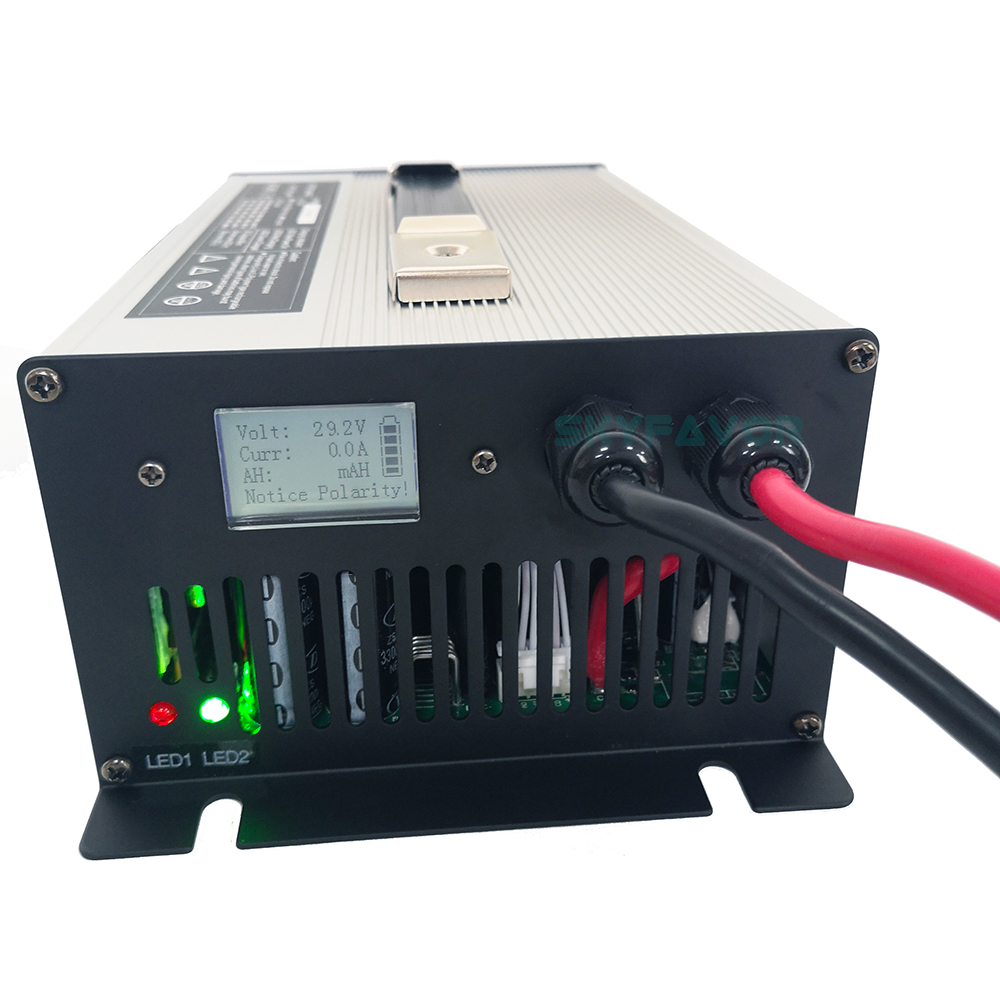

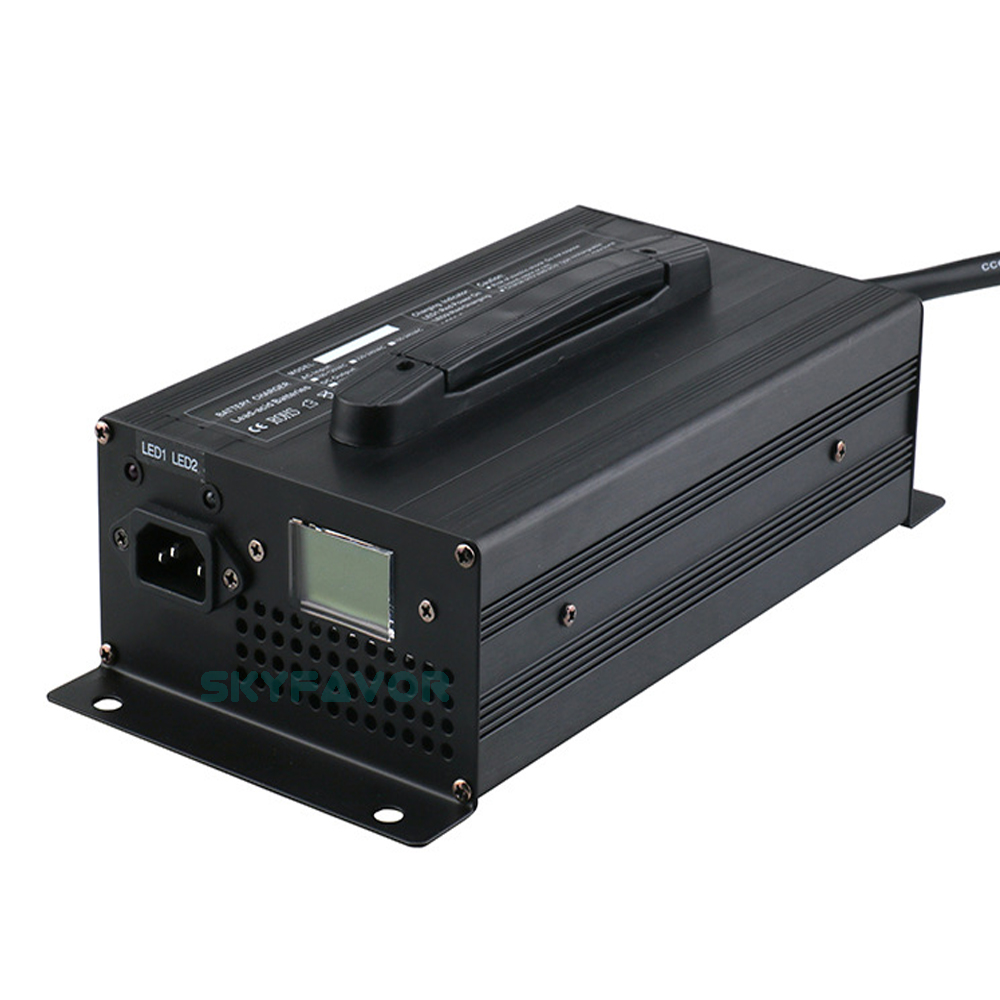

Customized Automatic 72V Battery Charger 72V 15A Professional Fast Battery Charger for 72 Volt Lead Acid Lifepo4 Lithium Ion Bat
Key attributes
Packaging and delivery
Description
(72V battery charger)Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger for 72 Volt Lead Acid Lifepo4 Lithium Ion Bat
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!
Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands. NO MOQ!!! Even if only 1 piece.
Before purchasing our battery chargers, please read the following questions and answers carefully:

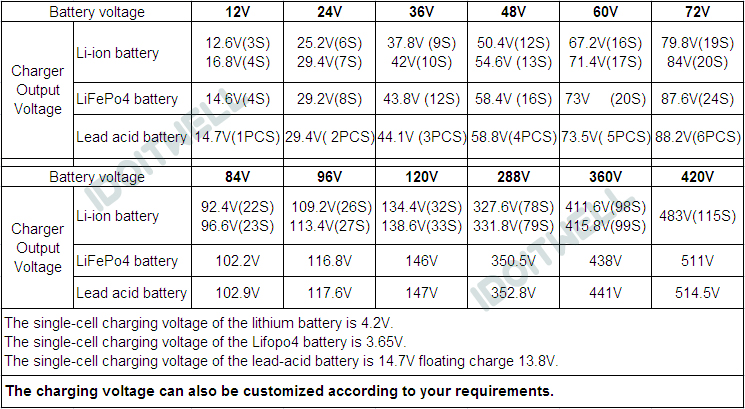

A: How to choose the suitable charging voltage for the battery?
Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger
Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger
B: How to choose the suitable charging current for the battery?
Battery Type | Battery Capacity (For example) | Suitable charging current rate | Suitable charging current |
Lead acid battery | 120ah | 1/10 | 12A |
Lithium battery | 120ah | 1/3 | 40A |
Lifepo4 battery | 120ah | 1/4 | 30A |
Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger
C: How to choose the suitable charger for the battery?
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
12V | 24V | 36V | 48V | 60V | 72V | 84V | |||
120W | 7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 |
180W | 10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 |
240W | 15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 |
360W | 20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 |
600W | 25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 |
900W | 40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 |
900WB | 40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 |
1200W | 50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 |

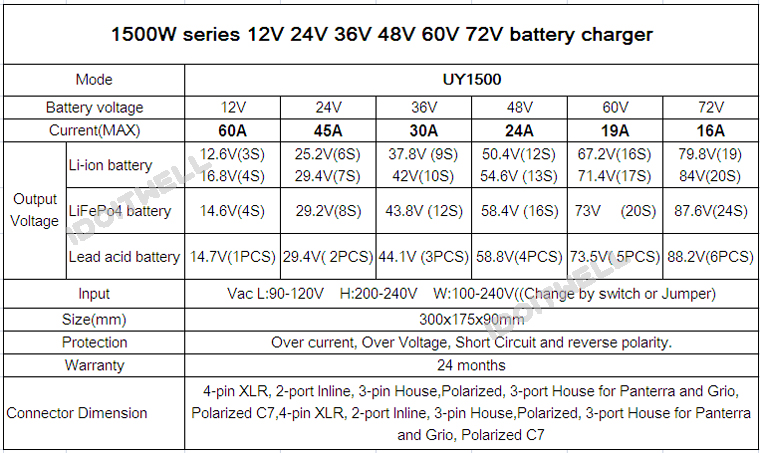

1500W | 60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 |
2000W | 90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 |
2500W | - | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 |
4000W | 150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 |
Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger
The Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110Vac or 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage:79.8V(19S lithium battery)/84V(20S Li-ion battery);
87.6V(24S LiFePo4 battery);
88.2V(6PCS-12VLead acid battery)Float charging voltage: 82.8V (Float charge only for Lead acid batteries)
C:Charging Mode:Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height:The battery charger 48 volt conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger 72volt
Over Voltage Protection
The power supply will be auto recovered when faults remove
Over Current Protection
Charger output current does not exceed the set maximum battery charging current.
Over Temperature Protection
Over Short Circuit Protection
48V 25A battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection
When the 48V battery charger output line reversed after the charger will not work until the right user access only to start.

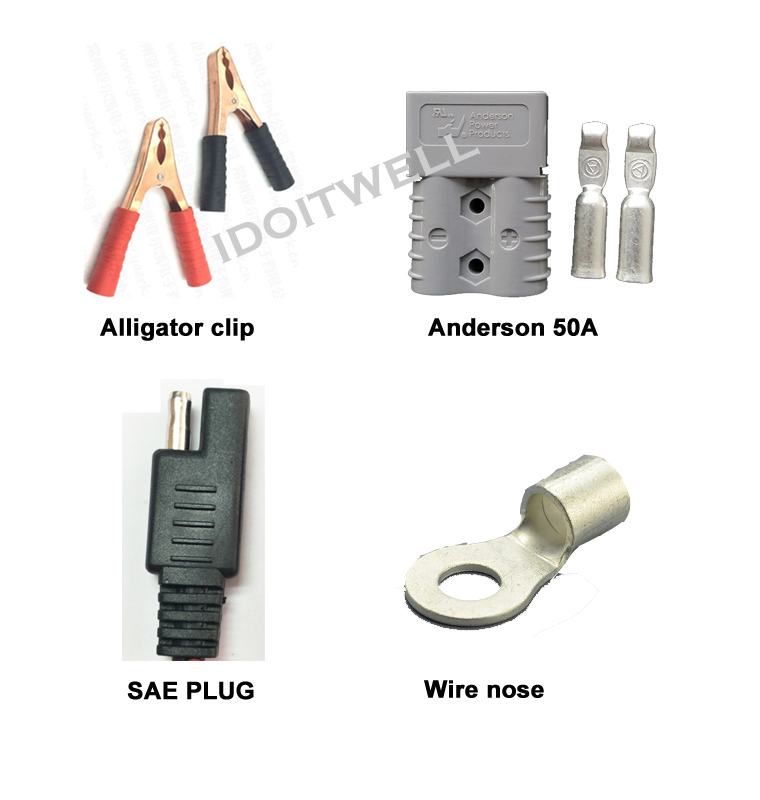

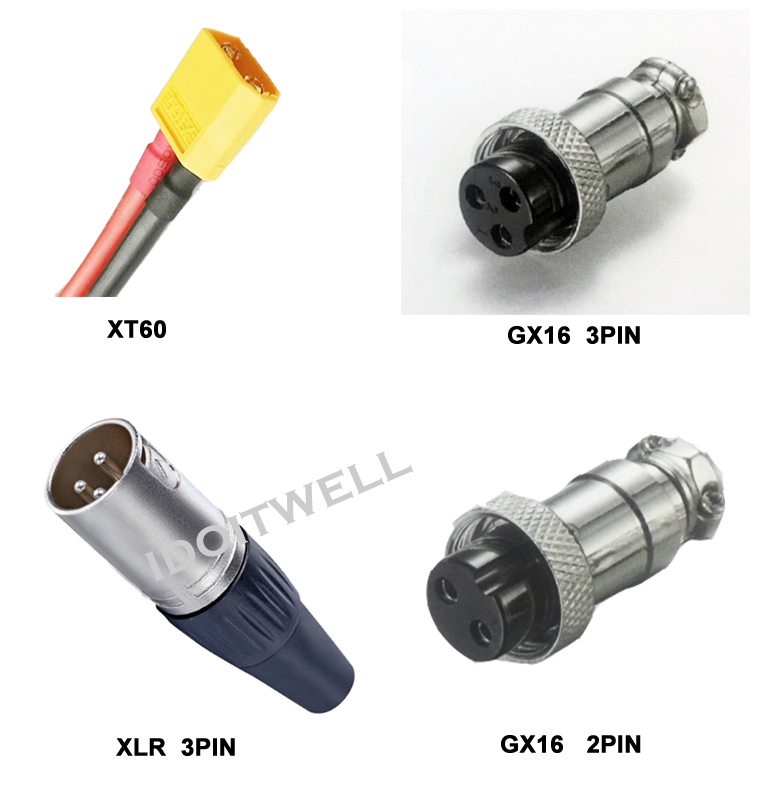

F:DC Connector Dimension:
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc.
Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger
Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger
Alternative connections
Customized Automaic 72V Battery Charger 72V 15A Professional Fast Battery Charger
1 x Battery charger
1 x User Manual
