Smart Automatic 48V Golf Cart Charger 48V 15A Fast Lead Acid Battery Charger for 48 VOLT Ez Go Club Car DS EZGO TXT GOLF CART
Key attributes
Packaging and delivery
Description
(Golf cart battery charger)Smart Automatic 48V golf cart charger 48V 15A fast lead acid battery charger for 48 VOLT Ez Go Club Car DS EZGO TXT GOLF CART
Name | Automatic 48V golf cart charger 48V 15A fast lead acid battery charger |
Model | 900W |
Battery type | 48V Lead acid battery |
AC Input | 110Vac or 230Vac |
Output voltage | 58.8V float charge 55.2V |
Output current | 15A |
Protection | Over Voltage Protection Over Current Protection Short Circuit Protection Reverse polarity Protection |
Apply to | For Electric Motorcycle.120AH,150AH,200AH 48v Lead acid battery |


The Automatic 48V golf cart charger 48V 15A fast lead acid battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 110v or 230Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 58.8V float charge 55.2V
C:Charging ModeAutomatic 48V golf cart charger 48V 15A fast lead acid battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

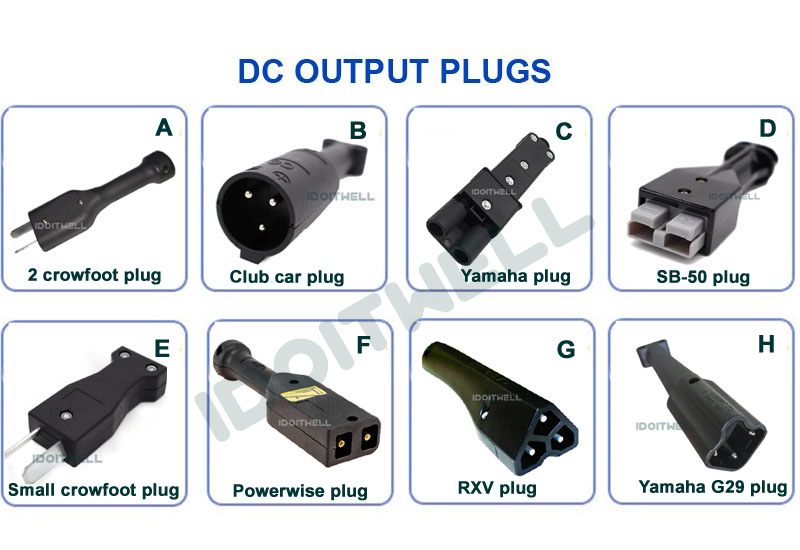

F:DC Connector Dimension:Automatic 48V golf cart charger 48V 15A fast lead acid battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
Automatic 48V golf cart charger 48V 15A fast lead acid battery charger

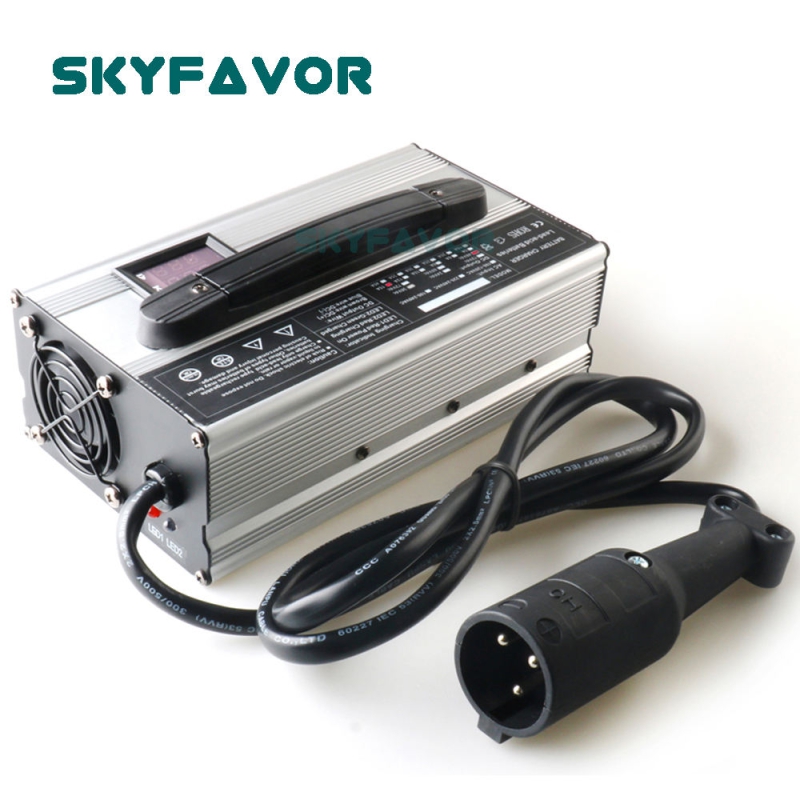

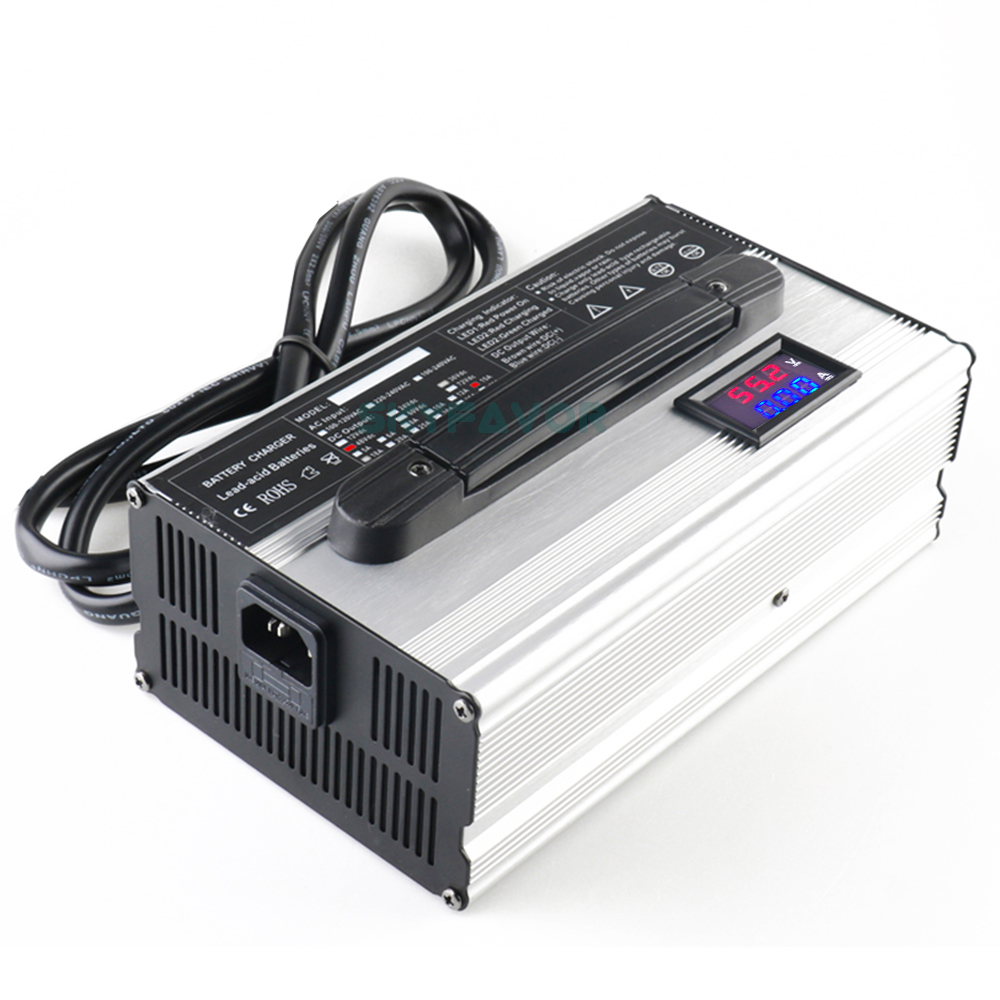

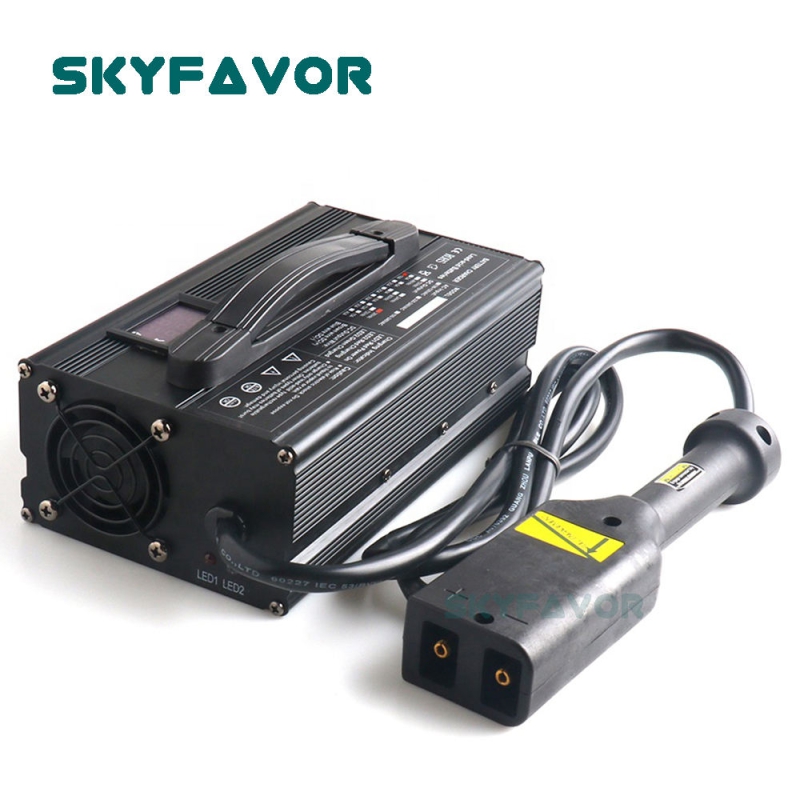

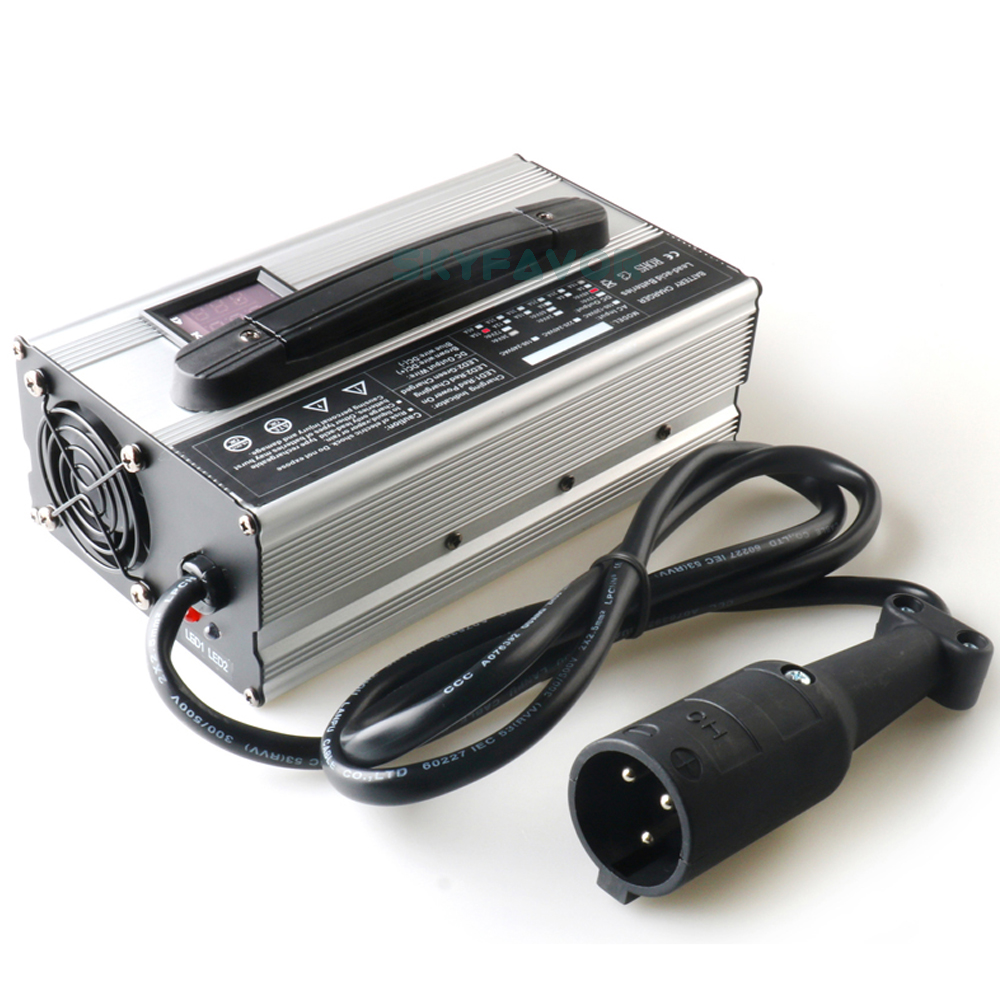

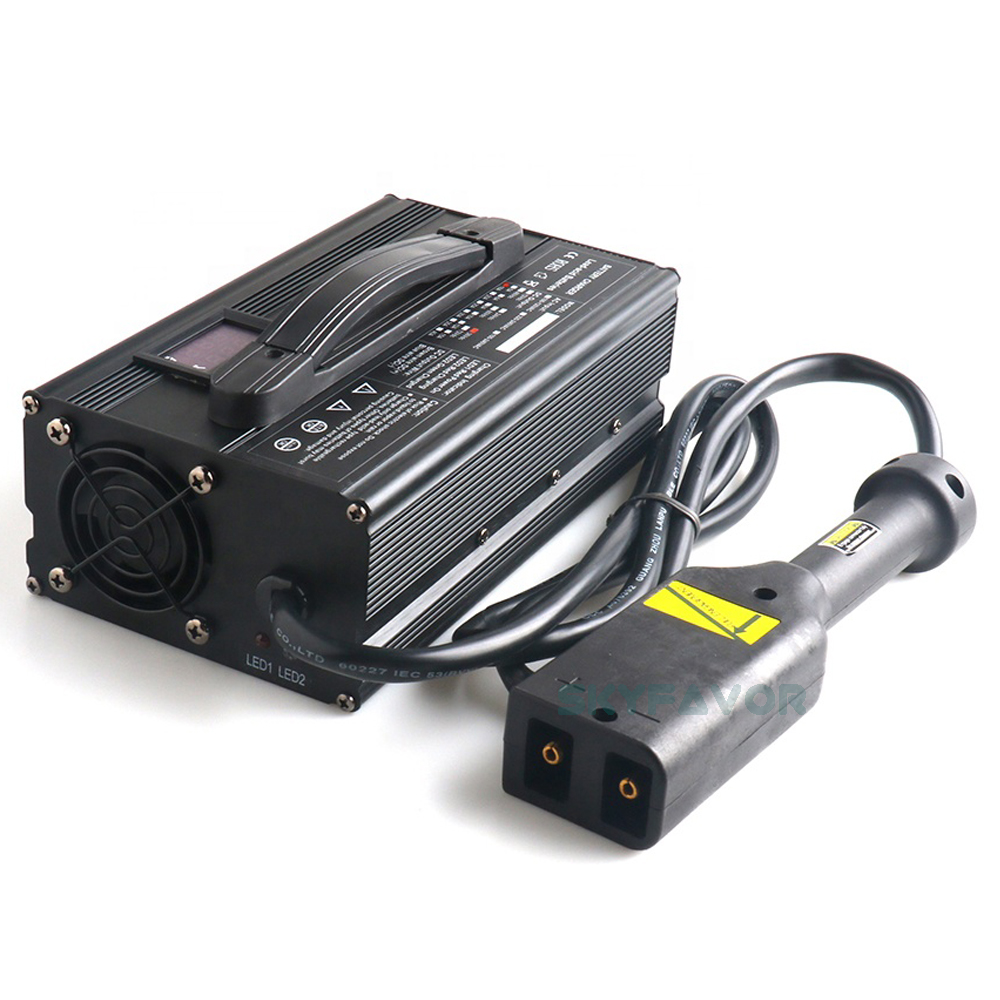

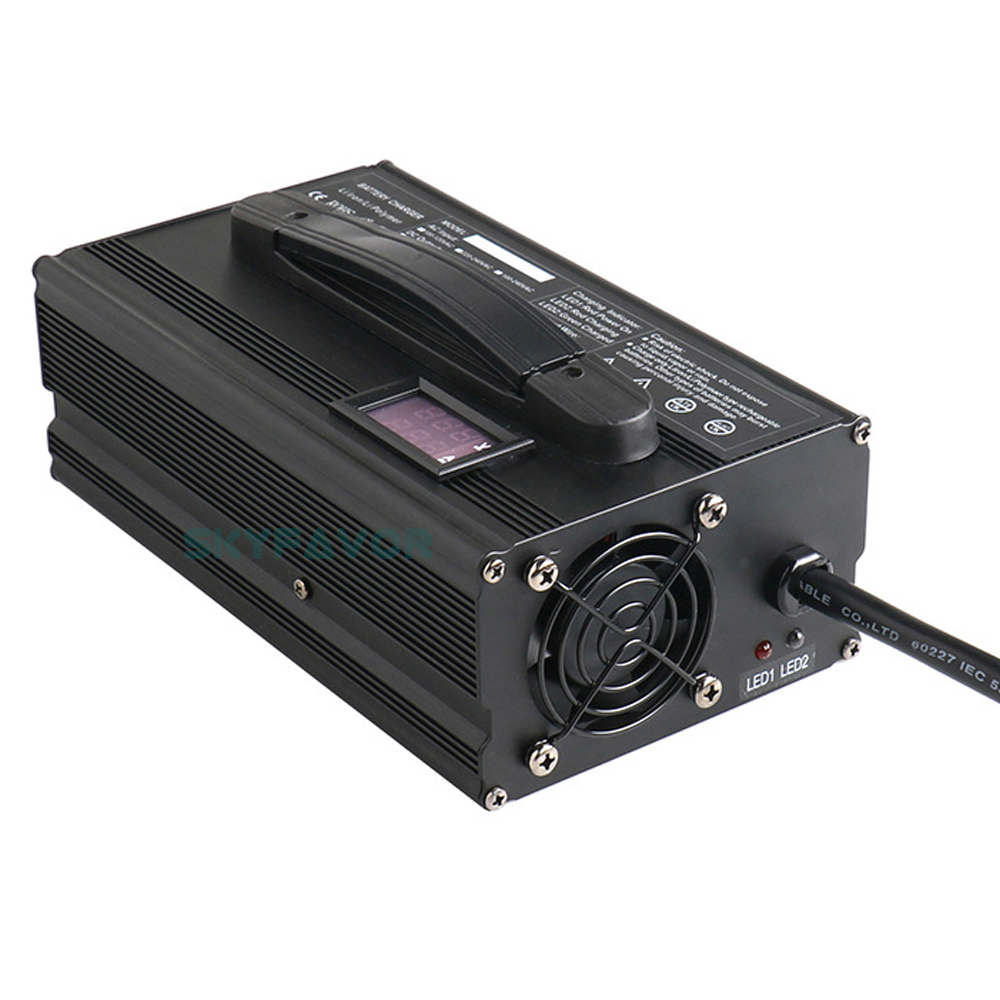

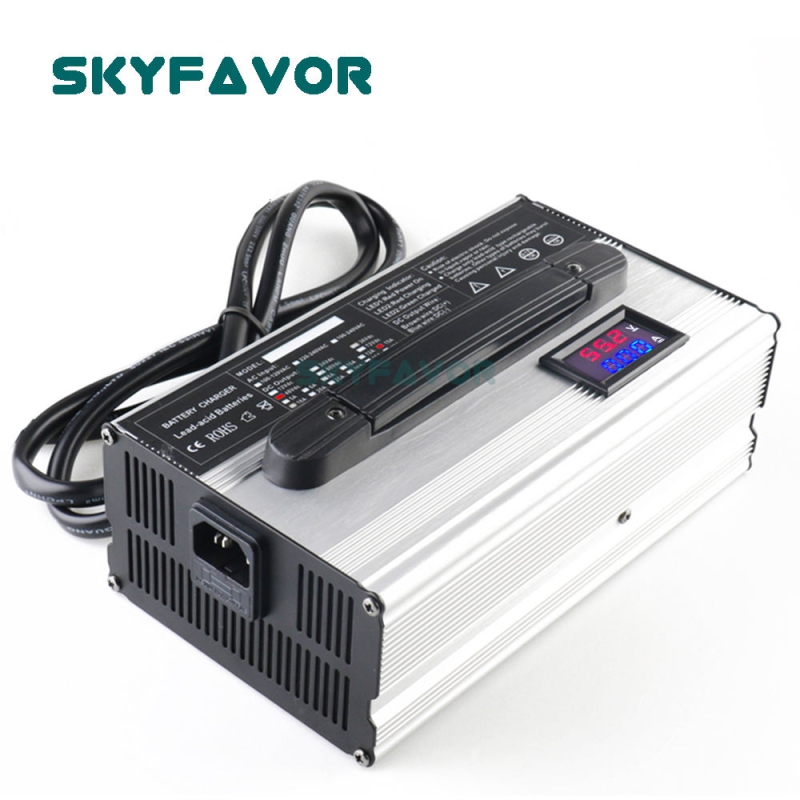

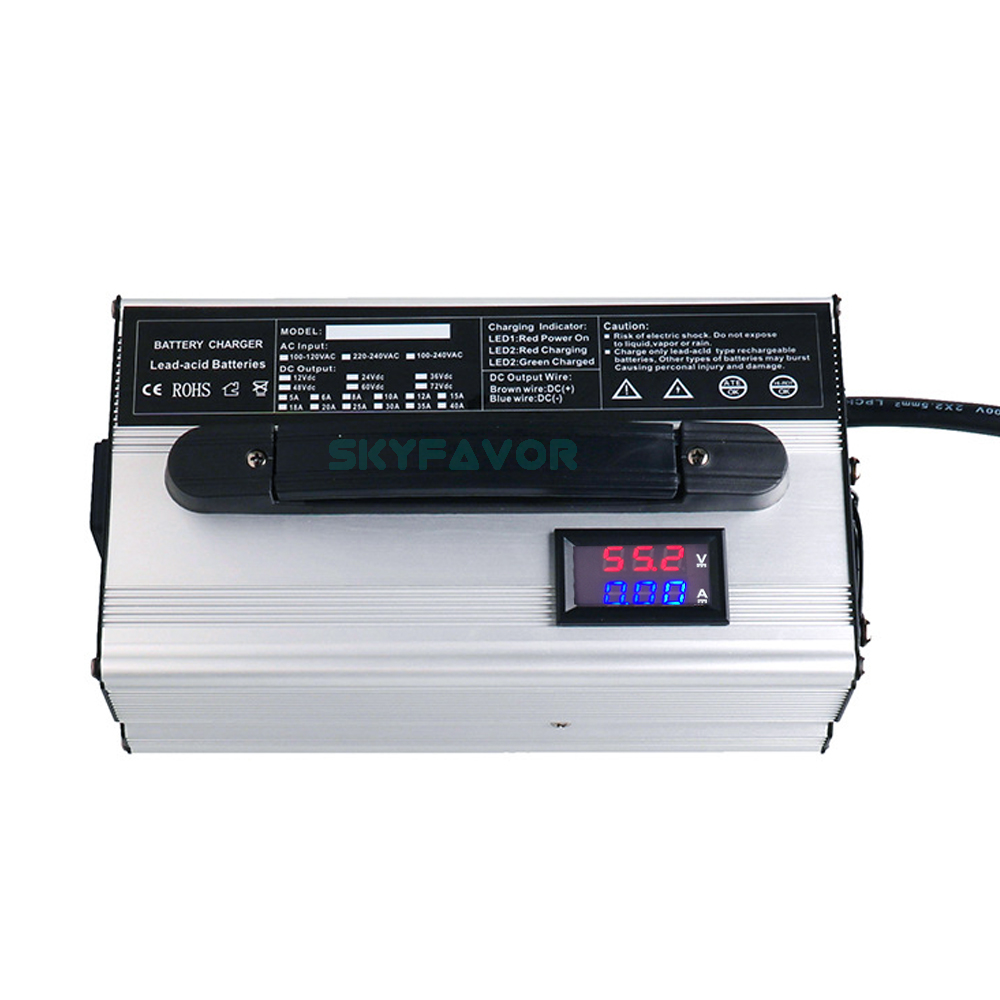

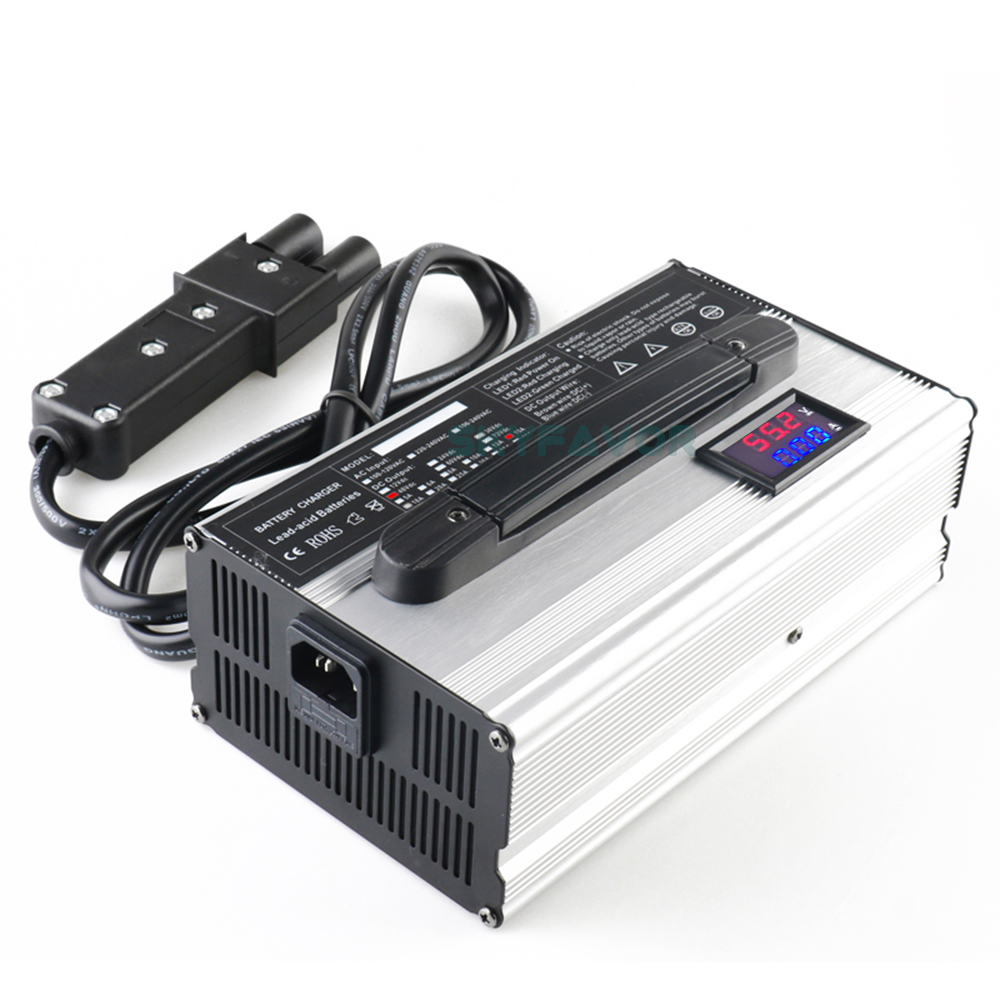

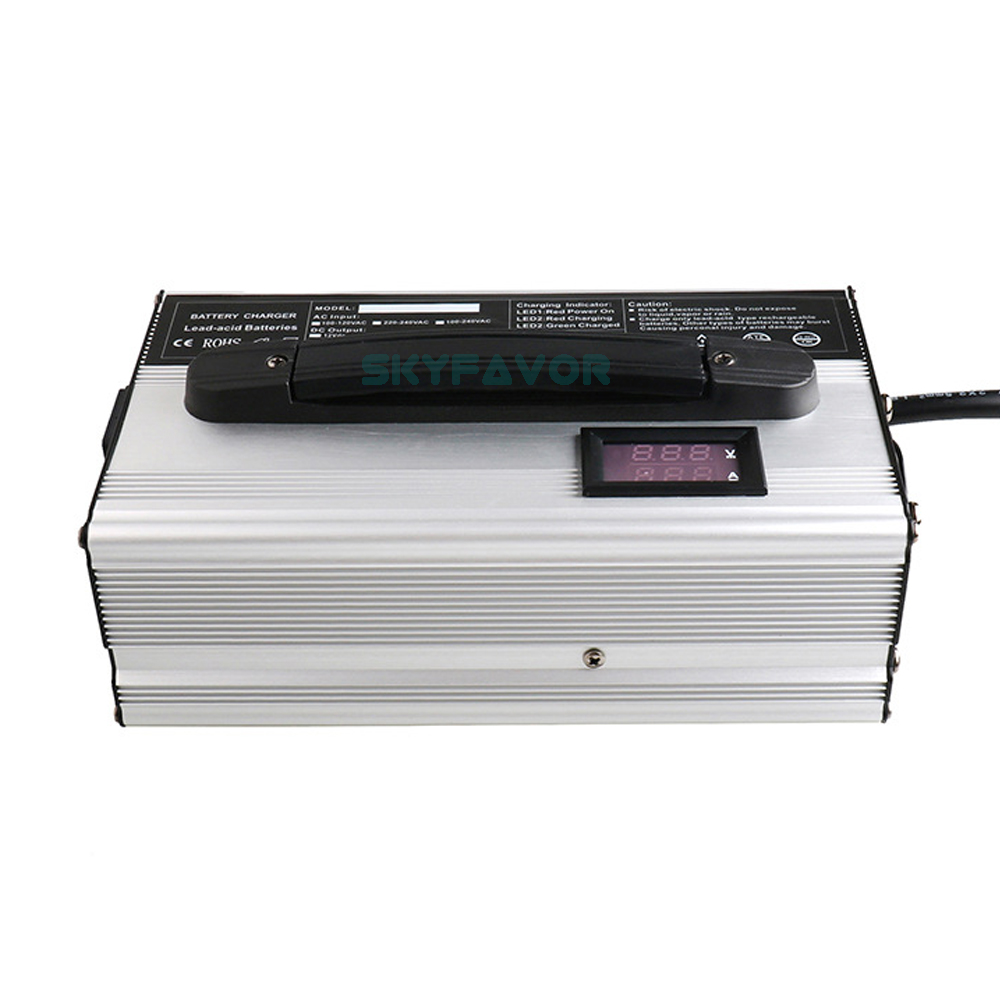

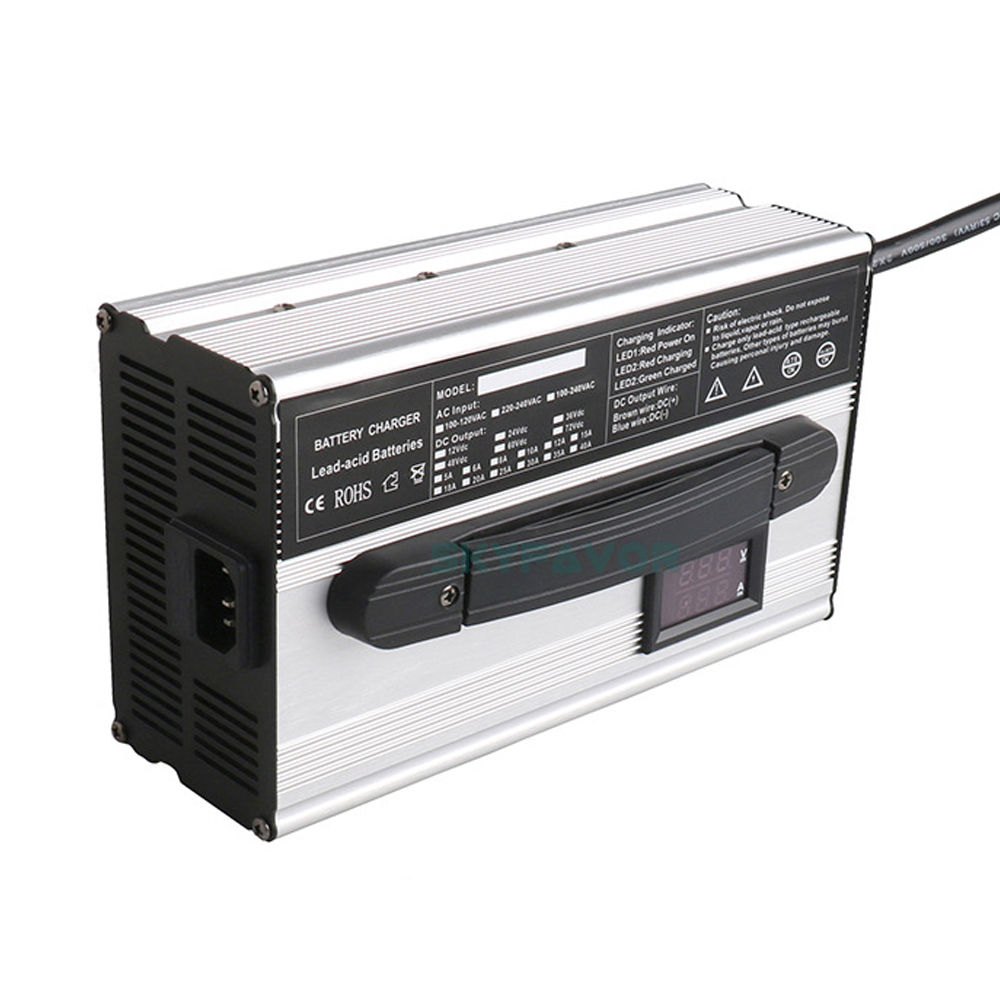

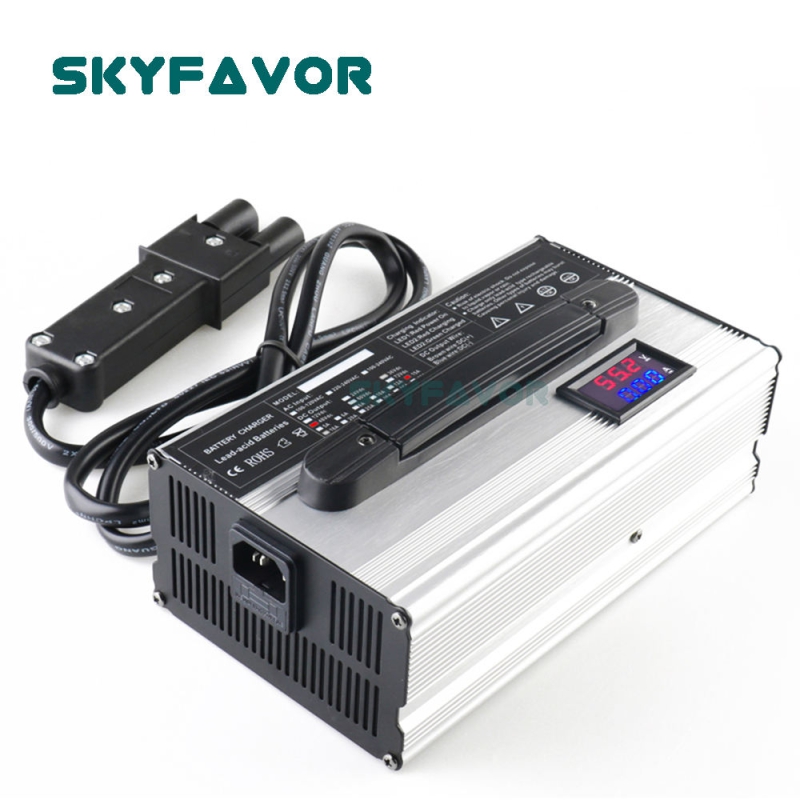

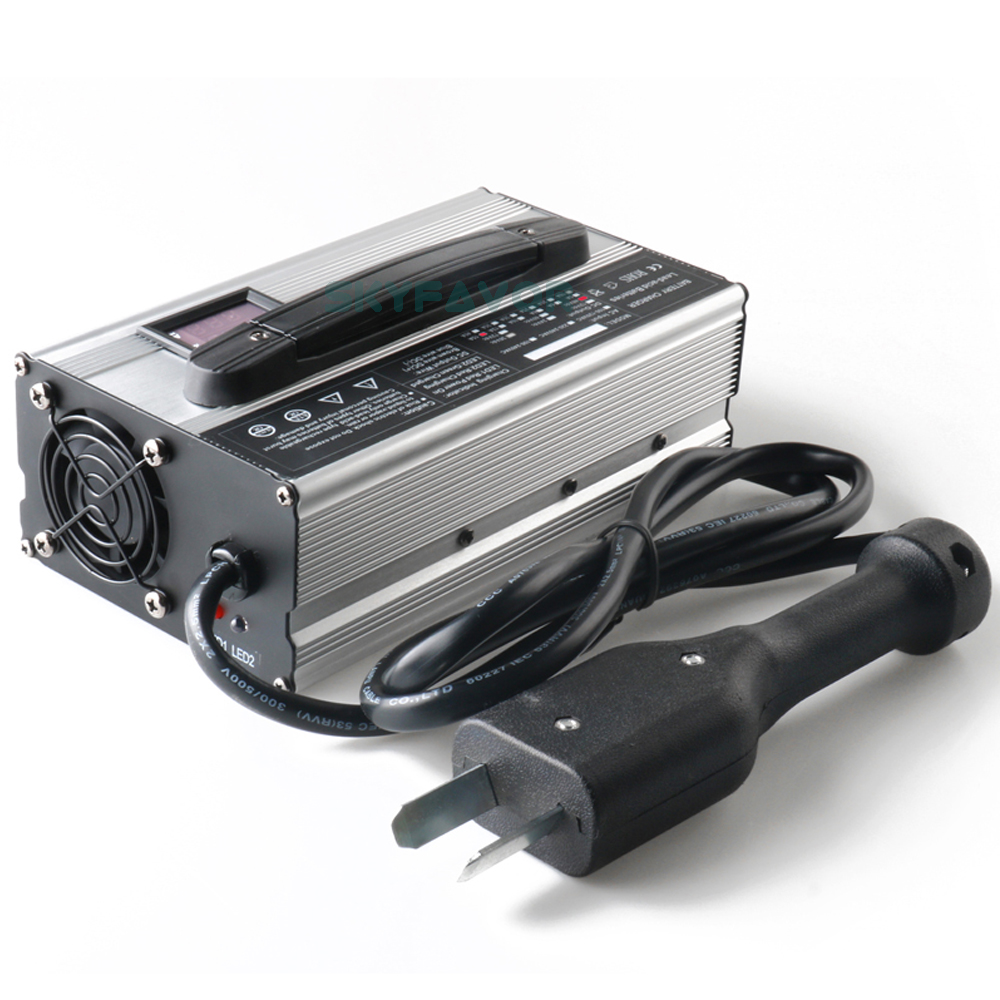

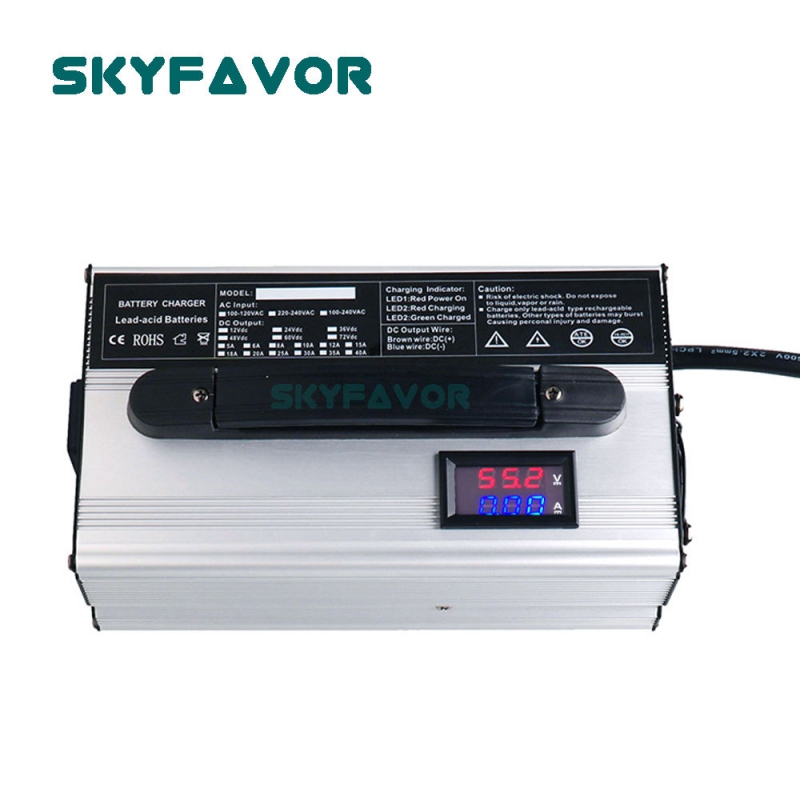

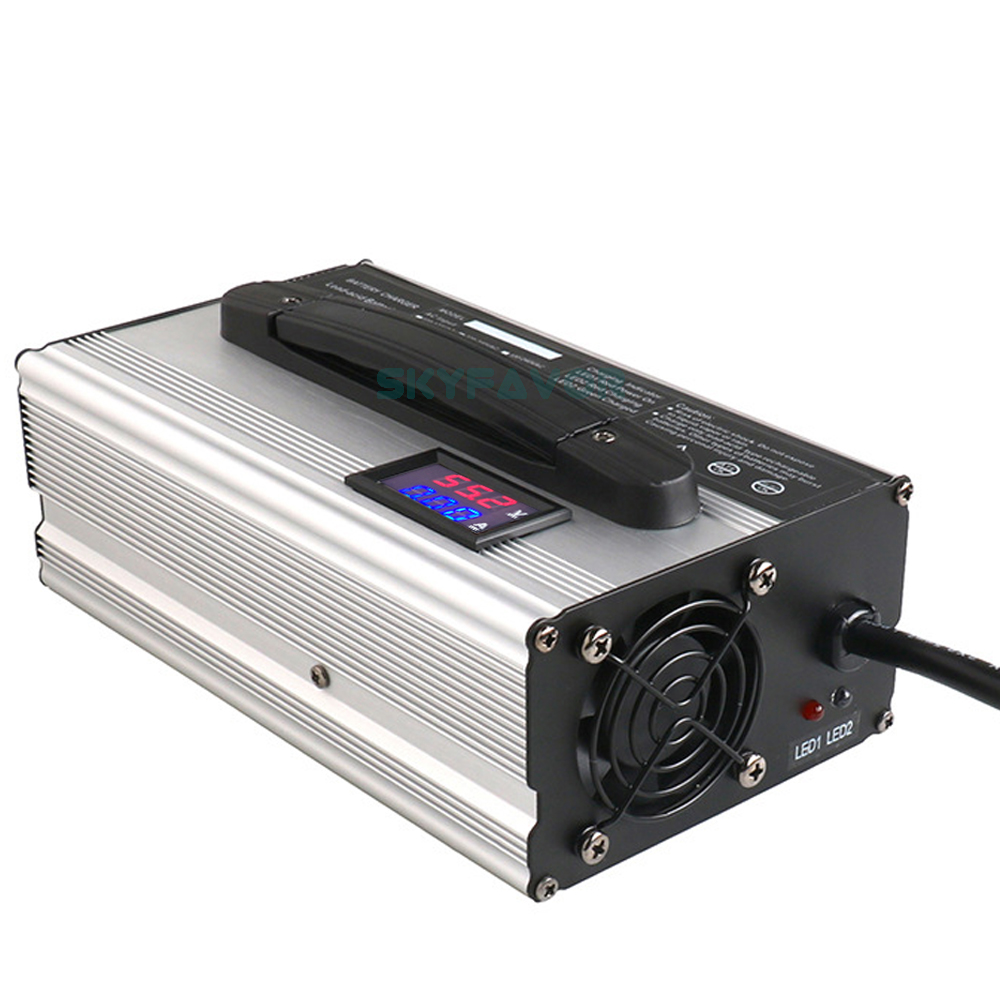

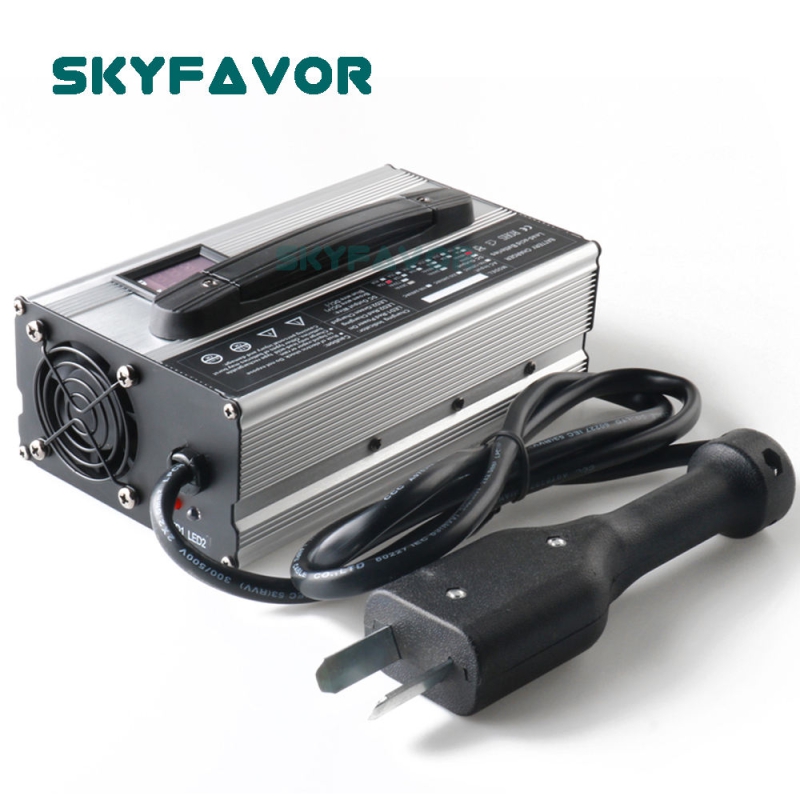

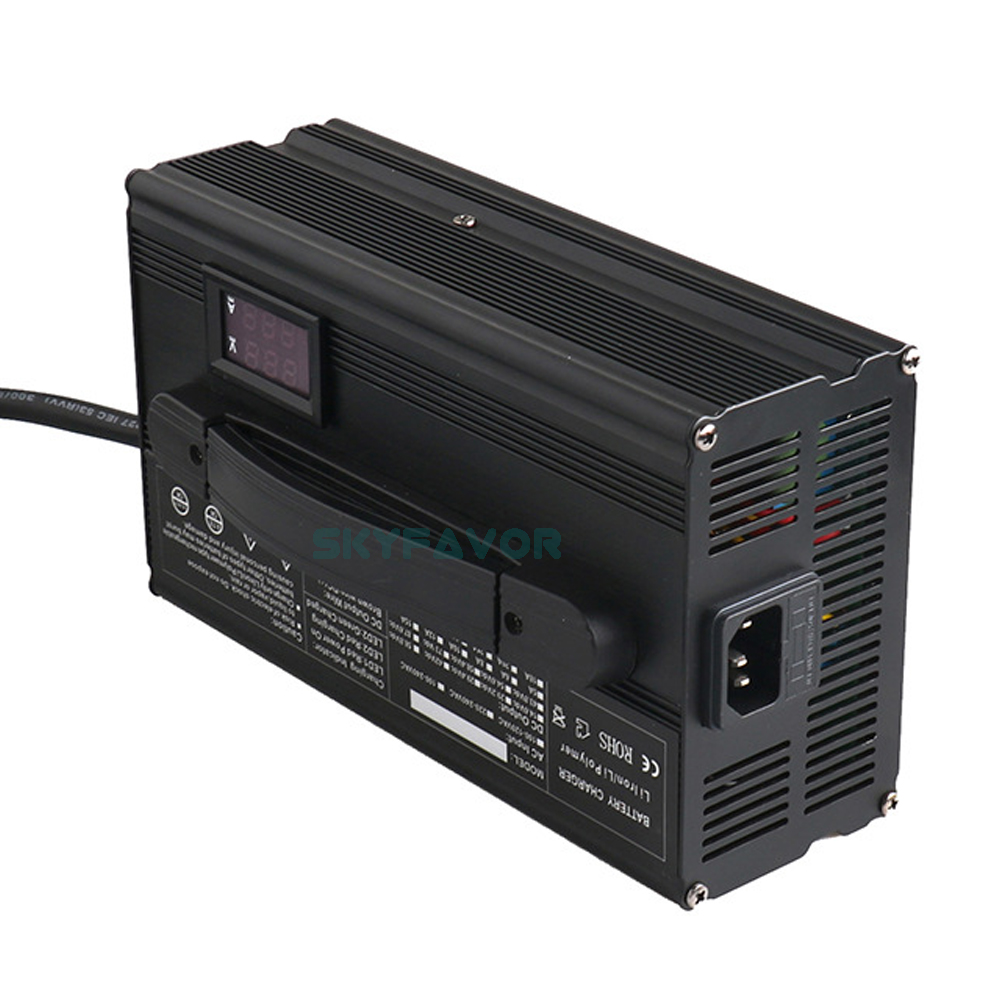

Product picture











Automatic 48V golf cart charger 48V 15A fast lead acid battery charger
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
12V | 24V | 36V | 48V | 60V | 72V | 84V | |||
120W | 7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 |
180W | 10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 |
240W | 15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 |
360W | 20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 |
600W | 25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 |
900W | 40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 |
900WB | 40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 |
1200W | 50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 |
1500W | 60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 |
2000W | 90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 |
2500W | - | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 |
4000W | 150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 340x235x110 |
Automatic 48V golf cart charger 48V 15A fast lead acid battery charger
Alternative connections


1 x Battery charger
1 x User Manual


1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.

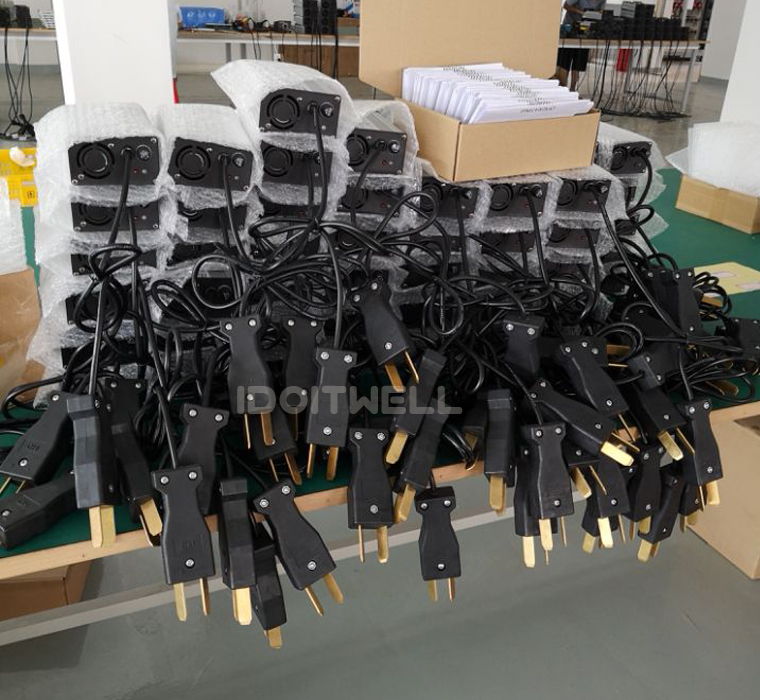

2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.
