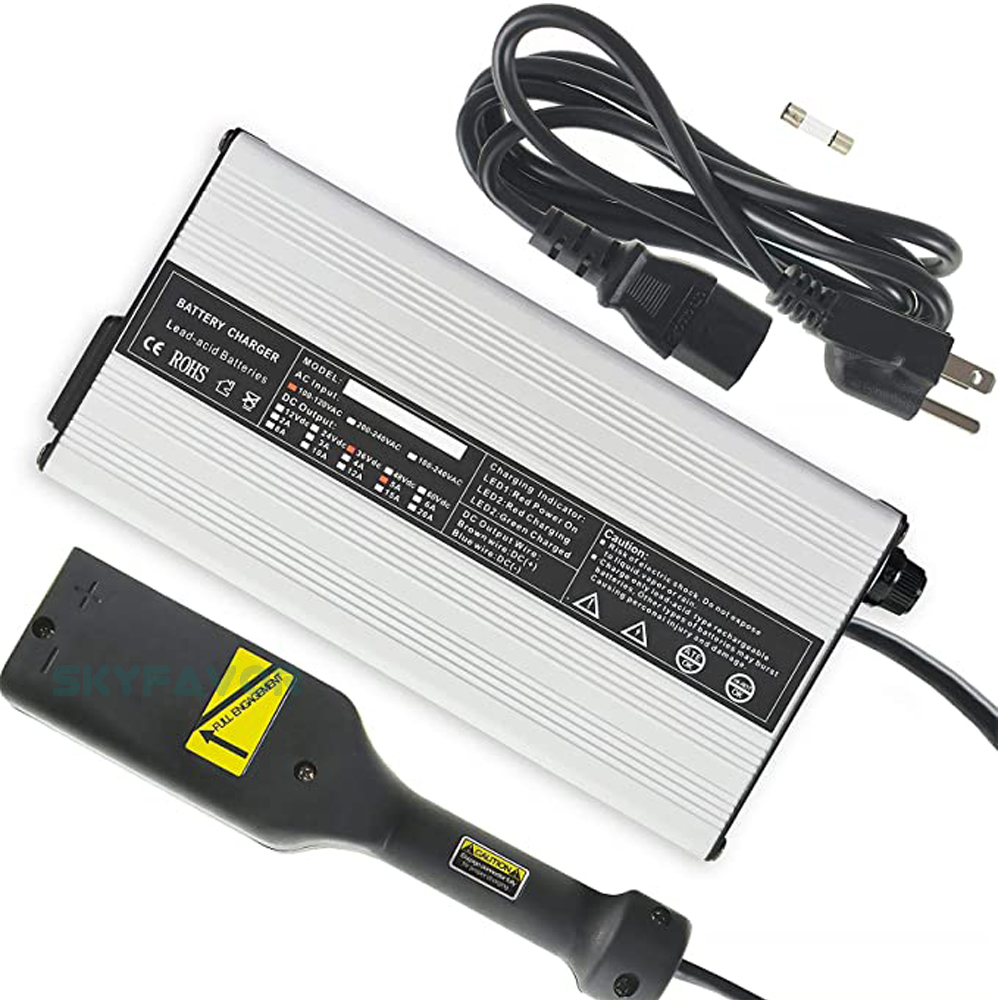

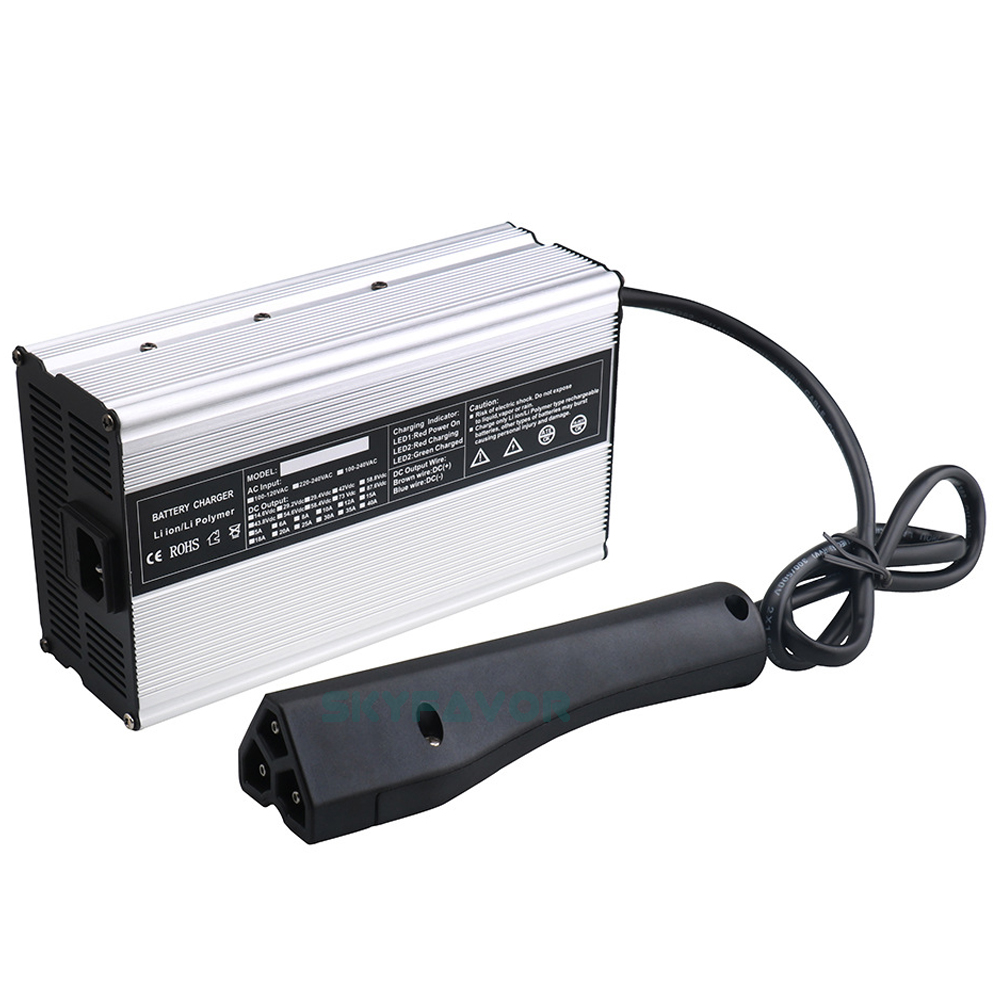

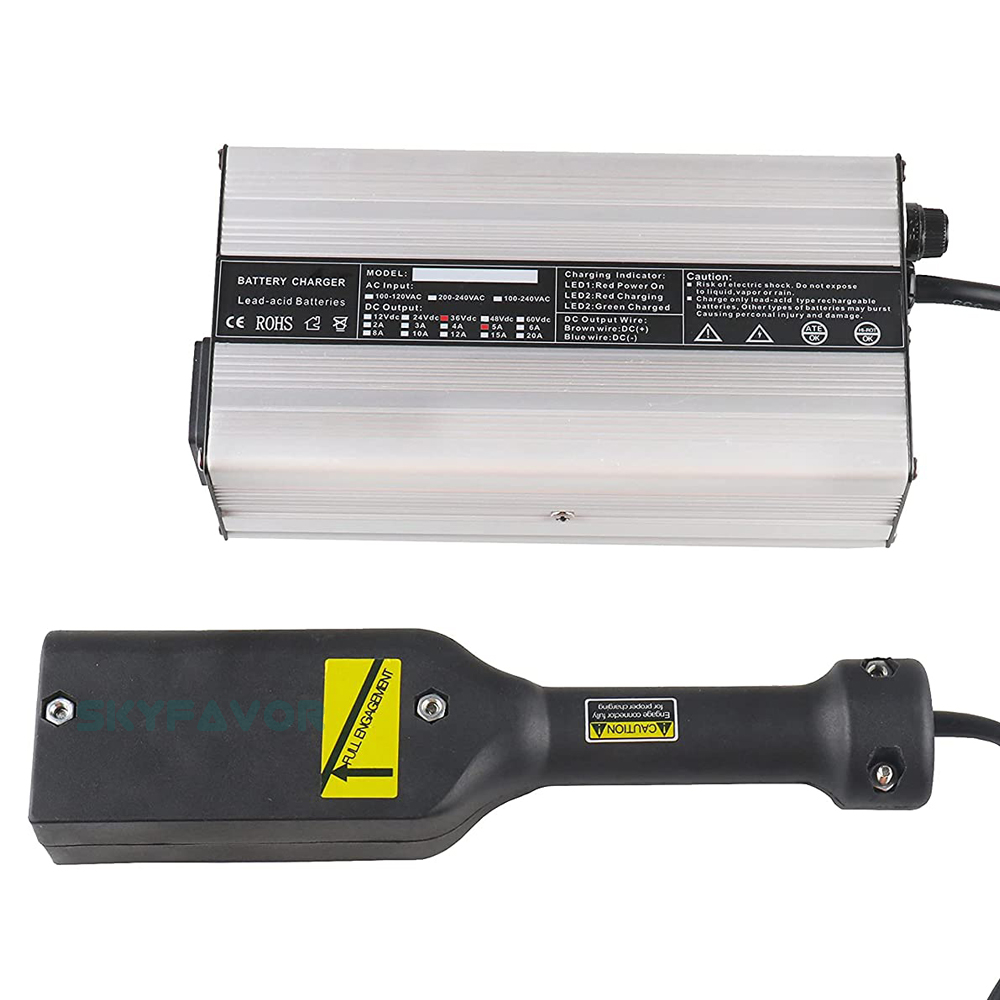

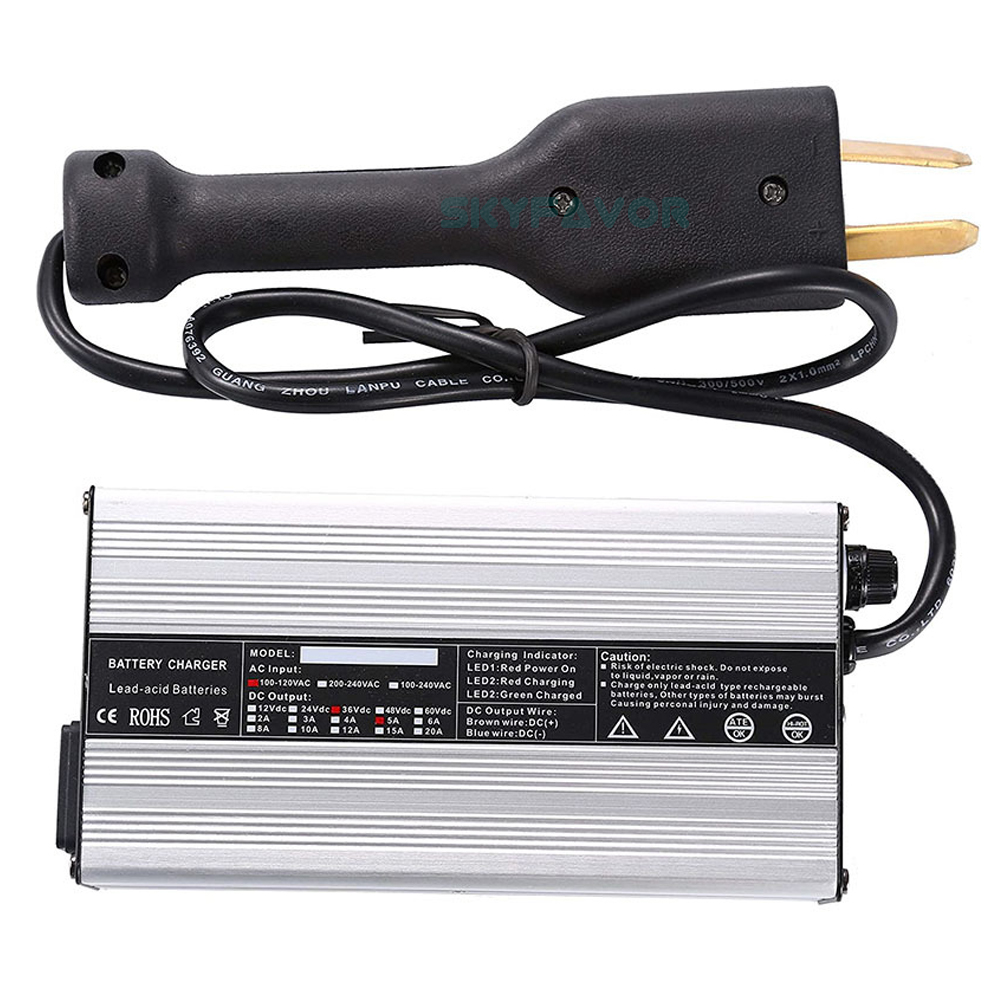

36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart
Key attributes
Packaging and delivery
Description

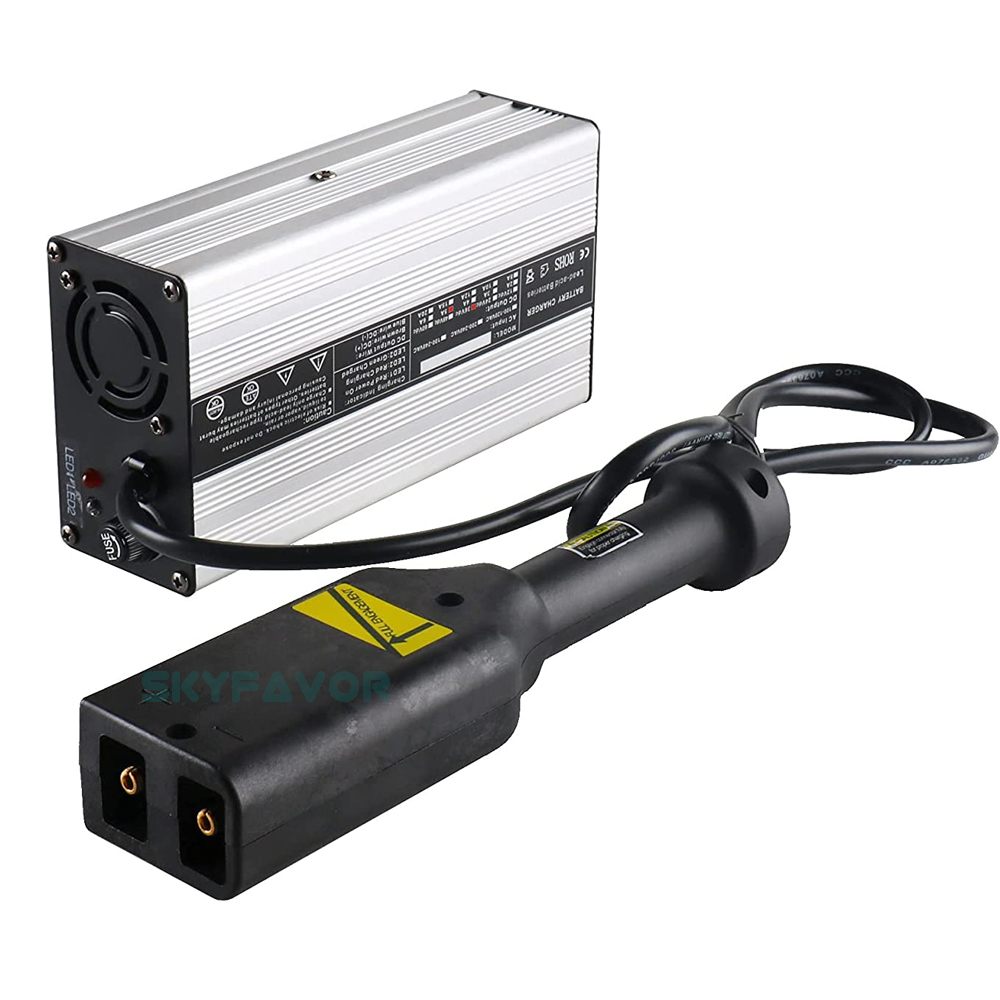

(Golf cart battery charger)36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart
Name | Professional 36V golf cart battery charger |
Mode | 240W |
Input | 110Vac or 220Vac |
Output | 44.1V Float charge voltage:41.4V (for 36V lead acid battery) |
Output current | 5A |
Features: | Temperature control compensation charger |
Compatibility | 35AH,60AH 80AH lead acid battery |
Protection | -Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
Apply to | For EZ Go Club Car DS EZgo TXT-One Golft cart ETC. |
weight | 1.6KG |
The 36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 44.1V float charge 41.4V
C:Charging Mode36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The liftpo4 battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The wheelchair battery chargerconform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The power supply will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.

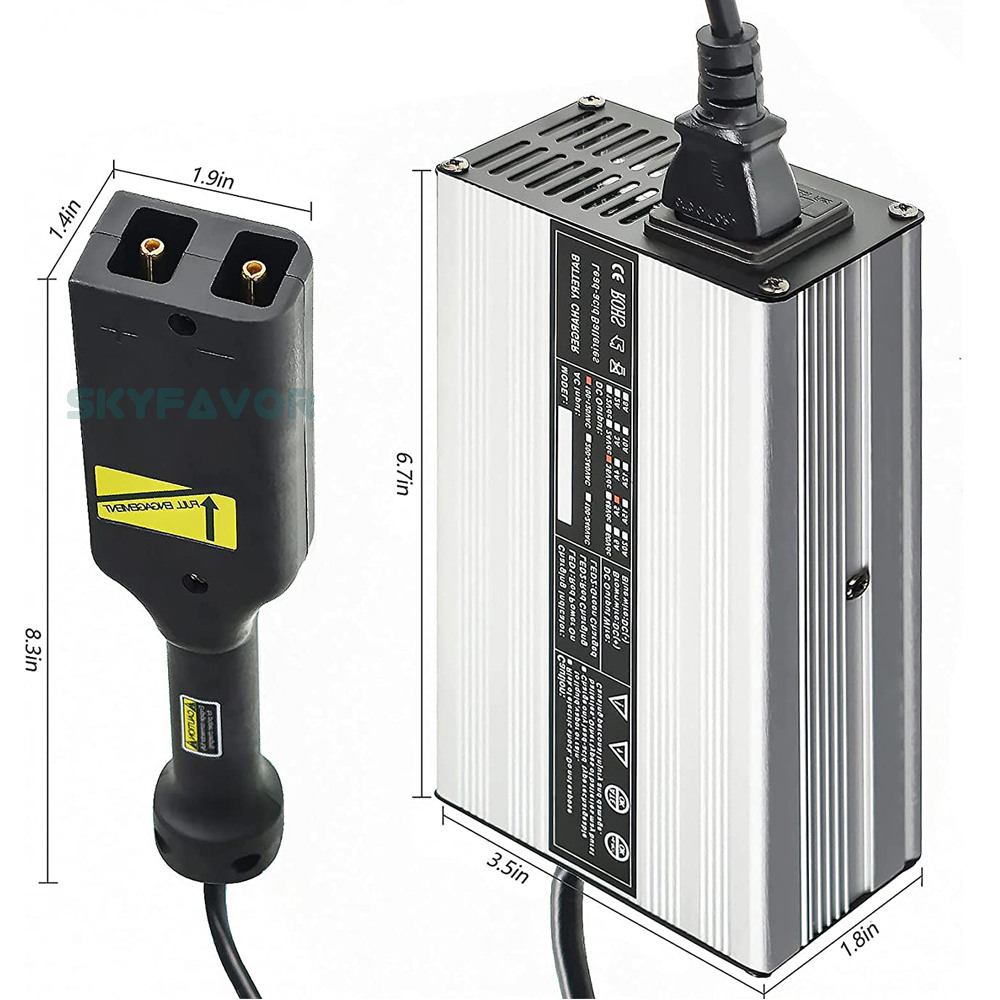

F:DC Connector Dimension:36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart

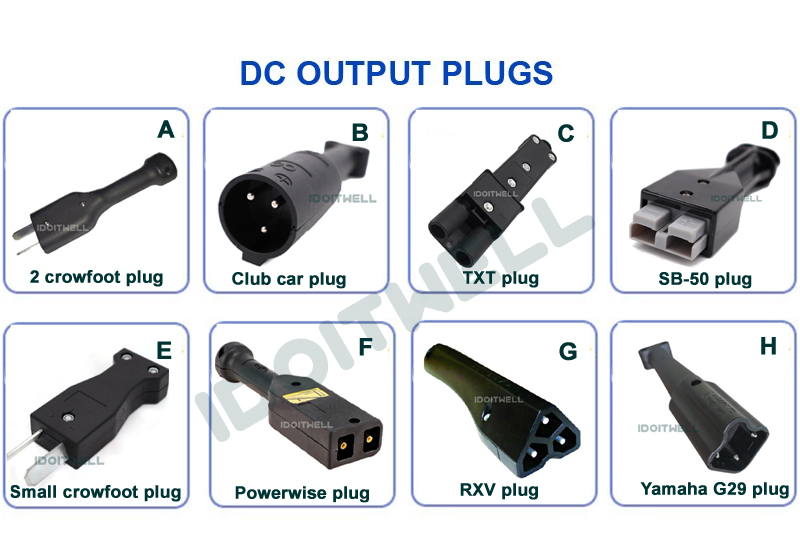

Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
Manufacture time:
The manufacture time of f the battery charger will need 8-12 days, because all the battery chargers are customized according to the customer's requirements, we have not any chargers in stock. If you accept the delivery time, please go ahead to make purchase. Once you place the order, we will treat you accept the manufacture time.
Lead Time:
Normally we will deliver the battery charger by DHL, UPS or Fedex express, it always need 5-8 days on transport.
So you will receive the parcel in 13-20 days after pay for the order.
About import tariff:
1. The price only includes the transportation cost to the shipping address, not including import tariff.
2. In most cases, the buyer does't need to pay any import tariff. But sometimes in some countries, customs officials may be very strict and require buyers to pay corresponding import tariff. If you have to pay import tariff, this is your responsibility to your country. The buyer should understand the local customs import policy before purchasing. Please try to avoid returning the package to China due to tariff issues, which will cause high shipping costs, these will be borne by the buyer.
3. Some buyers require low declarations of the product value in order to avoid paying high import taxes, such as declare 60% of the product value. We can declare the product value according to buyer's requirements, but we will not bear the consequences of false declarations due to low-value declarations.
If the buyer needs a low declaration, please inform us of the declare amount after placing the order. If you do not inform in advance, we may actually declare the product value.
About cancel order:
Once the order be paid it won't be cancelled after 24 hours, as the charger is customized according to buyer's requirement, it is unique. Please read above information carefully and buy with caution.
Thanks for your kind understanding and support!
36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer.
IDOITWELL Smart Automatic battery charger list | |||||||||
Model IDOITWELL | Charging voltage¤t for reference | N.W. (KG) | Size(mm) IDOITWELL | ||||||
12V | 24V | 36V | 48V | 60V | 72V | 84V | |||
120W | 7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 |
180W | 10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 |
240W | 15A | 7.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 |
360W | 20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 |
600W | 25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 |
900W | 40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 |
900WB | 40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 |
1200W | 50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 |
1500W | 60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 |
2000W | 90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 |
2500W | - | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 |
4000W | 150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 400x300x200 |
36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart

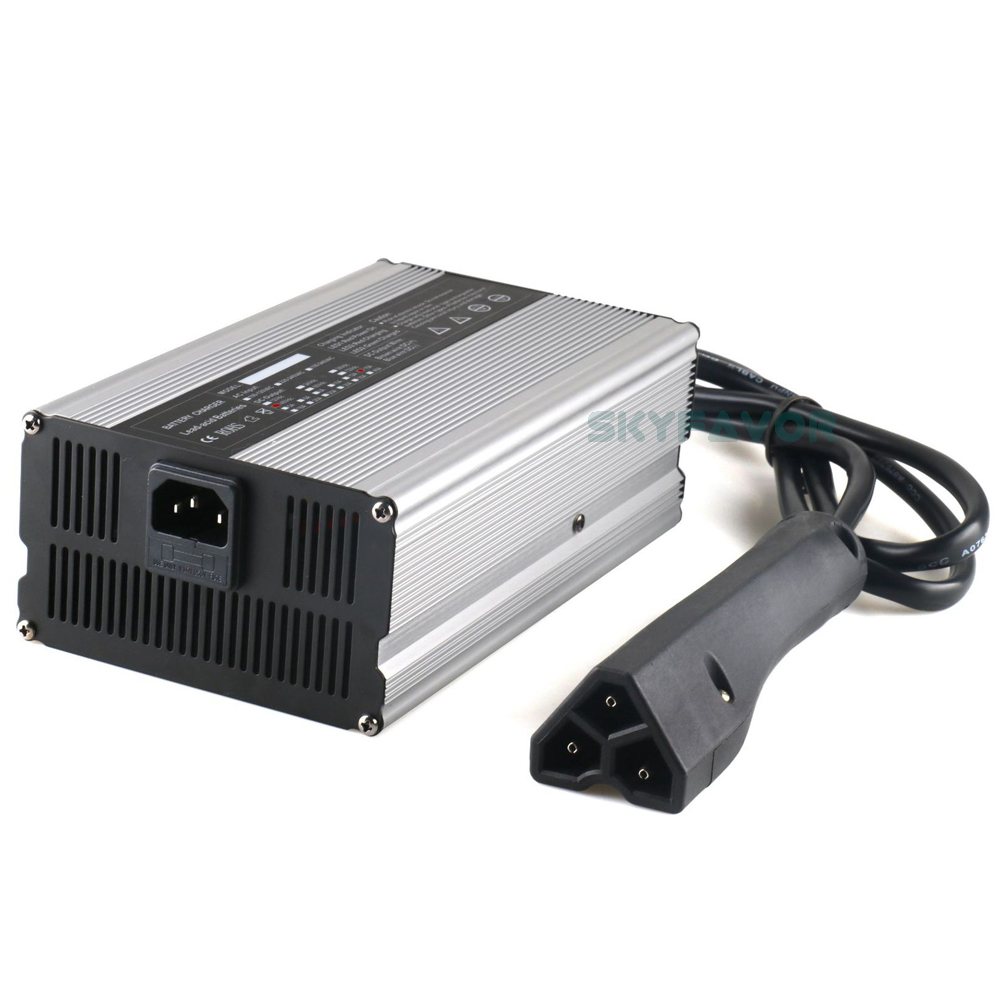

Alternative connections
36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart

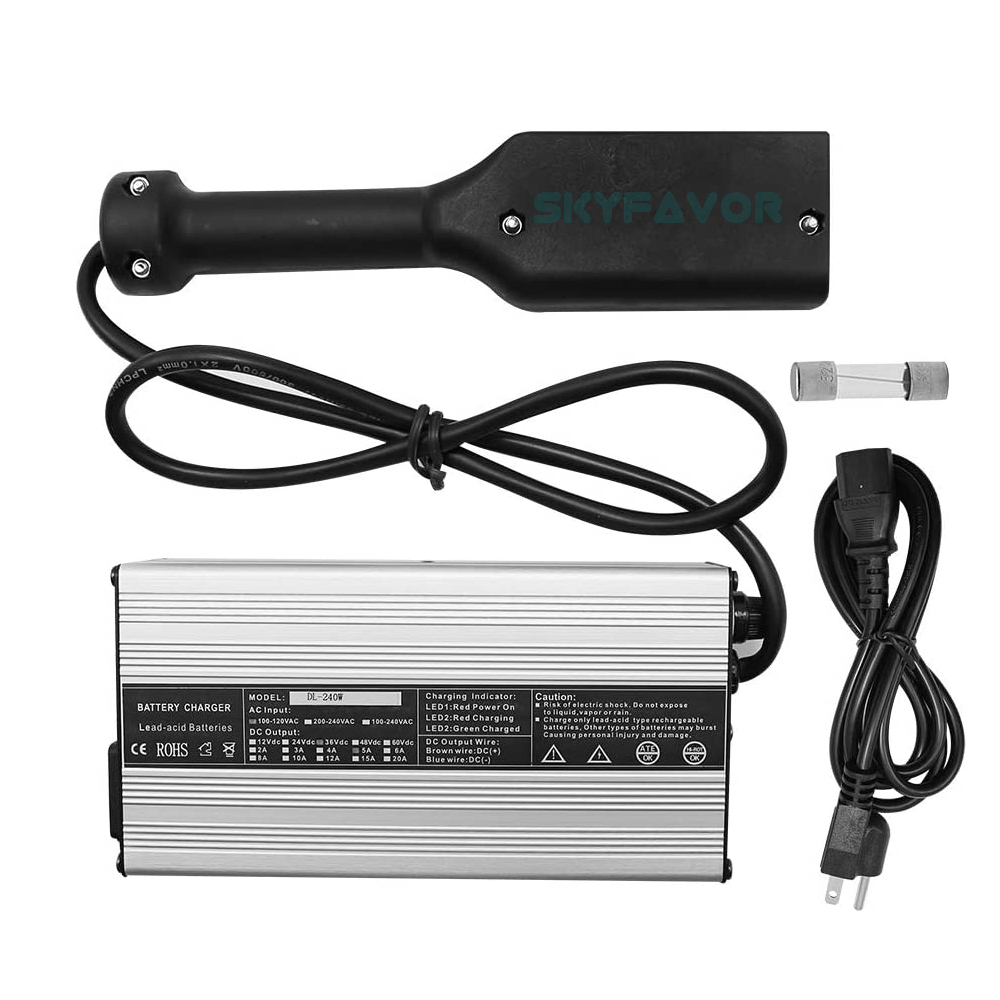

1 x Battery charger
1 x User Manual
About Product:
1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.

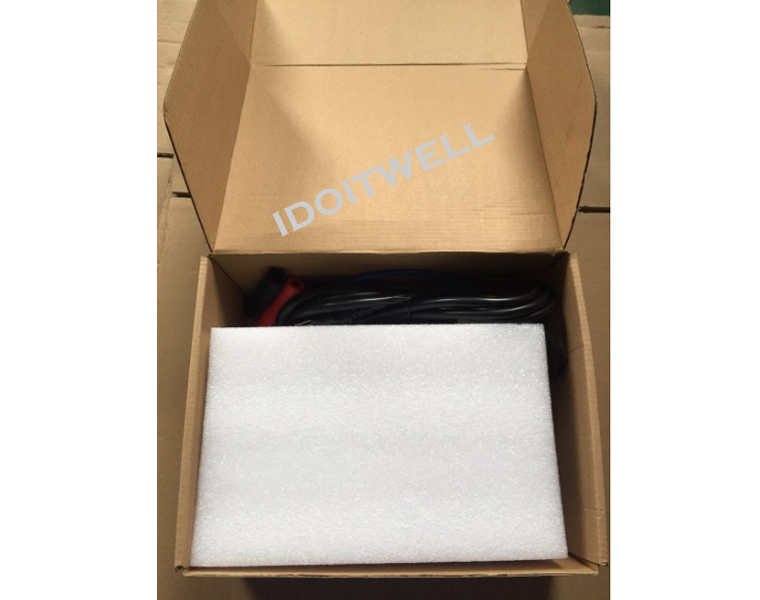

2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.
Feedback:
1. If you are satisfied with our battery charger, Please take a minute to leave us your positive feedback. We depend on customers' satisfaction to succeed. Therefore your positive feedback of 5 STARS is extremely important for us.
2. If you are not satisfied with our battery charger, Please Do not leave any negative feedback before contacting with us. We will do all we can and work with you to solve any problems.
Return and Refund policy:36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart
1. We support no reason return and change item policy, but buyer need to pay full cost for two way transports (include the shipping, taxes and customs cost etc.) and keep the item in good condition, otherwise we will keep right to refuse the refund and return. All the return policy must be apply within 3 days (the time point start from buyer receive the item).
2. If the buyer receive wrong and problem items, please contact us within 3 days, and provide the confirmation proof through Video or Photos. When the item is judged as our responsibility, we provide the refund and return policy. If the item can be accepted and repaired in domestic we will take a part of refund. If can not be repaired or broken totally, we will refund the full money or change a new one to buyer when we receive the wrong or problems items.
3. When the refund policy can not solve problems, we accept the return policy, but for return policy buyer need to afford one way cost (the shipping, taxes and customs cost from your country to us), and when we receive the return items we will refund the money.
We are not recommending the return policy, because that cause high cost for both of us.
Contact Us:36 Volt Battery Charger Replacement for EZGO TXT Medalist Golf Cart
1. Before place order, firstly please take a moment to read all the information provided here where your most questions' answers are.
2. You can contact with us by trade manager or by email, we track the message everyday.
E-mail
Whatsapp
+86-13760182496
