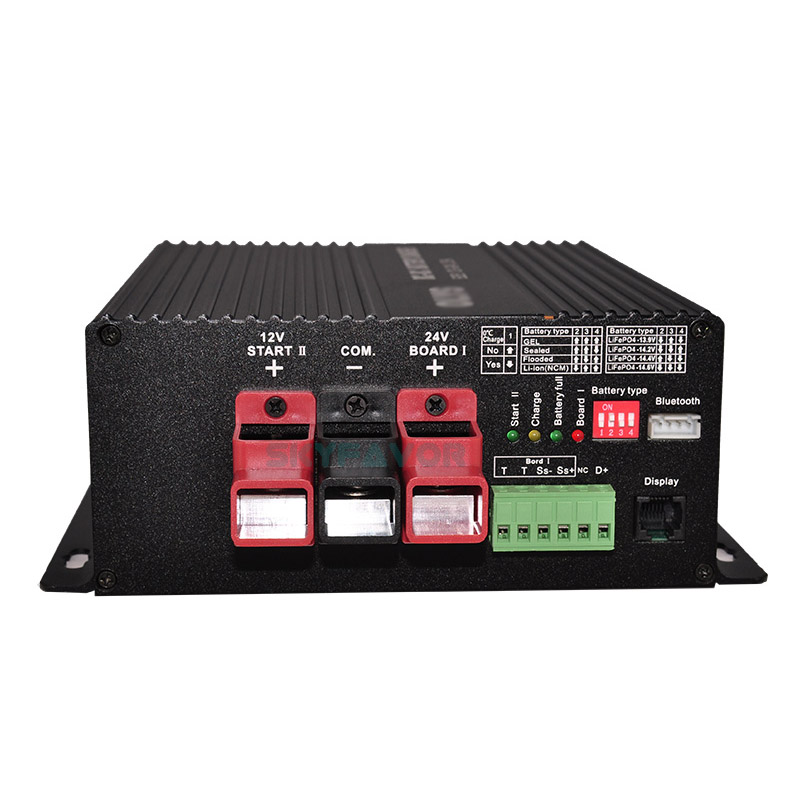

On Board Dc to Dc Battery Charger 24Vdc to 12Vdc 60A Universal Fast Automatic Camper Trailer Yacht 4WD RV Battery Charger
Key attributes
Packaging and delivery
Description
(DC TO DC battery charger)On board dc to dc battery charger 24Vdc to 12Vdc 60A Universal fast automatic camper Trailer Yacht 4WD RV battery charger
| Name | Dc to dc battery charger 24Vdc to 12Vdc 60A Universal fast automatic RV battery charger |
| Model | 241260BTOB |
| Main Battery voltage | 12V |
| Main battery type | GEL,Sealed,Flooded/AGM,Lifepo4,Lithium-ion(NCM) |
| Starter battery voltage | 24V |
| Starter battery type | Lead acid |
| DC-DC Max charging power | 780W |
| Main battery Max charging current | 60A |
| Self-consumption current | 24ma |
| Dimension | 215X194X70mm |
| Weight | 1.8kg |

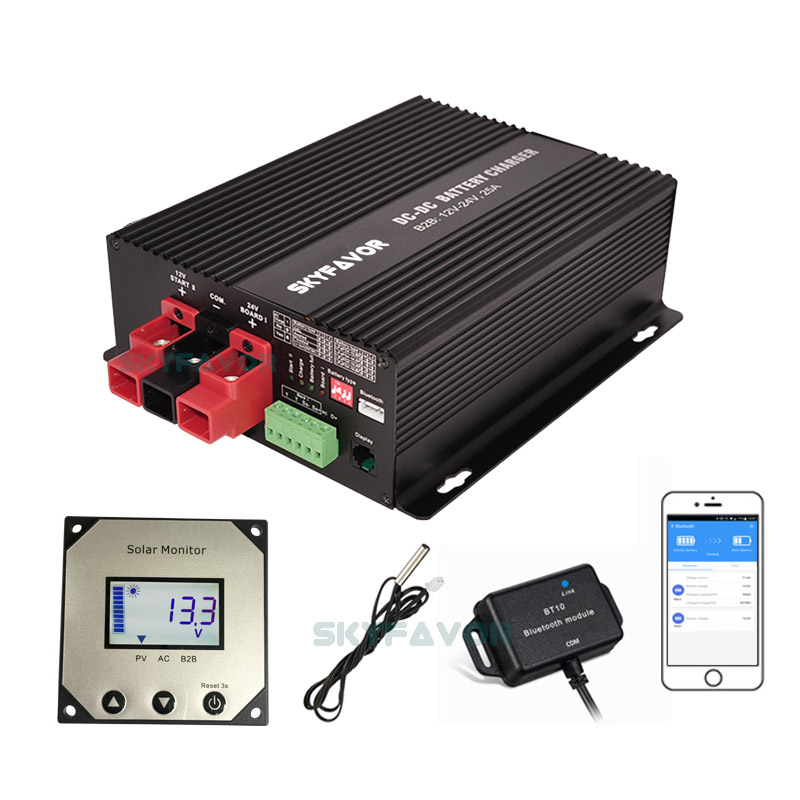

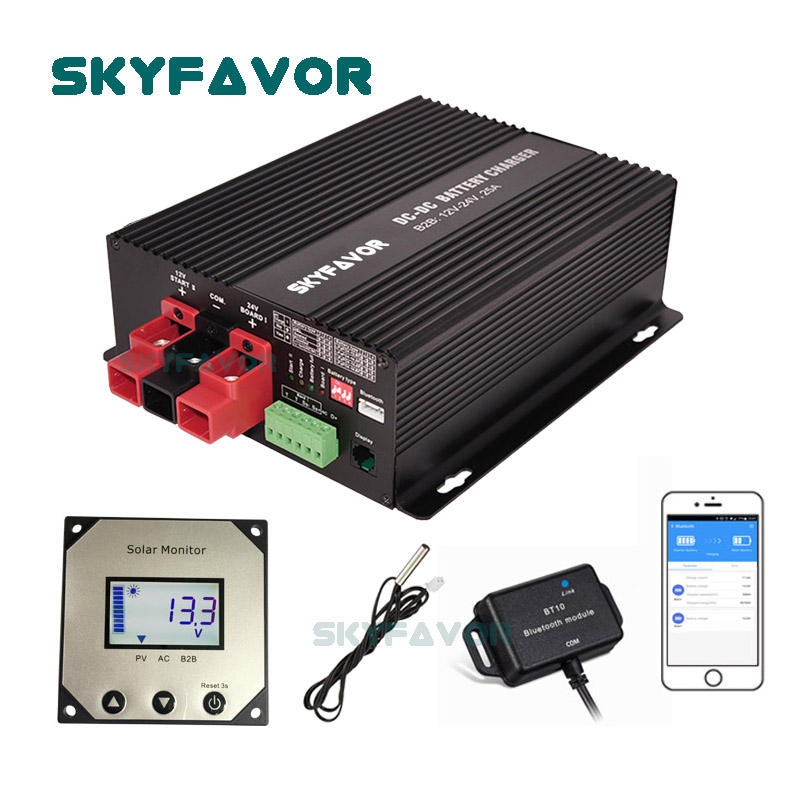

| Accessories(Optional) | Monitor(MT2) Bluetooth Dongle(BT10) Temperature Sensor(TRS) |
Remark: Above pictures are for reference only, the price does not include the following accessories: Monitor (MT2), Bluetooth Dongle (BT10) and Temperature Sensor (TRS).
If you need accessories, please purchase from following link:
This is a automatic DC-DC charger that can charge the main battery through the and starter battery, or Solar panels charge the main battery (some models), DC-DC battery charger designed specifically for motorhomes, campers, ships, etc.

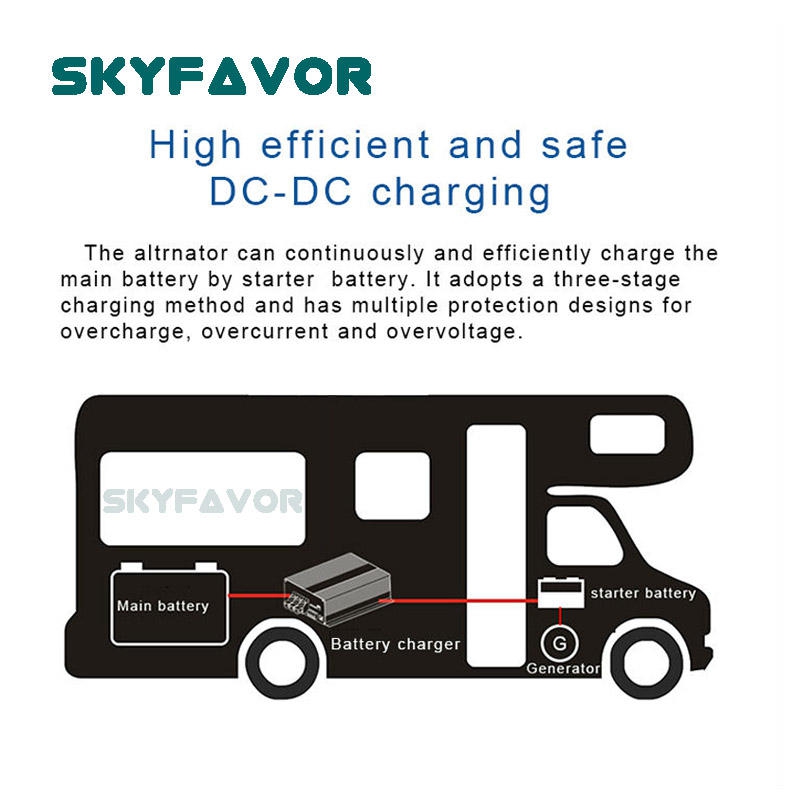

B2B Charge:
It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle, you can also use one battery to charge another battery
1. When the vehicle is running, the vehicle alternator can quickly charge the main battery through the charger at full power
2. The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard.
Dc to dc battery charger 24Vdc to 12Vdc 60A Universal fast automatic RV battery charger
Other functions
1. Fully automatic charging: In order to continuously charge the battery, the controller can always be connected to the car battery. When the charging energy is stopped, such as the car stops driving, the battery will not discharge in the reverse direction.
2. Multiple protection functions: with overheating, overvoltage, short circuit, wrong connection protection
3.External temperature sensor: The ambient temperature will affect the parameters for charging the battery. The controller needs to perform parameter compensation according to the temperature of the battery, especially in places with large temperature changes. It is strongly recommended to install a temperature sensor.
Note: Lithium batteries do not require temperature compensation
4. Lithium battery automatic wake-up function: When the lithium battery BMS is protected for some reason, the controller can automatically wake up the BMS and continue to charge the lithium battery
Dc to dc battery charger 24Vdc to 12Vdc 60A Universal fast automatic RV battery charger
!Battery life and efficiency
1 Ensure that the battery installation environment is ventilated and dissipated. The LiFePO4 battery is recommended to work in an environment above 0 degrees Celsius, otherwise the battery characteristics will drop a lot
2. The battery must be fully charged and stored, and it must be charged regularly to ensure that it is not stored under power, otherwise it will affect the battery life
3. Lead-acid batteries that are completely empty must be charged as soon as possible, otherwise it may cause permanent damage!
4. The lithium battery must have a BMS (Battery Management System). Try to avoid completely emptying the battery.
Dc to dc battery charger 24Vdc to 12Vdc 60A Universal fast automatic RV battery charger
Dc to dc battery charger 24Vdc to 12Vdc 60A Universal fast automatic RV battery charger
We are the professional manufacturer of all kinds of the battery chargers, such as SLA, AGM,GEL lead-acid battery charger, lithium battery charger, lifepo4 battery charger, etc. We can customize all kinds of battery charger for every customer, any quantity is ok.
Smart Automatic battery charger list | |||||||||
Model | Charging voltage¤t for reference | N.W. (KG) | Size(mm) | ||||||
12V | 24V | 36V | 48V | 60V | 72V | 84V | |||
120W | 7A | 4A | 2.5A | 1.8A | 1.5A | _ | _ | 0.7 | 135x90x50 |
180W | 10A | 5A | 3.5A | 2.5A | 2A | 1.5A | _ | 0.9 | 155x90x50 |
240W | 15A | 8.5A | 5A | 3.8A | 3A | 2.5A | _ | 1 | 170x90x50 |
360W | 20A | 12A | 8A | 6A | 4.5A | 4A | _ | 1.2 | 170x90x63 |
600W | 25A | 19A | 12A | 9A | 7A | 6A | _ | 2.5 | 207x120x70 |
900W | 40A | 25A | 18A | 15A | 12A | 10A | _ | 3 | 220x135x70 |
900WB | 40A | 25A | 18A | 15A | 12A | 10A | 8A | 3.5 | 260x175x90 |
1200W | 50A | 30A | 20A | 19A | 15A | 12A | 10A | 4.5 | 260x175x90 |
1500W | 60A | 45A | 30A | 24A | 19A | 16A | 14A | 5.5 | 300x175x90 |
2000W | 90A | 60A | 40A | 30A | 25A | 20A | 18A | 6.5 | 330x175x115 |
2500W | - | 75A | 50A | 40A | 30A | 25A | 22A | 7 | 380x240x150 |
4000W | 150A | 100A | 80A | 60A | 45A | 40A | 35A | 11 | 400x300x200 |
Dc to dc battery charger 24Vdc to 12Vdc 60A Universal fast automatic RV battery charger
1 x Battery charger
1 x User Manual
Dc to dc battery charger 24Vdc to 12Vdc 60A Universal fast automatic RV battery charger
1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.

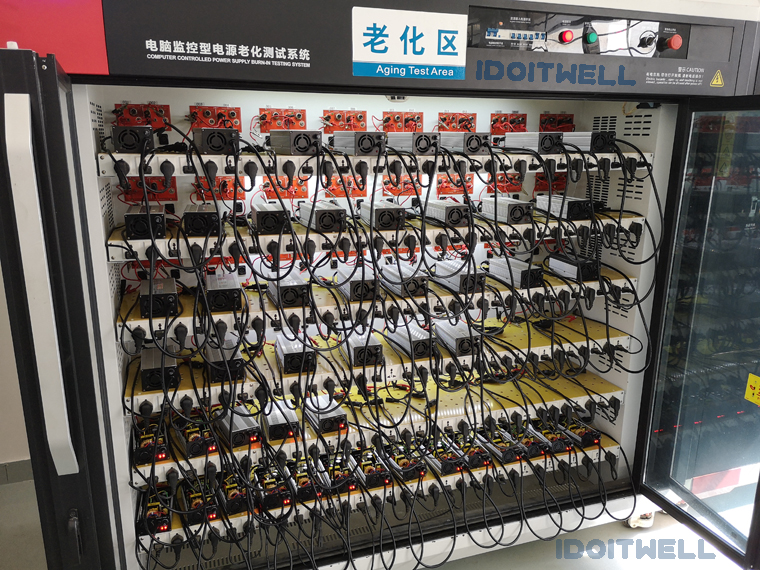

2.Before sending, all the battery chaRger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.
